Non-Pressure System

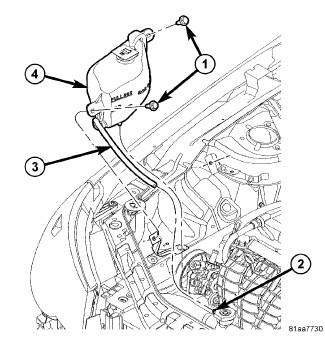

Fig 1: Identifying Coolant Recovery Container - 2.0/2.4l

Courtesy of CHRYSLER GROUP, LLC

1 - BOLT

2 - RADIATOR NIPPLE

3 - HOSE

4 - COOLANT RECOVERY CONTAINER - NON-PRESSURE

The coolant recovery system consists of a container and an overflow hose that is connected to the coolant outlet connector. The coolant recovery container is mounted in the right side engine compartment.
