Sensor, Impact: Installation: Front
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbags, airbag curtains, knee blocker, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect the Intelligent Battery Sensor (IBS)/negative battery cable assembly from the negative battery post, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
To avoid serious or fatal injury, never strike or drop the front impact sensor, as it can damage the impact sensor or affect its calibration. The front impact sensor enables the system to deploy the front Supplemental Restraint System (SRS) components. If an impact sensor is accidentally dropped during service, the sensor must be scrapped and replaced with a new unit. Failure to observe this warning could result in accidental, incomplete, or improper front SRS component deployment.

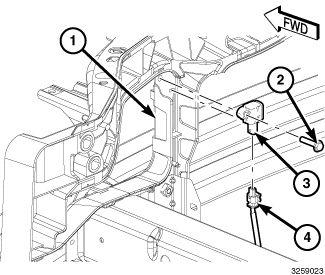

- Position the right or left front impact sensor (3) to the back of the Front End Module (FEM) vertical support member (1) between the cooling module and the front lamp unit opening.
- Be certain to engage the locating pin integral to the sensor into the locating hole in the FEM vertical support member.
- Install and tighten the screw (2) that secures the sensor to the FEM vertical support member. Tighten the screw to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
- Connect the headlamp and dash wire harness connector (4) to the sensor connector receptacle.
- For the left hand side only, position the engine air cleaner assembly to the FEM structural support and install the fastener that secures the air cleaner assembly.
- Do not connect the negative battery cable at this time. The Supplemental Restraint System (SRS) Verification Test procedure should be performed following service of any SRS component. Refer to SUPPLEMENTAL RESTRAINT SYSTEM VERIFICATION TEST .
