Wireless Charging Module

REMOVAL

1. Using a trim stick or equivalent, release the lower access cover front retaining clips and slide the lower access cover forward to disengage rear tabs.
2. Disconnect the wire harness connector and remove access cover.

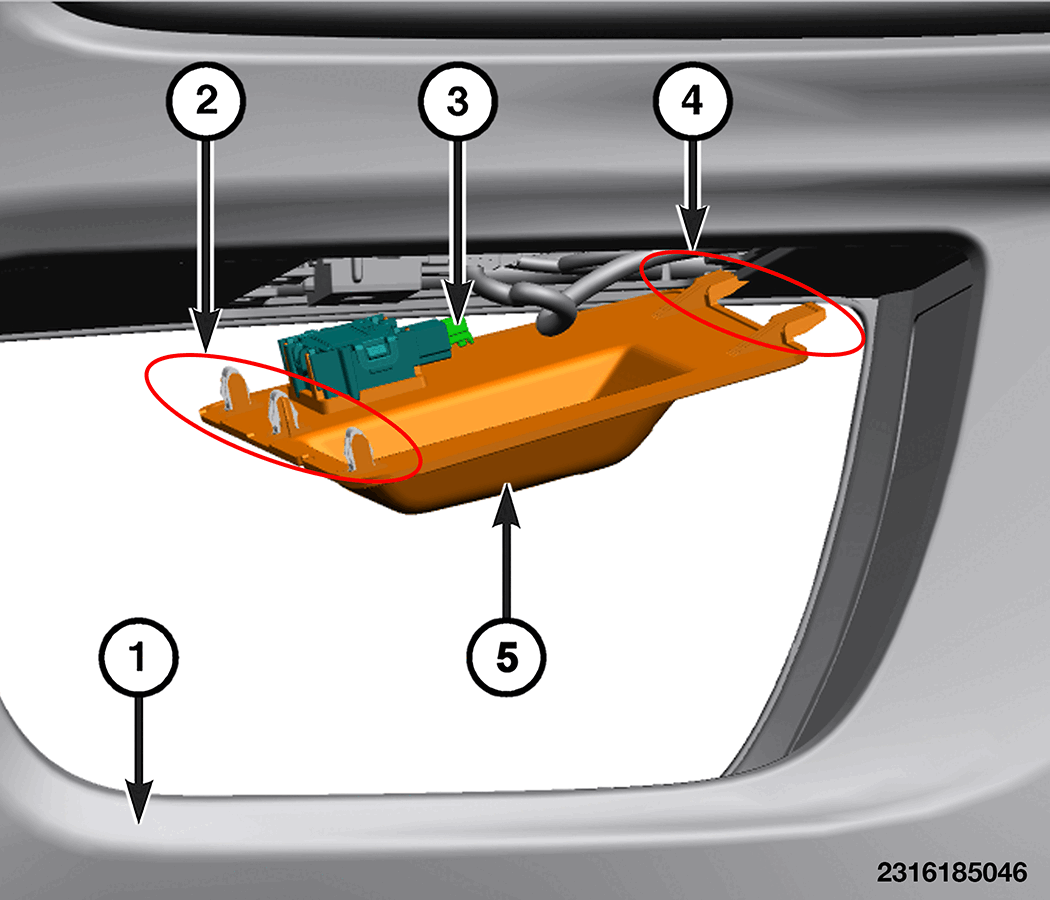

   Courtesy of CHRYSLER GROUP, LLC

   1 - Floor Console

   2 - Retaining Clips

   3 - Wire Harness Connector

   4 - Rear Tabs

   5 - Access Cover

3. Working through the lower access, disconnect the wire harness.

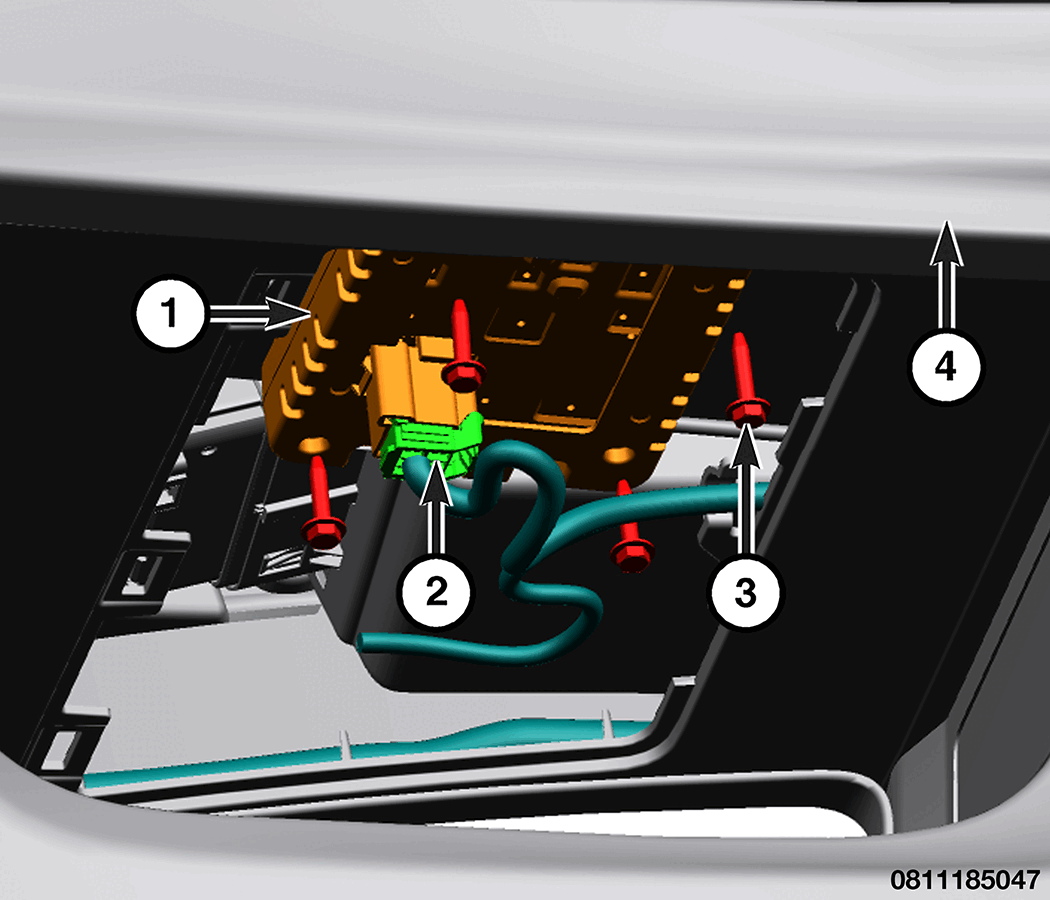

   Courtesy of CHRYSLER GROUP, LLC

   1 - Wireless Charging Module

   2 - Wire Harness

   3 - Fasteners

   4 - Floor Console

4. Remove the fasteners and lower the wireless charging module through the access and remove from the floor console.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Install the fasteners and tighten securely.
• Slide the lower access cover rear tabs into the floor console and lift up to engage the front retaining clips.
• Verify the retaining clips are fully engaged.
