DTC P1635: Pcm/ECM 5-Volt Reference Line Low: Notes

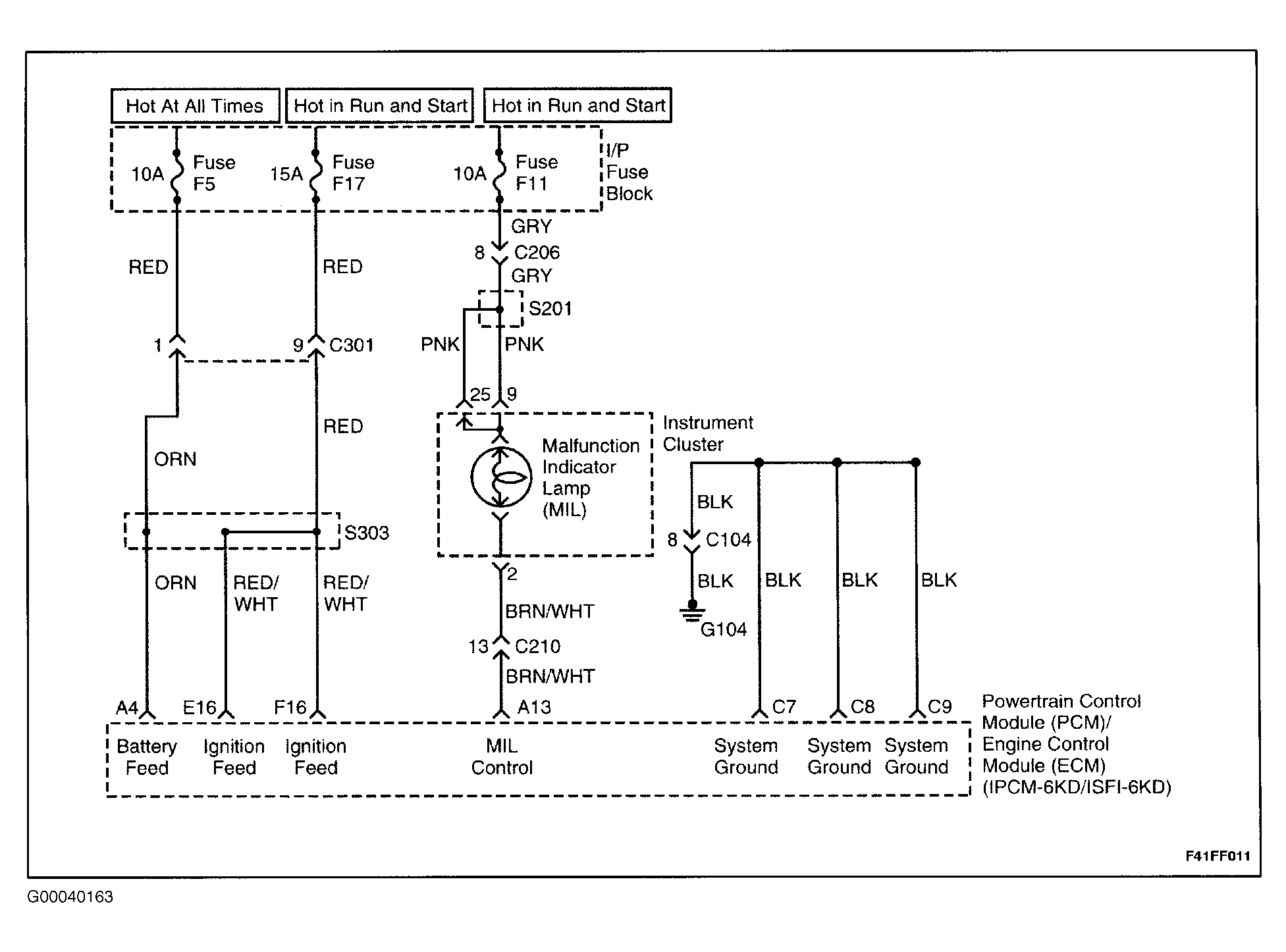

Fig 1: PCM/ECM Circuit Diagram

G00040163

Courtesy of DAEWOO
