Component Locator

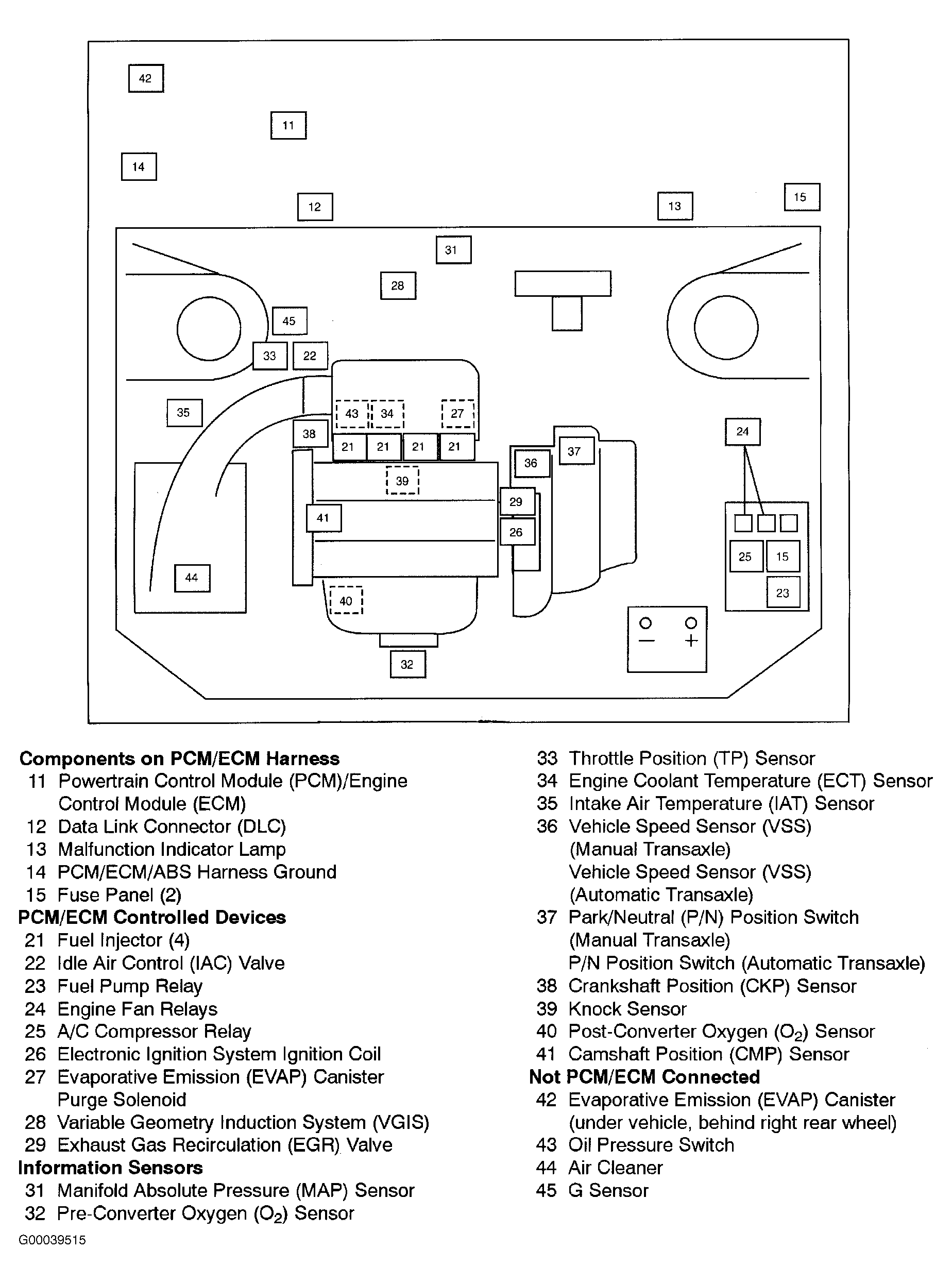

Fig 1: Component Locator - SOHC
Courtesy of DAEWOO

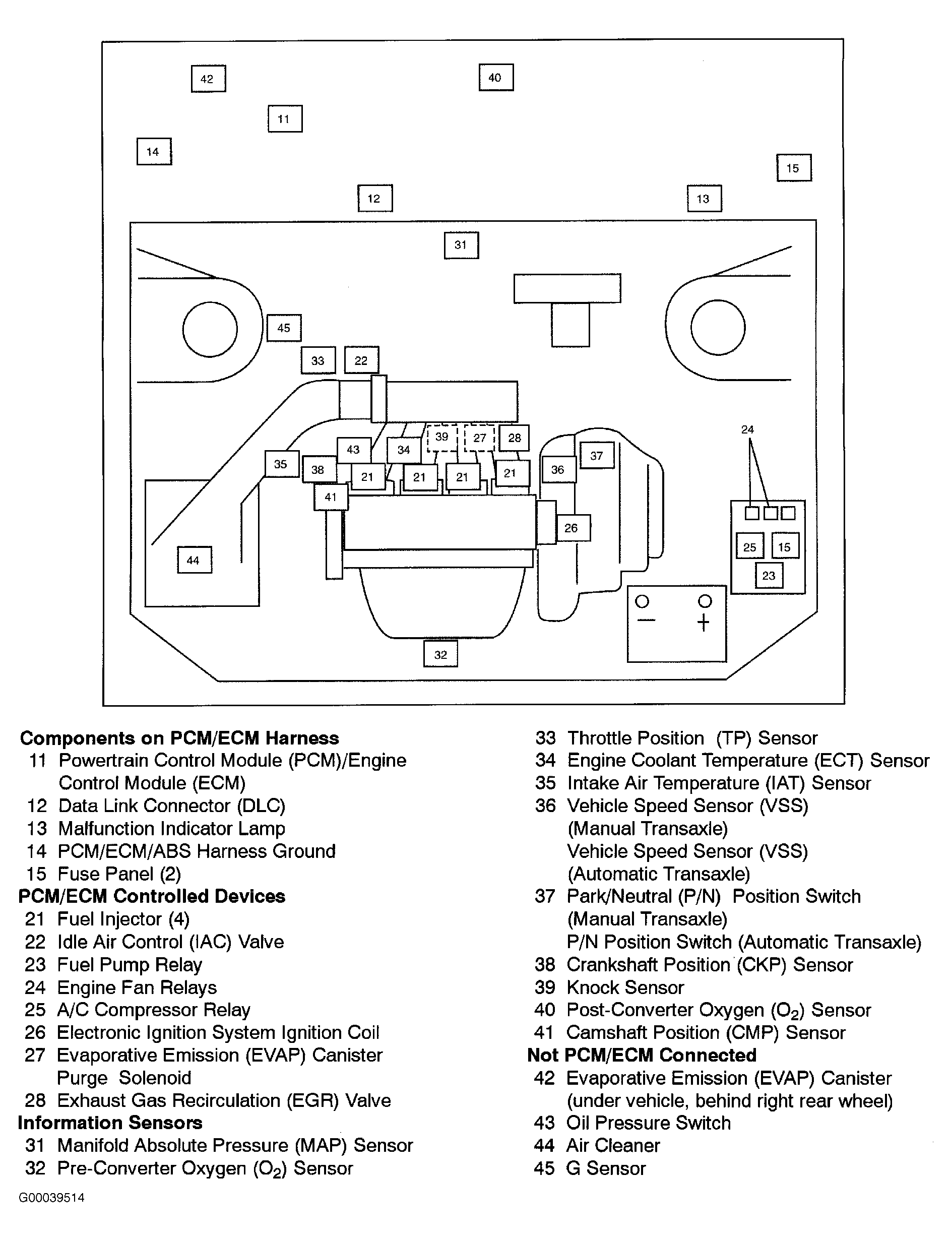

Fig 2: Component Locator - DOHC
Courtesy of DAEWOO
Courtesy of DAEWOO
Courtesy of DAEWOO
