Idle Air Control System Check: Notes

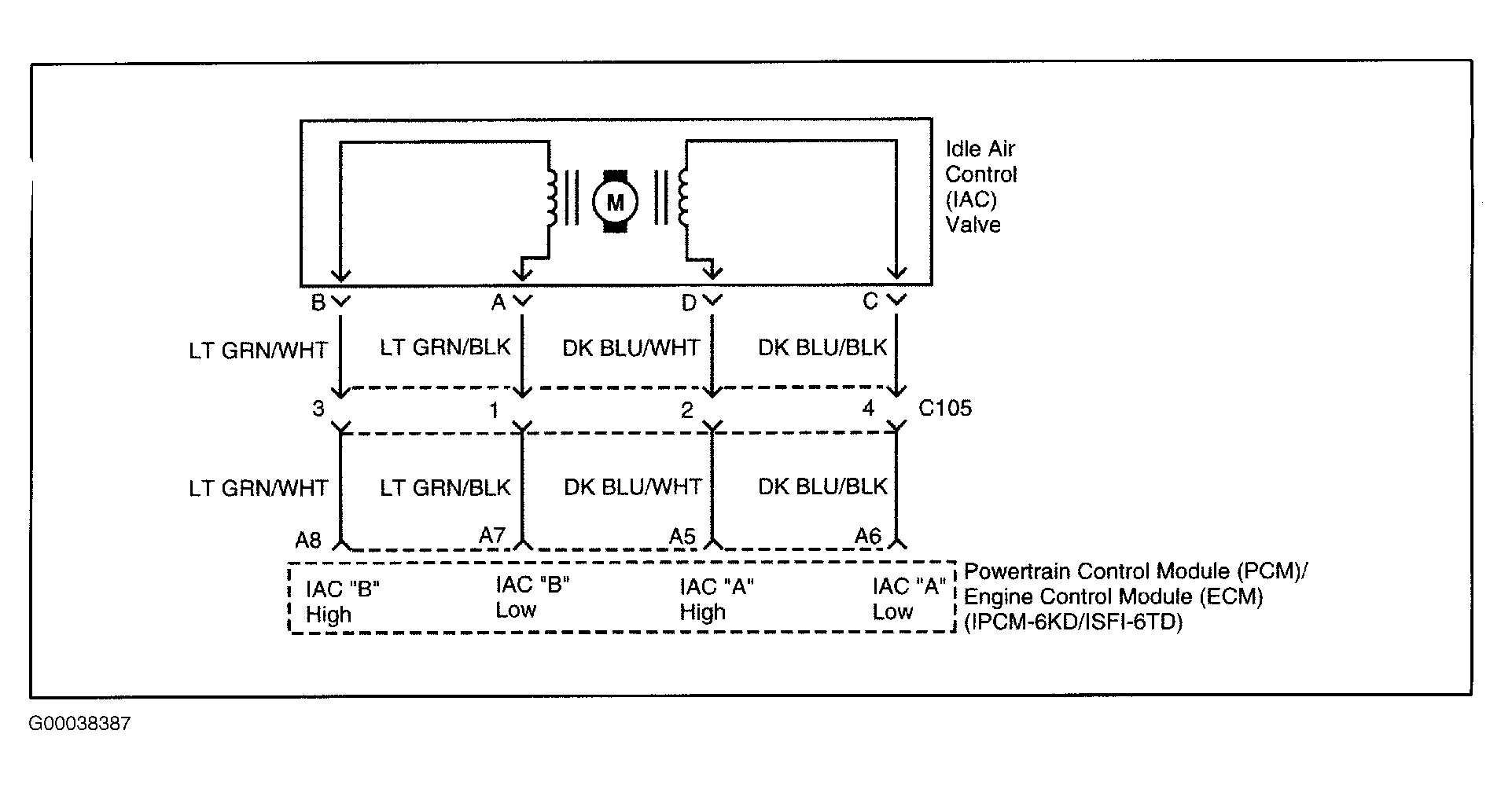

Fig 1: Idle Air Control Circuit Diagram

G00038387

Courtesy of DAEWOO
