Data Display Tables

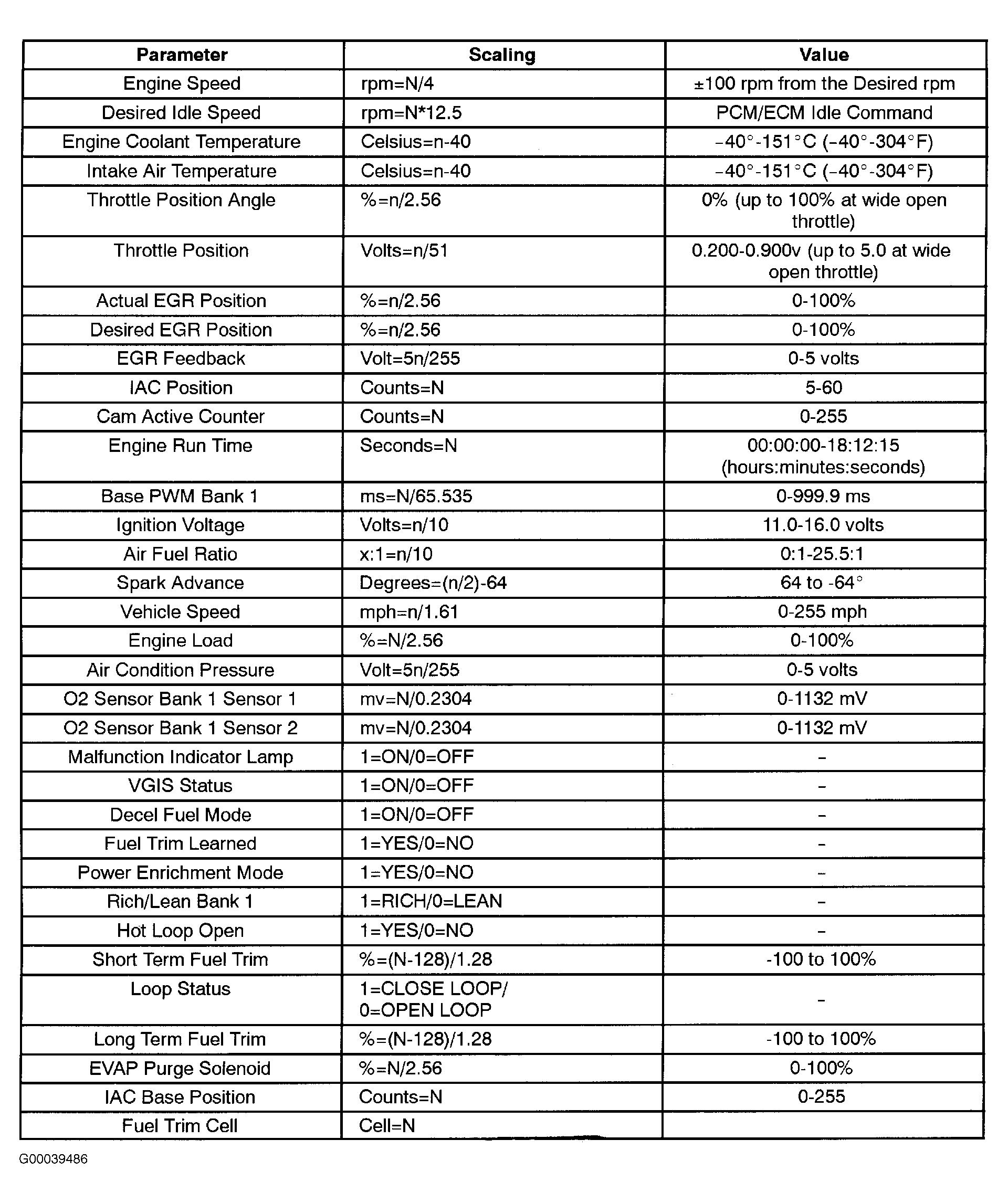

Fig 1: Engine Data Display 01 (1 Of 2)

G00039486

Courtesy of DAEWOO

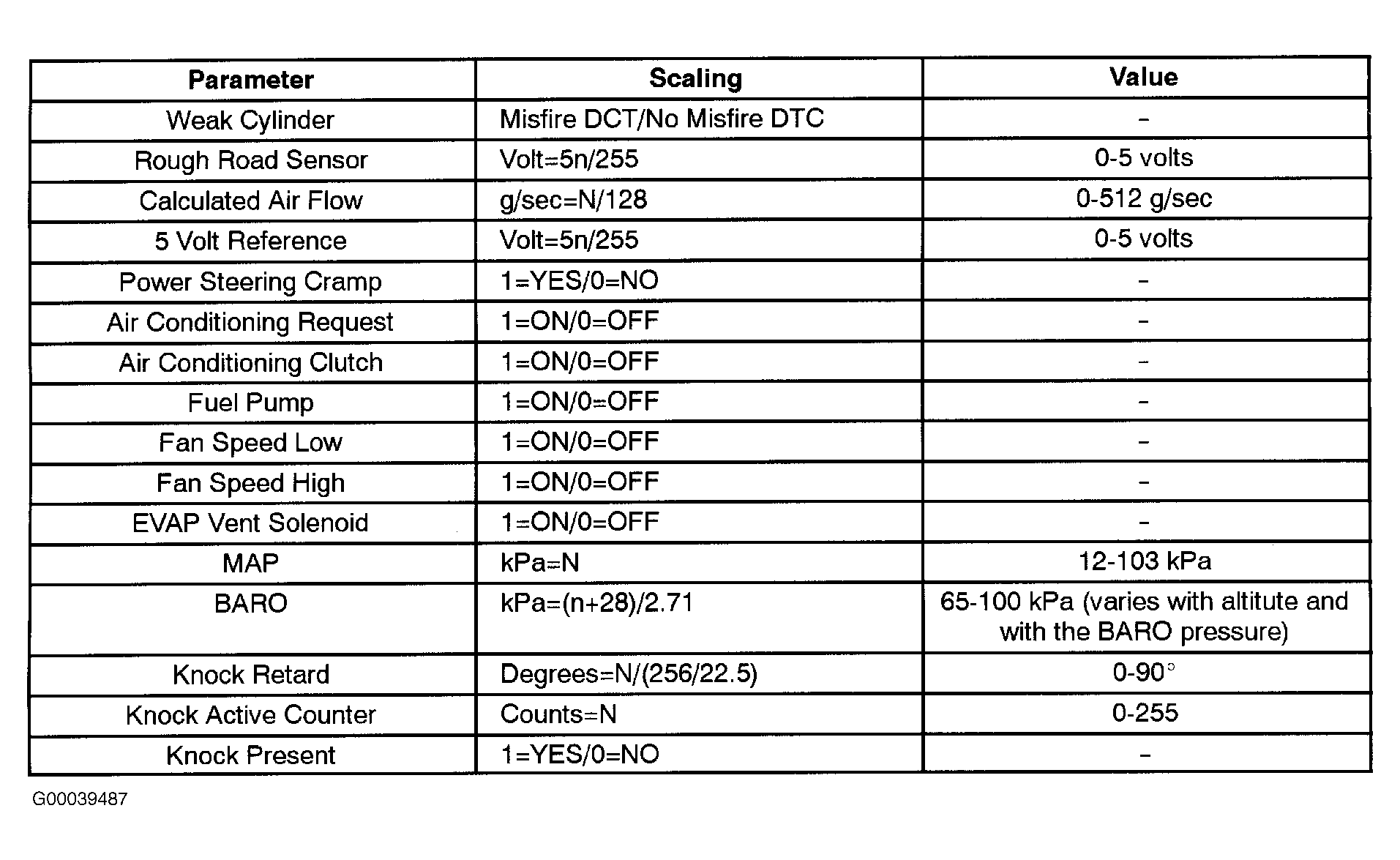

Fig 2: Engine Data Display 01 (2 Of 2)

G00039487

Courtesy of DAEWOO

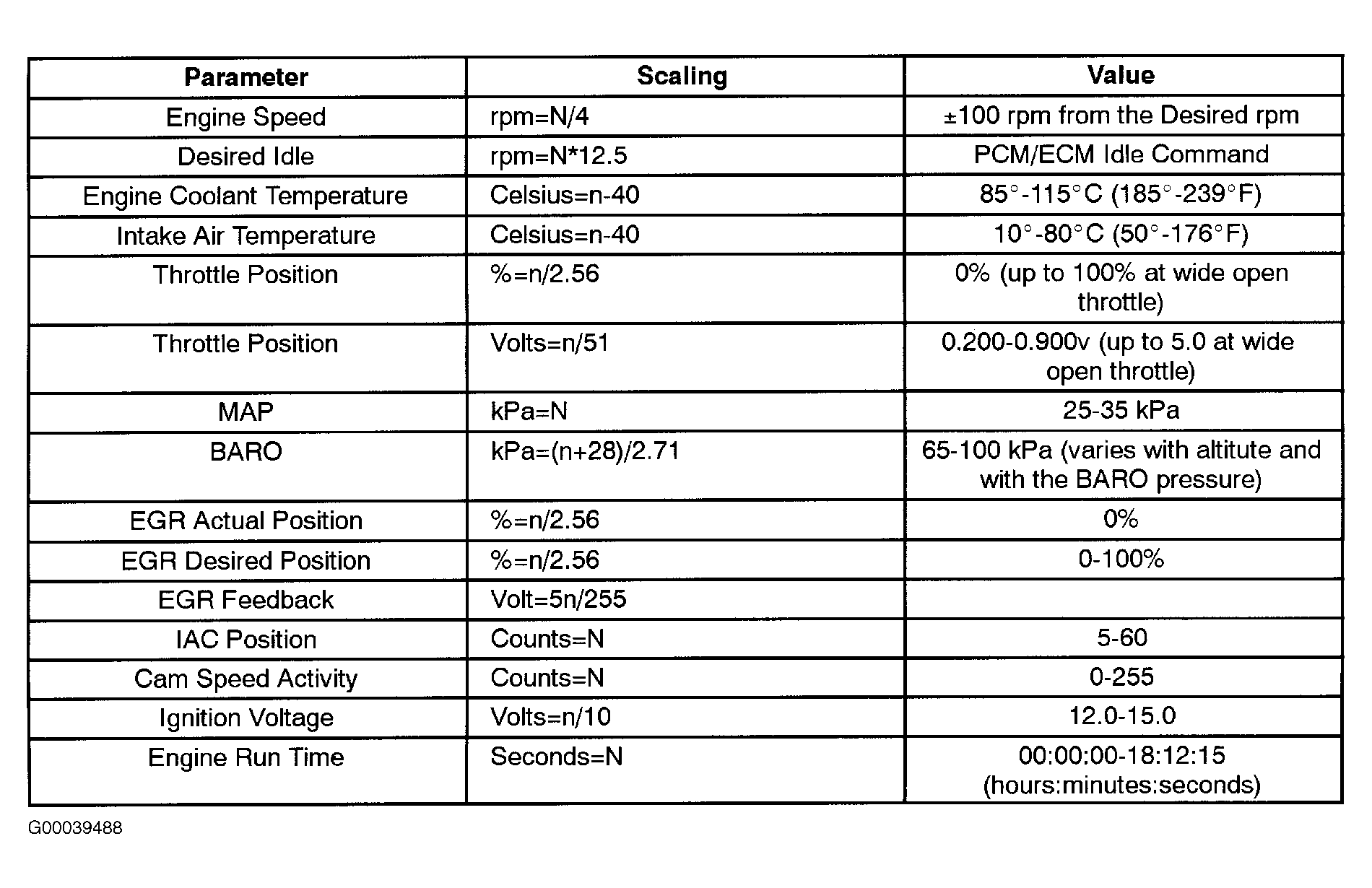

Fig 3: Engine Data Display 02 (1 Of 2)

G00039488

Courtesy of DAEWOO

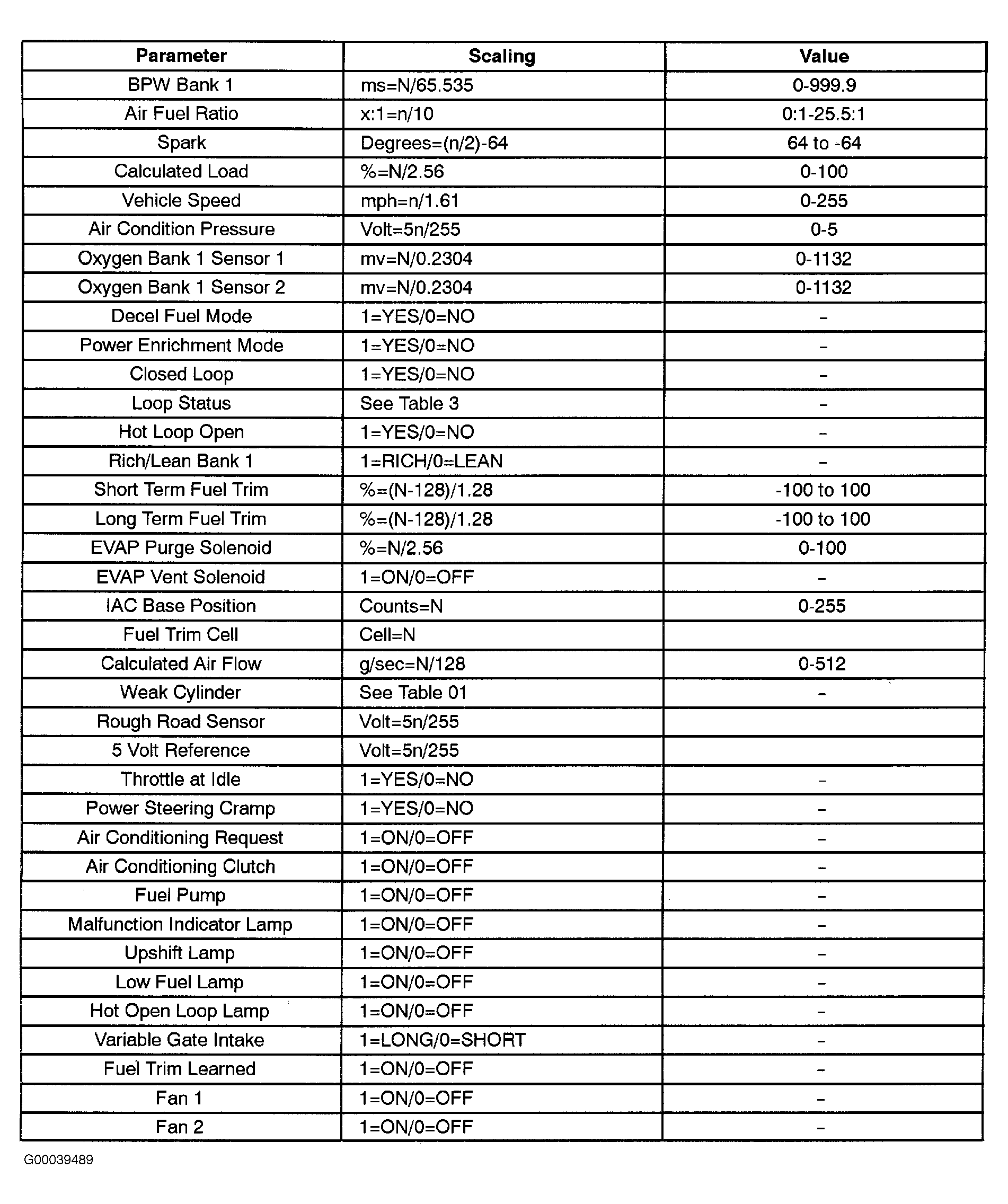

Fig 4: Engine Data Display 02 (2 Of 2)

G00039489

Courtesy of DAEWOO

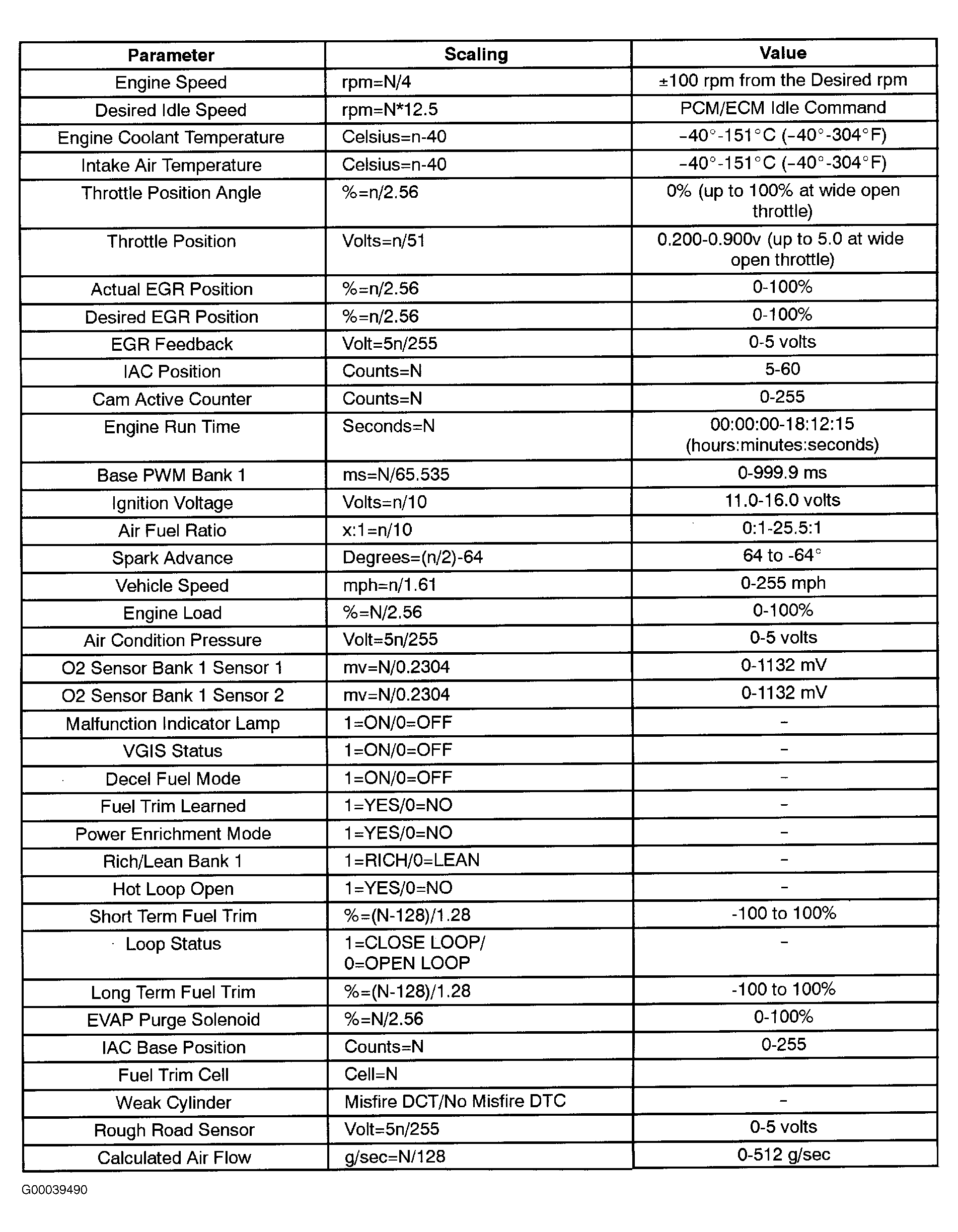

Fig 5: Engine Data Display 03 (1 Of 2)

G00039490

Courtesy of DAEWOO

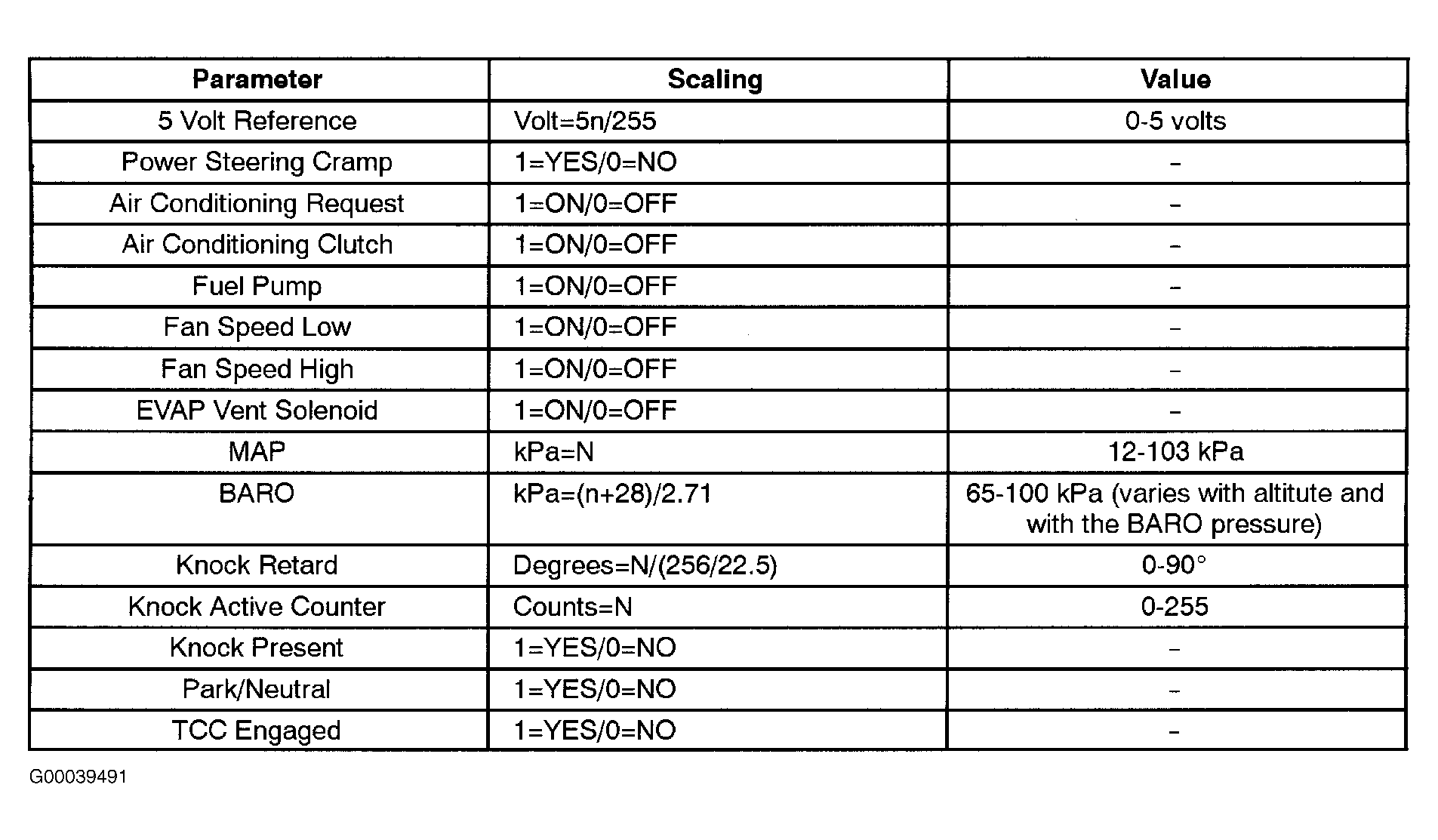

Fig 6: Engine Data Display 03 (2 Of 2)

G00039491

Courtesy of DAEWOO

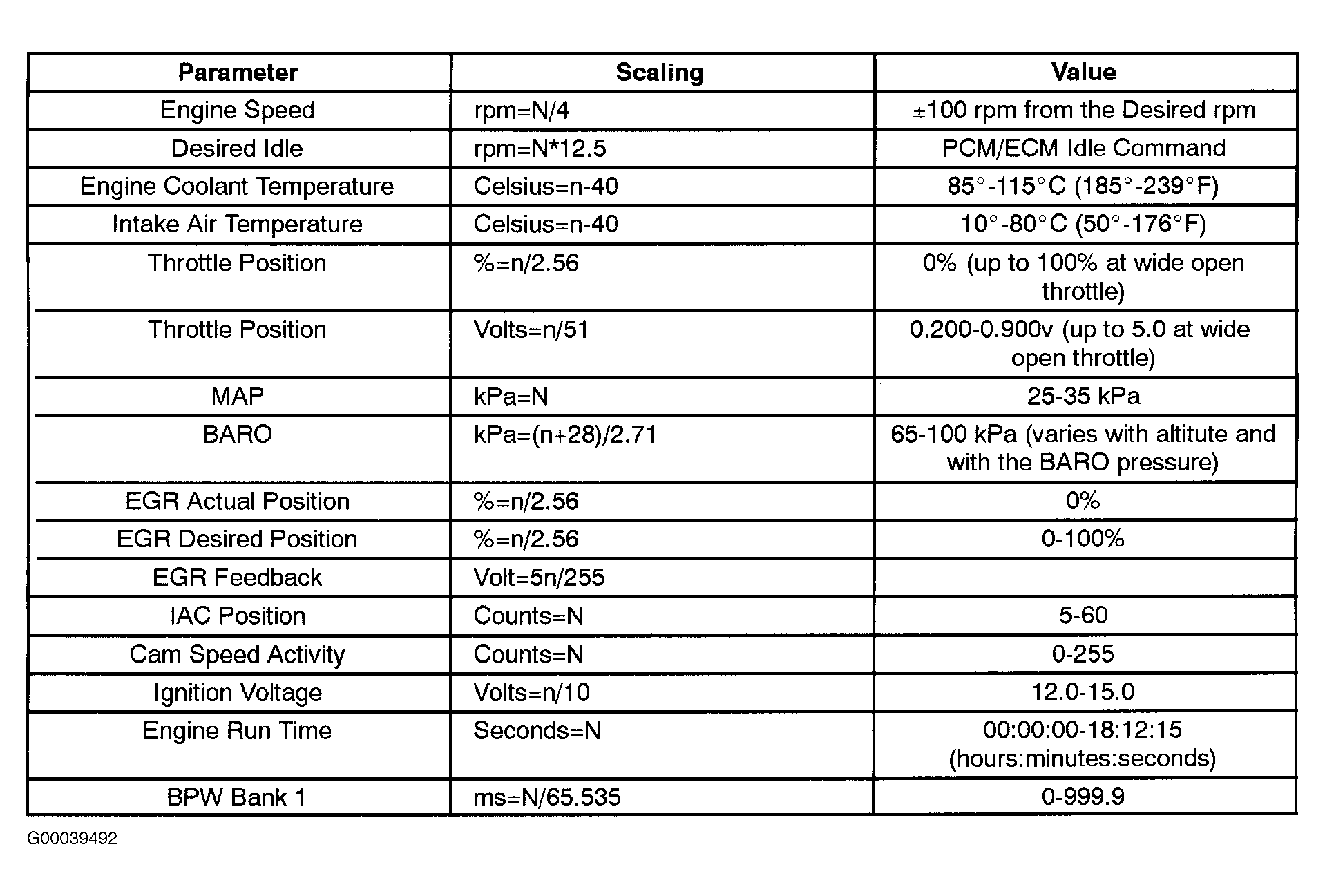

Fig 7: Engine Data Display 04 (1 Of 2)

G00039492

Courtesy of DAEWOO

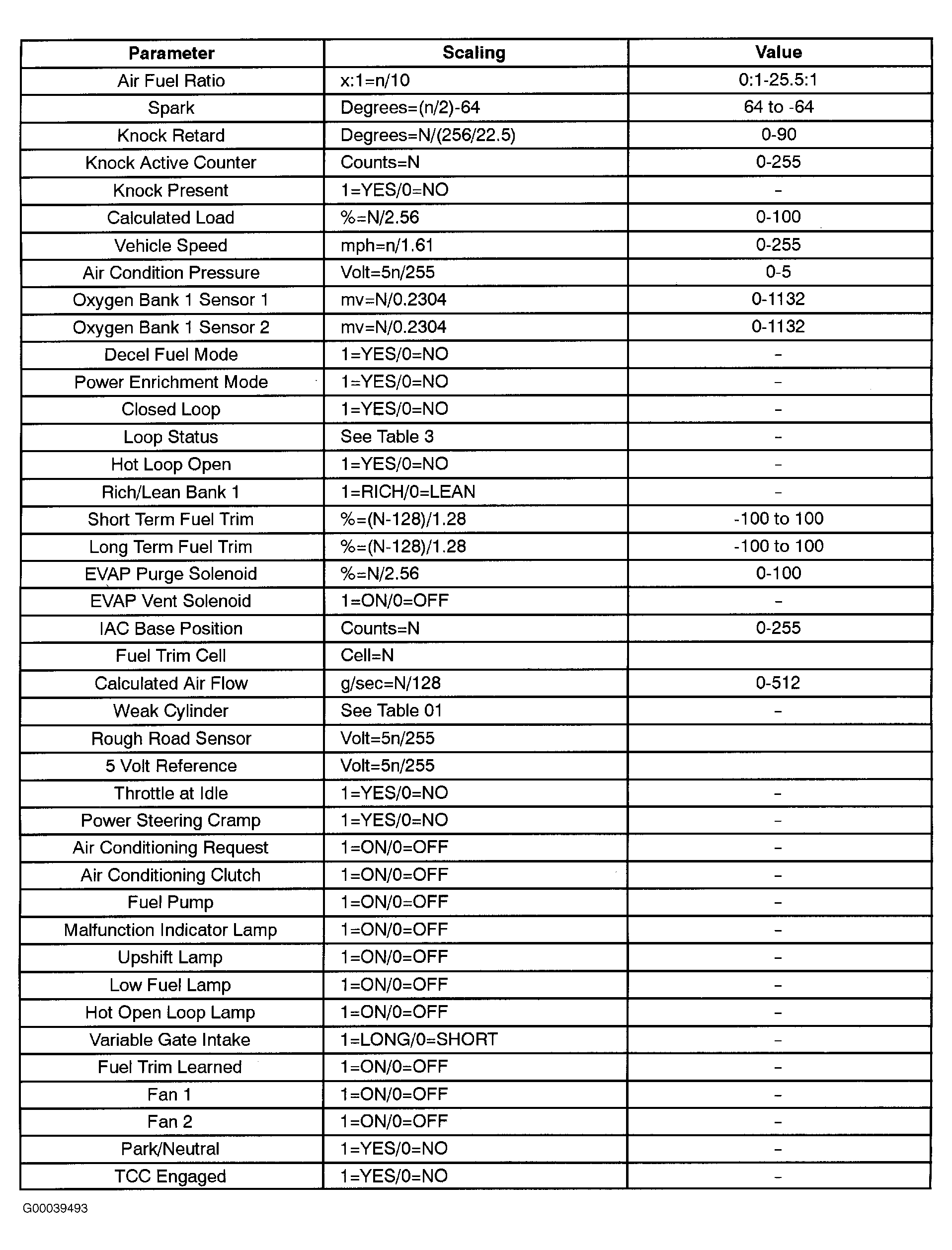

Fig 8: Engine Data Display 04 (2 Of 2)

G00039493

Courtesy of DAEWOO
