EVAP Data Display

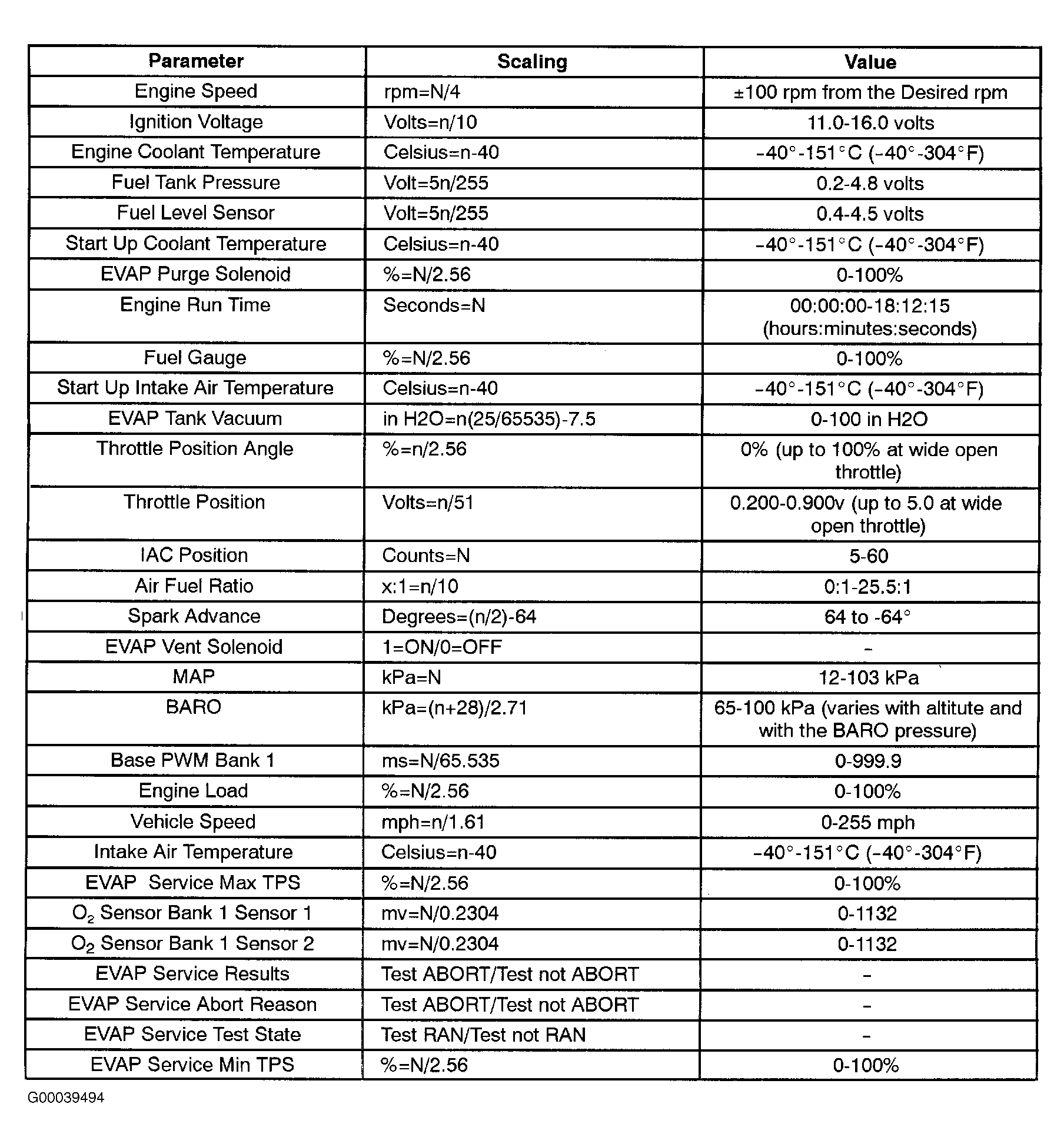

Fig 1: EVAP Data Display 01
G00039494Courtesy of DAEWOO

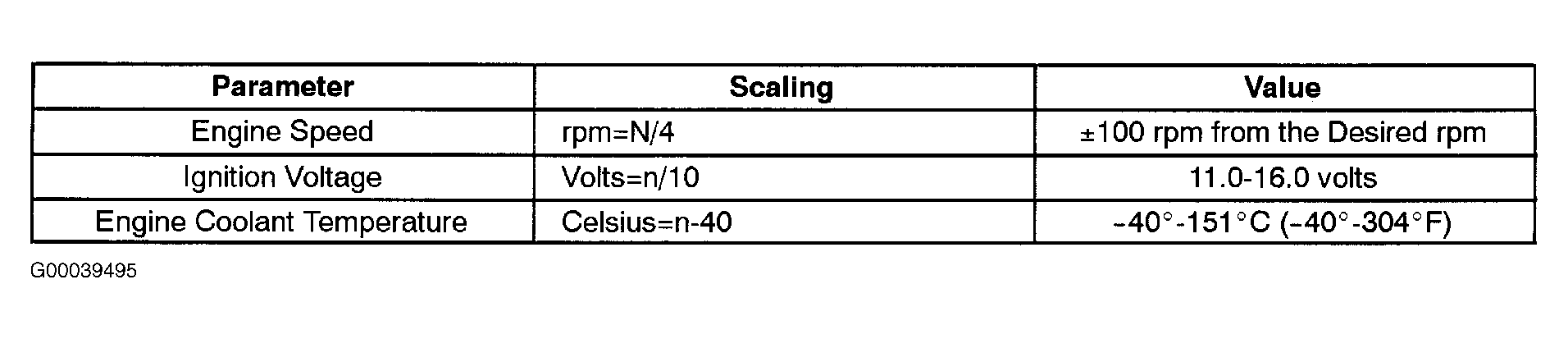

Fig 2: EVAP Data Display 02 (1 Of 2)
G00039495Courtesy of DAEWOO

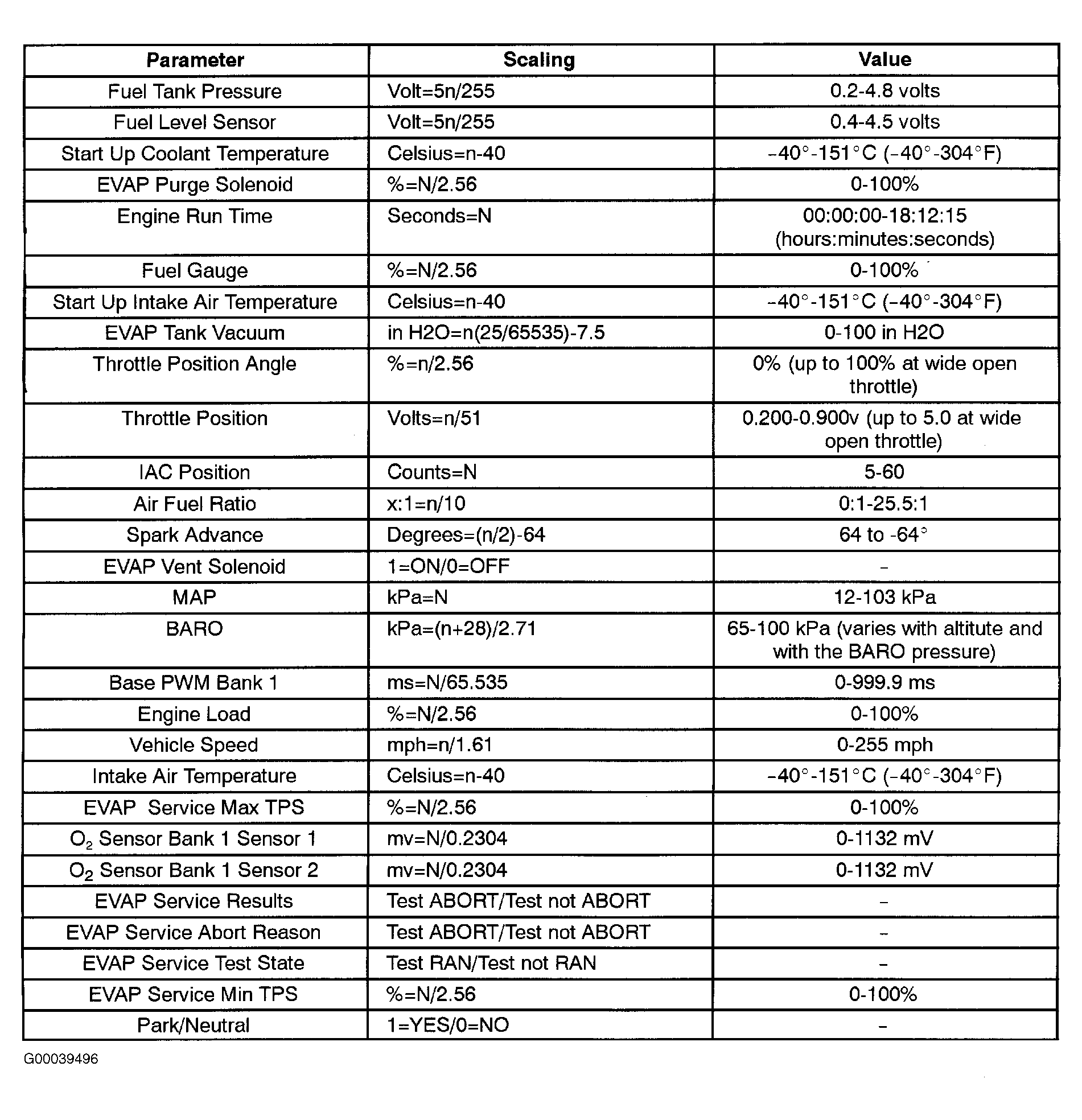

Fig 3: EVAP Data Display 02 (2 Of 2)
G00039496Courtesy of DAEWOO
