Misfire Data Display

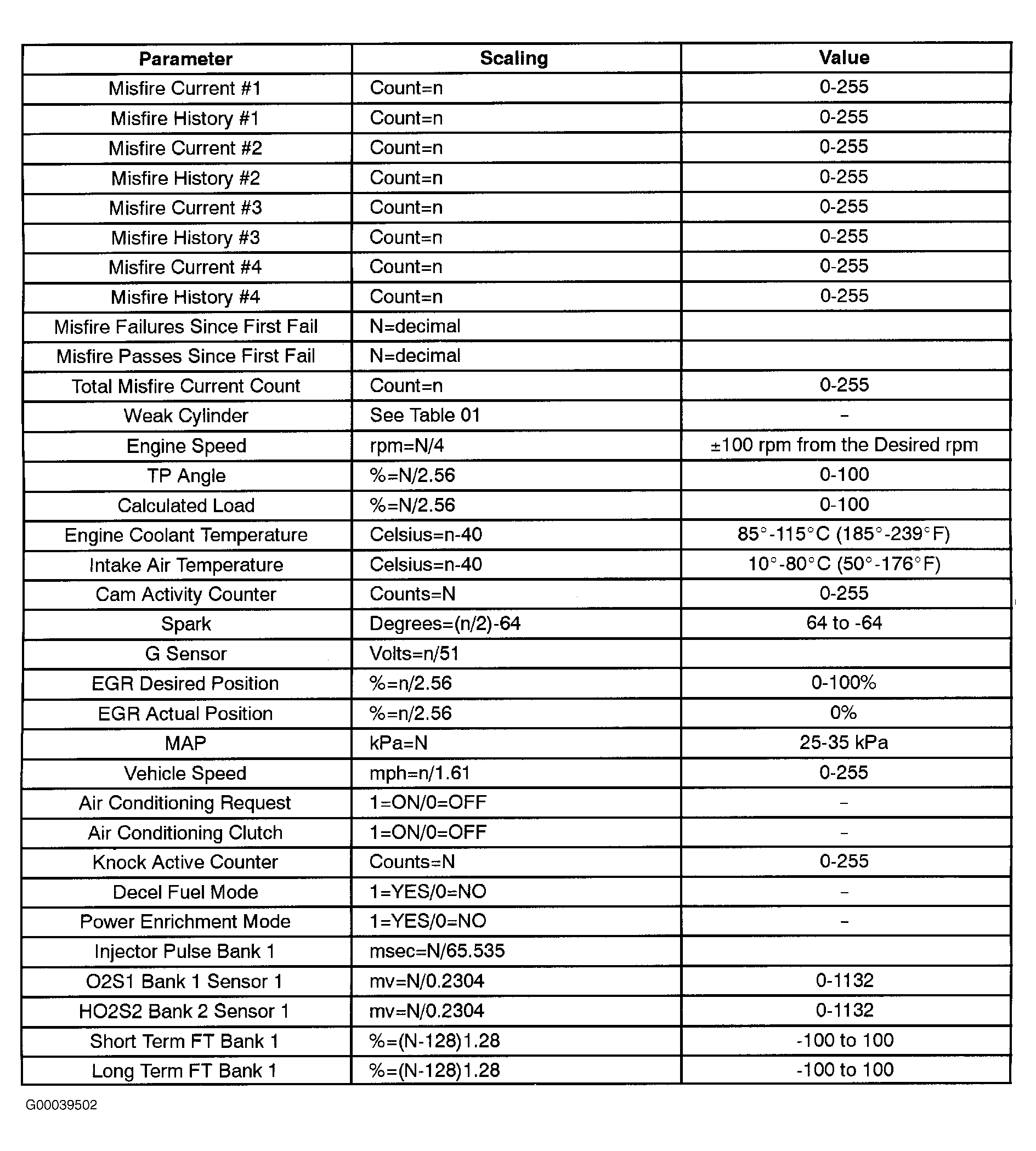

Fig 1: Misfire Data Display (1 Of 2)
Courtesy of DAEWOO

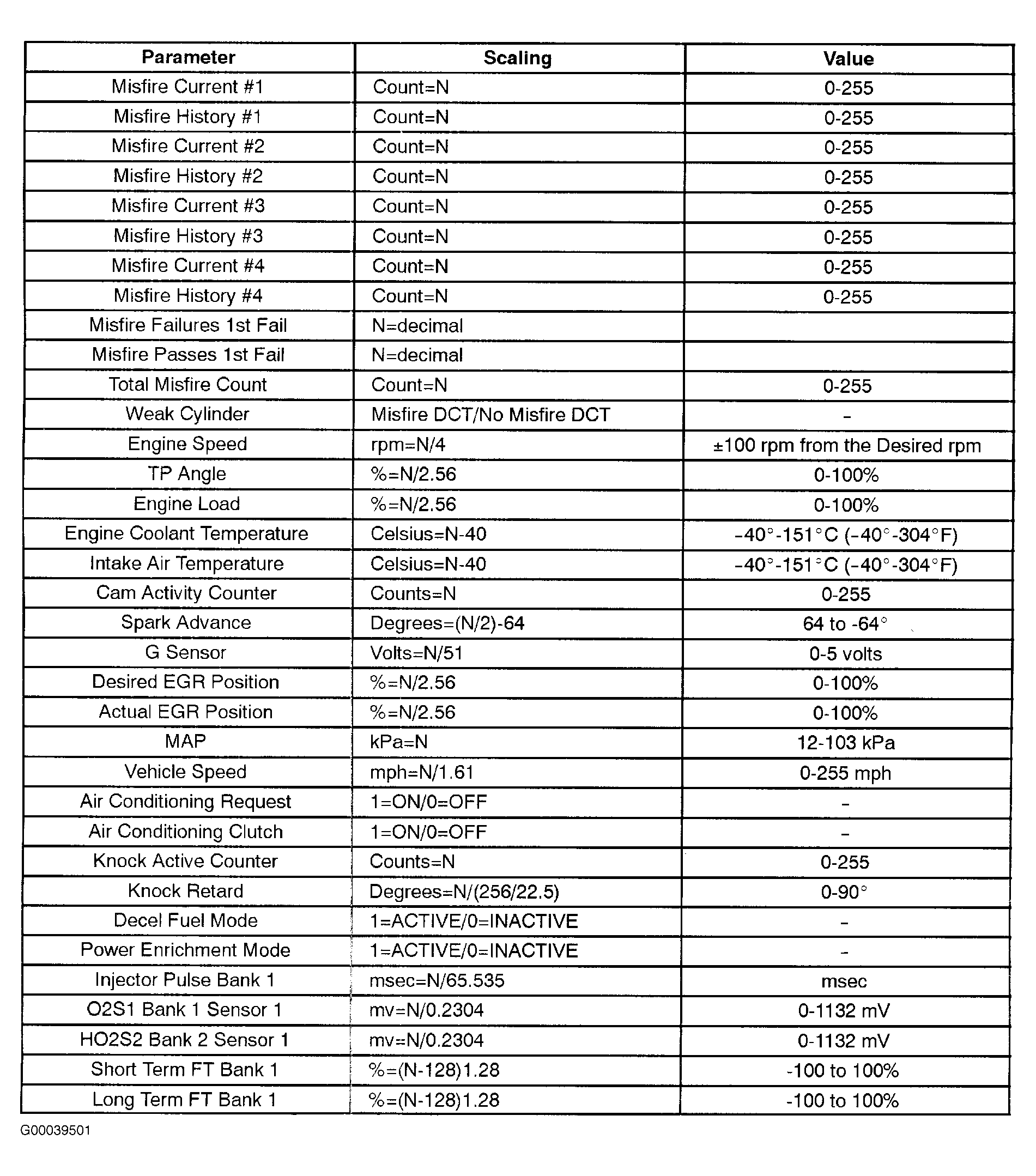

Fig 2: Misfire Data Display (2 Of 2)
Courtesy of DAEWOO
Courtesy of DAEWOO
Courtesy of DAEWOO
