Oxygen Sensor Data Display

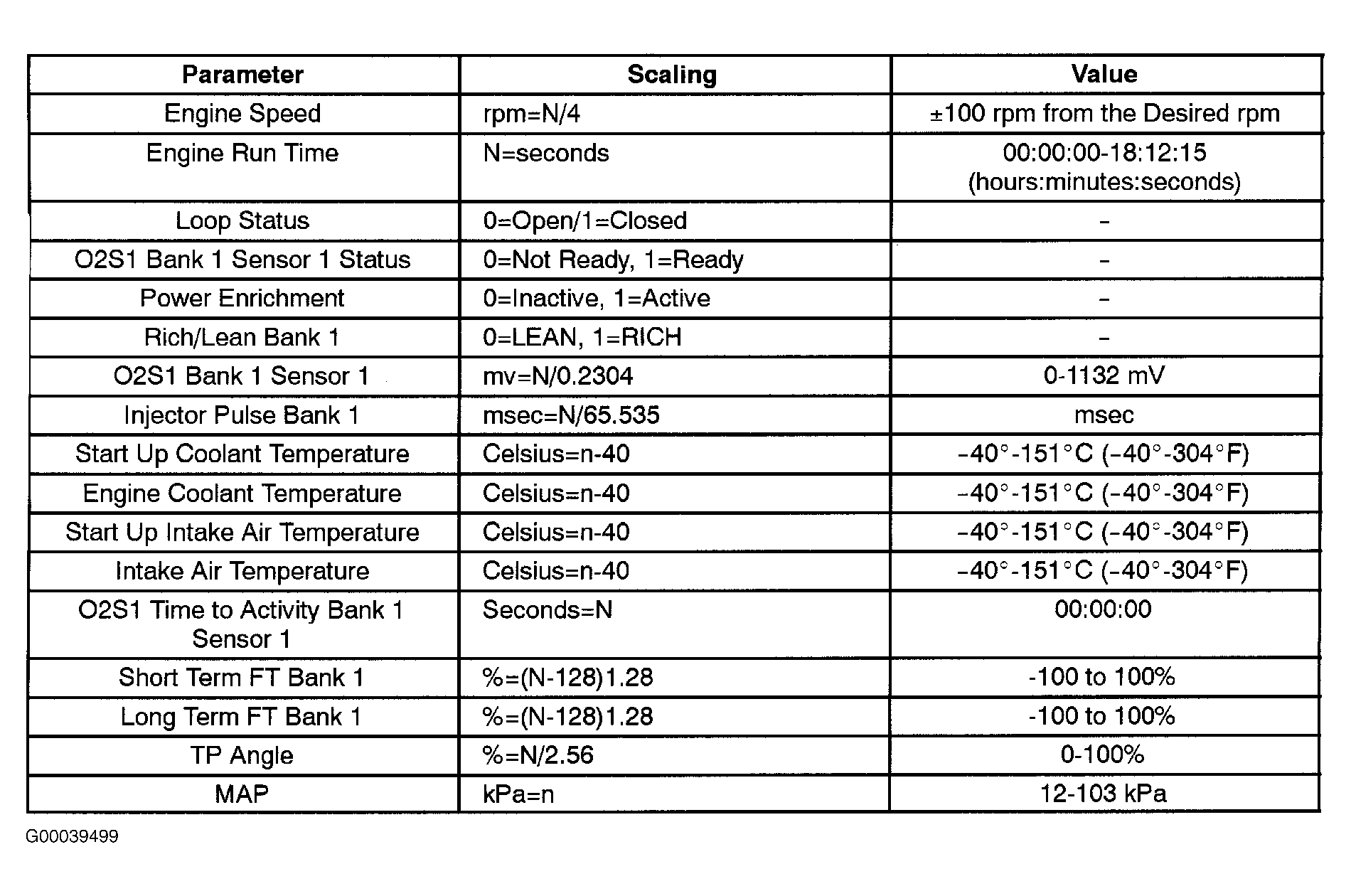

Fig 1: Oxygen Sensor Data Display (1 Of 2)
G00039499Courtesy of DAEWOO

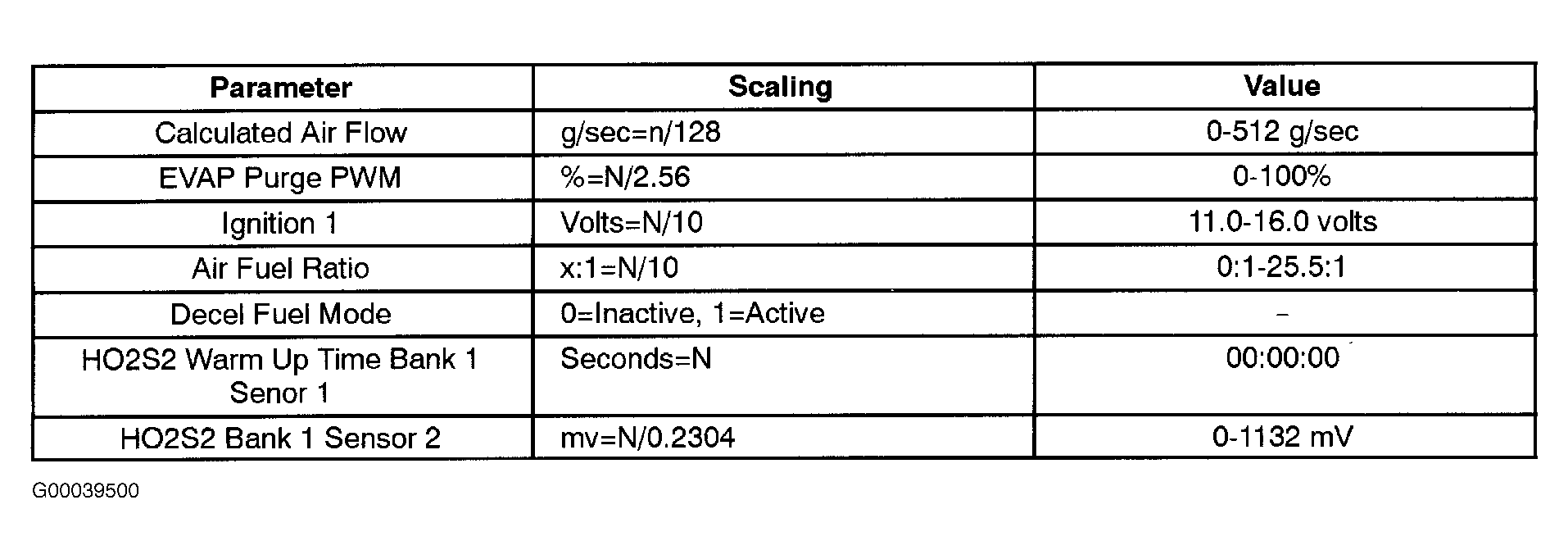

Fig 2: Oxygen Sensor Data Display (2 Of 2)
G00039500Courtesy of DAEWOO
