Park/Neutral Position Switch

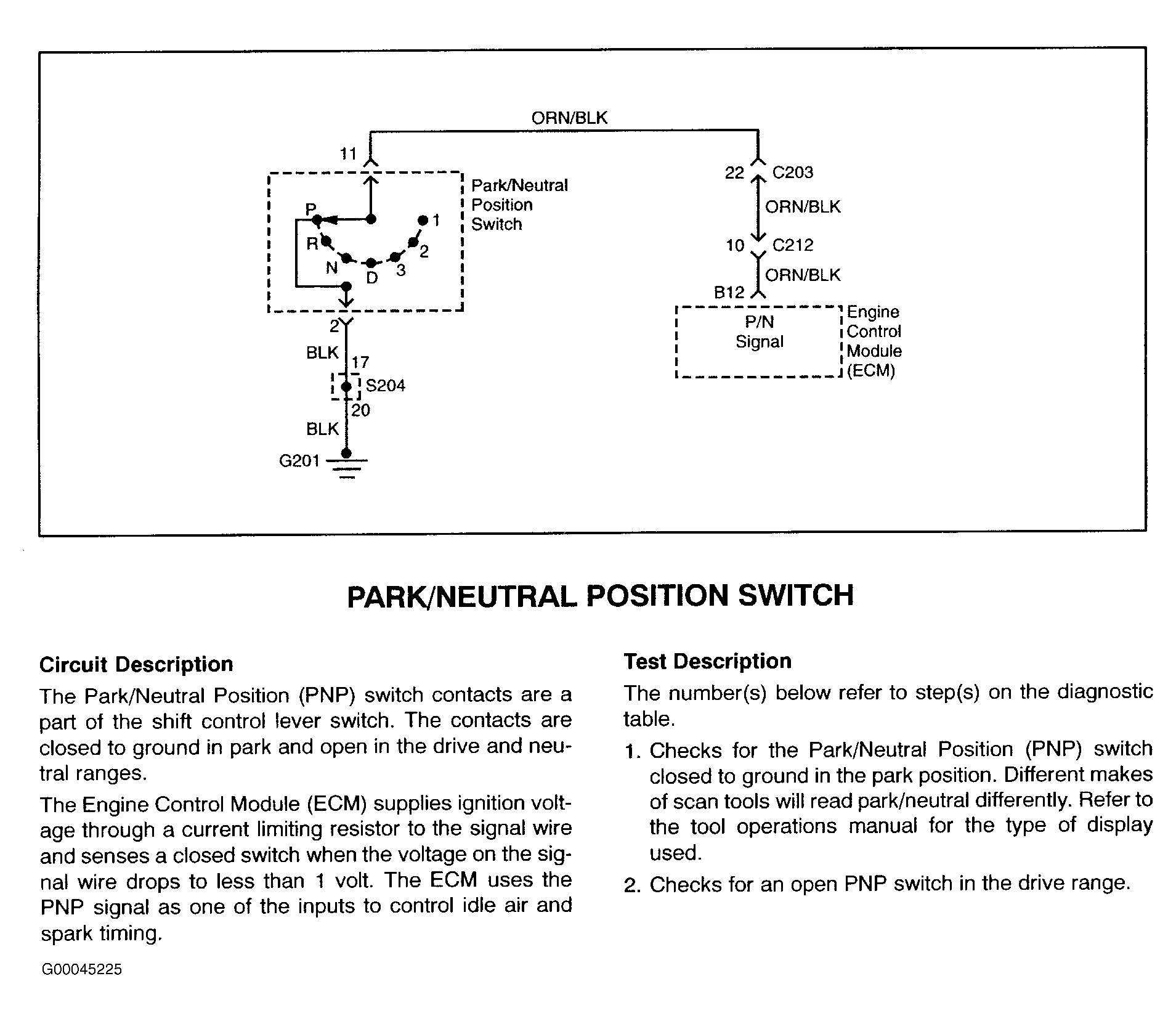

Fig 1: Park/Neutral Position Switch (1 Of 2)
G00045225Courtesy of DAEWOO MOTOR AMERICA, INC.

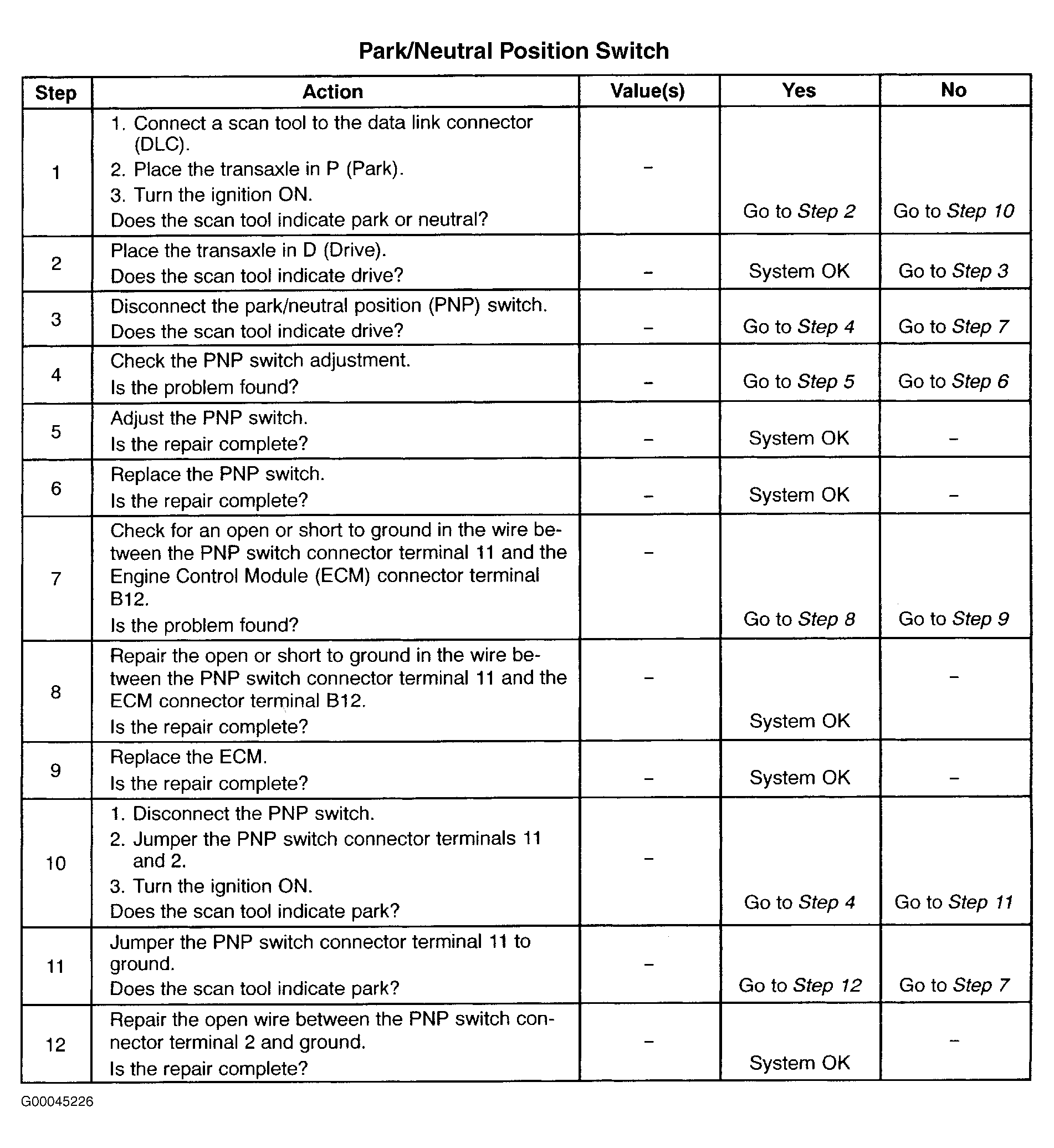

Fig 2: Park/Neutral Position Switch (2 Of 2)
G00045226Courtesy of DAEWOO MOTOR AMERICA, INC.
