Diagnostic Trouble Code Identification

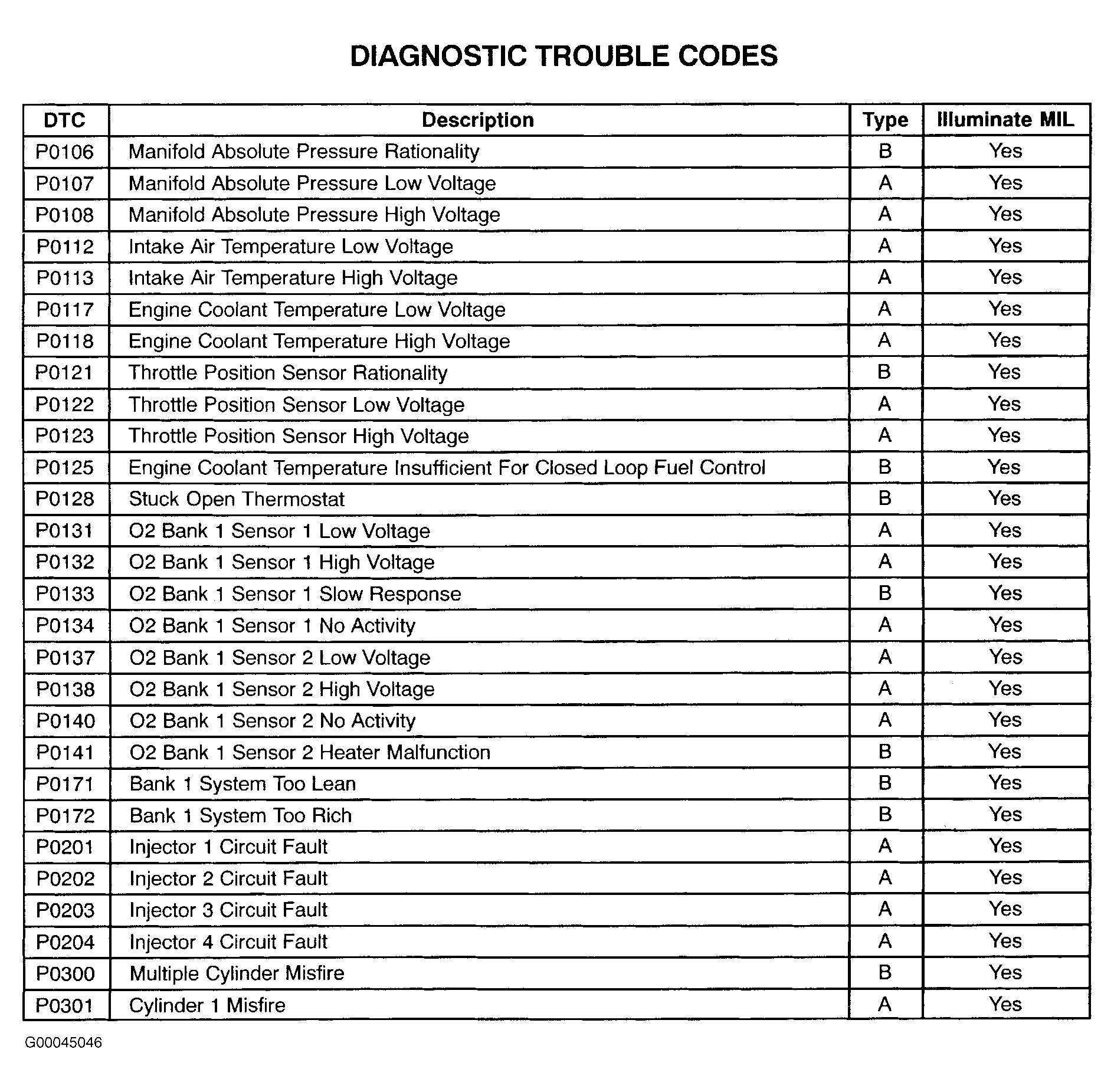

Fig 1: Diagnostic Trouble Codes (1 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.

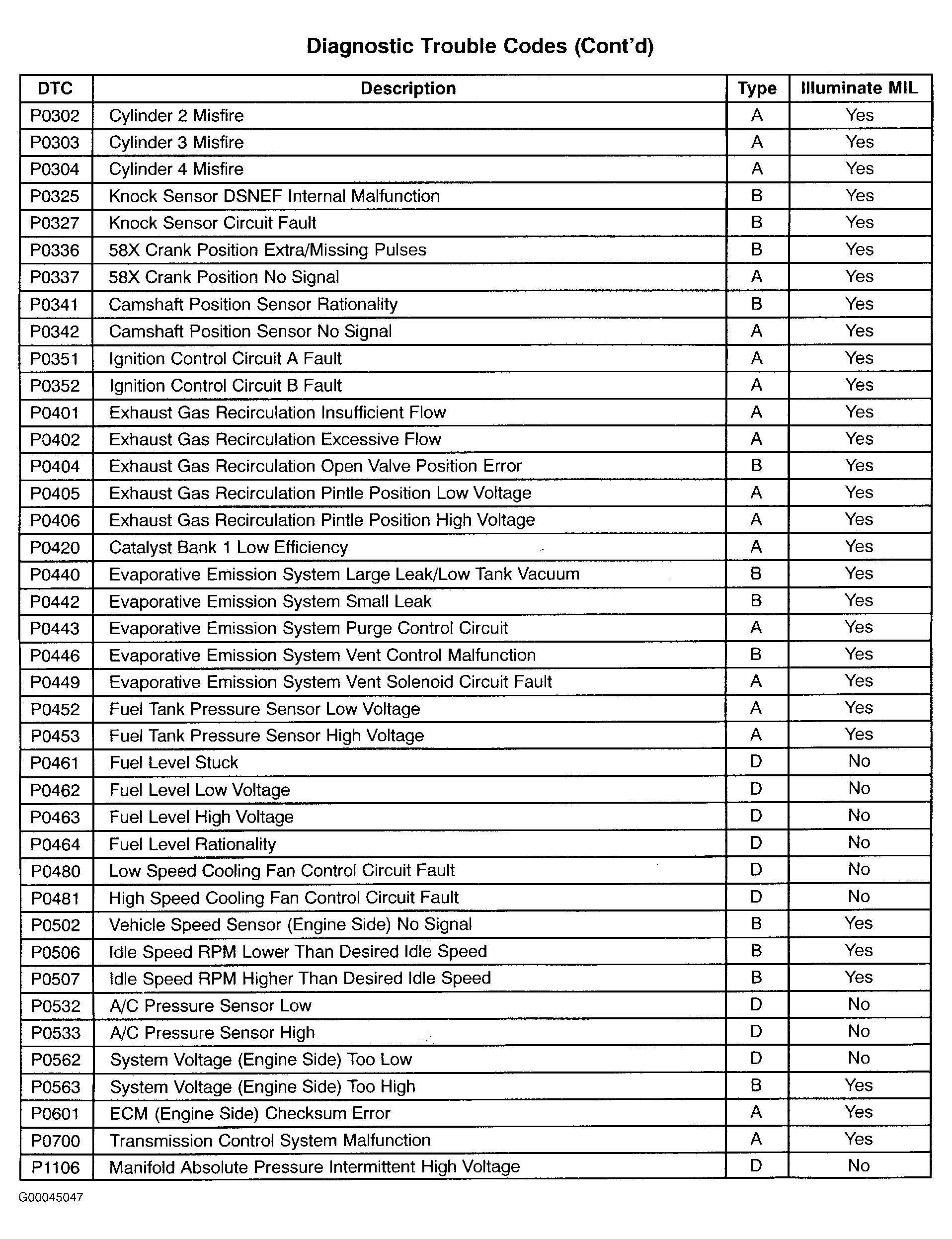

Fig 2: Diagnostic Trouble Codes (2 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.

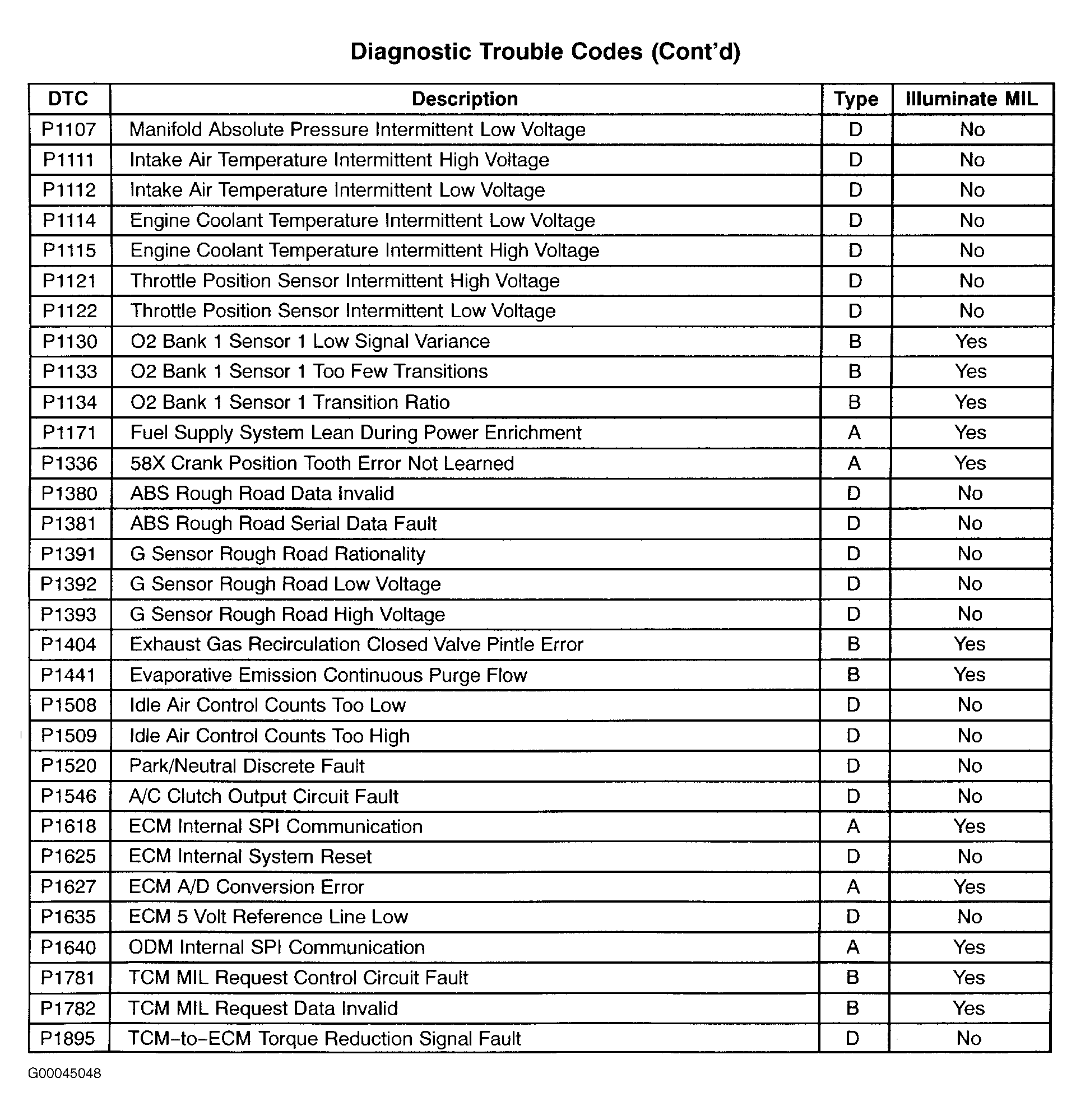

Fig 3: Diagnostic Trouble Codes (3 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
