EVAP Control System Diagnosis

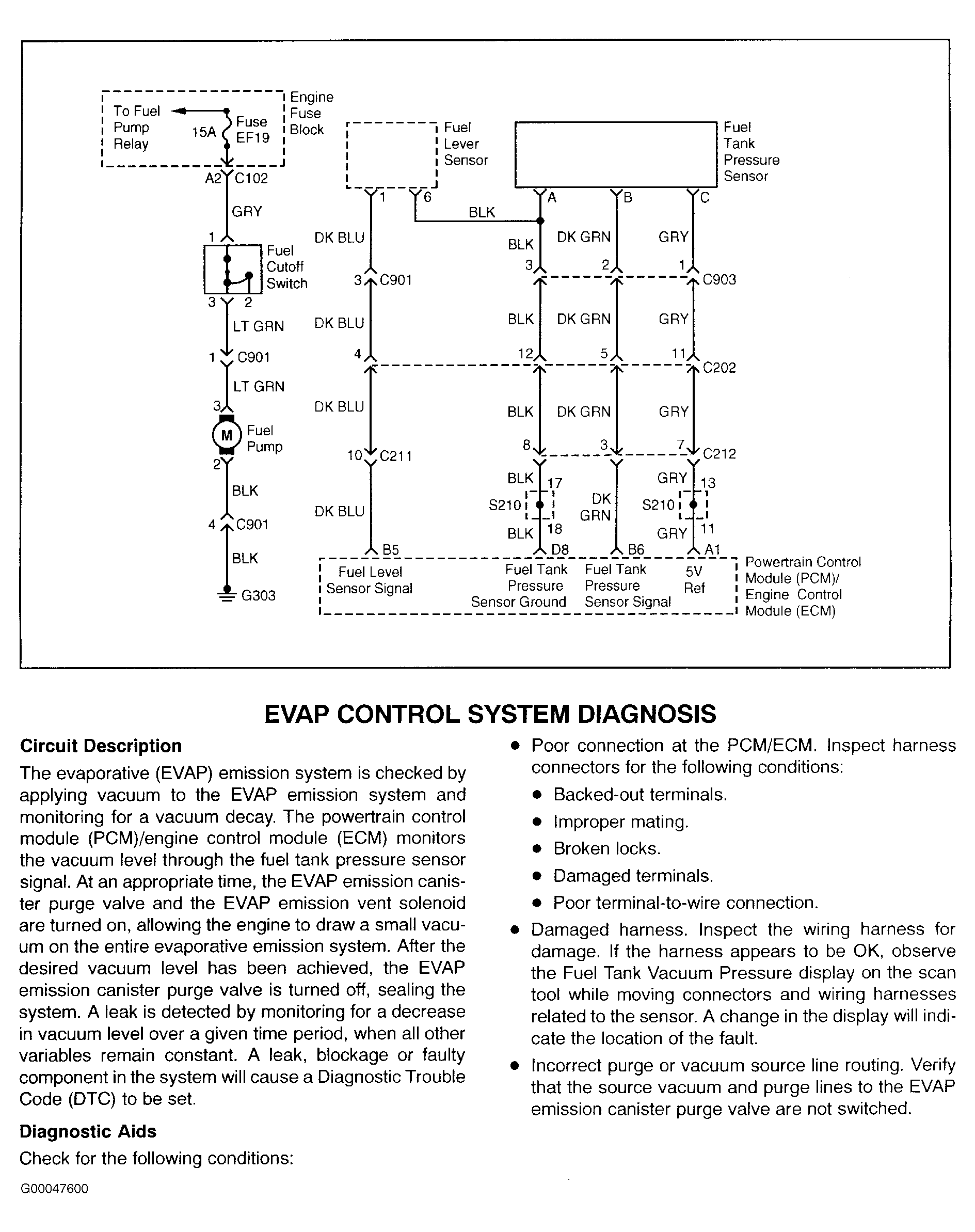

Fig 1: EVAP Control System Diagnosis (1 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.

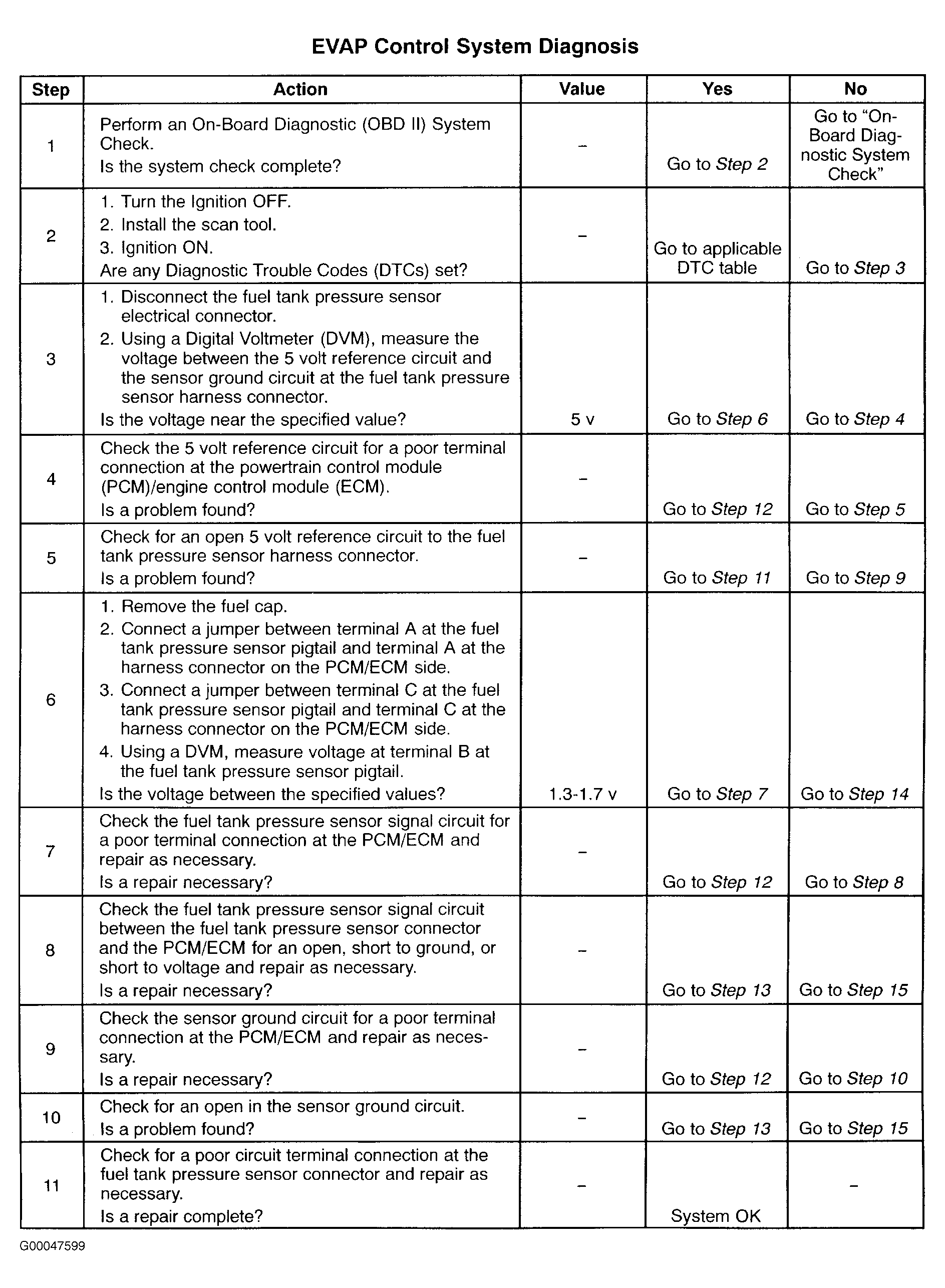

Fig 2: EVAP Control System Diagnosis (2 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.

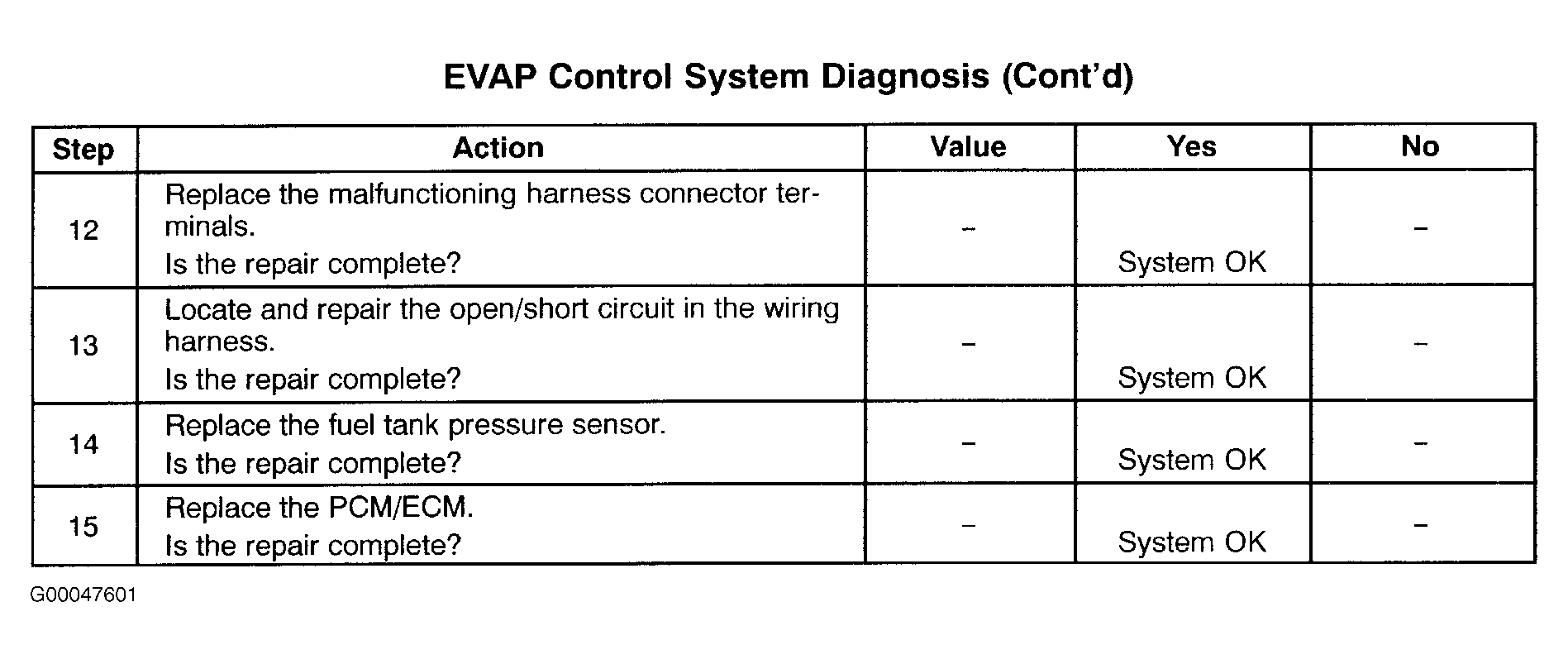

Fig 3: EVAP Control System Diagnosis (3 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
