Ignition 1 Relay Circuit Check

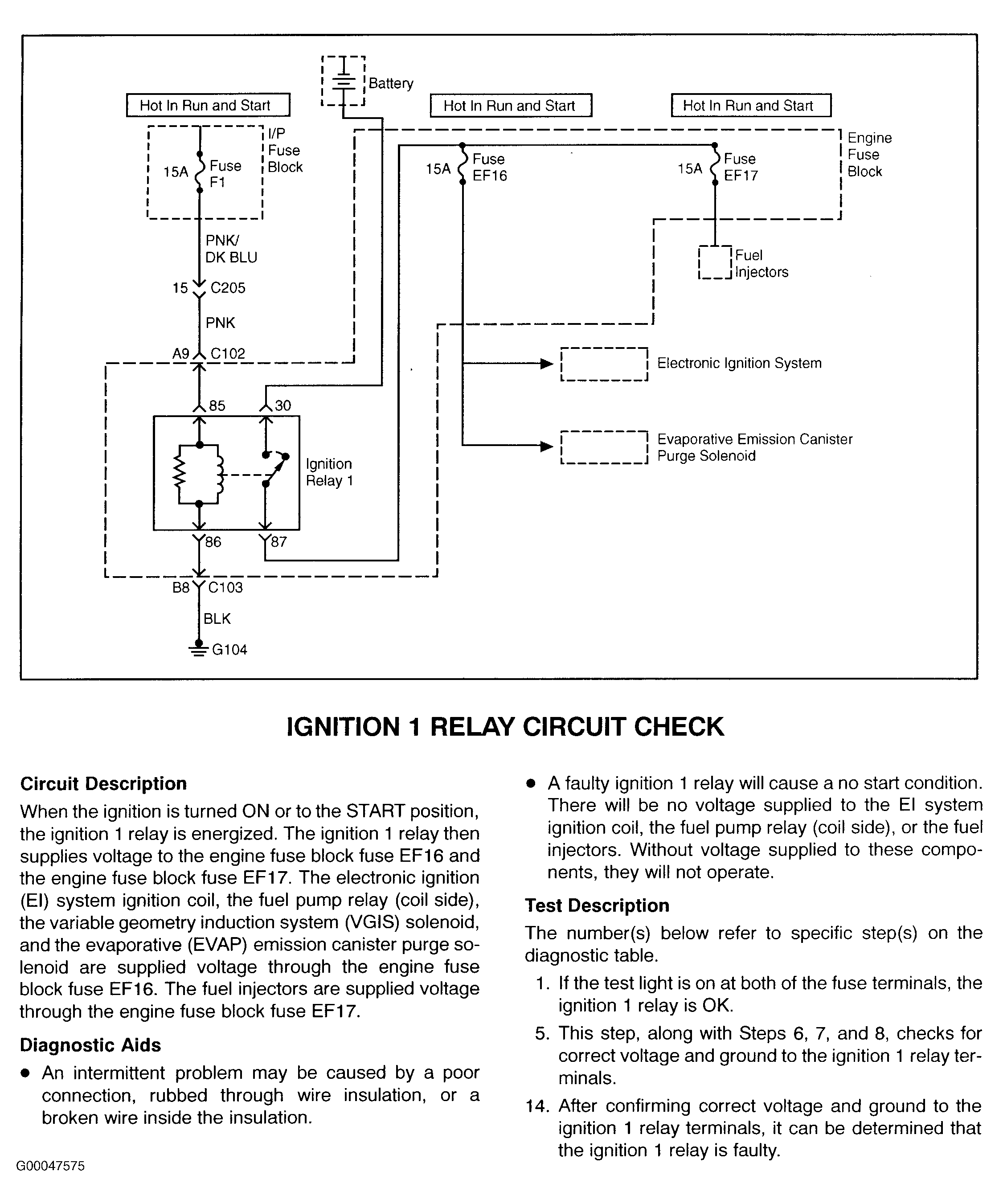

Fig 1: Ignition 1 Relay Circuit Check (1 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.

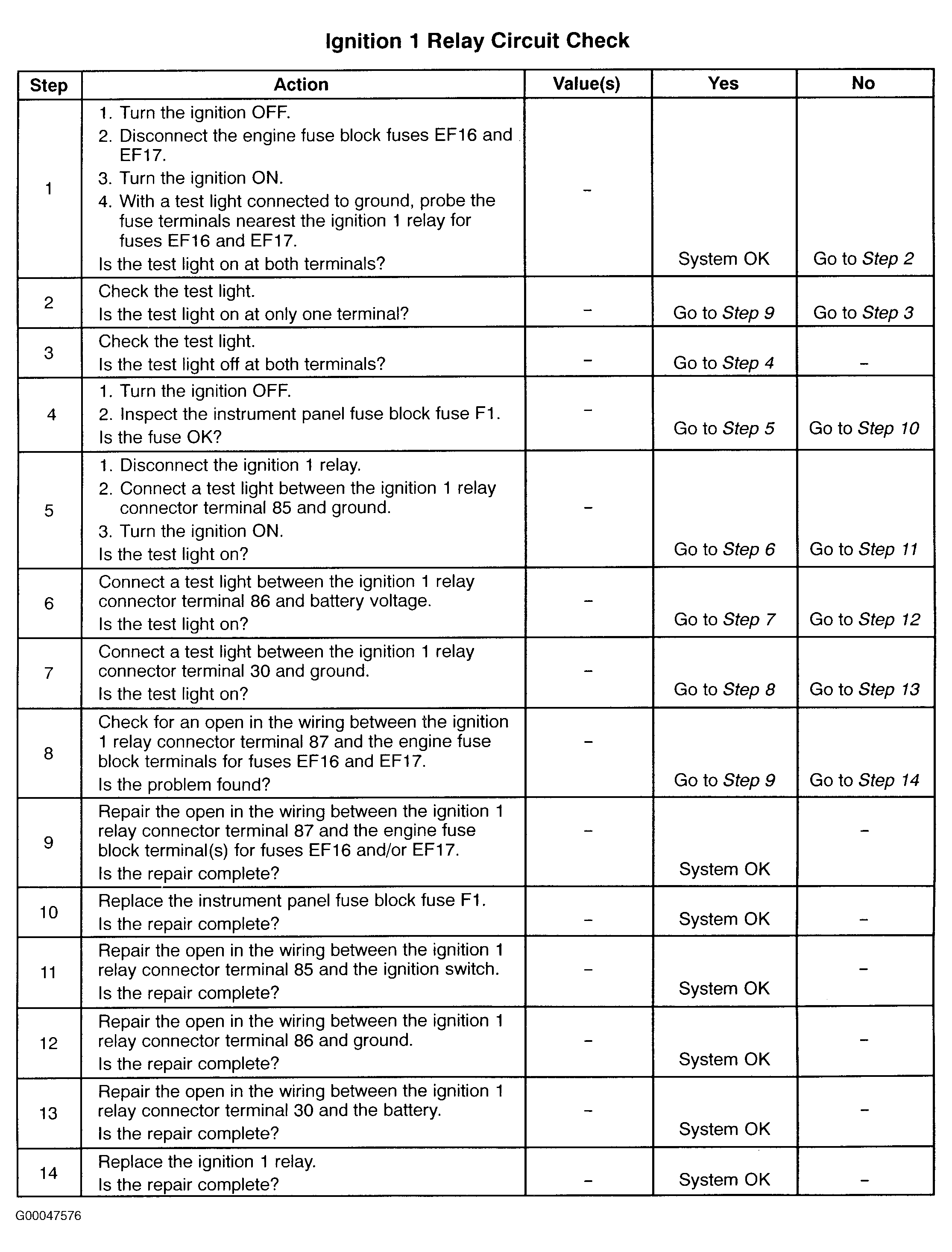

Fig 2: Ignition 1 Relay Circuit Check (2 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
