Connector End Views

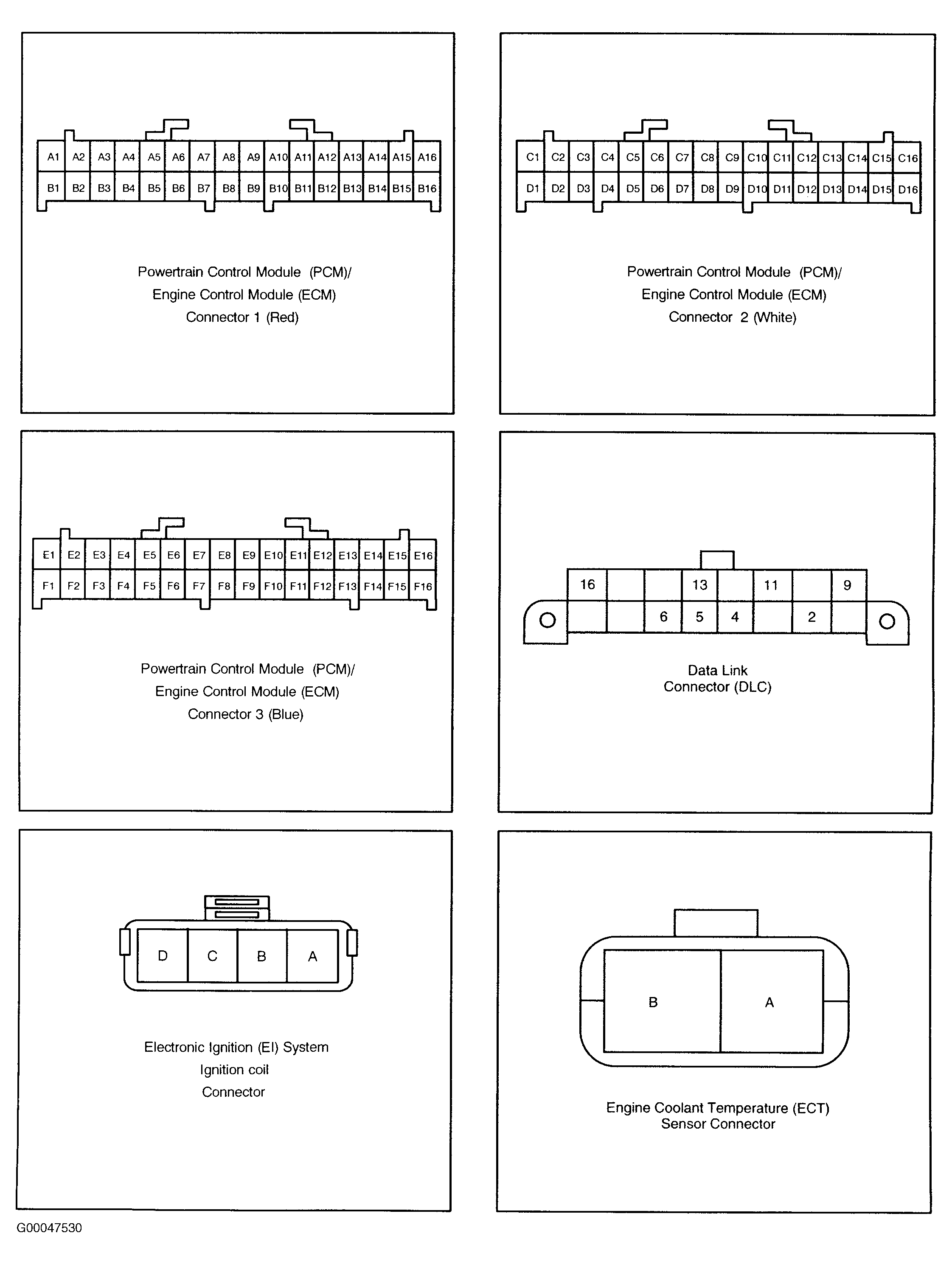

Fig 1: Connector End View (1 Of 5)
Courtesy of DAEWOO MOTOR AMERICA, INC.

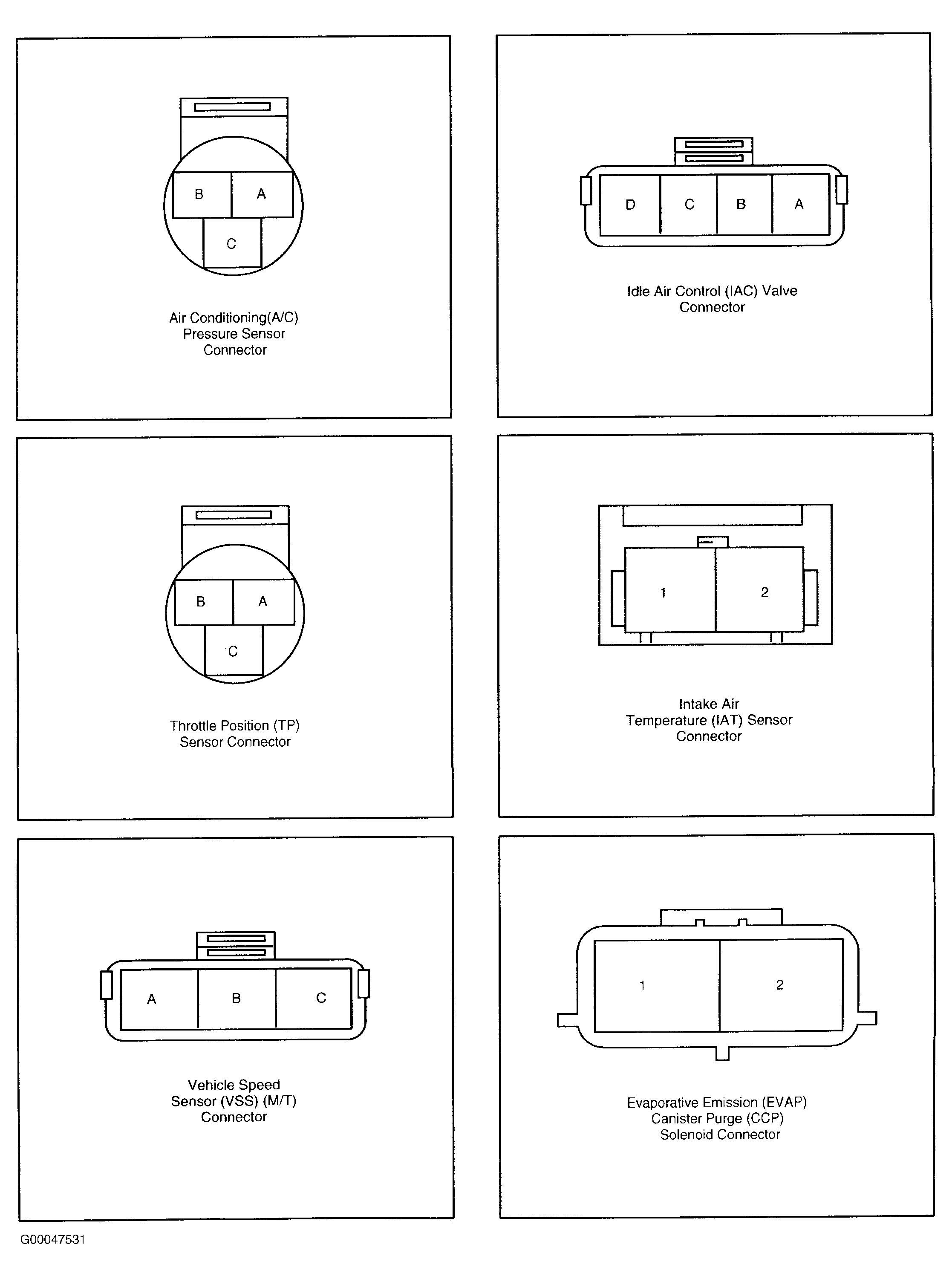

Fig 2: Connector End View (2 Of 5)
Courtesy of DAEWOO MOTOR AMERICA, INC.

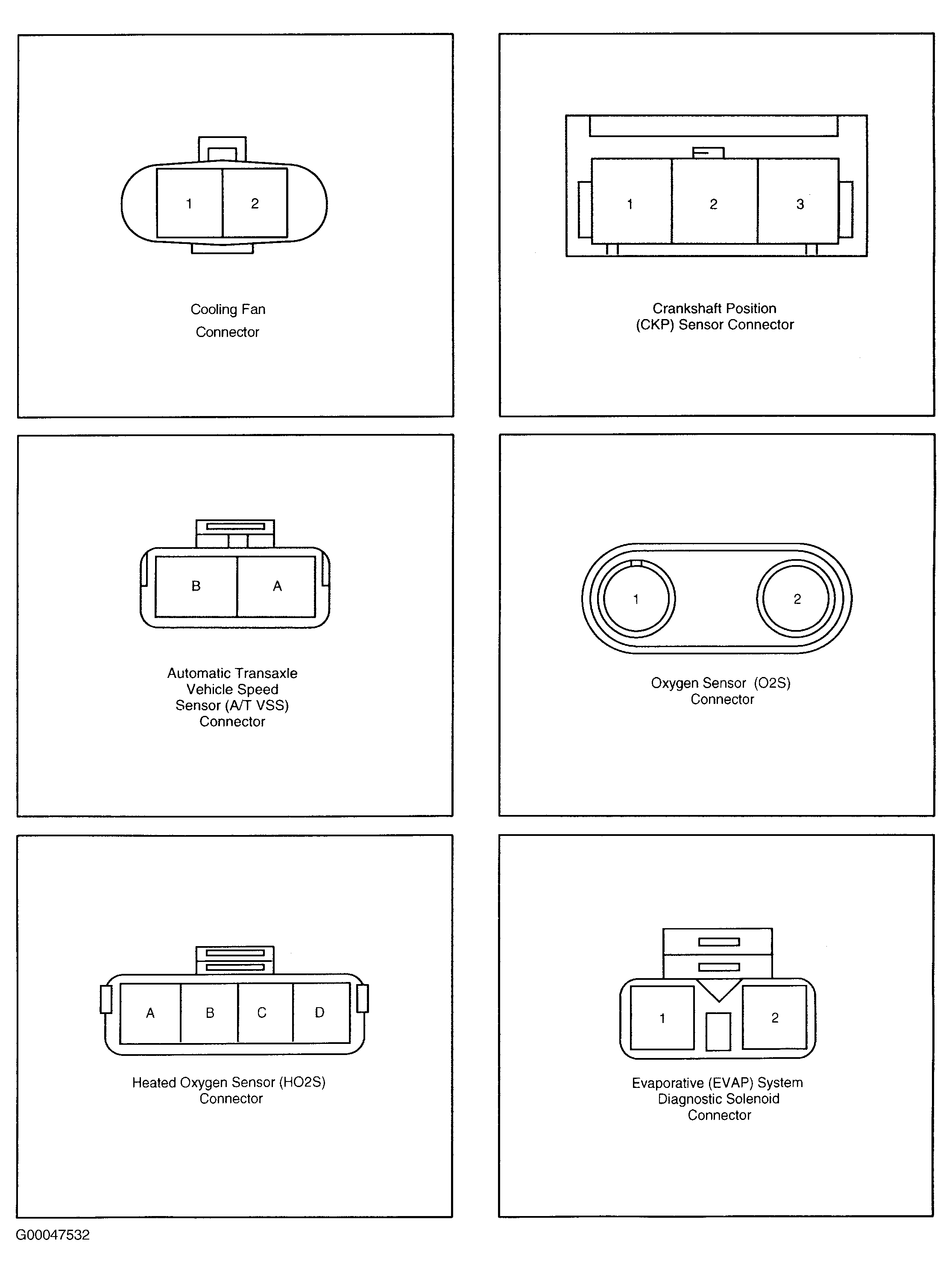

Fig 3: Connector End View (3 Of 5)
Courtesy of DAEWOO MOTOR AMERICA, INC.

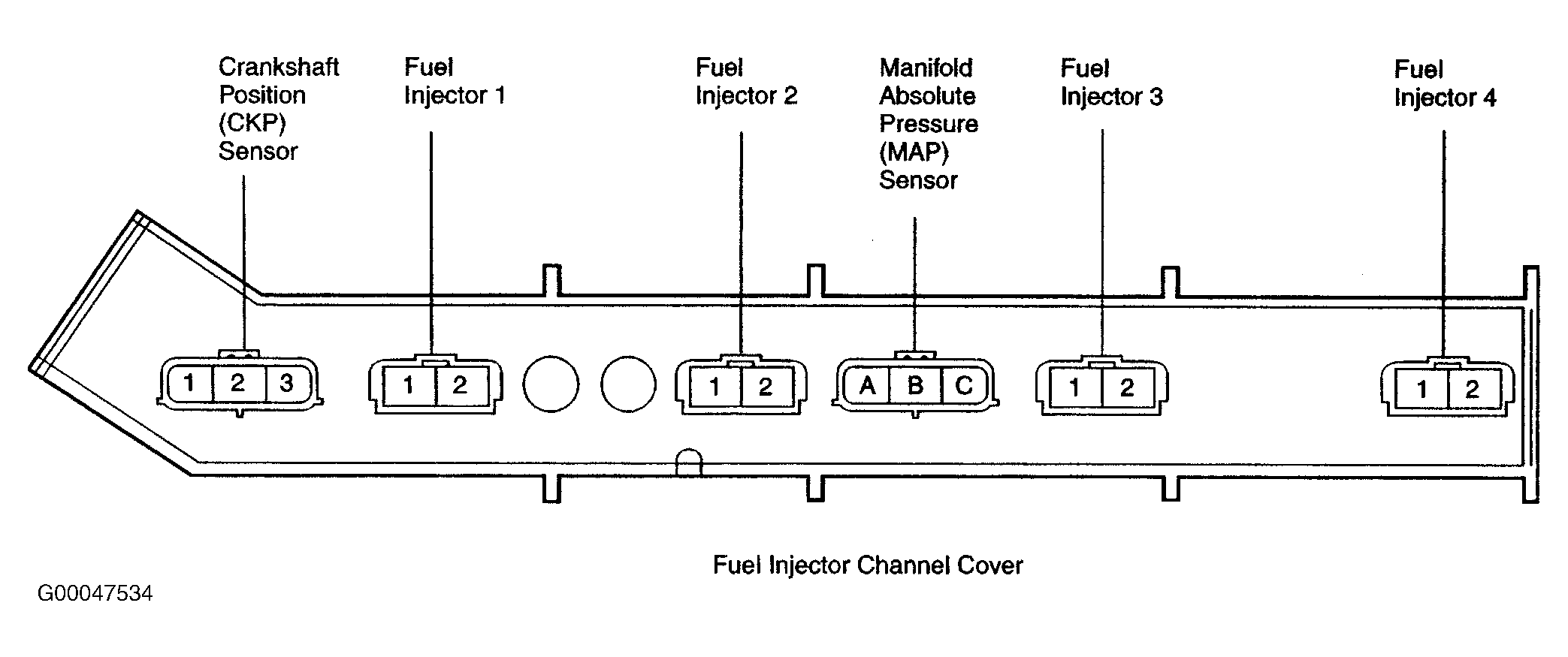

Fig 4: Connector End View (4 Of 5)
Courtesy of DAEWOO MOTOR AMERICA, INC.

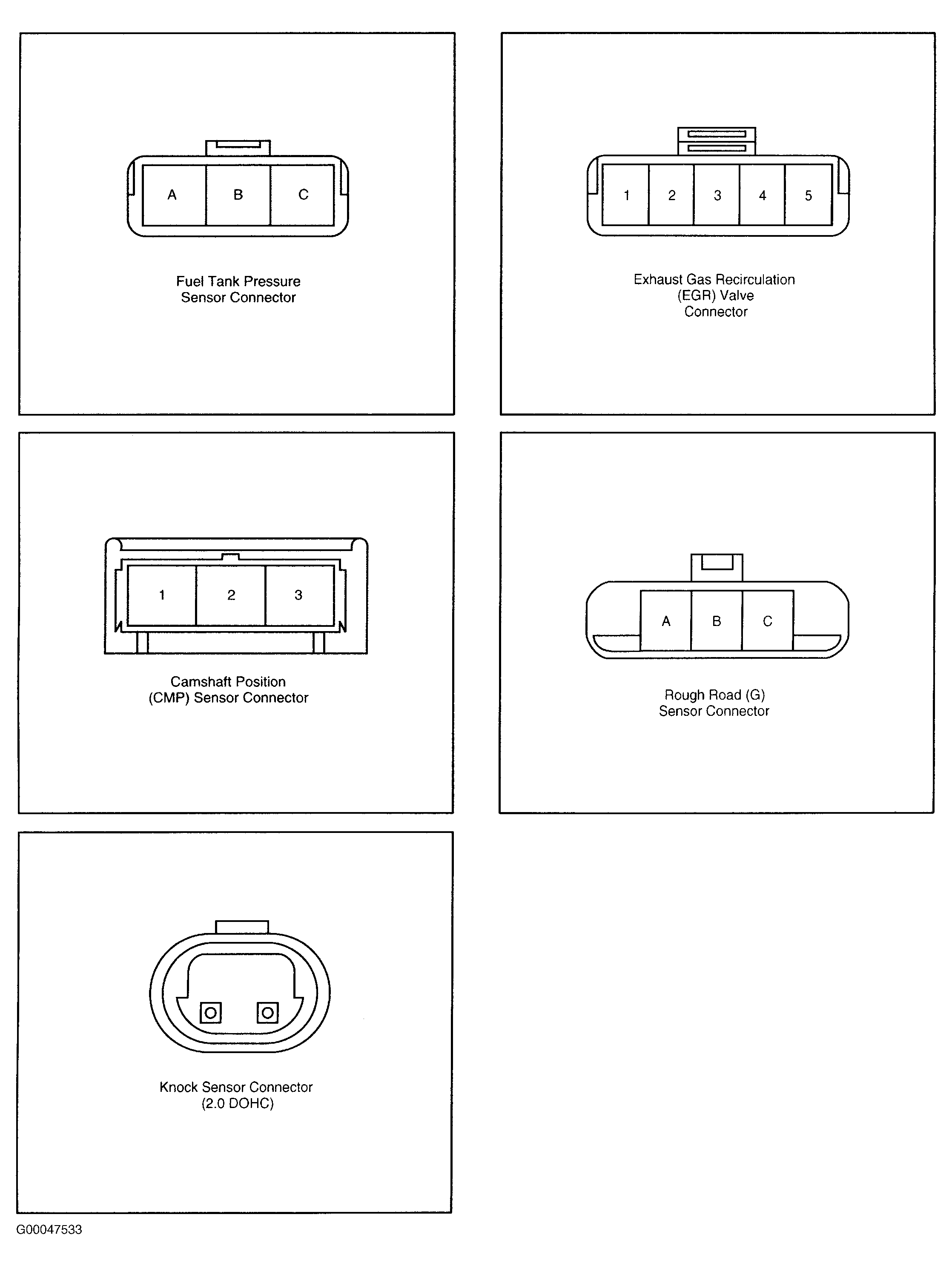

Fig 5: Connector End View (5 Of 5)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
