Multiple Pcm/ECM Information Sensor DTCS Set

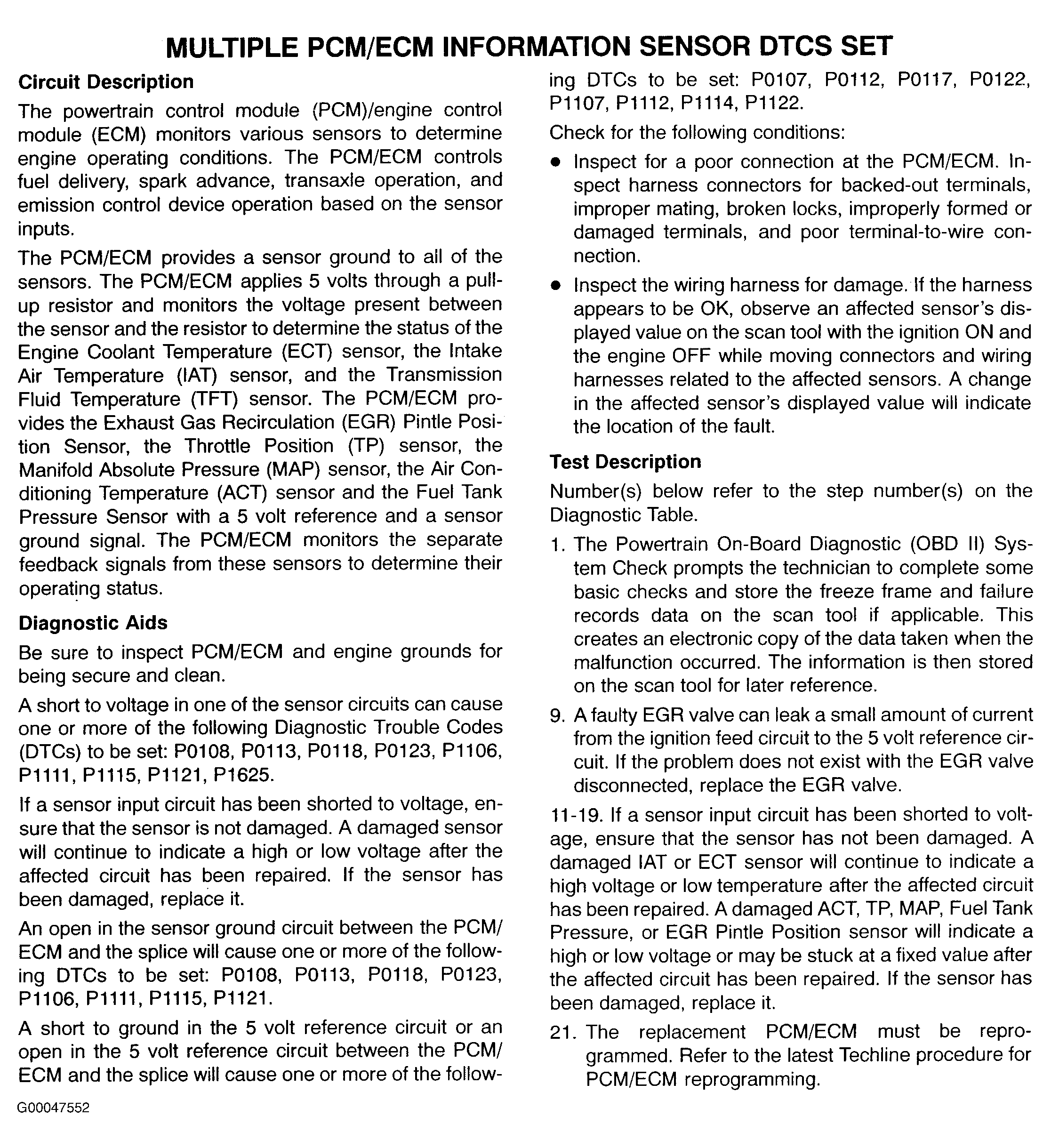

Fig 1: Multiple PCM/ECM Information Sensor DTCs Set (1 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.

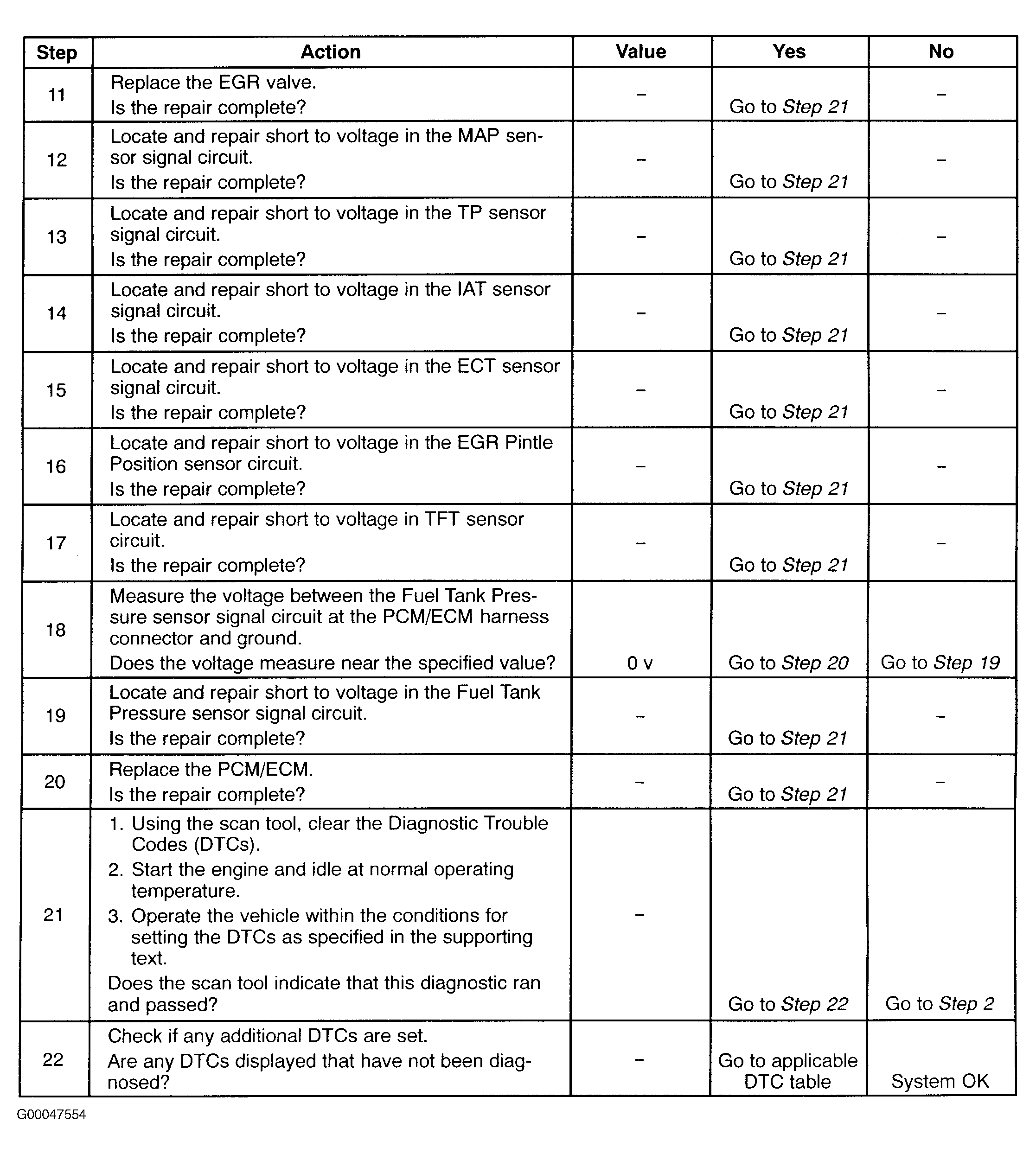

Fig 2: Multiple PCM/ECM Information Sensor DTCs Set (2 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Fig 3: Multiple PCM/ECM Information Sensor DTCs Set (3 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
