Idle Air Control System Check

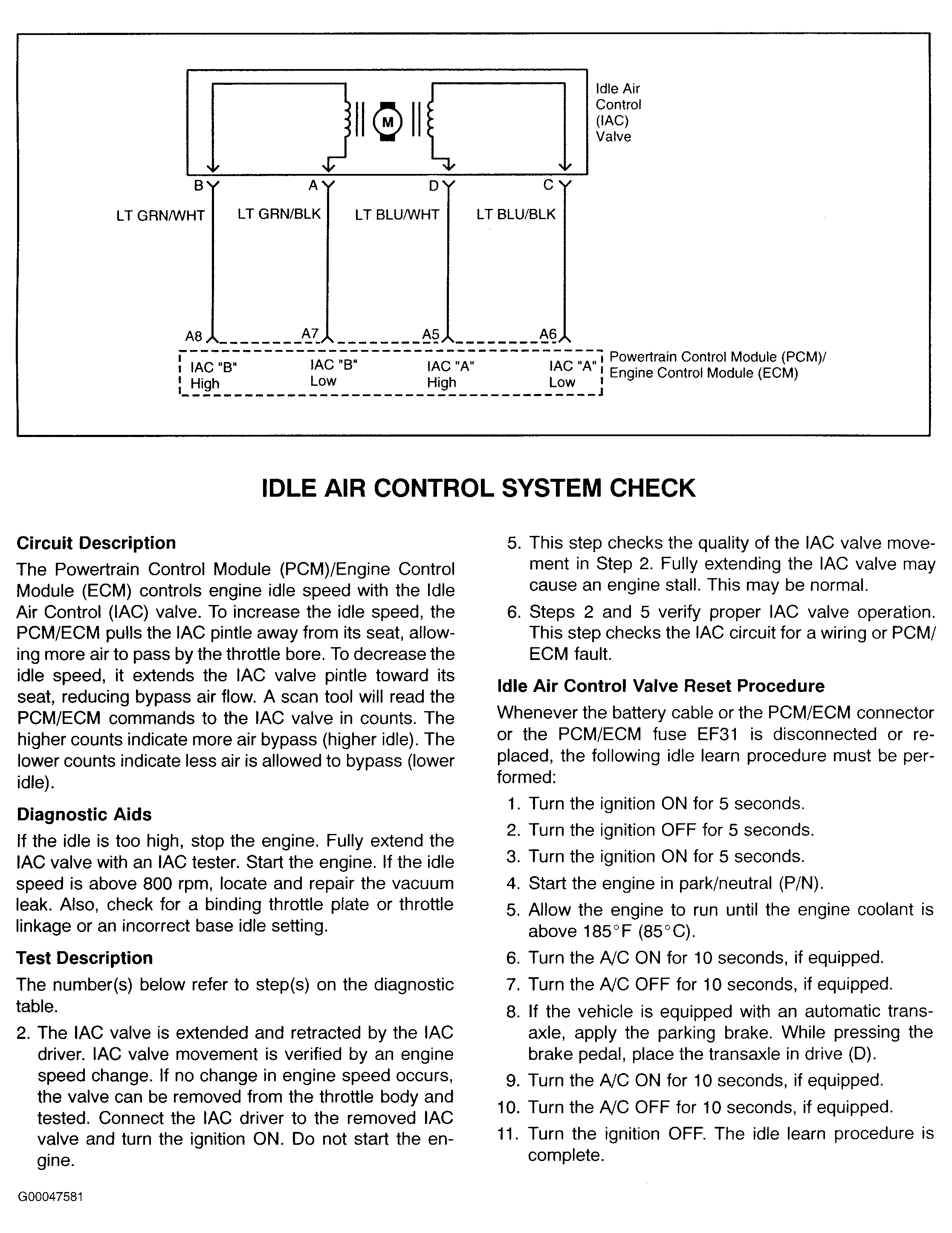

Fig 1: Idle Air Control System check (1 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.

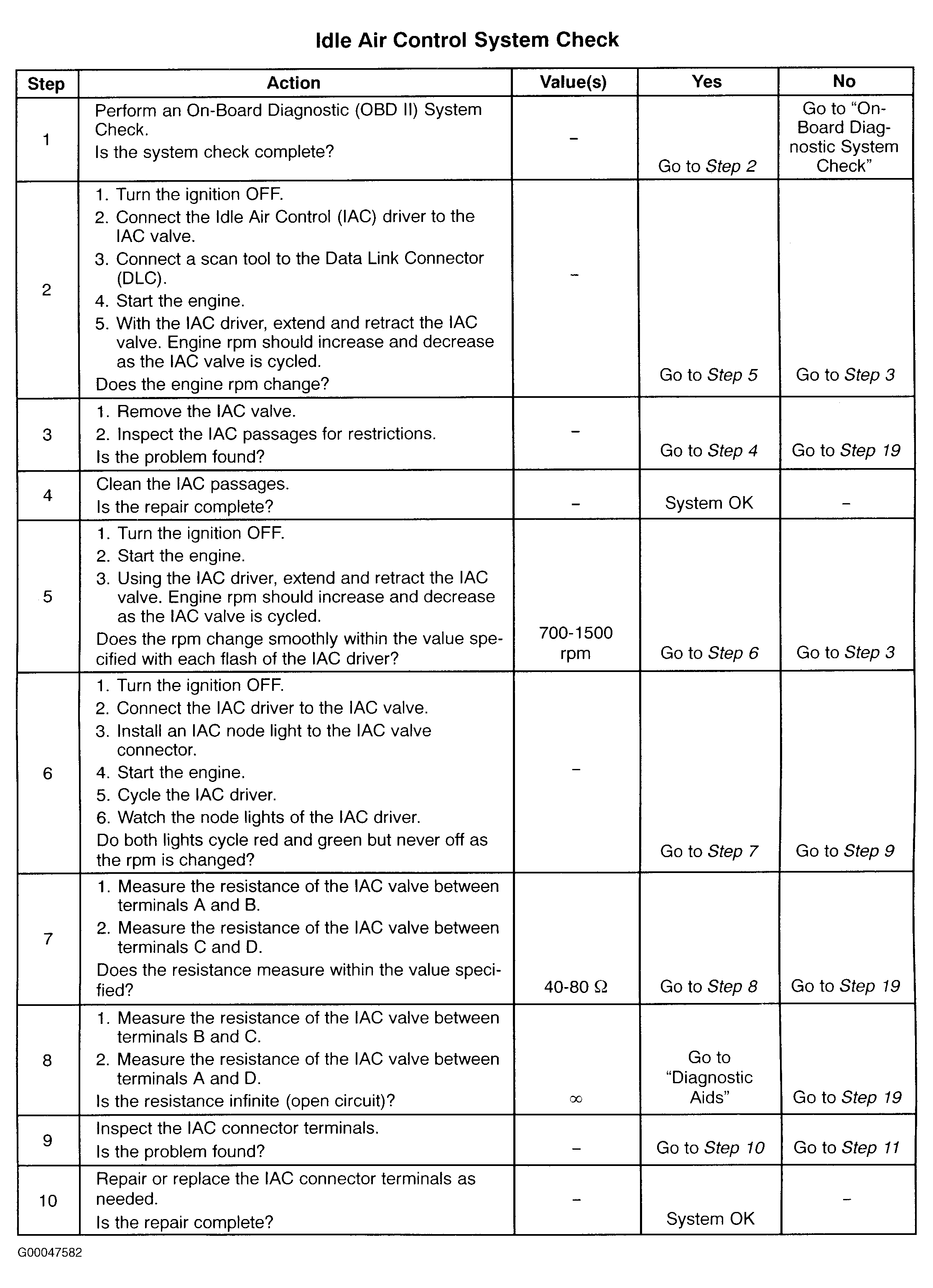

Fig 2: Idle Air Control System check (2 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.

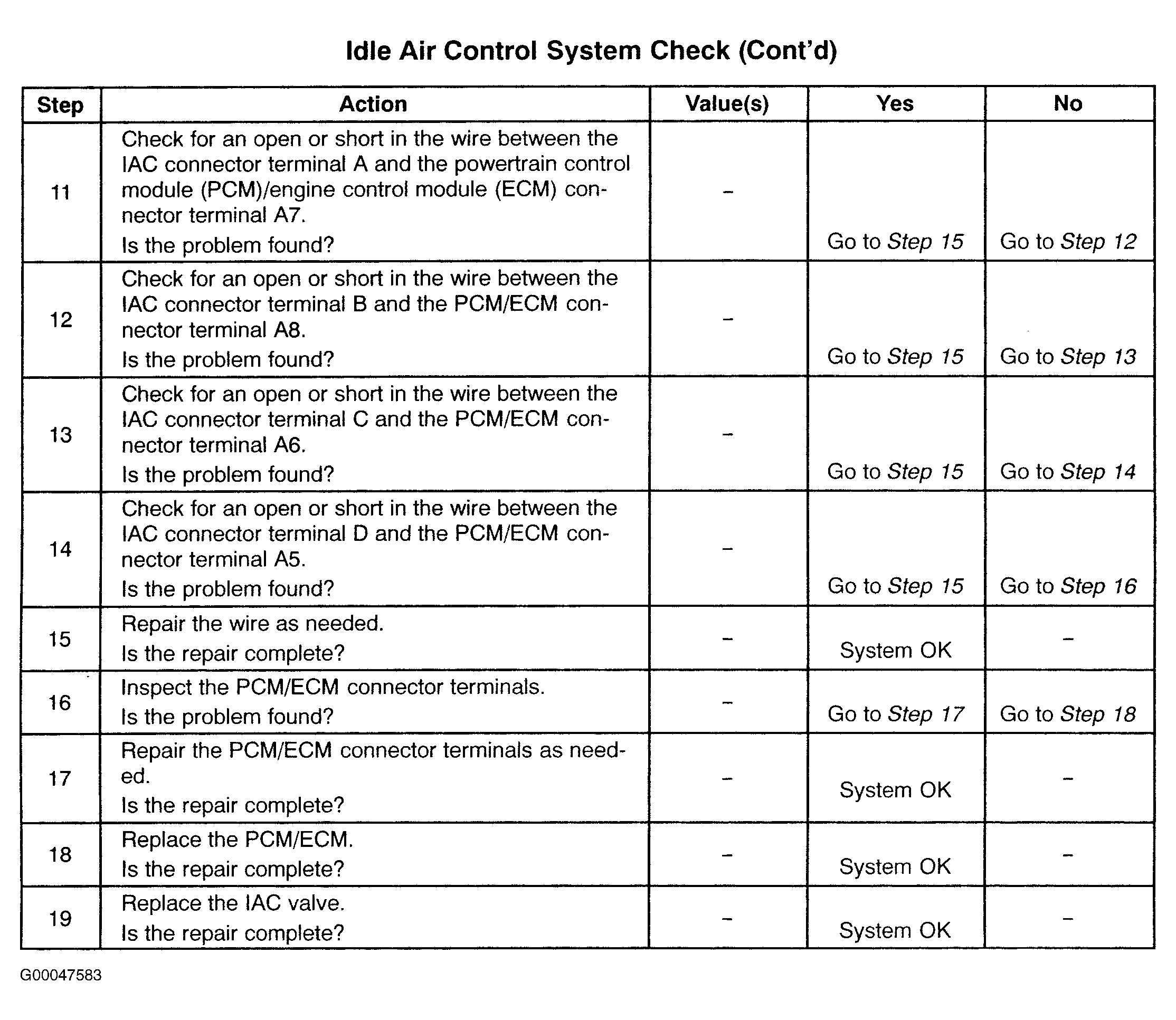

Fig 3: Idle Air Control System check (3 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
