Engine Data Display 01

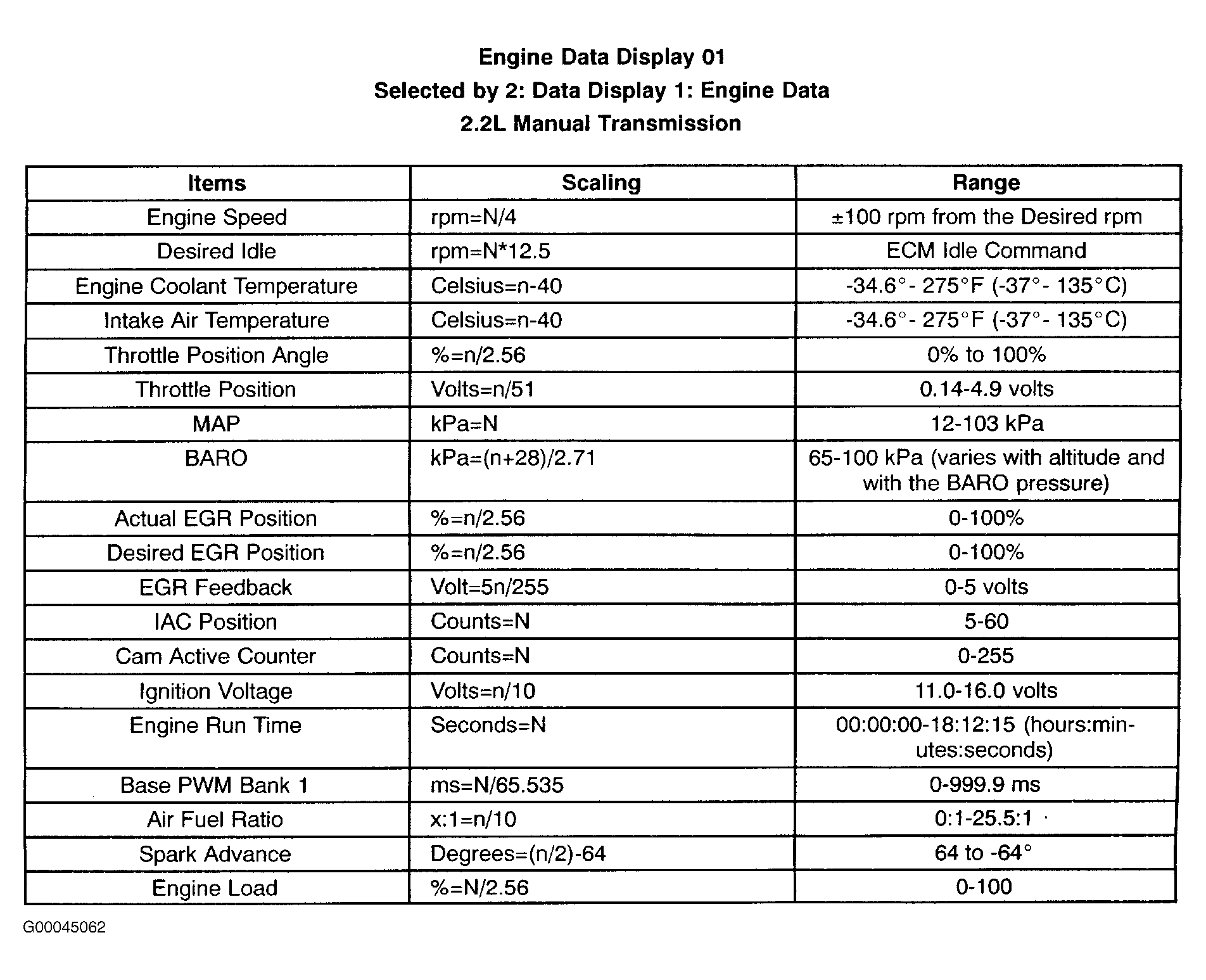

Fig 1: Engine Data Display 01 (1 Of 2)
G00045062Courtesy of DAEWOO MOTOR AMERICA, INC.

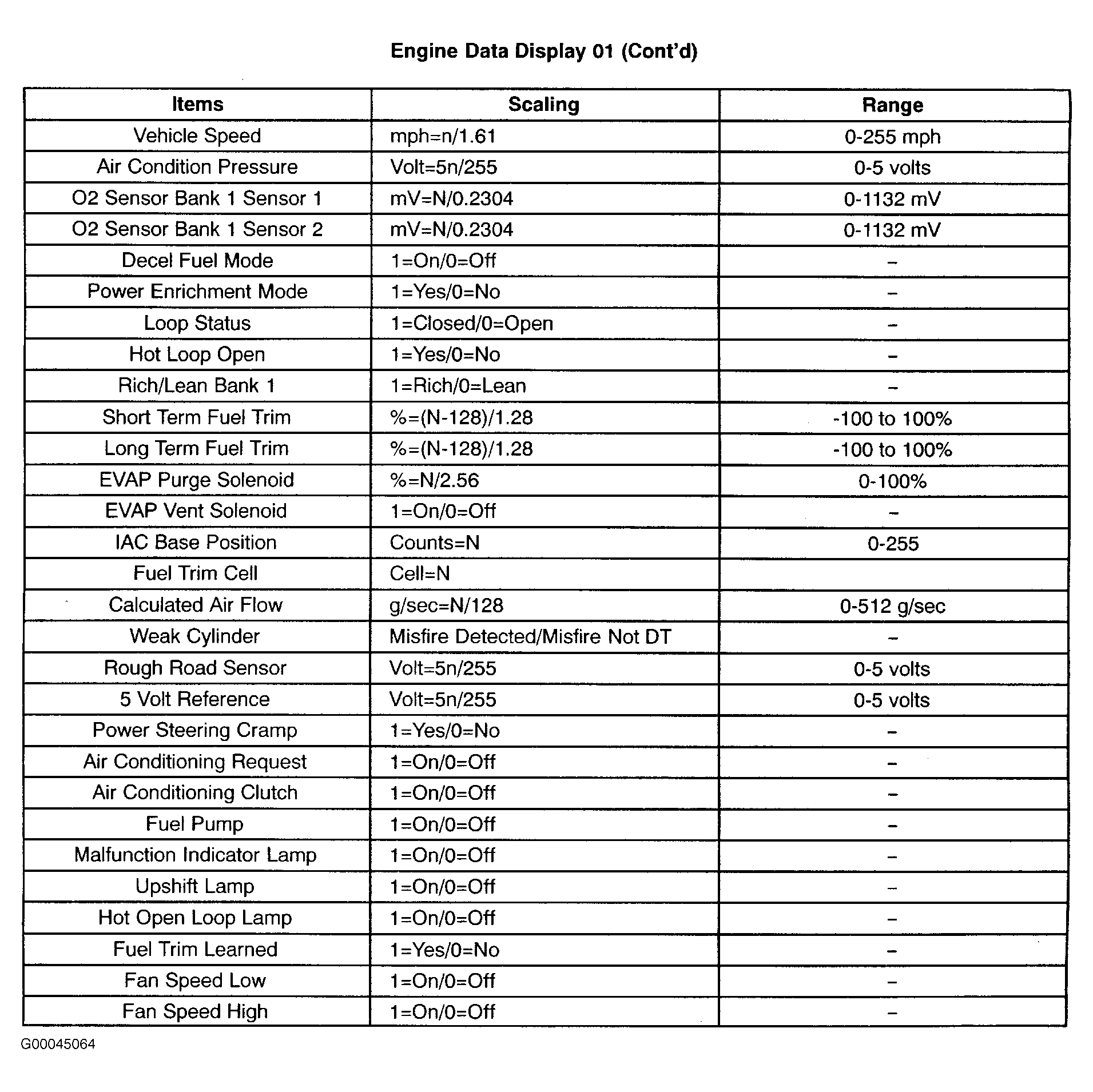

Fig 2: Engine Data Display 01 (2 Of 2)
G00045064Courtesy of DAEWOO MOTOR AMERICA, INC.
