Engine Data Display 04

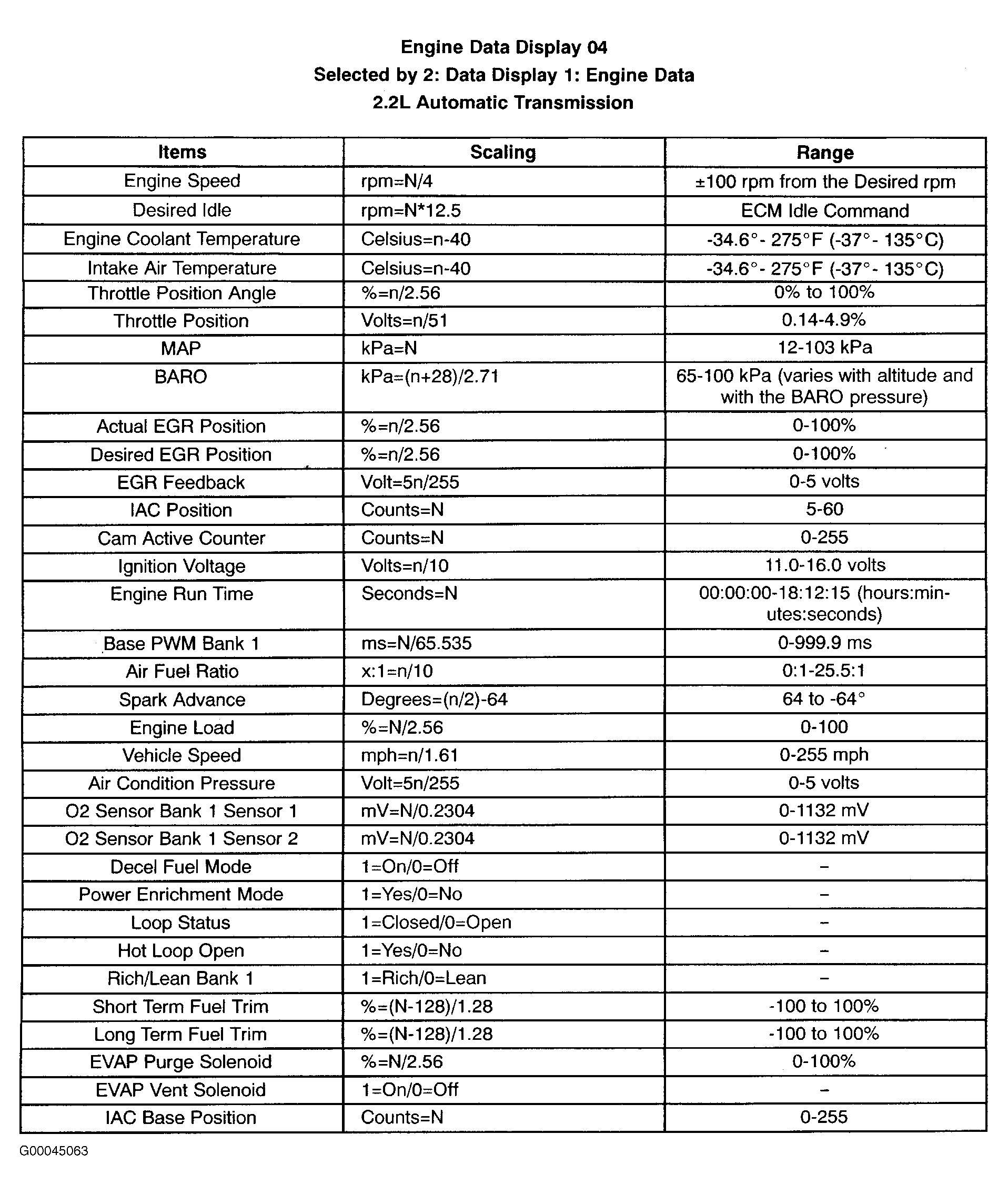

Fig 1: Engine Data Display 04 (1 Of 2)
G00045063Courtesy of DAEWOO MOTOR AMERICA, INC.
Fig 2: Engine Data Display 04 (2 Of 2)
G00045065Courtesy of DAEWOO MOTOR AMERICA, INC.
