Duty Cycle Solenoid: Removal

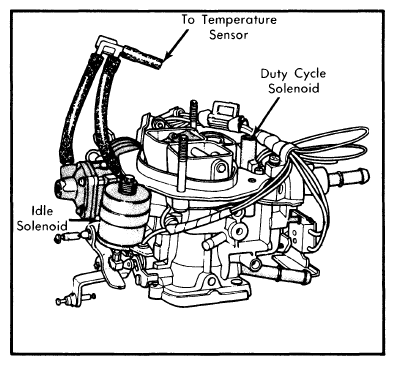

  1. Remove 2 duty cycle solenoid retaining screws and gently lift solenoid from air horn. See Figure. Remove anti-rattle spring, 2 retaining screws and idle solenoid from carburetor.
  2. Remove 2 wide open throttle cut-out switch mounting screws (if equipped). Mark location for proper assembly. Remove harness mounting screws and open retaining clip. Remove wires from connector and thread through clip.
