Power Window Switch: Notes

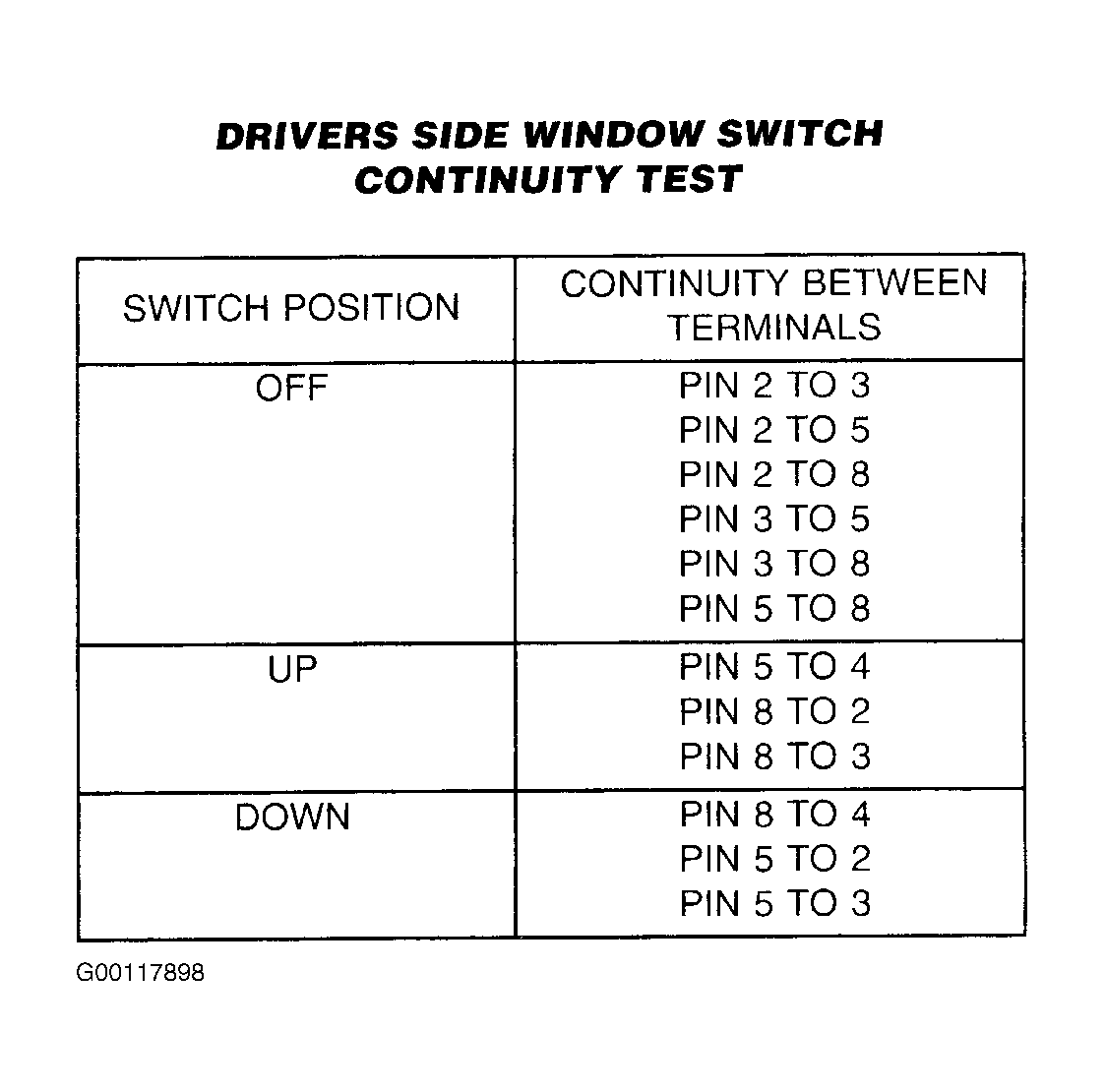

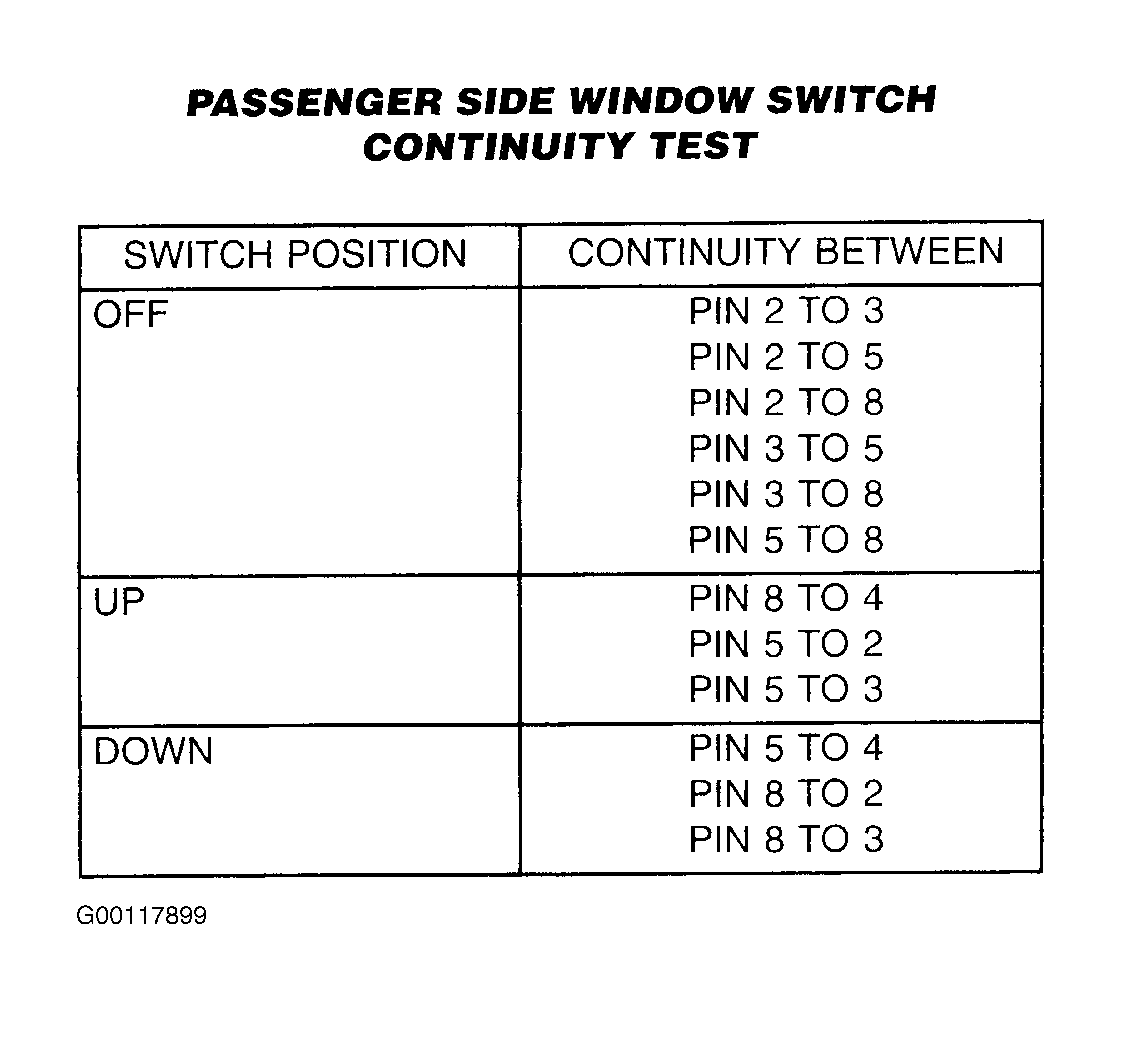

Remove switch from its mounting. See POWER WINDOW SWITCH . Using an ohmmeter, refer to Drivers (Figure) & Passenger (Figure) Side Window Switch Continuity Test tables to determine if continuity is correct. If results are not obtained, replace switch.

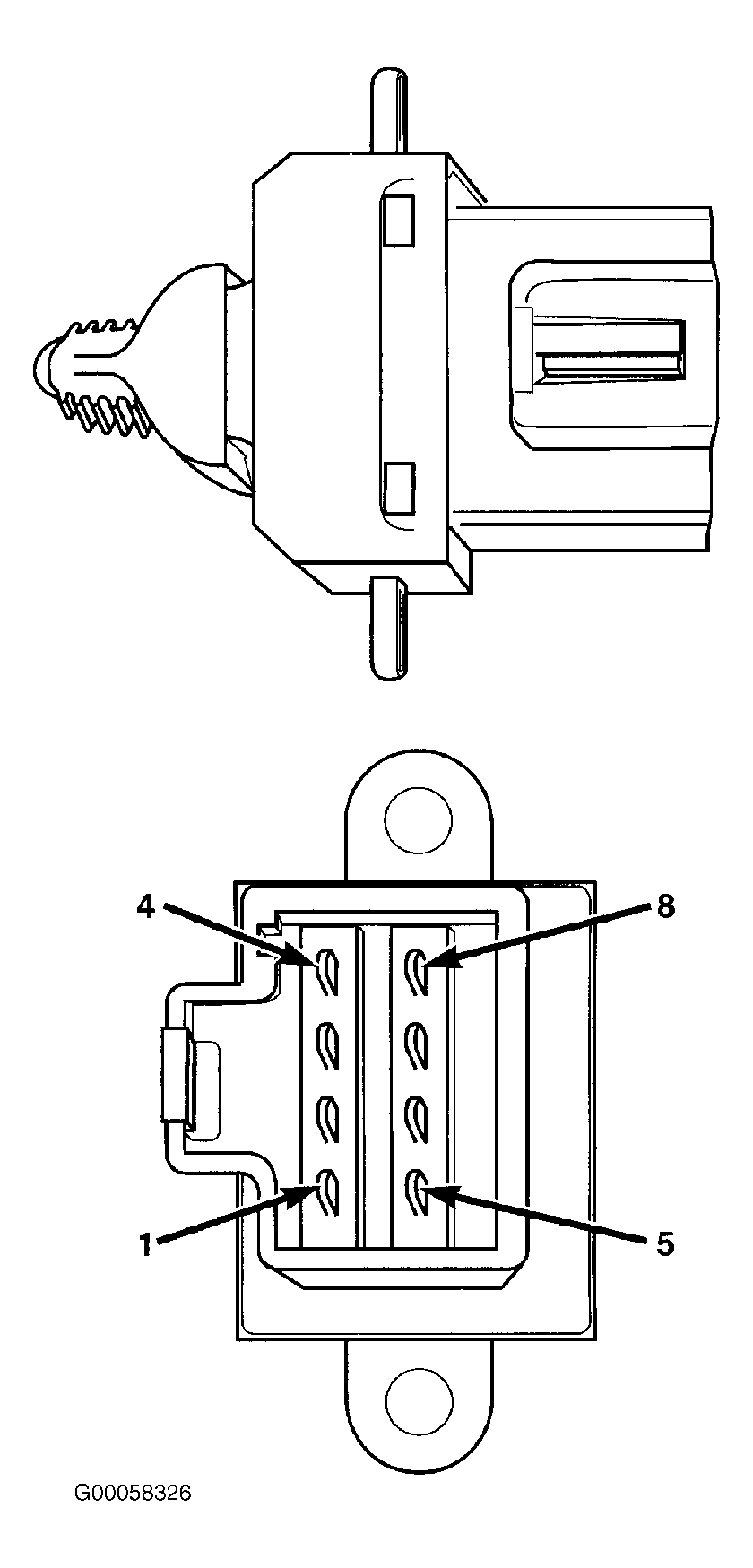

Fig 1: Identifying Power Window Switch Connector

Courtesy of DAIMLERCHRYSLER CORPORATION
