Component Location Graphics

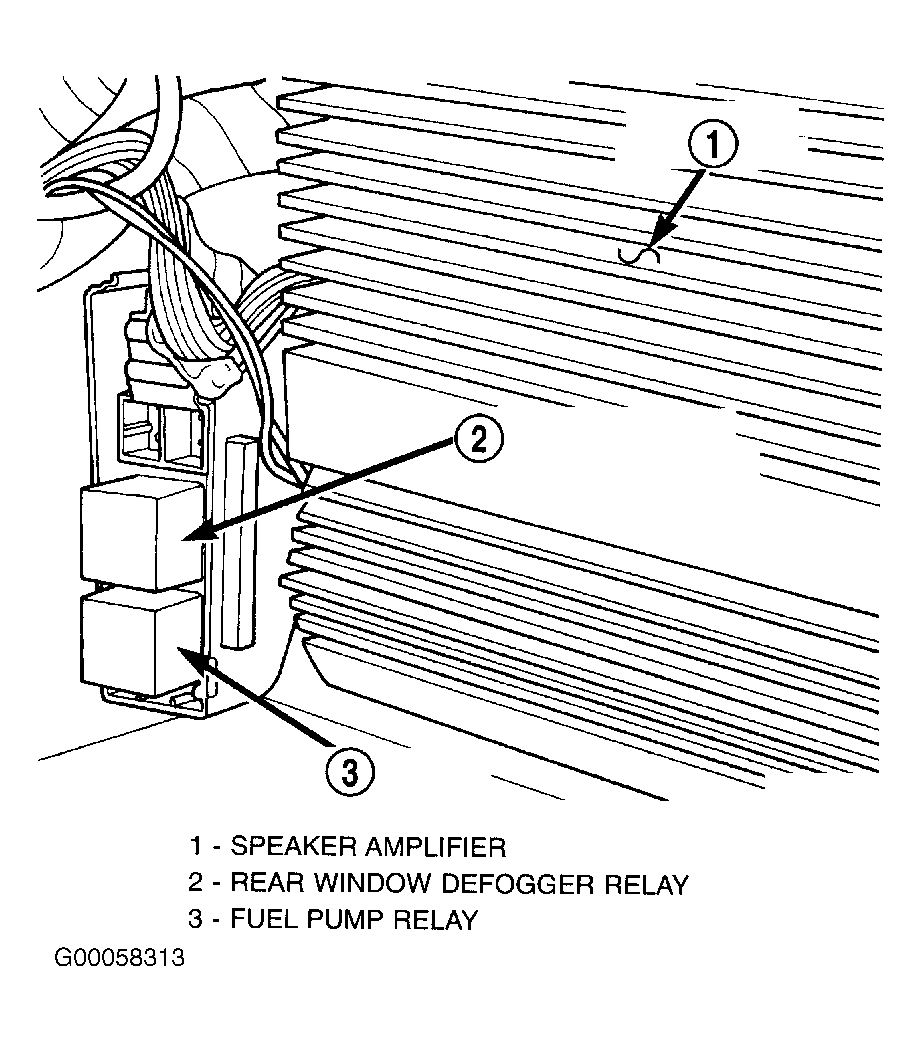

Fig 1: Locating Fuel Pump Relay & Rear Window Defogger Relay

G00058313

Courtesy of DAIMLERCHRYSLER CORPORATION

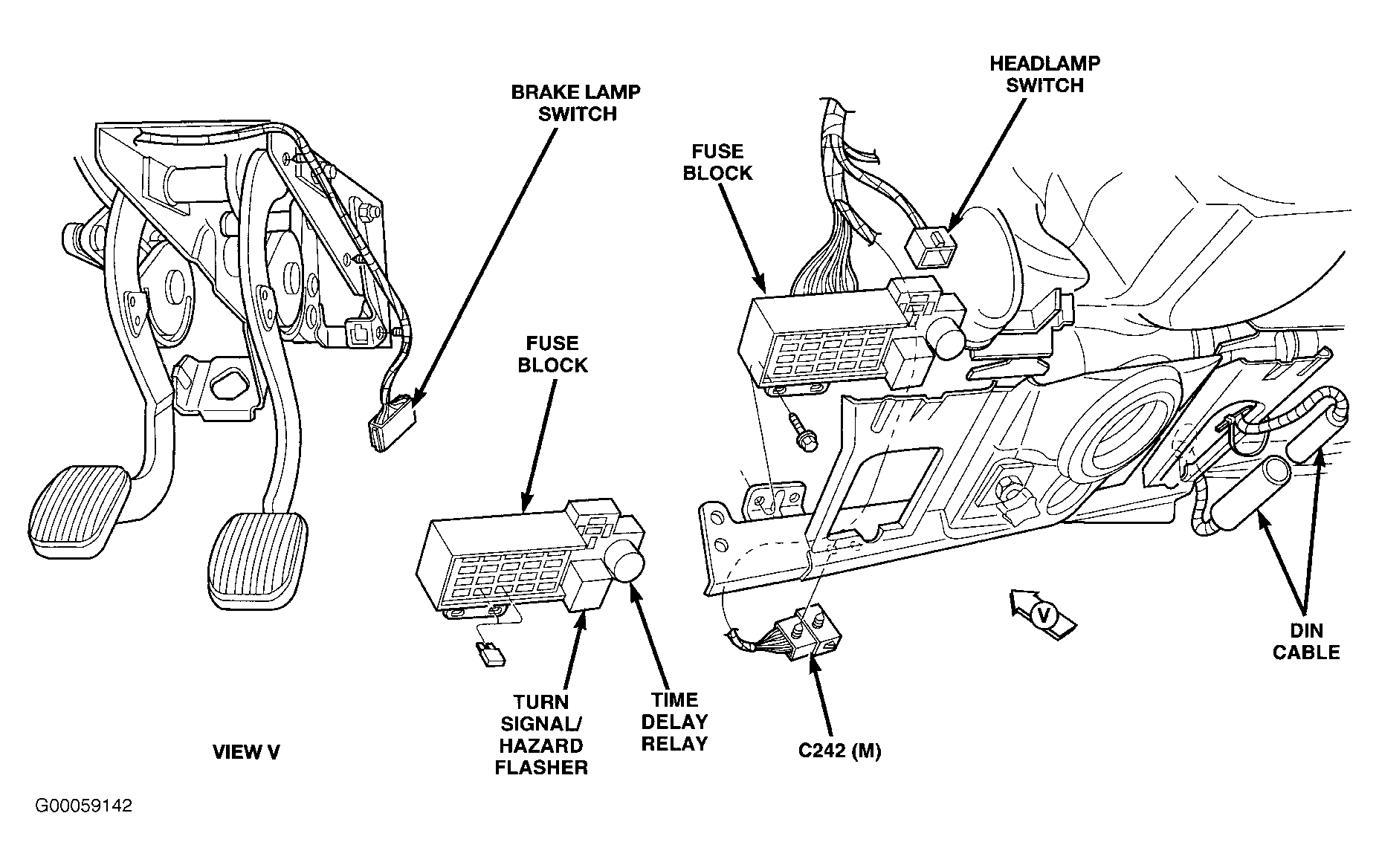

Fig 2: Locating Time Delay Relay, Power Distribution Center (PDC) & Headlamp Switch

G00059142

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 3: Locating Fuse Block

G00059142

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 4: Locating Airbag Control Module

G00058344

Courtesy of DAIMLERCHRYSLER CORPORATION

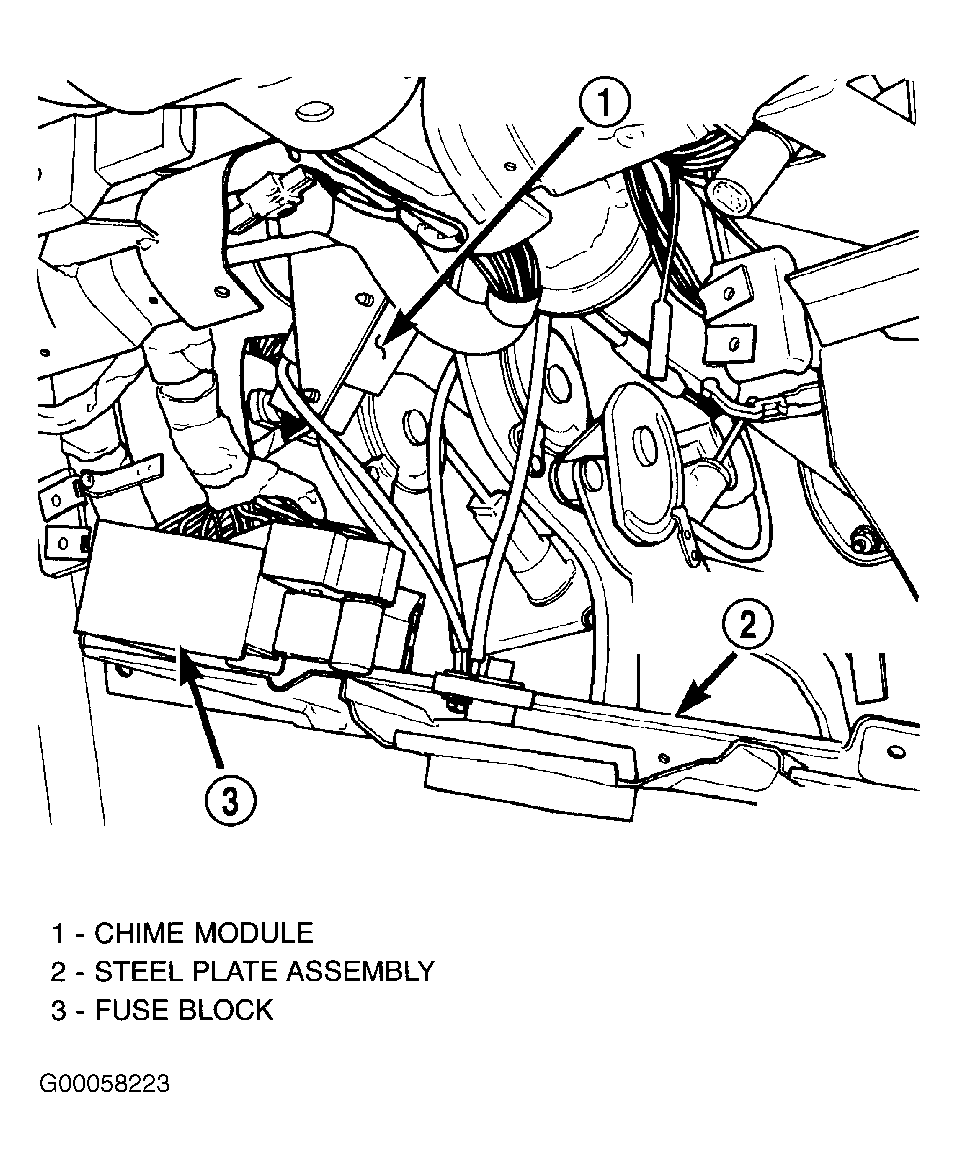

Fig 5: Locating Buzzer/Chime Module

G00058223

Courtesy of DAIMLERCHRYSLER CORPORATION

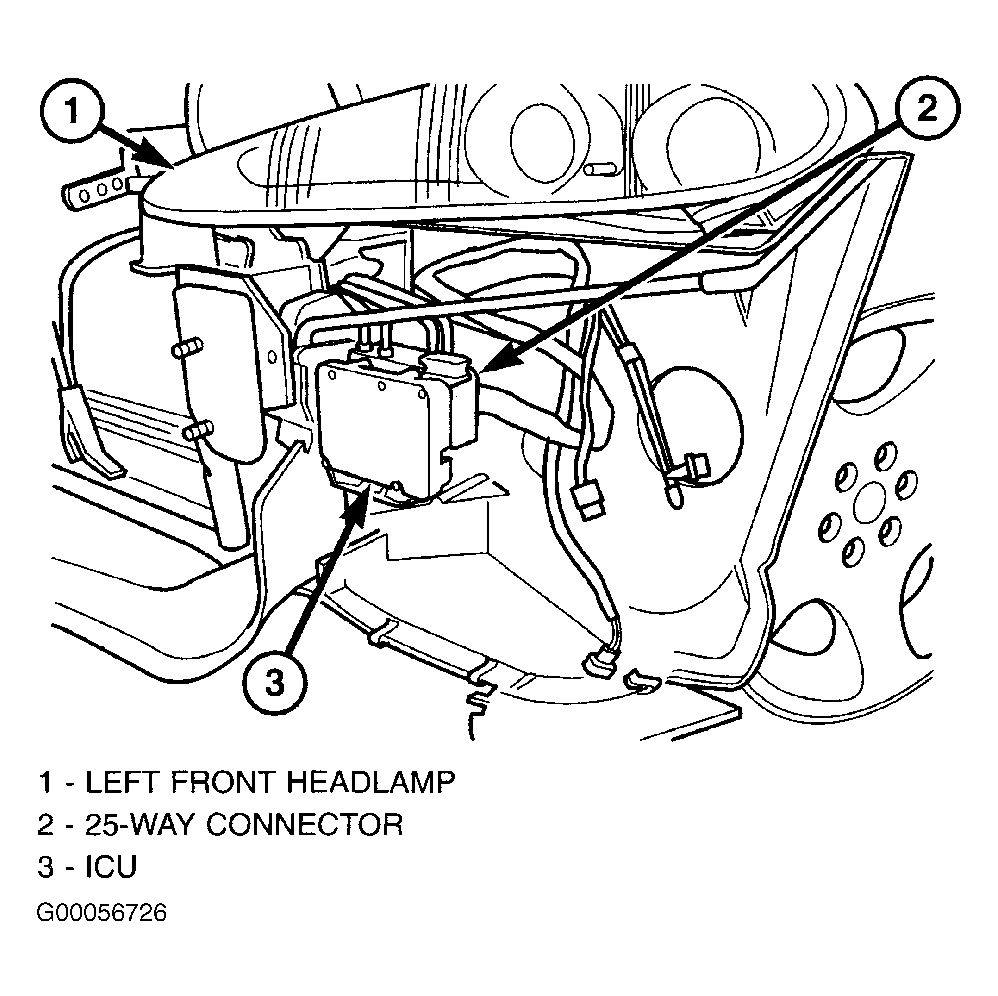

Fig 6: Locating Controller Anti-lock Brake (CAB) & Integrated Control Unit (ICU)

G00056726

Courtesy of DAIMLERCHRYSLER CORPORATION

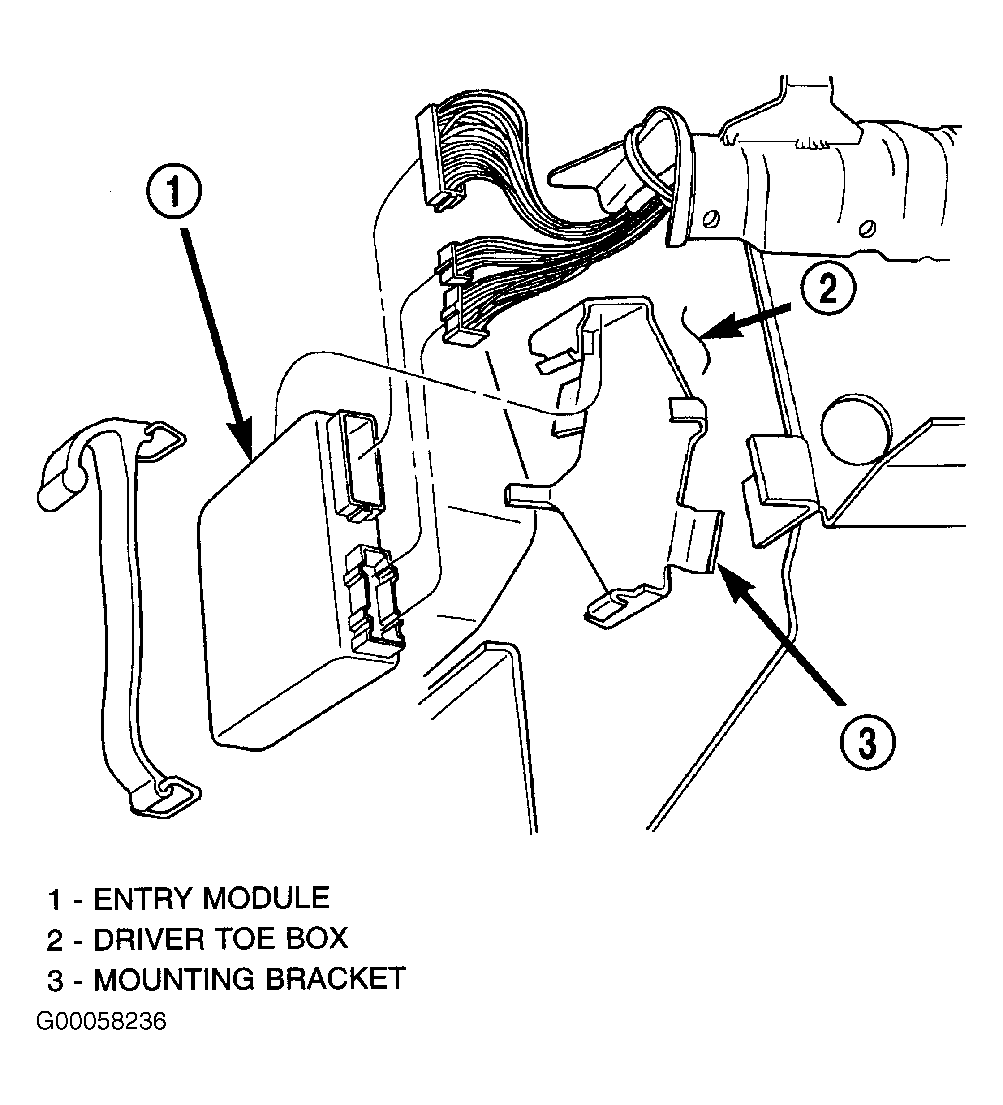

Fig 7: Locating Entry Module

G00058236

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 8: Locating Powertrain Control Module (PCM)

G00058247

Courtesy of DAIMLERCHRYSLER CORPORATION

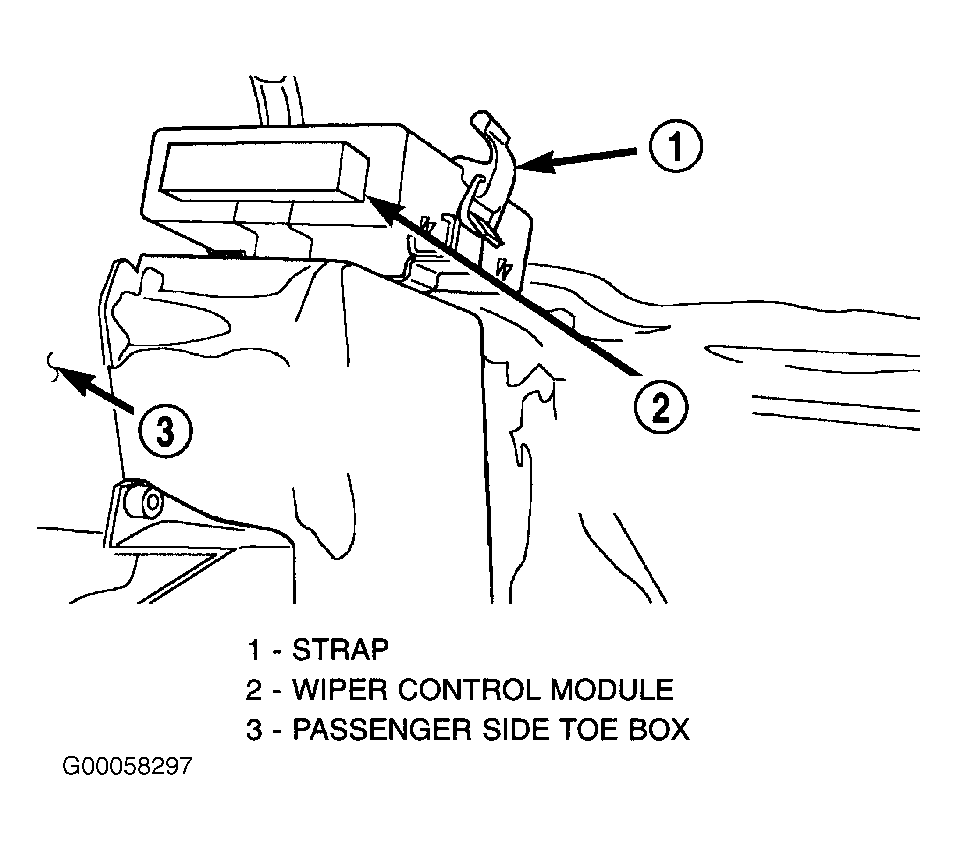

Fig 9: Locating Wiper Control Module

G00058297

Courtesy of DAIMLERCHRYSLER CORPORATION

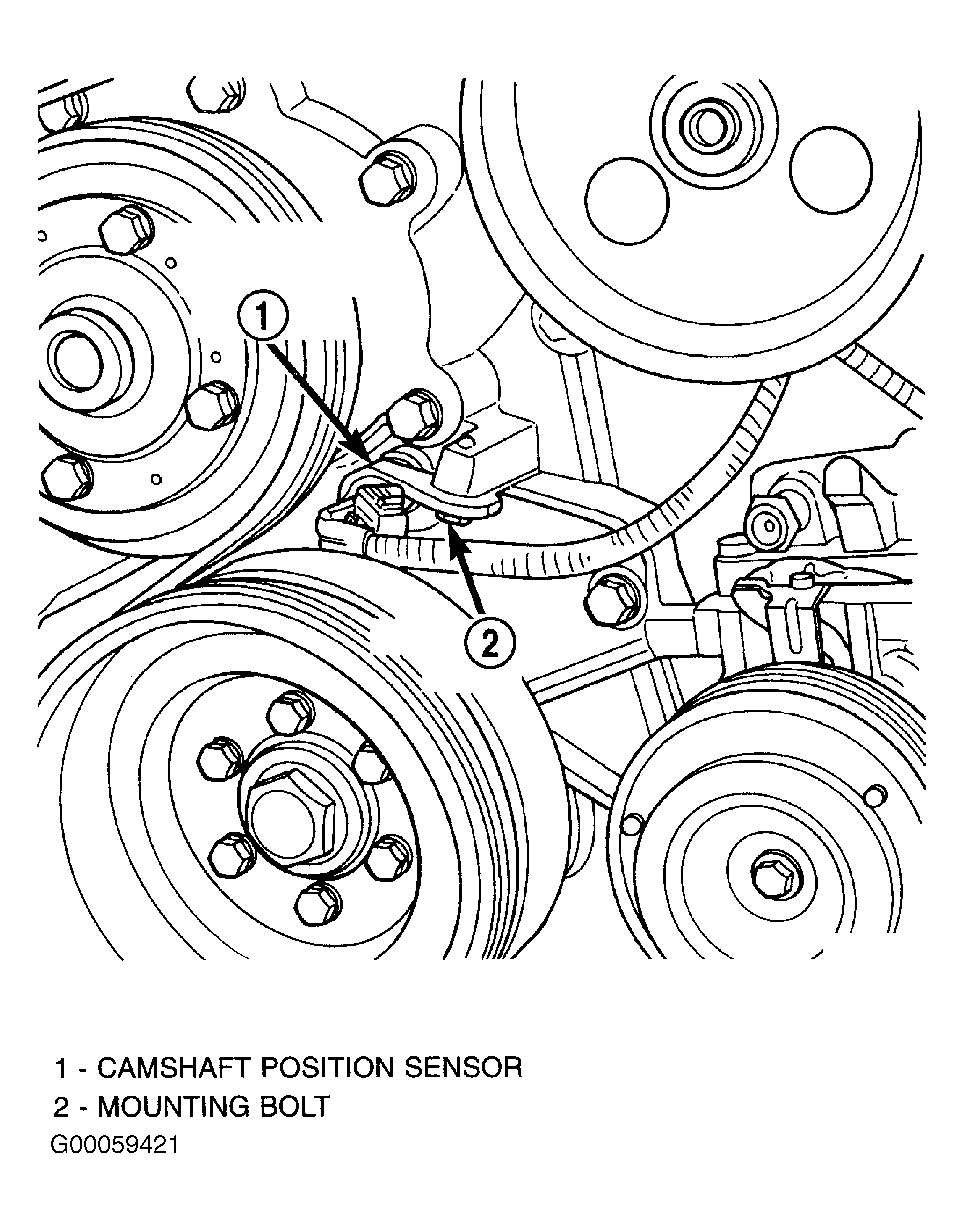

Fig 10: Locating Camshaft Position Sensor

G00059421

Courtesy of DAIMLERCHRYSLER CORPORATION

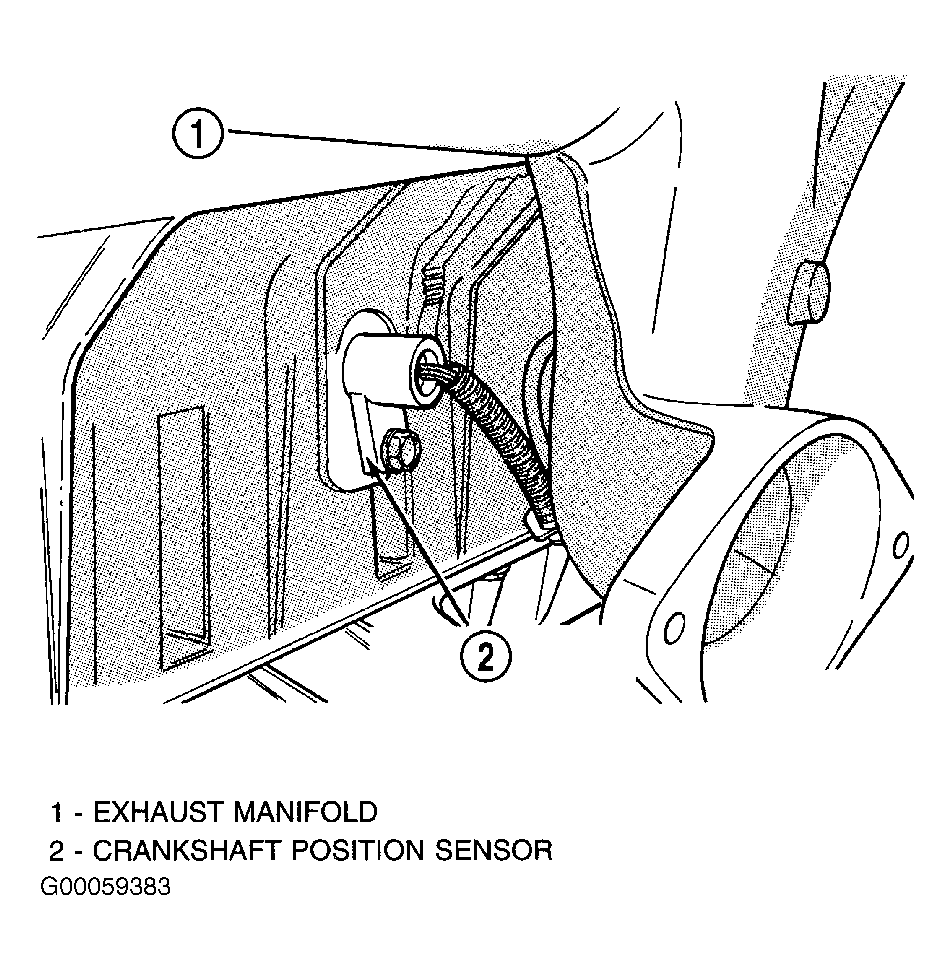

Fig 11: Locating Crankshaft Position Sensor

G00059383

Courtesy of DAIMLERCHRYSLER CORPORATION

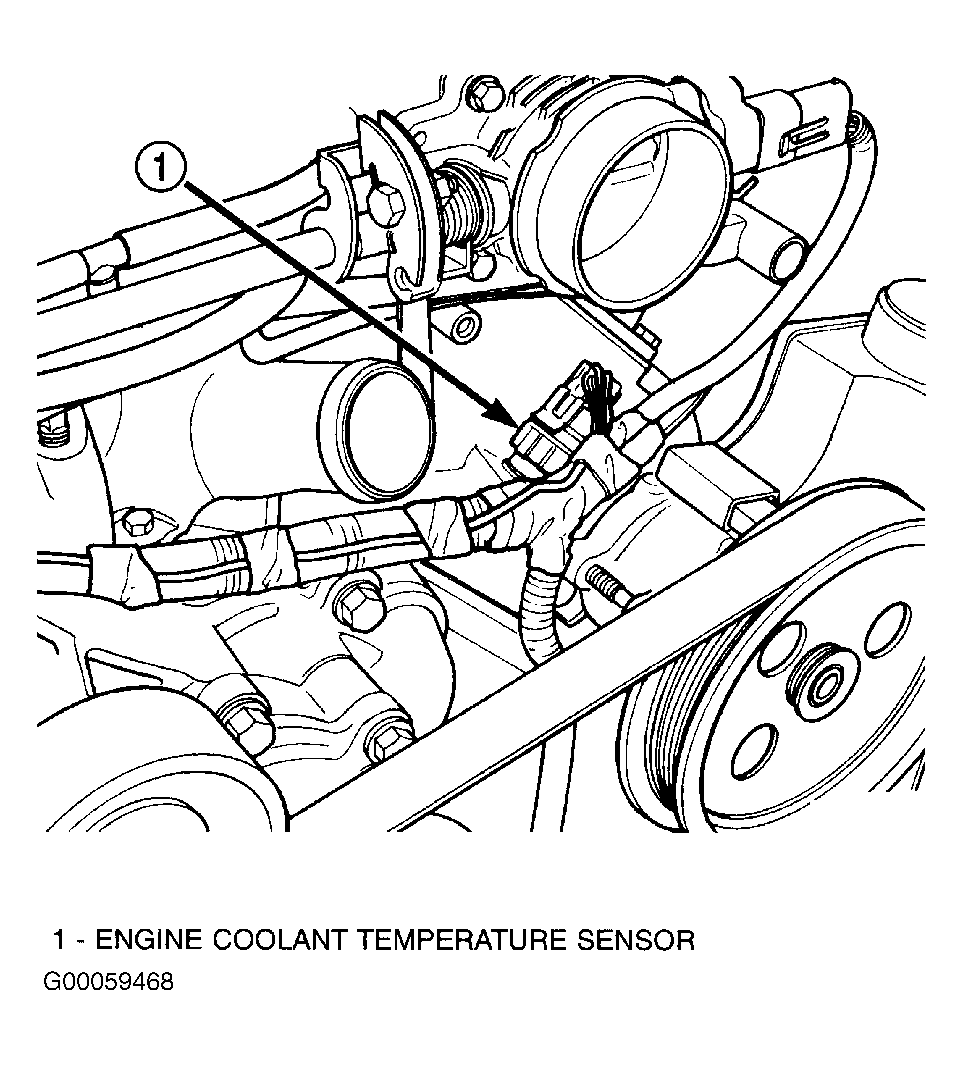

Fig 12: Locating Engine Coolant Temperature Sensor

G00059468

Courtesy of DAIMLERCHRYSLER CORPORATION

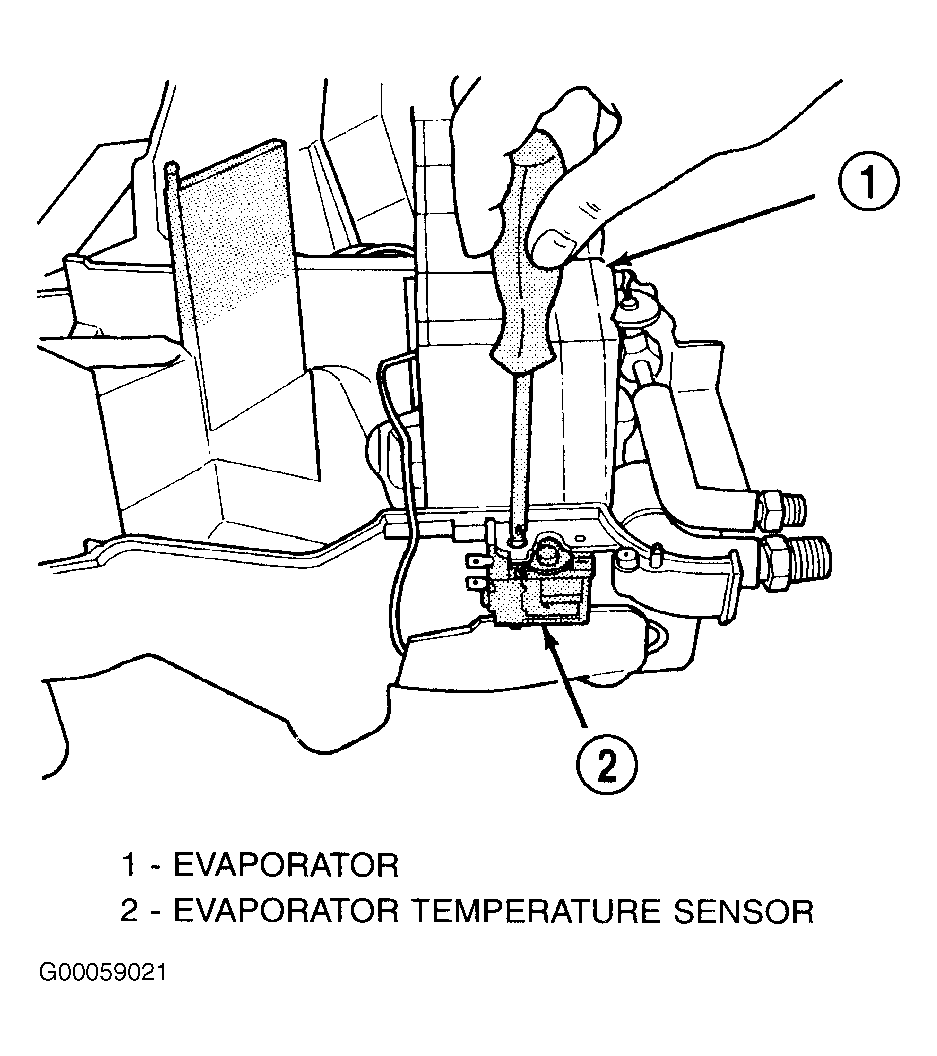

Fig 13: Locating Evaporator Sensor

G00059021

Courtesy of DAIMLERCHRYSLER CORPORATION

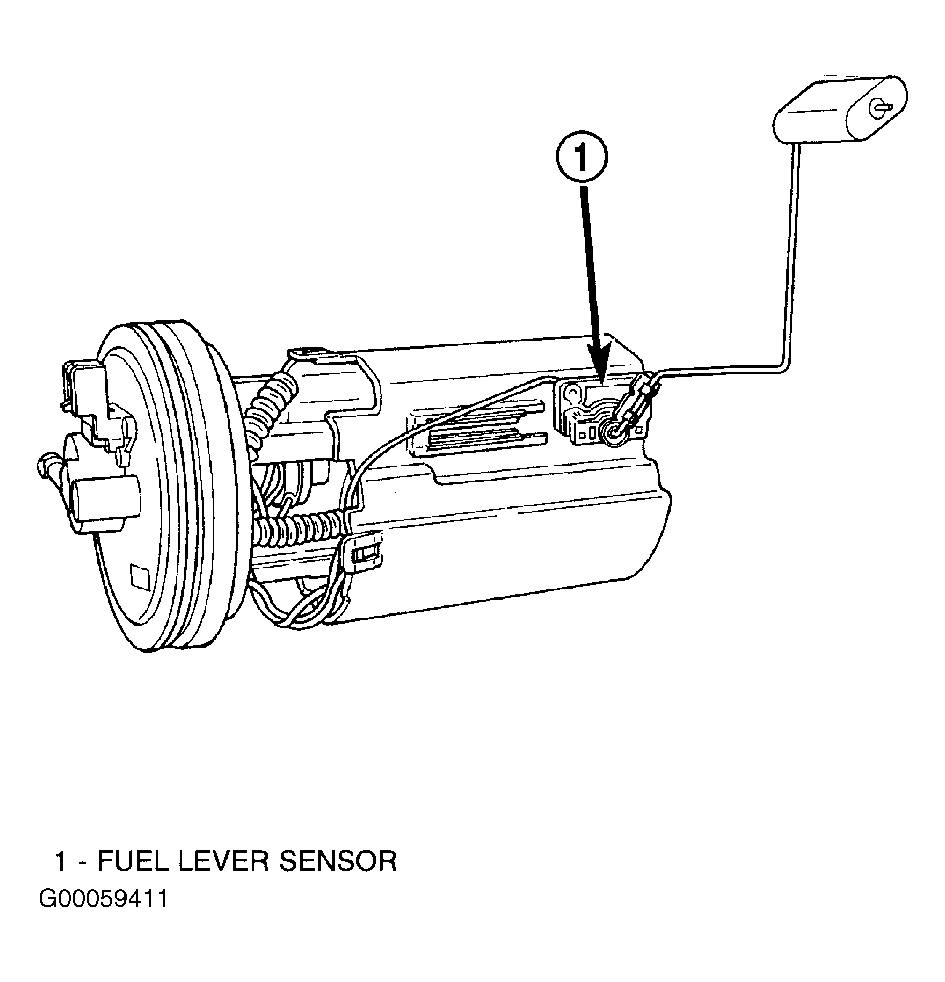

Fig 14: Locating Fuel Level Sensor

G00059411

Courtesy of DAIMLERCHRYSLER CORPORATION

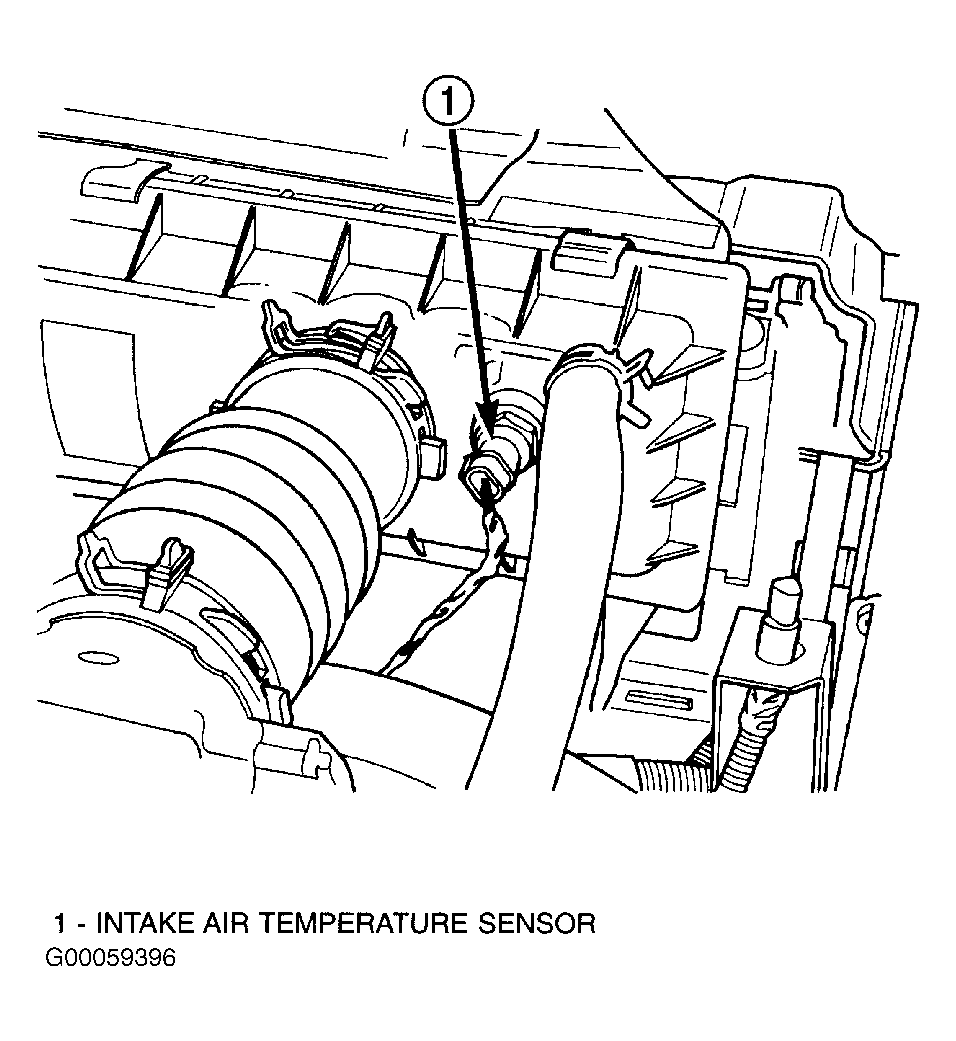

Fig 15: Locating Intake Air Temperature Sensor

G00059396

Courtesy of DAIMLERCHRYSLER CORPORATION

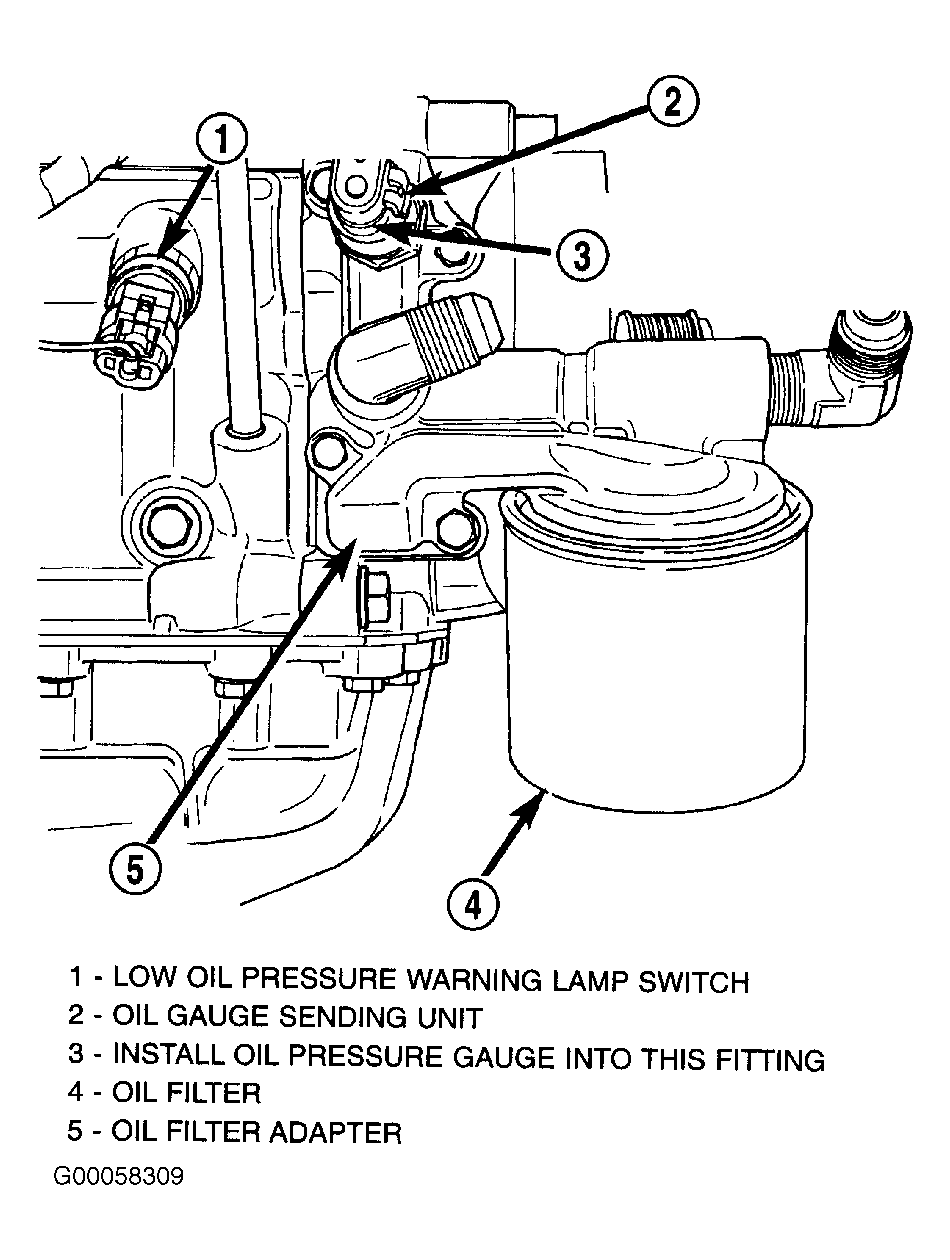

Fig 16: Locating Oil Gauge Sending Unit/Sensor & Low Oil Warning Lamp Switch

G00058309

Courtesy of DAIMLERCHRYSLER CORPORATION

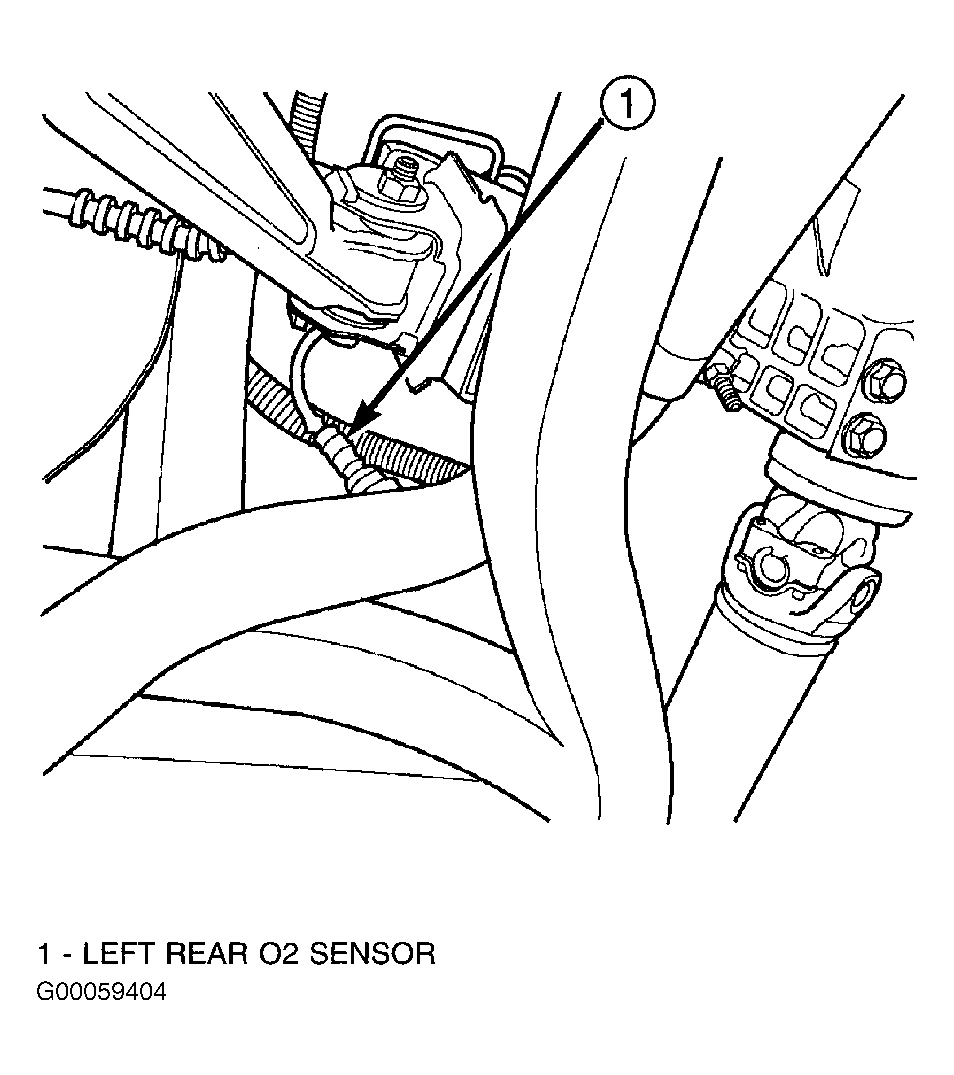

Fig 17: Locating Rear Heated Oxygen Sensor (Left)

G00059404

Courtesy of DAIMLERCHRYSLER CORPORATION

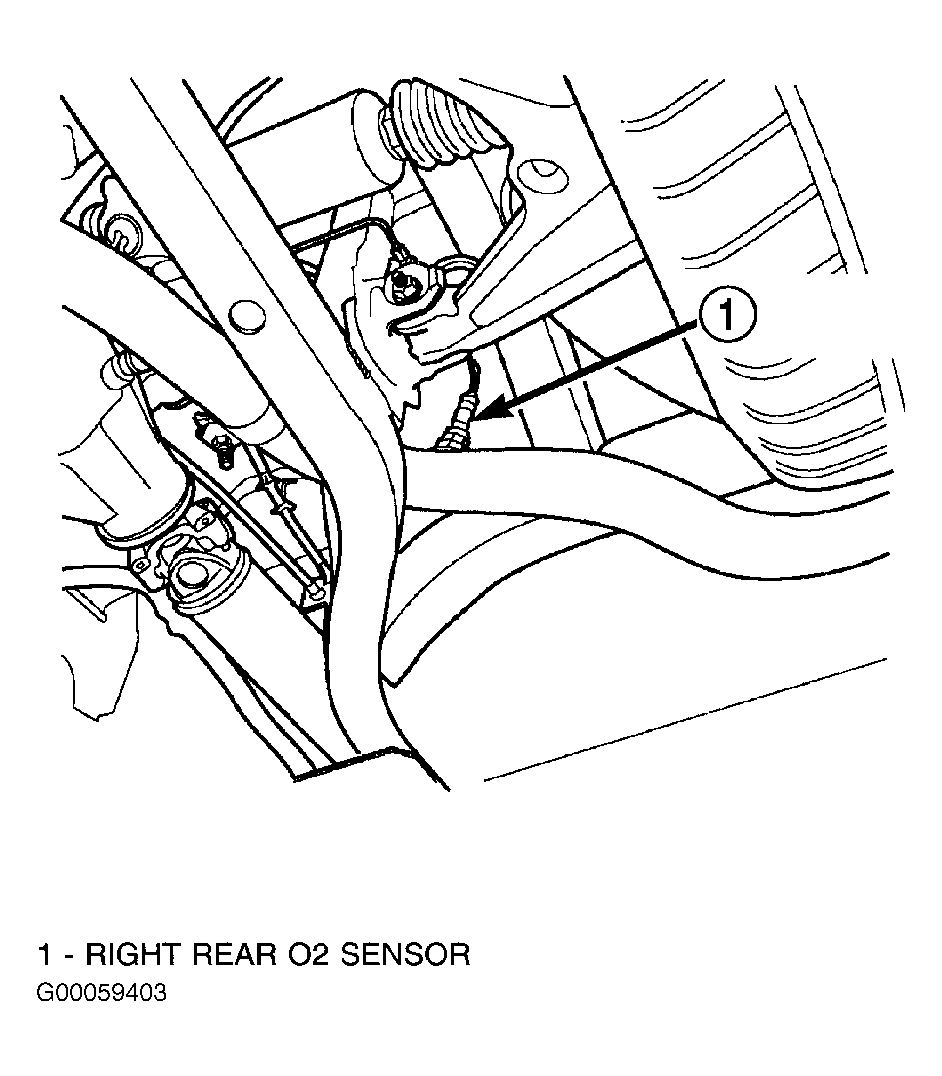

Fig 18: Locating Rear Heated Oxygen Sensor (Right)

G00059403

Courtesy of DAIMLERCHRYSLER CORPORATION

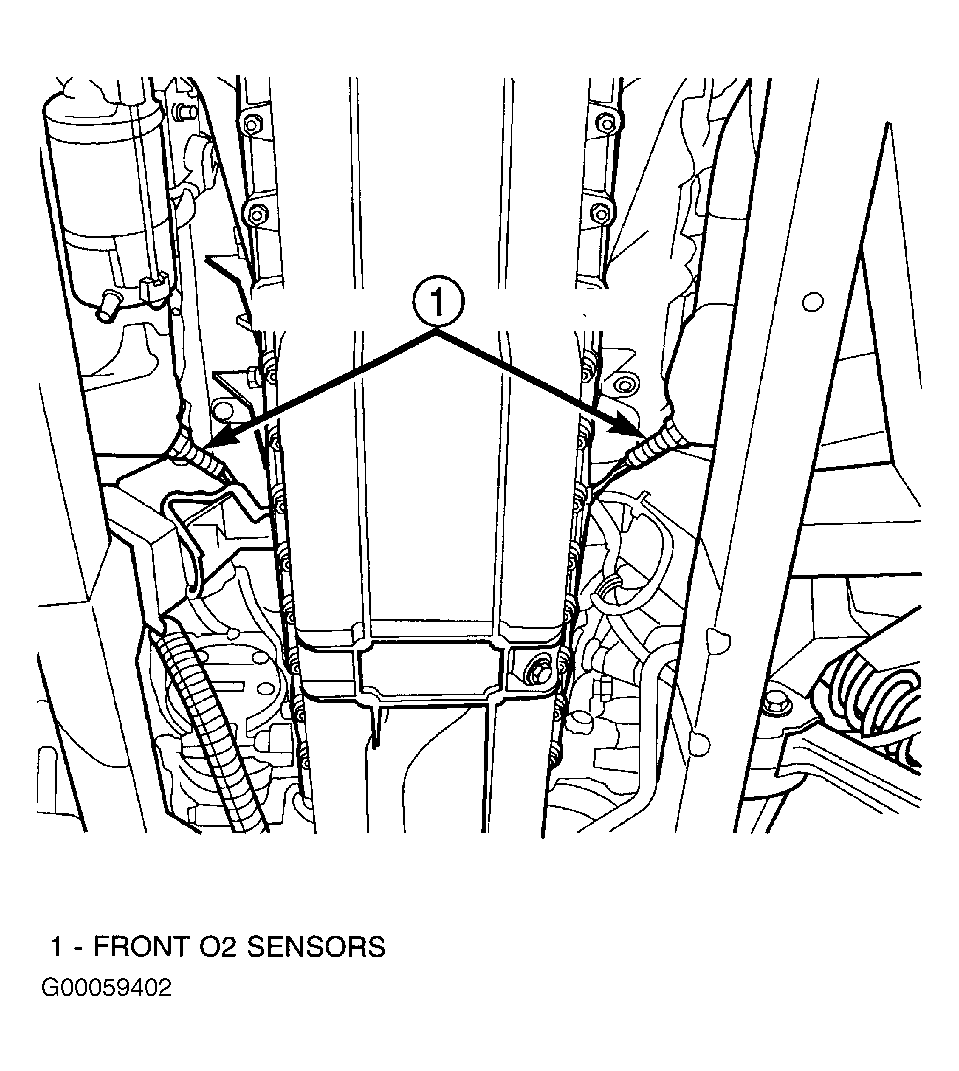

Fig 19: Locating Upstream Heated Oxygen Sensors

G00059402

Courtesy of DAIMLERCHRYSLER CORPORATION

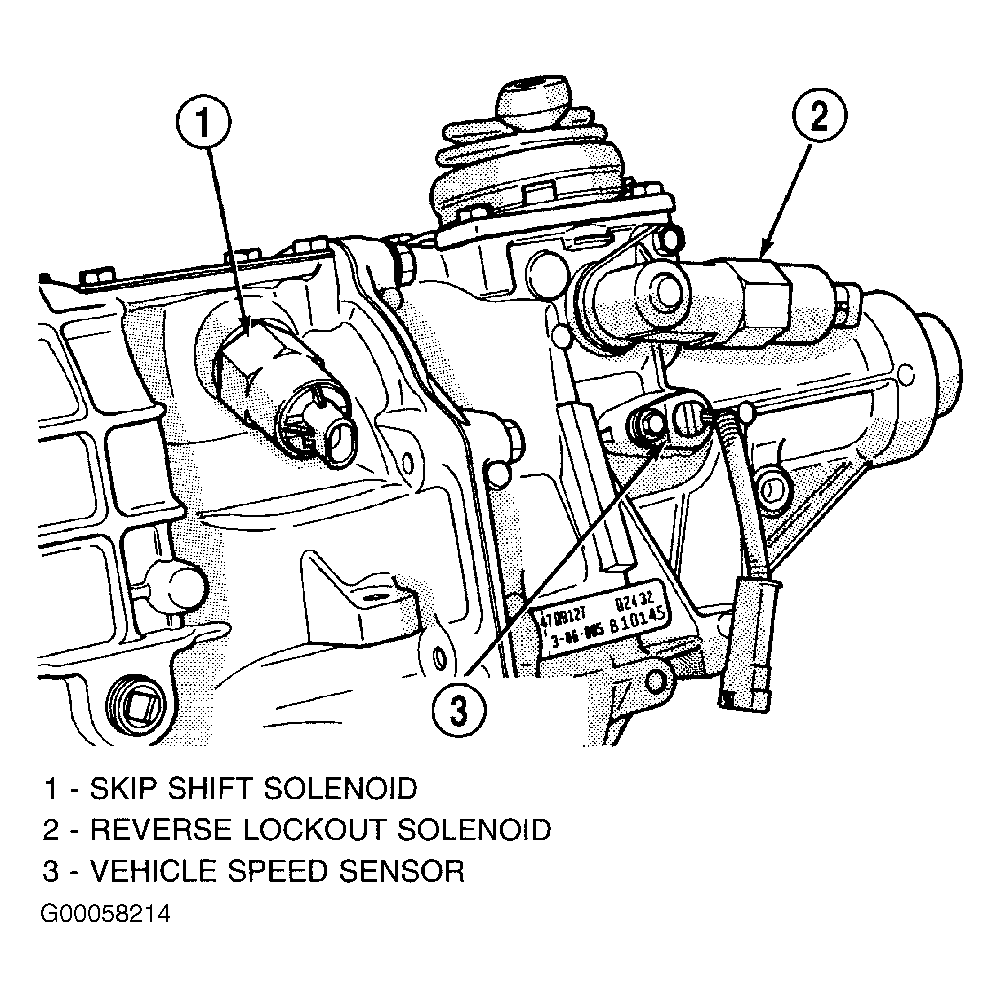

Fig 20: Locating Vehicle Speed Sensor, Locating Reverse Lockout Solenoid & Skip Shift Solenoid

G00058214

Courtesy of DAIMLERCHRYSLER CORPORATION

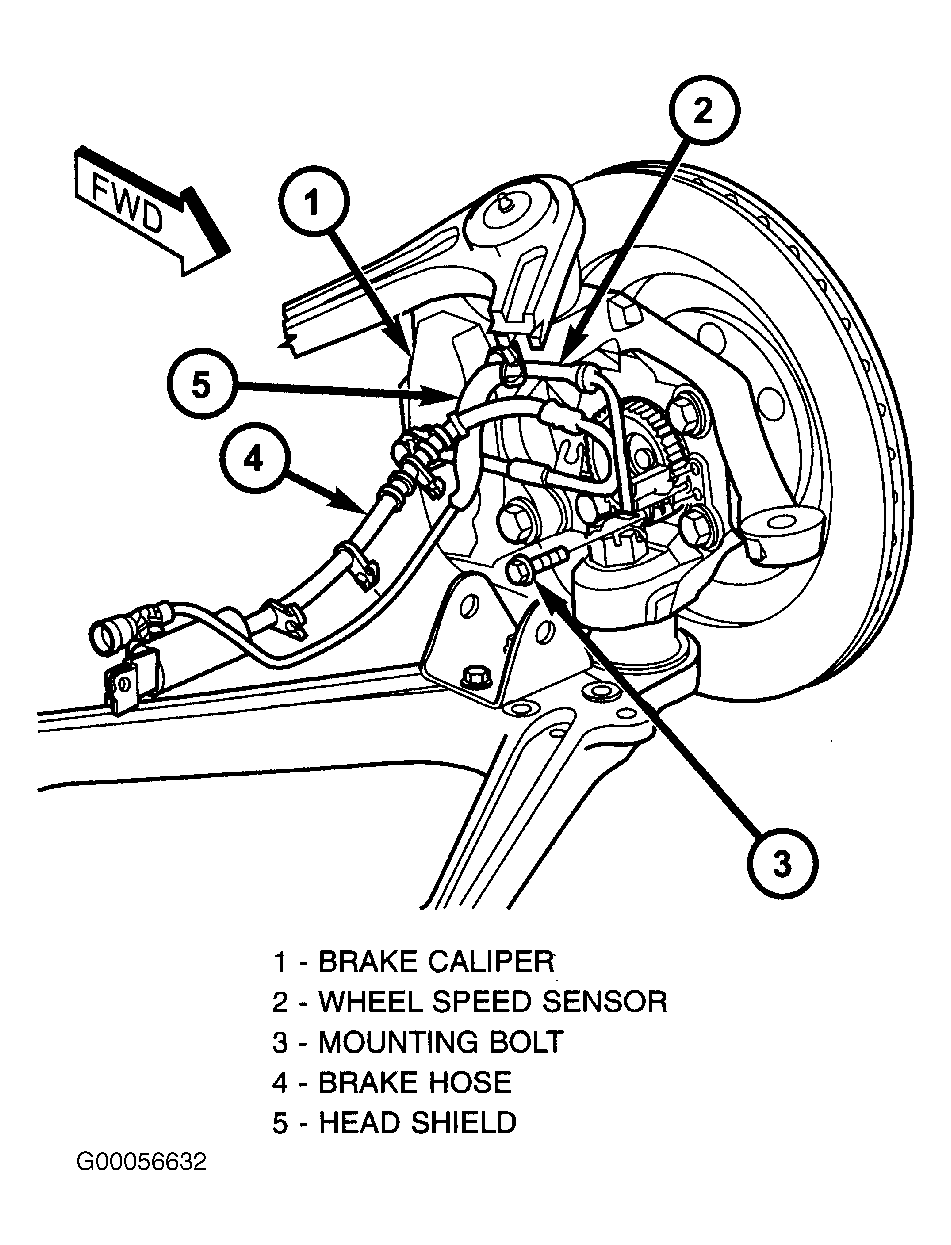

Fig 21: Locating Wheel Speed Sensor (Front)

G00056632

Courtesy of DAIMLERCHRYSLER CORPORATION

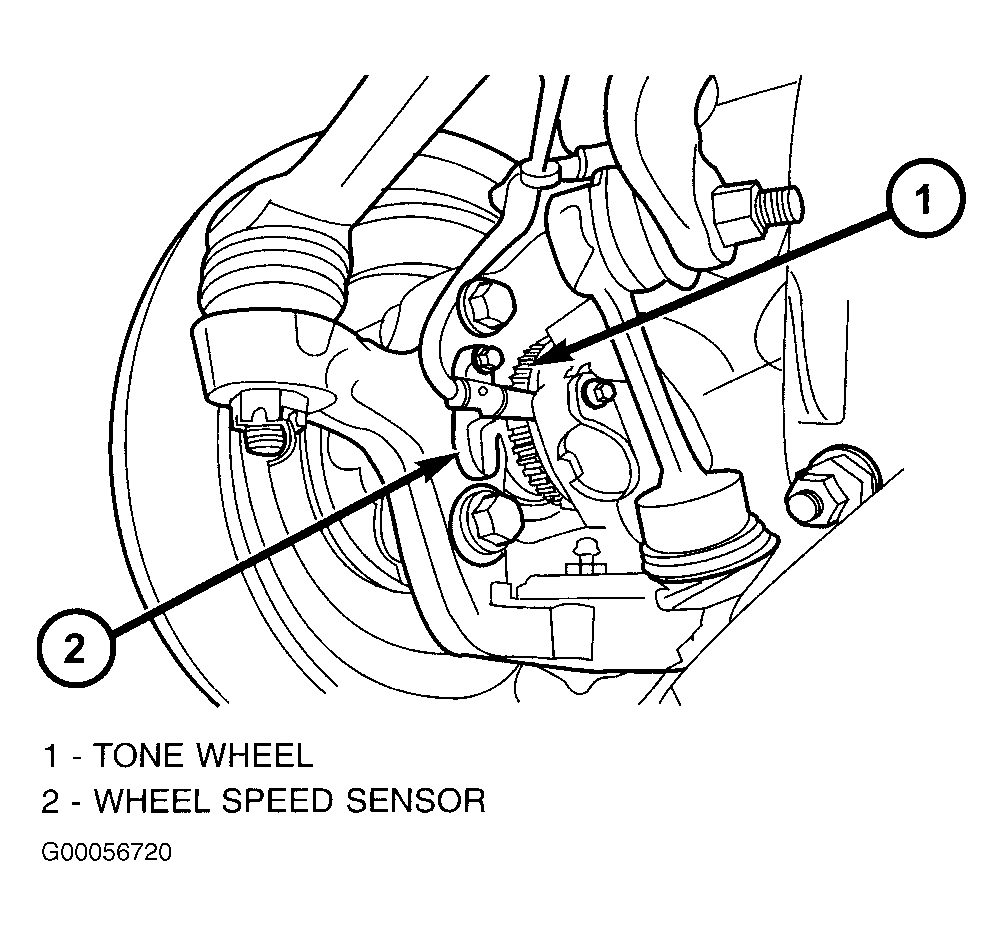

Fig 22: Locating Wheel Speed Sensor (Rear)

G00056720

Courtesy of DAIMLERCHRYSLER CORPORATION

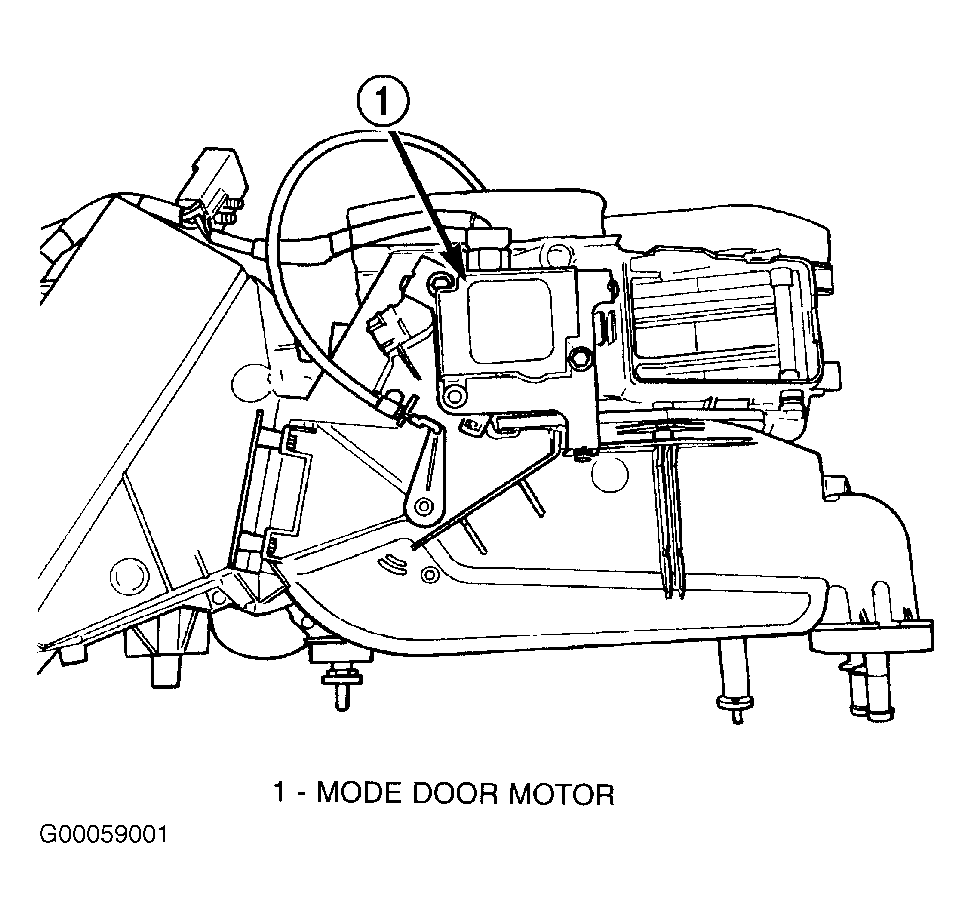

Fig 23: Locating Mode Door Motor

G00059001

Courtesy of DAIMLERCHRYSLER CORPORATION

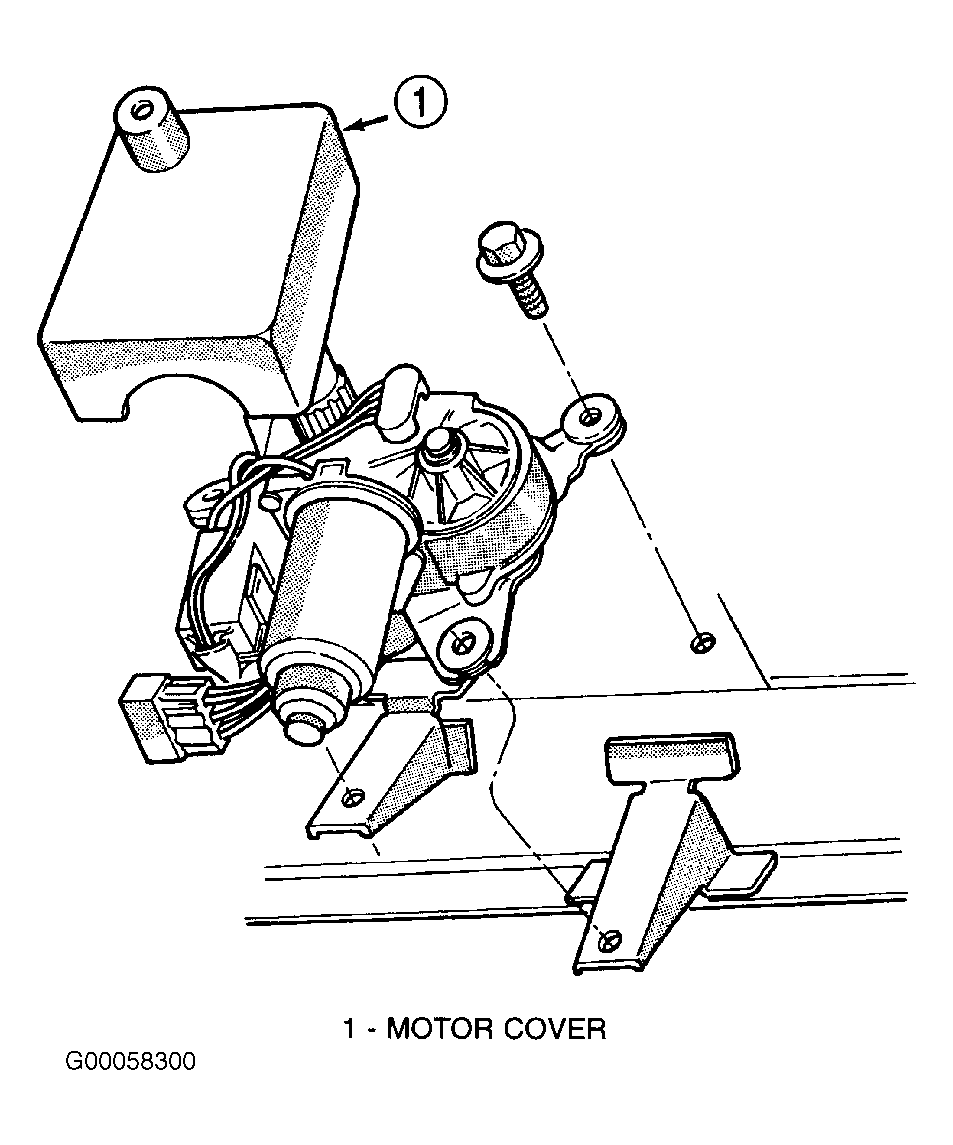

Fig 24: Locating Wiper Motor

G00058300

Courtesy of DAIMLERCHRYSLER CORPORATION

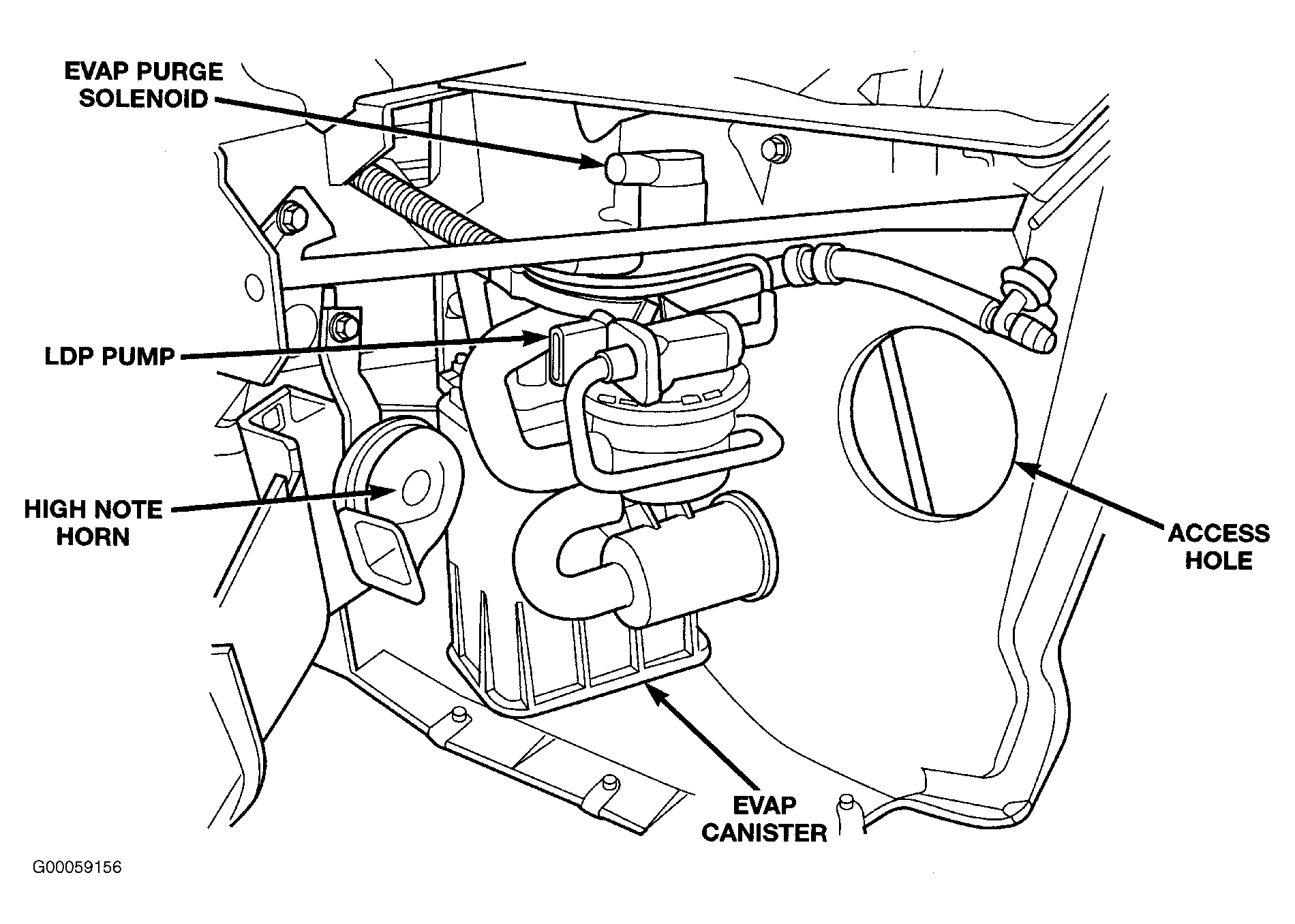

Fig 25: Locating EVAP Purge Solenoid

G00059156

Courtesy of DAIMLERCHRYSLER CORPORATION

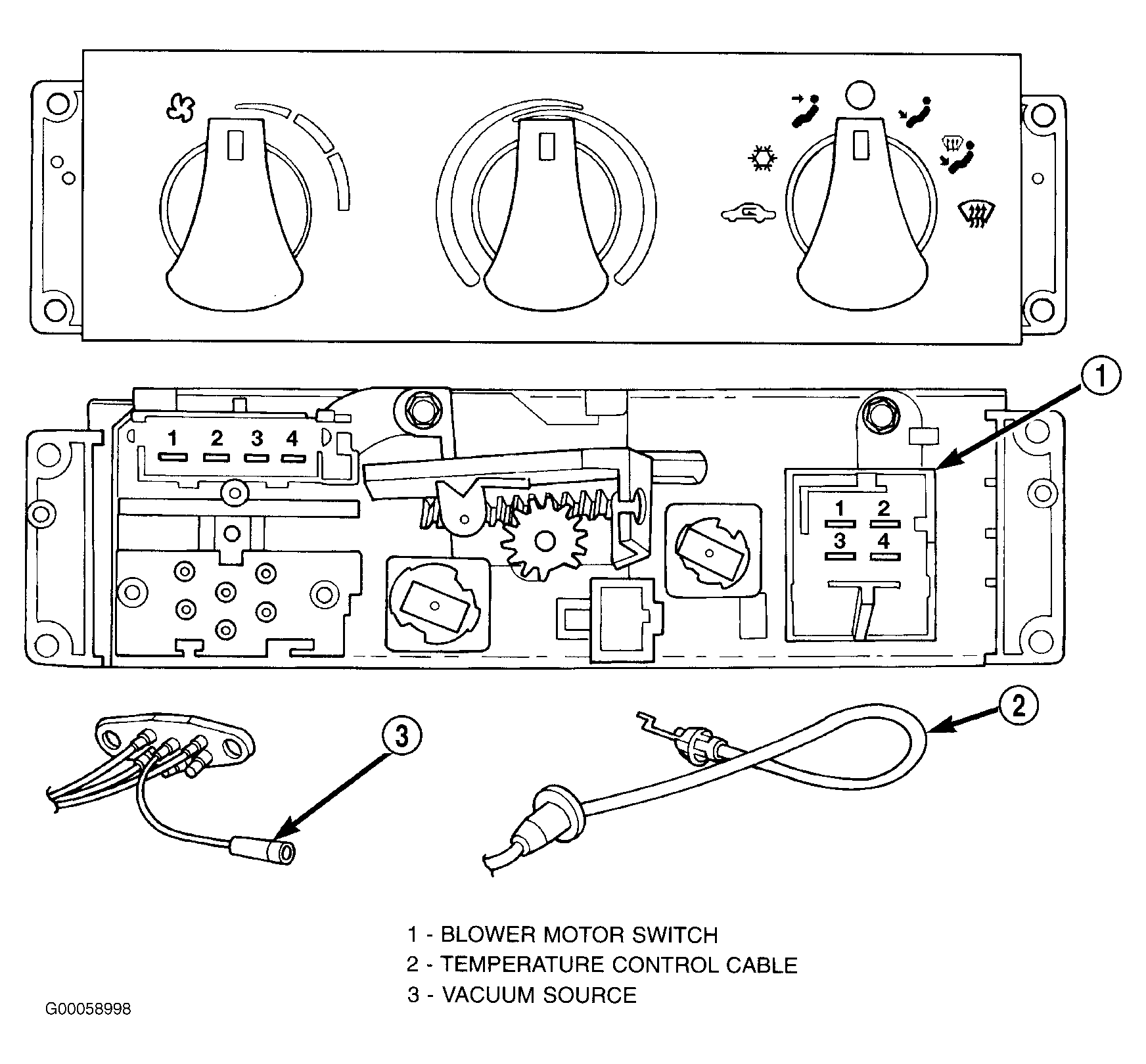

Fig 26: Locating Blower Motor Switch

G00058998

Courtesy of DAIMLERCHRYSLER CORPORATION

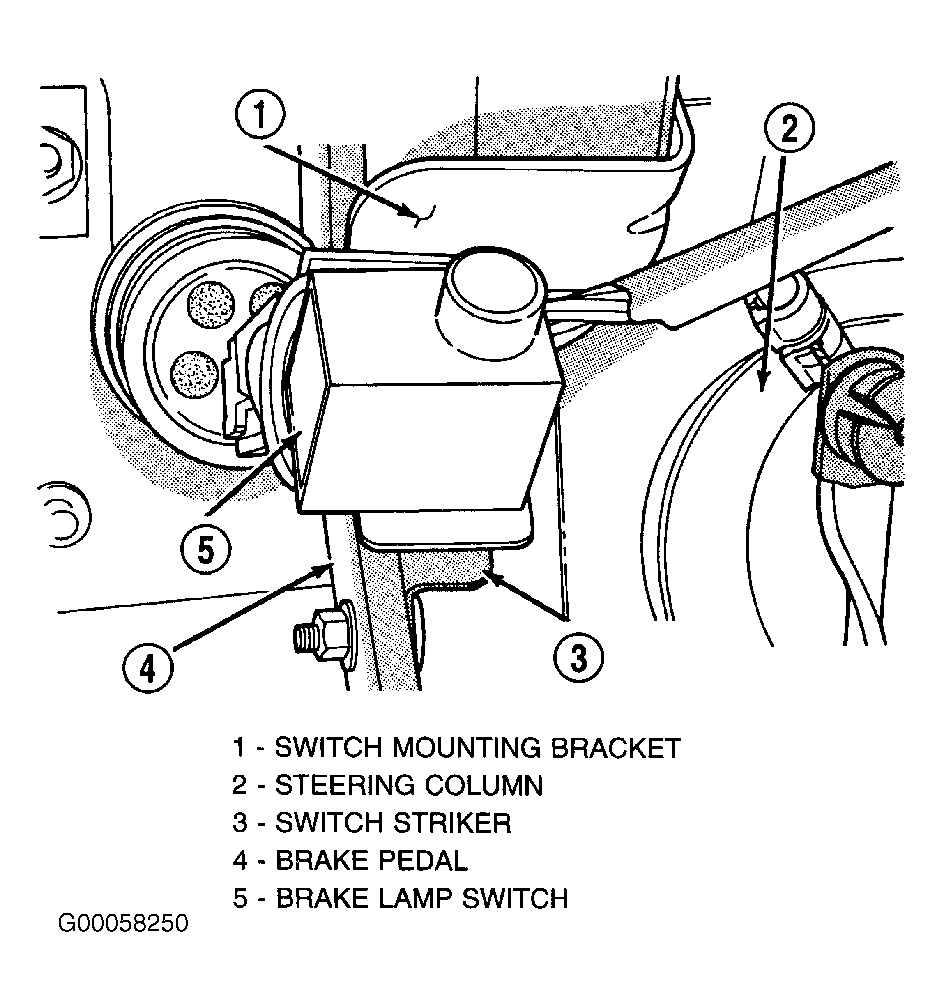

Fig 27: Locating Brake Lamp Switch

G00058250

Courtesy of DAIMLERCHRYSLER CORPORATION

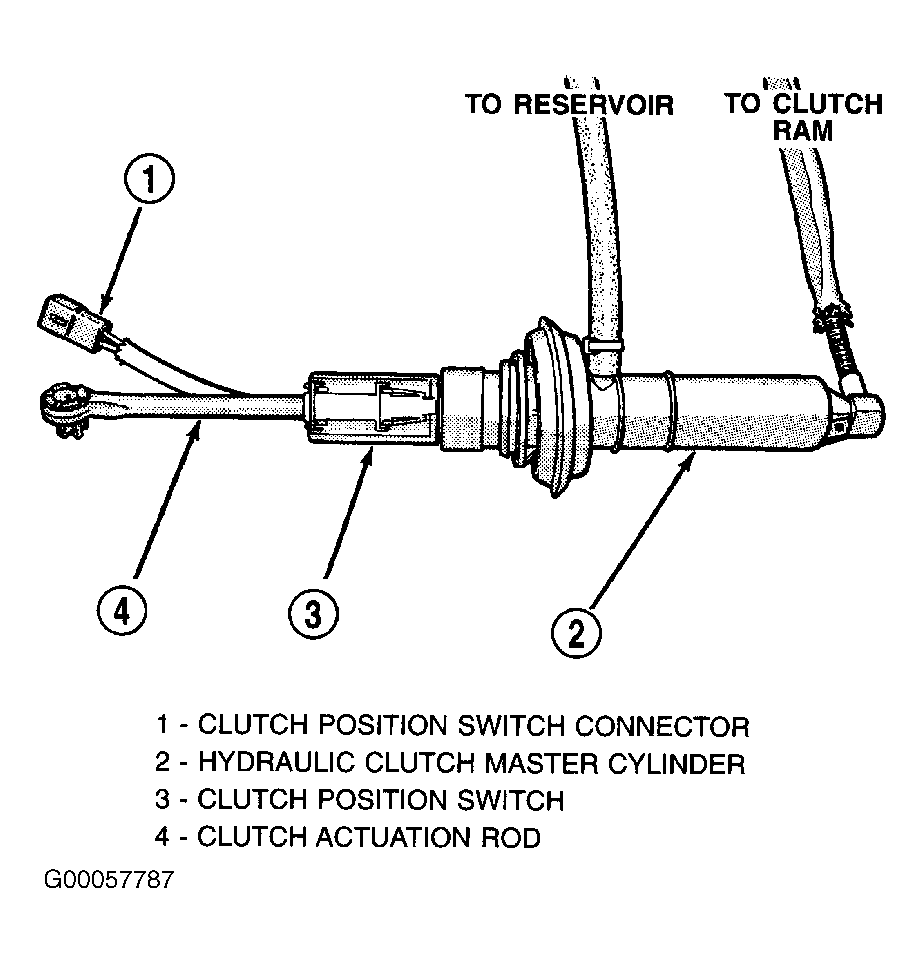

Fig 28: Locating Clutch Pedal Position Switch (DPCO)

G00057787

Courtesy of DAIMLERCHRYSLER CORPORATION

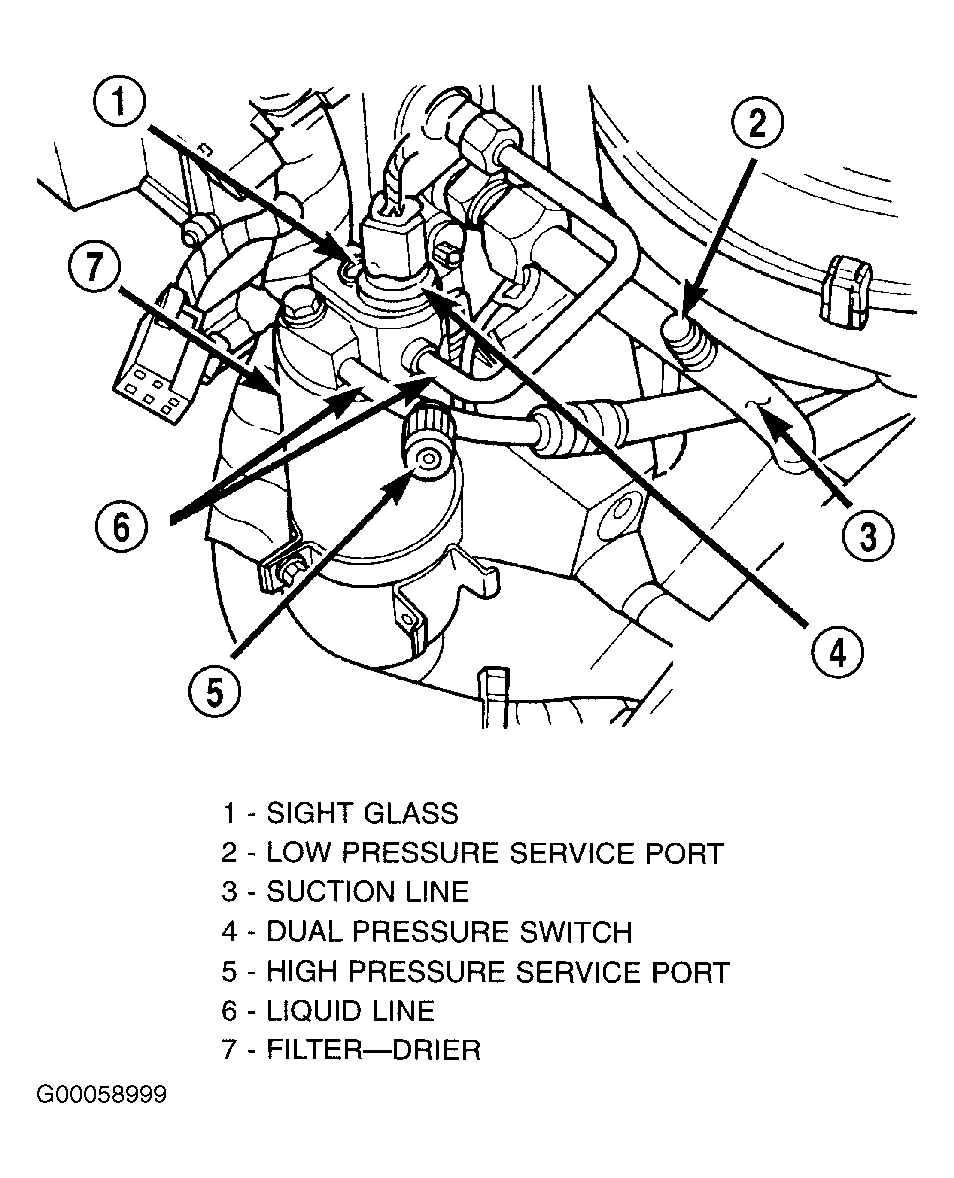

Fig 29: Locating Dual Pressure Cut Off Switch

G00058999

Courtesy of DAIMLERCHRYSLER CORPORATION

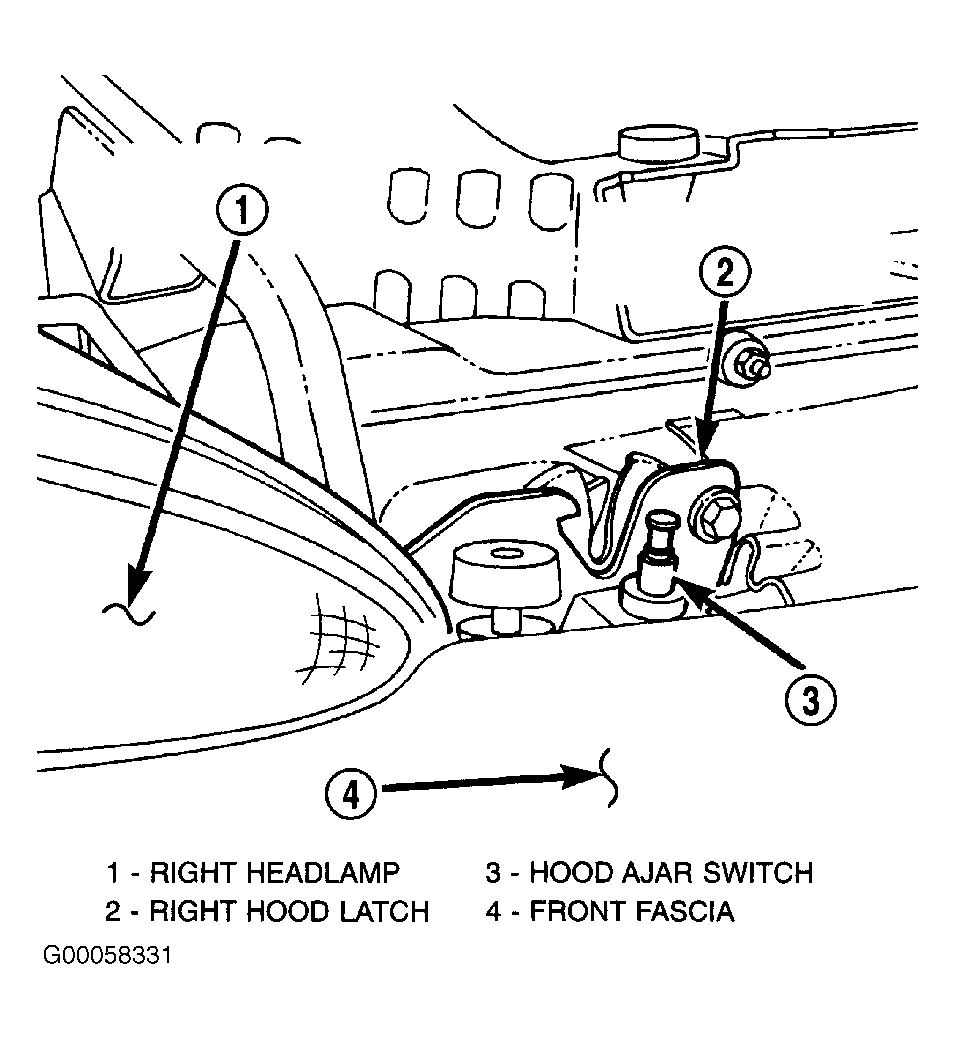

Fig 30: Locating Hood Ajar Switch

G00058331

Courtesy of DAIMLERCHRYSLER CORPORATION

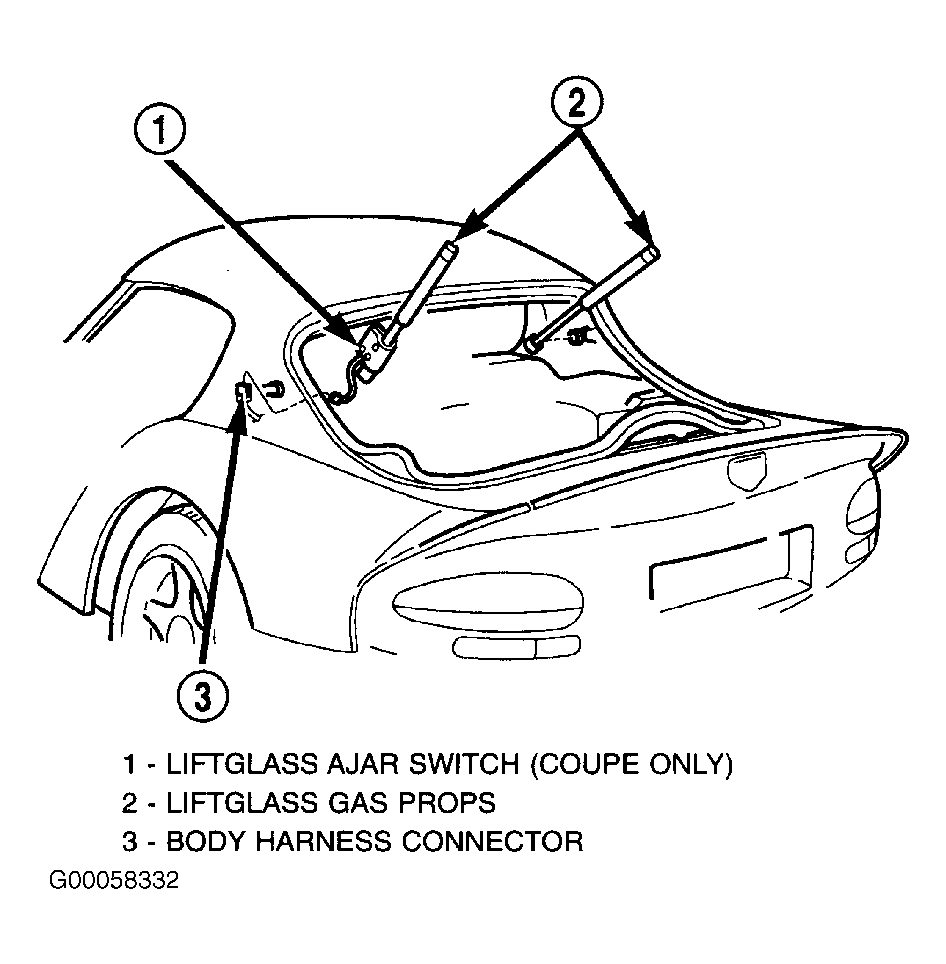

Fig 31: Locating Liftglass Ajar Switch

G00058332

Courtesy of DAIMLERCHRYSLER CORPORATION

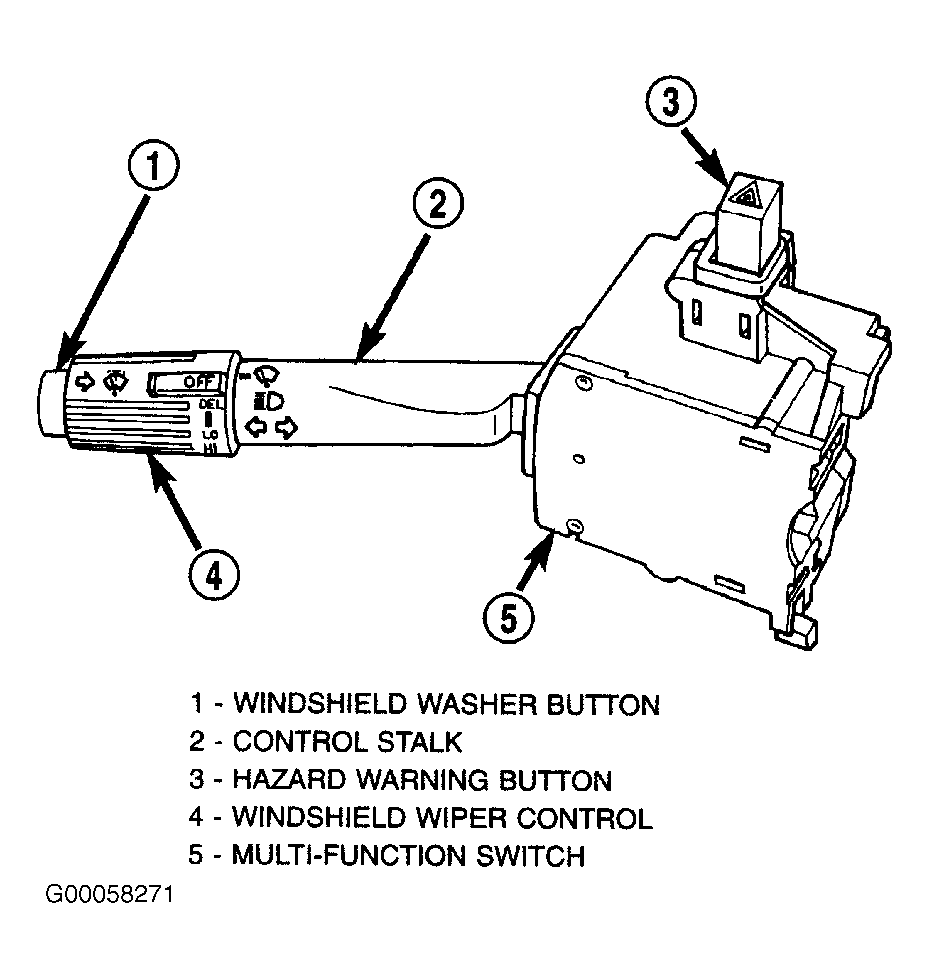

Fig 32: Locating Multi-Function Switch

G00058271

Courtesy of DAIMLERCHRYSLER CORPORATION

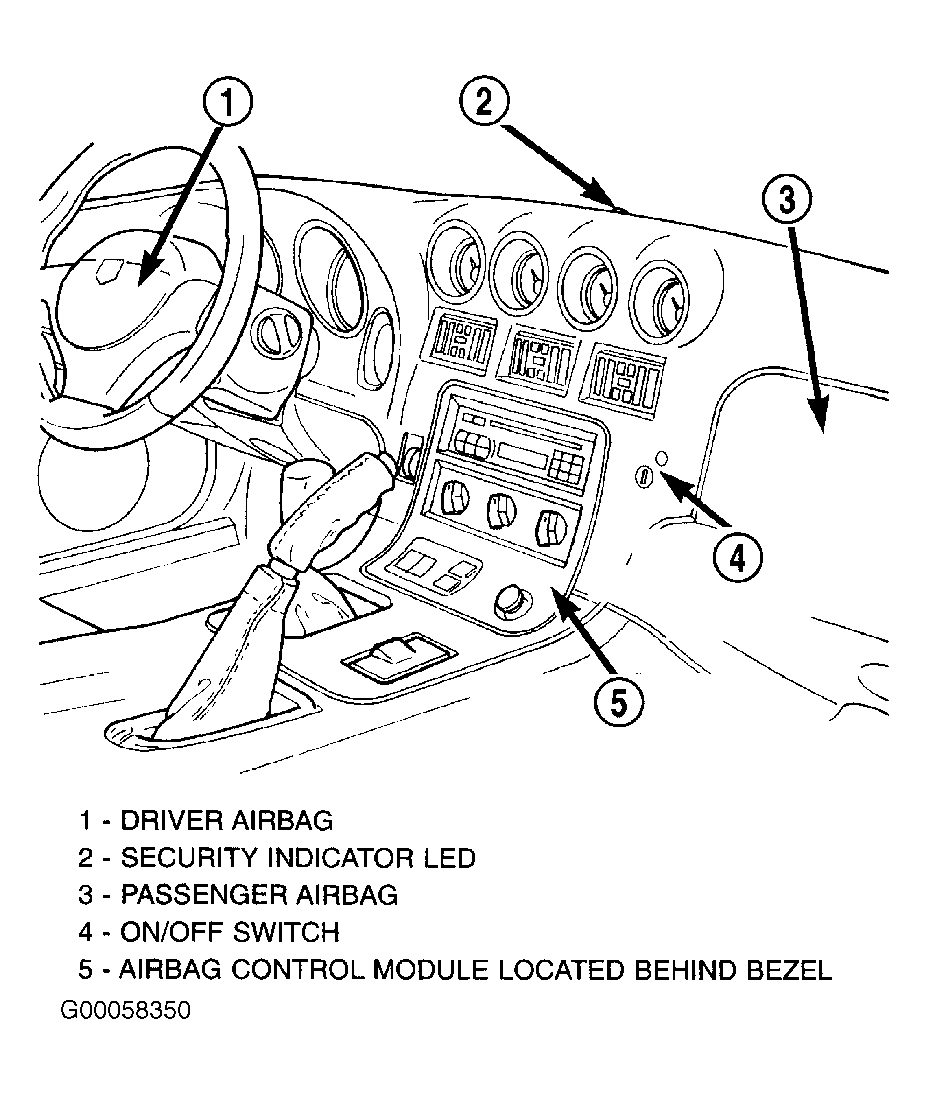

Fig 33: Locating Passenger Airbag ON/OFF Switch

G00058350

Courtesy of DAIMLERCHRYSLER CORPORATION

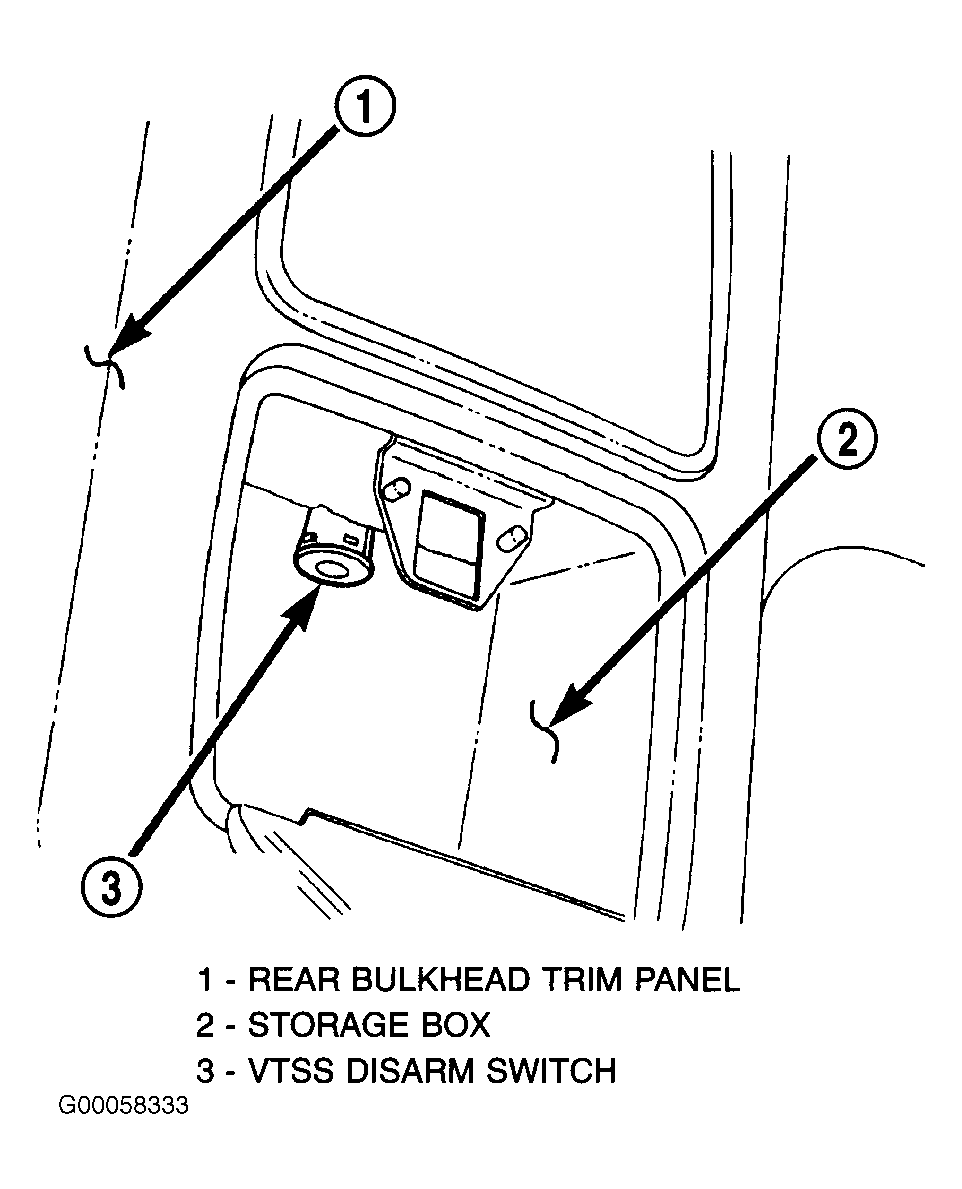

Fig 34: Locating Vehicle Theft Security System (VTSS) Disarm Switch

G00058333

Courtesy of DAIMLERCHRYSLER CORPORATION

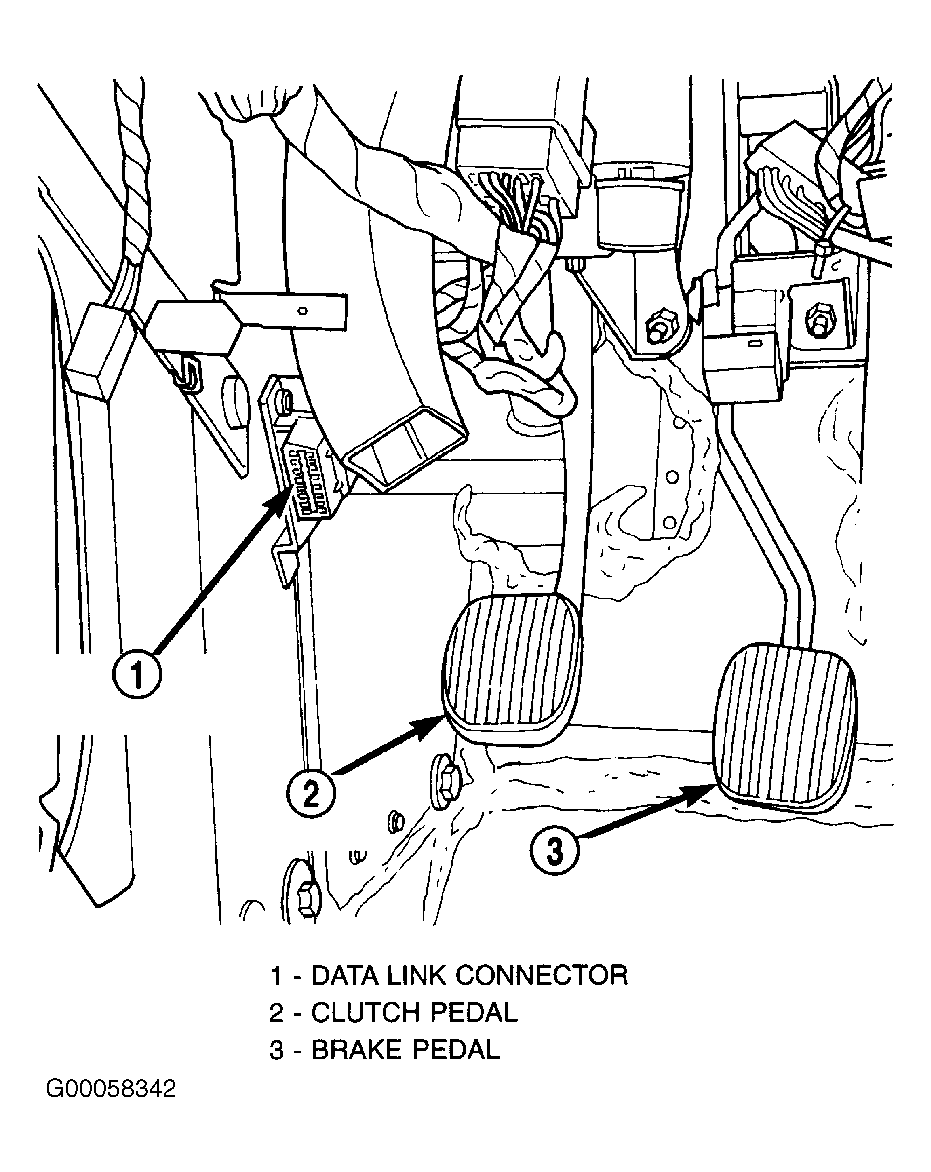

Fig 35: Locating Data Link Connector

G00058342

Courtesy of DAIMLERCHRYSLER CORPORATION

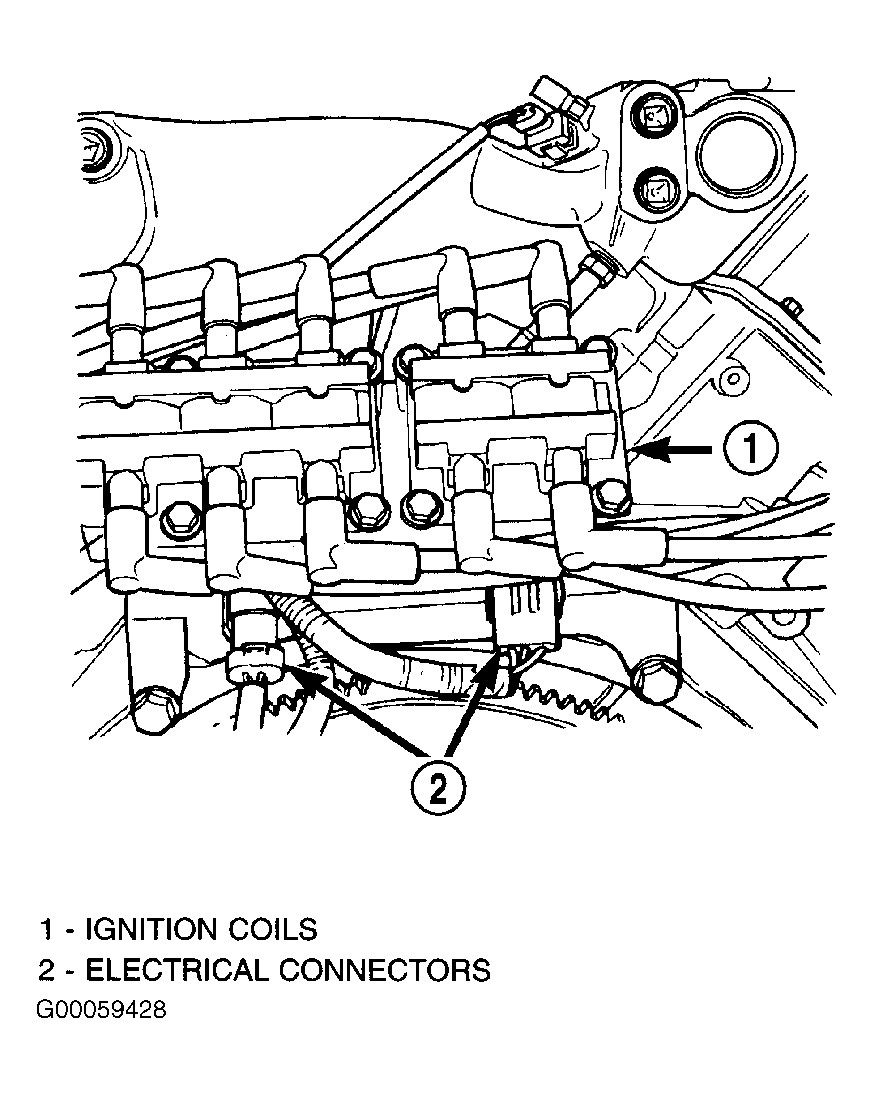

Fig 36: Locating Ignition Coil Electrical Connectors

G00059428

Courtesy of DAIMLERCHRYSLER CORPORATION

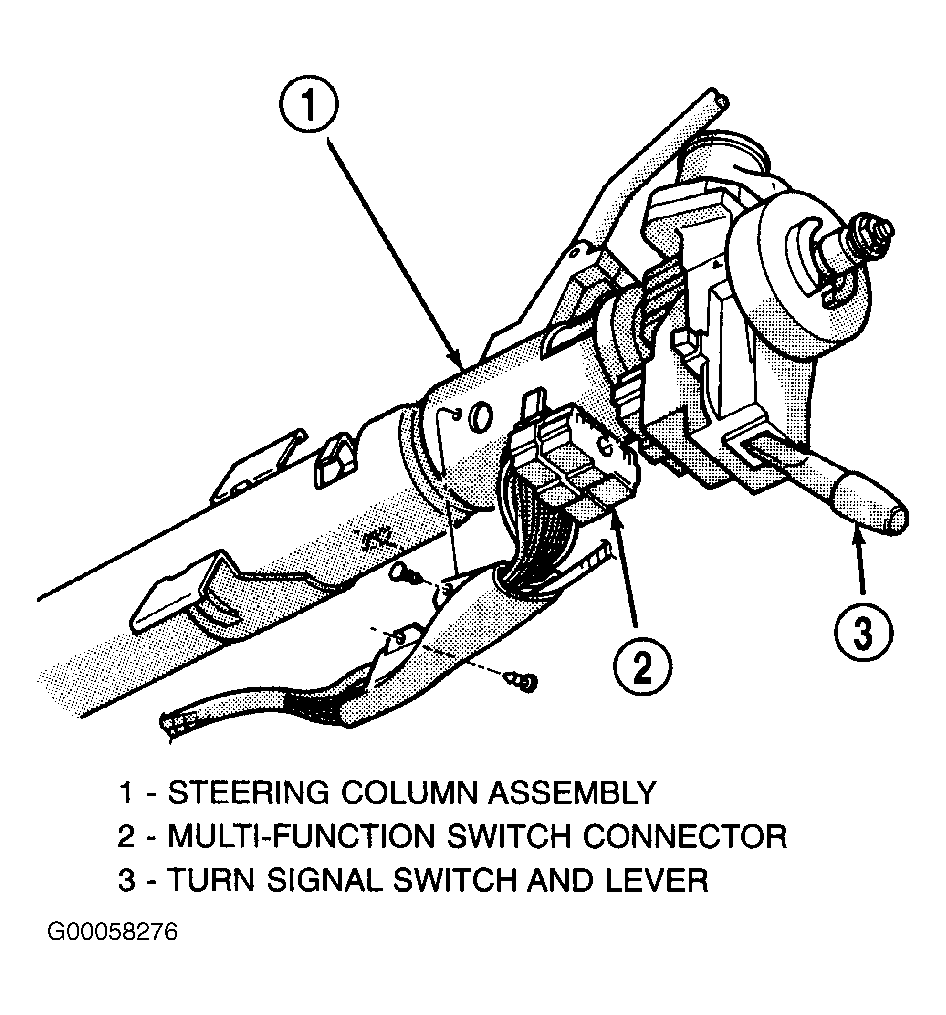

Fig 37: Locating Multi-Function Switch Connector

G00058276

Courtesy of DAIMLERCHRYSLER CORPORATION
