Electrical Component Locator: Miscellaneous

MISCELLANEOUS

Component Location
Data Link Connector Lower Left Side Of Instrument Panel. See Figure .

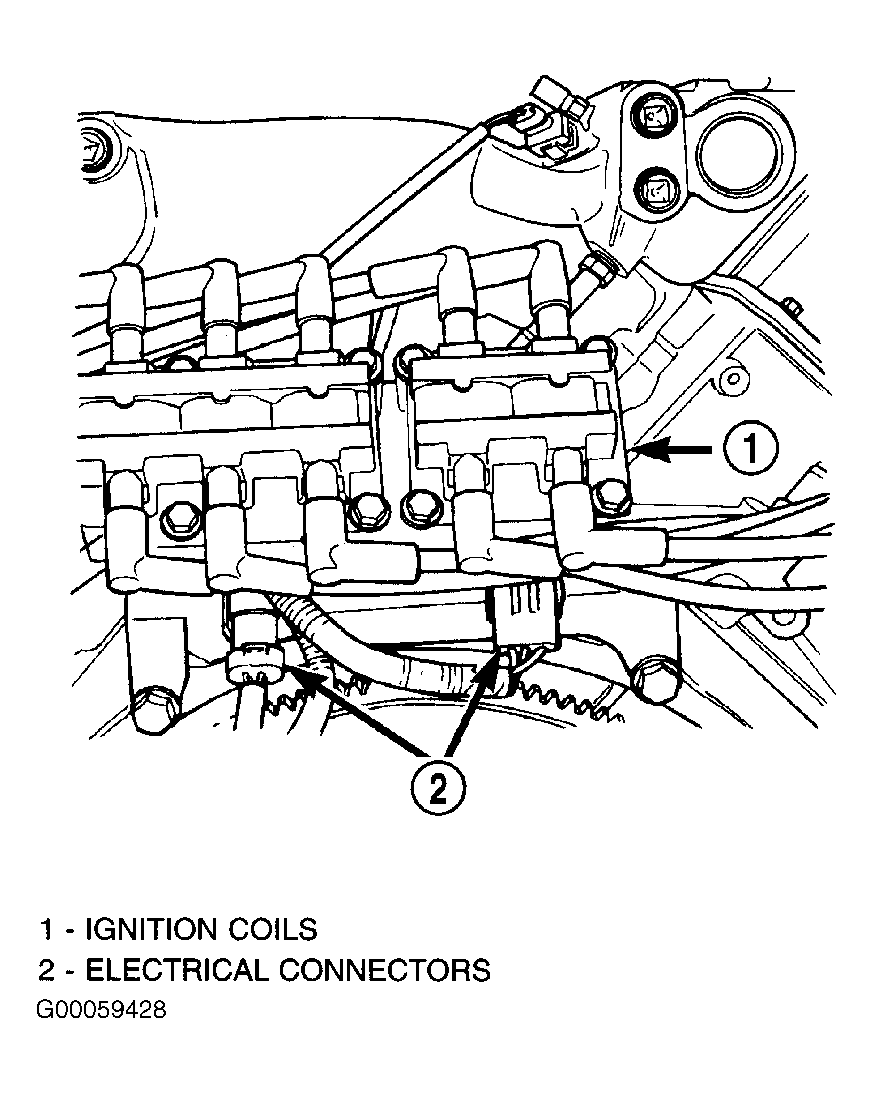

Ignition Coil Electrical Connectors On Ignition Coil, In Engine Compartment. See Figure .

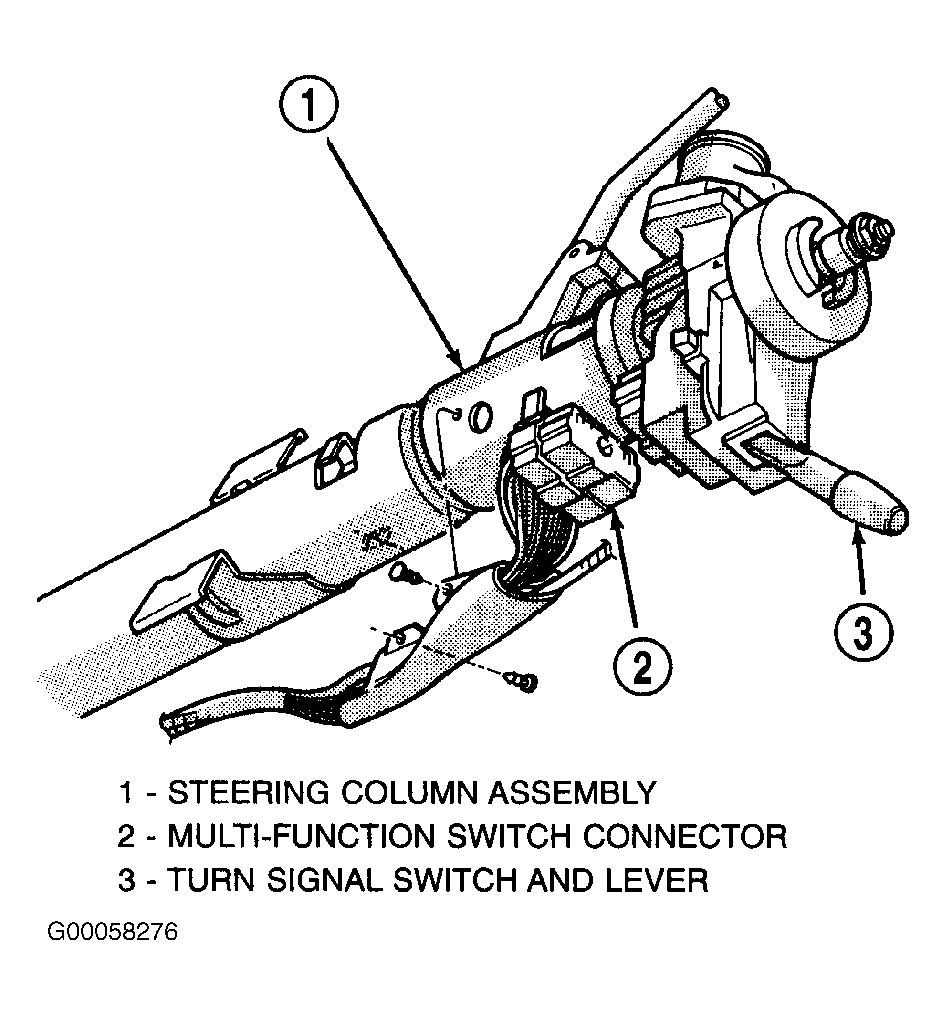

Multi-Function Switch Connector Under Steering Column. See Figure .
