Electrical Component Locator: Motors

MOTORS

Component Location

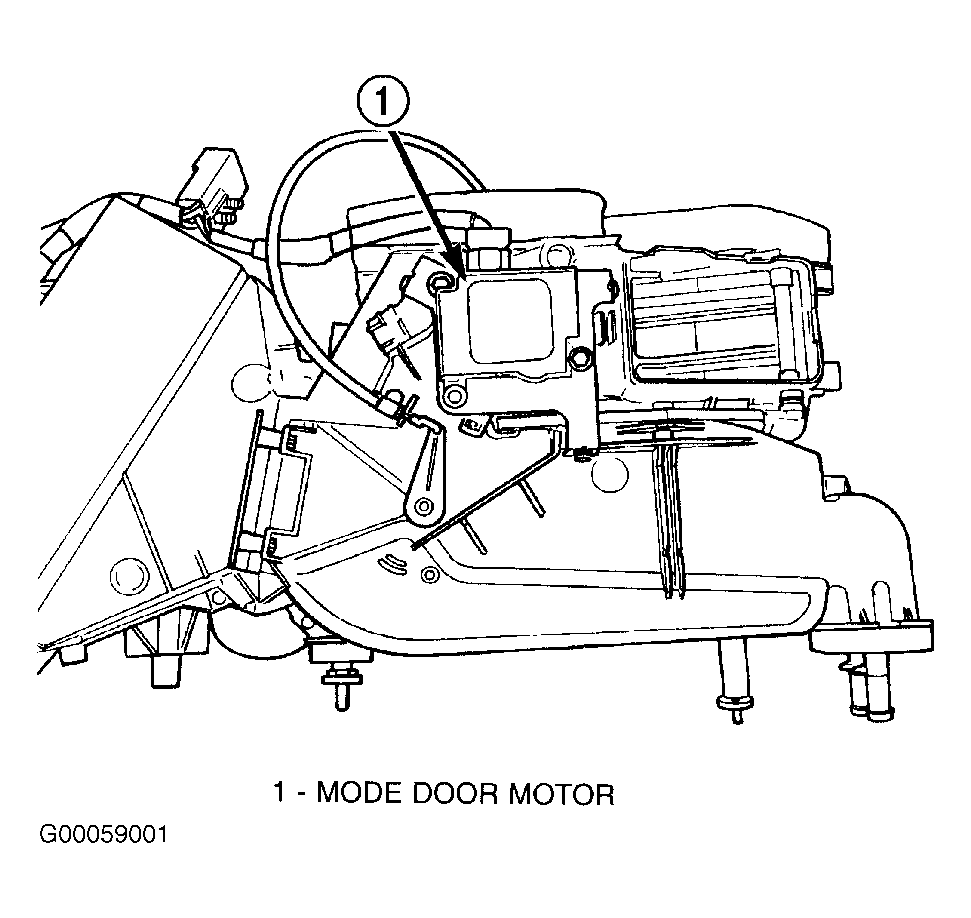

Mode Door Motor Upper Left Side Of A/C-Heater Housing. See Figure .

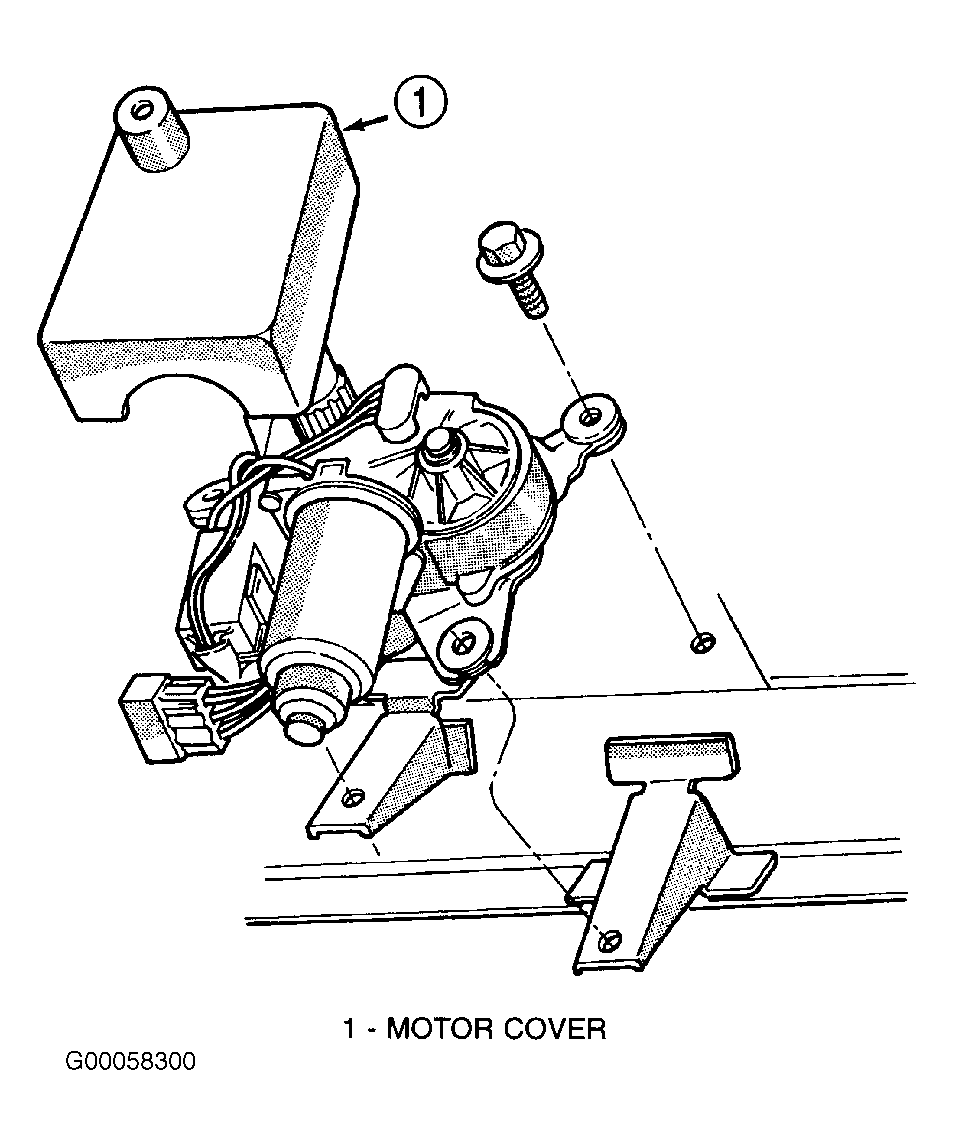

Wiper Motor Under Cowl trim Panel. See Figure .
