Component Locations

WARNING: This page is about a different car, the 2001 Dodge Viper and 2000 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

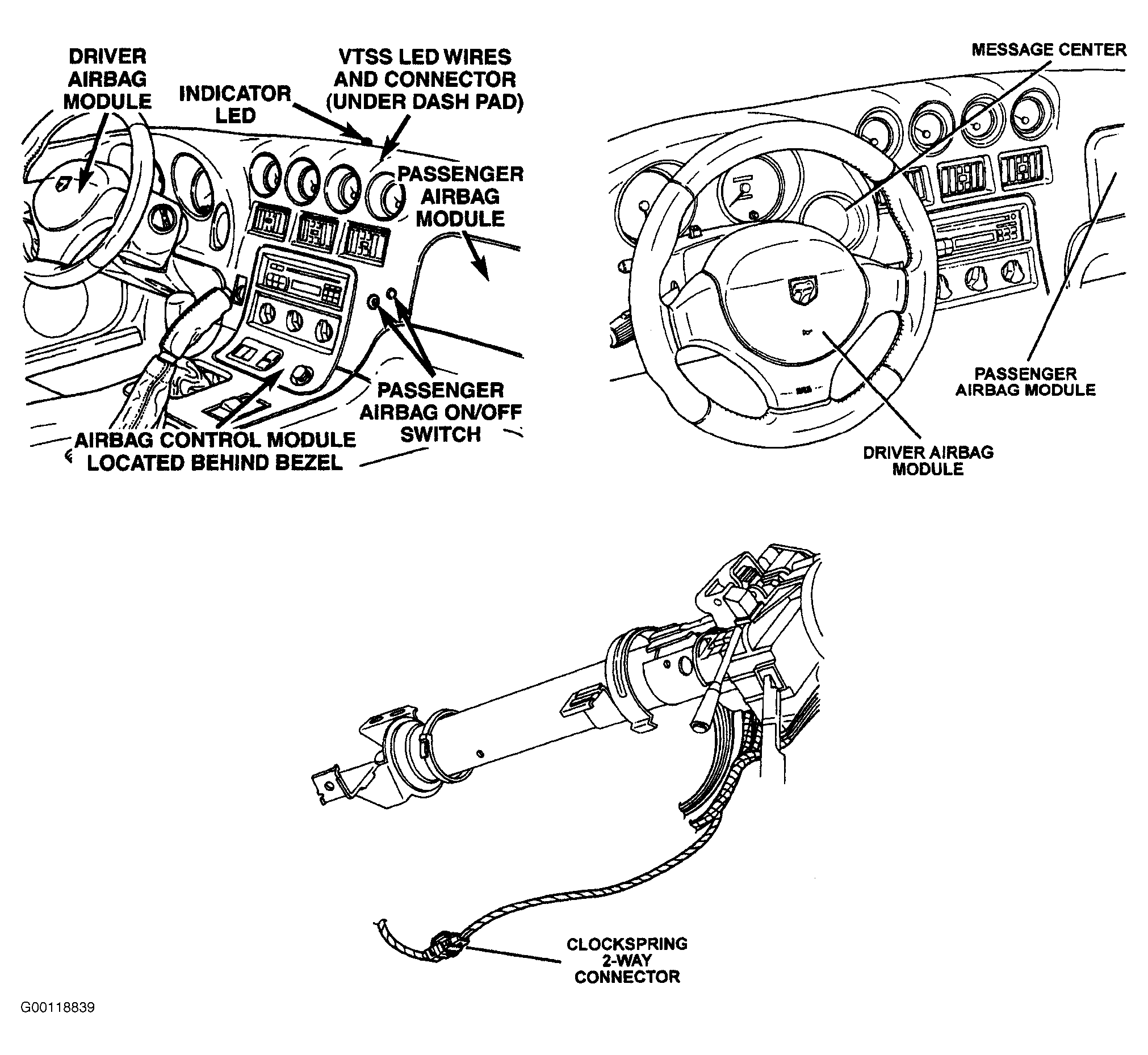

Fig 1: Locating Airbag Control Module Components

Courtesy of DAIMLERCHRYSLER CORP.

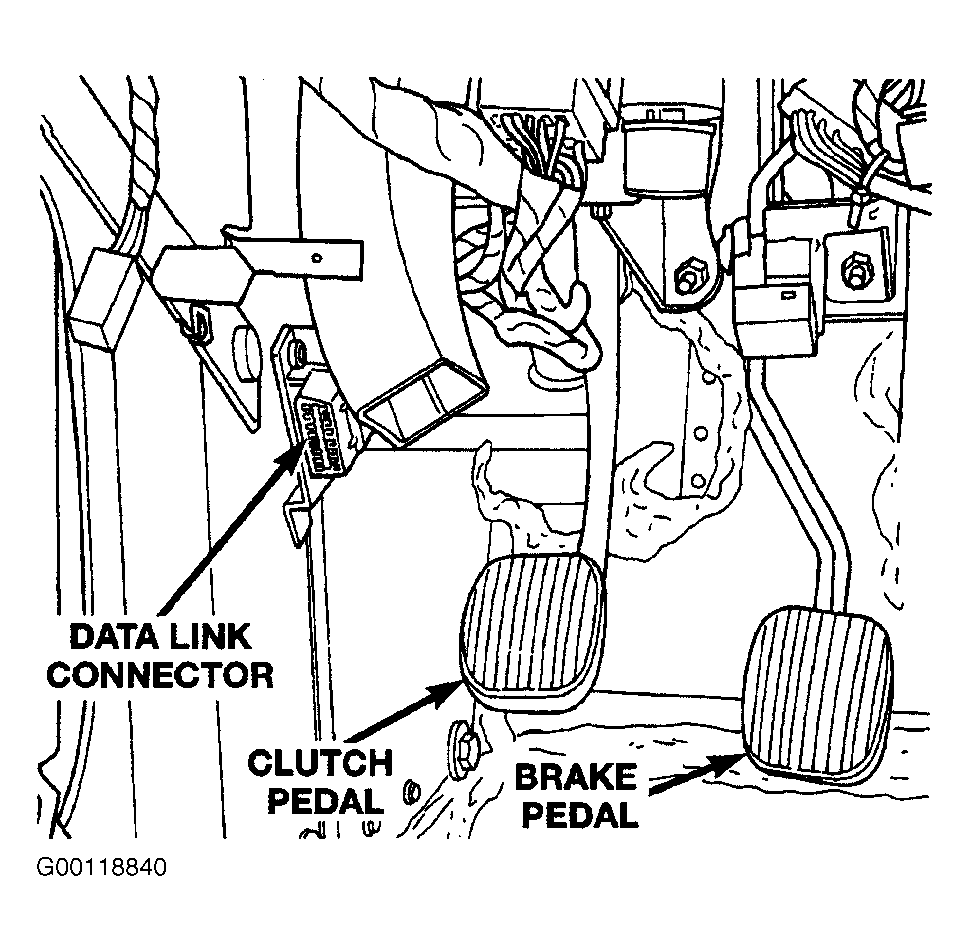

Fig 2: Locating Data Link Connector Components

Courtesy of DAIMLERCHRYSLER CORP.

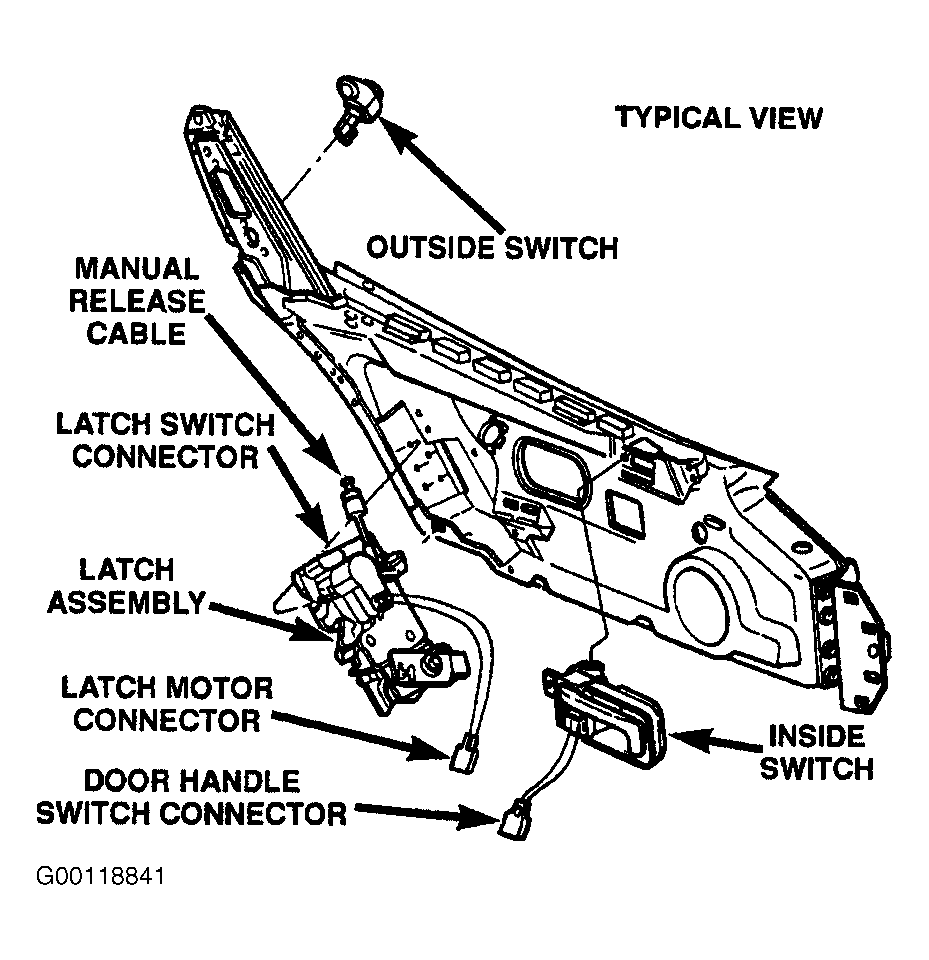

Fig 3: Locating Door Components

Courtesy of DAIMLERCHRYSLER CORP.

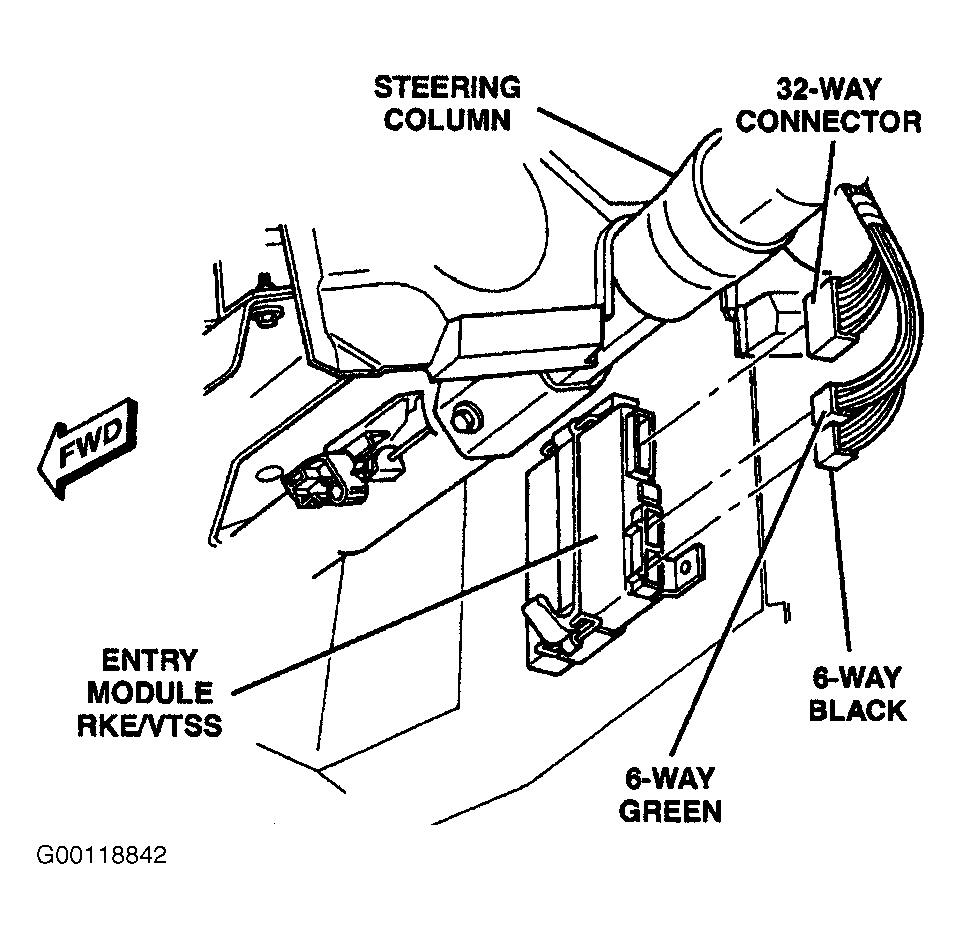

Fig 4: Locating Electronic Entry Module Components

Courtesy of DAIMLERCHRYSLER CORP.

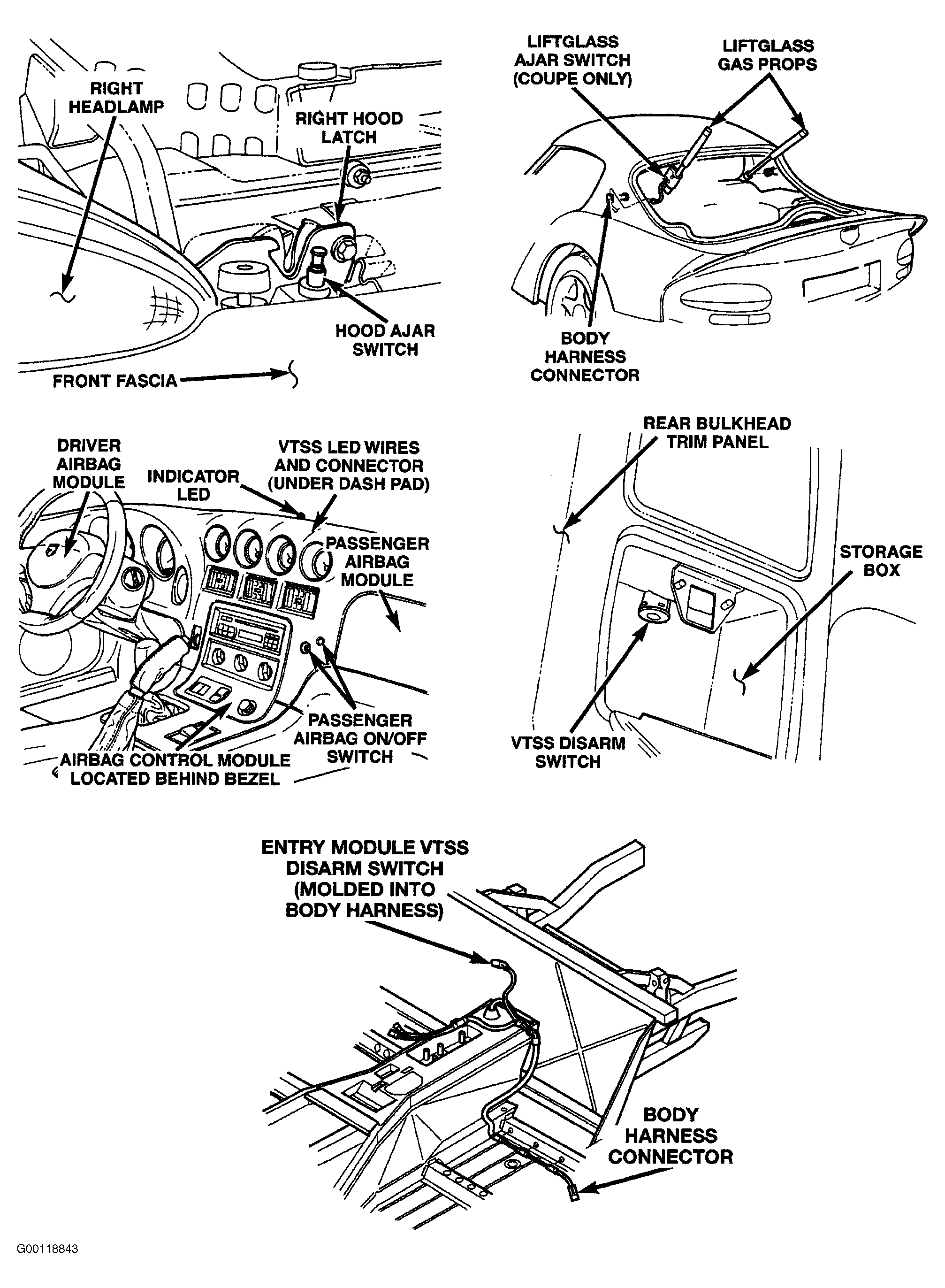

Fig 5: Locating Theft Alarm Components

Courtesy of DAIMLERCHRYSLER CORP.
