Connector Identification
WARNING:
This page is about a different car, the 2001 Dodge Viper and 2000 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

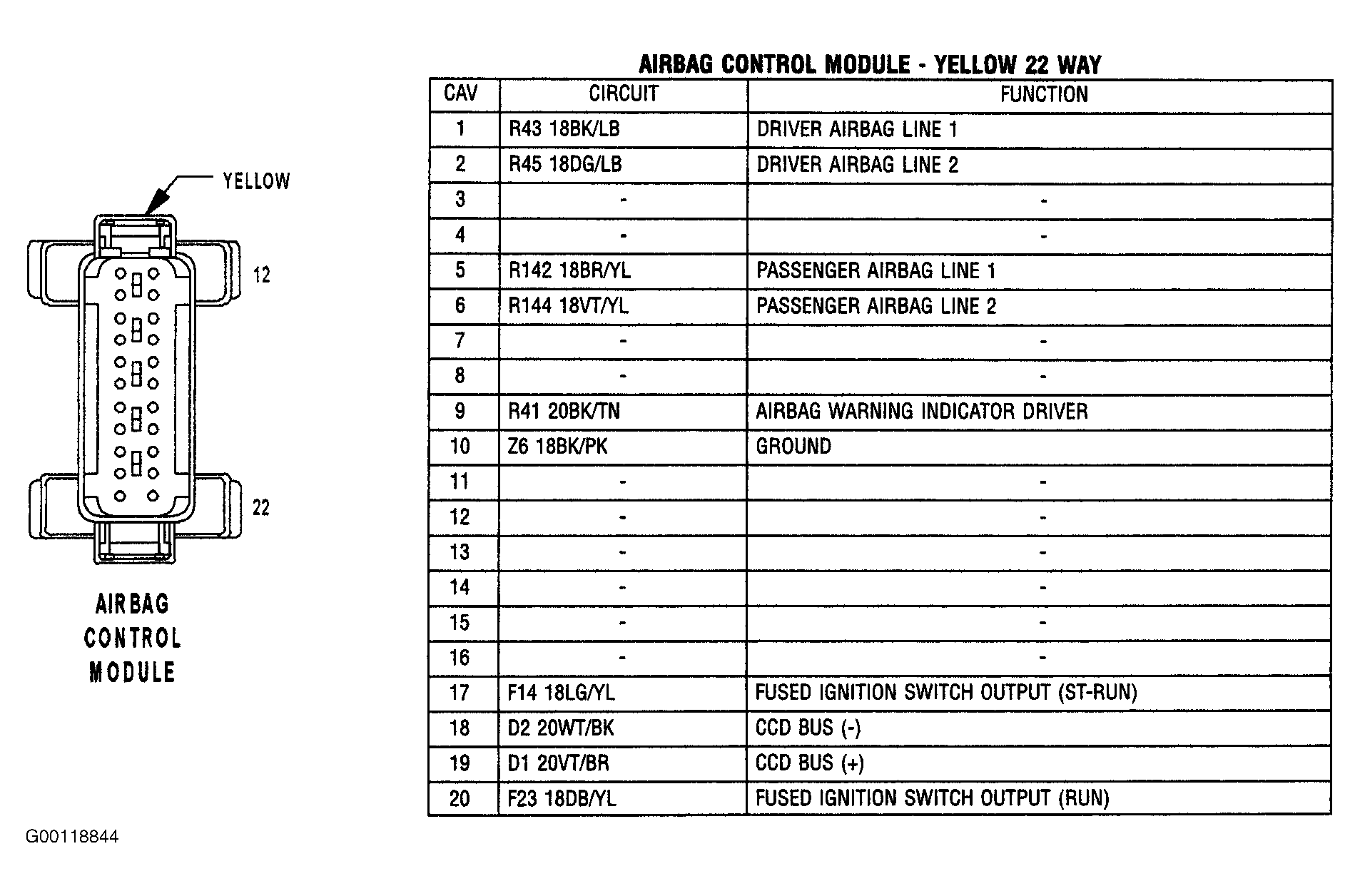

Fig 1: Identifying Airbag Control Module Connector
Courtesy of DAIMLERCHRYSLER CORP.

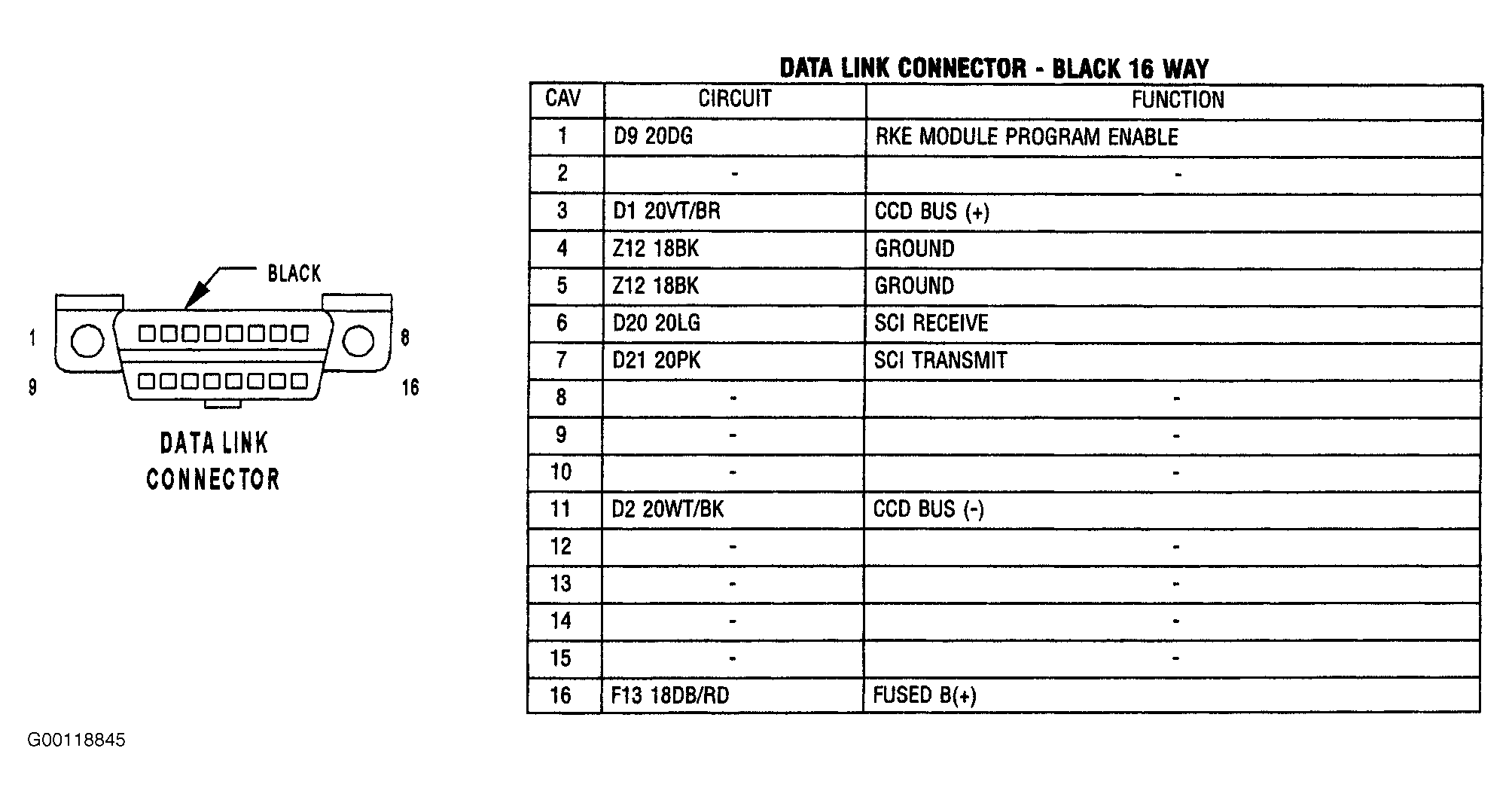

Fig 2: Identifying Data Link Connector
Courtesy of DAIMLERCHRYSLER CORP.

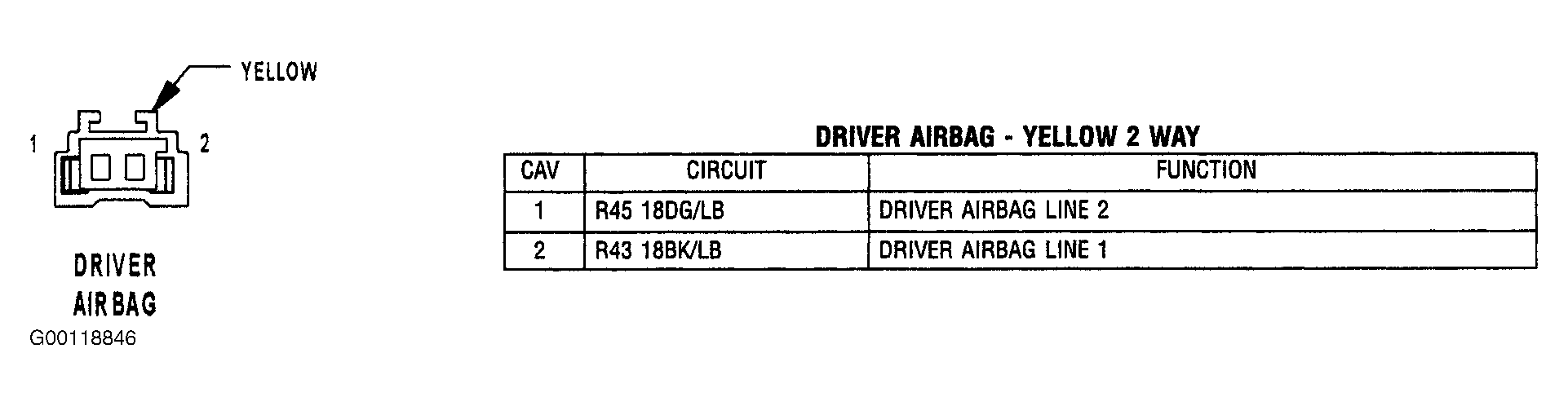

Fig 3: Identifying Driver Airbag Connector
Courtesy of DAIMLERCHRYSLER CORP.

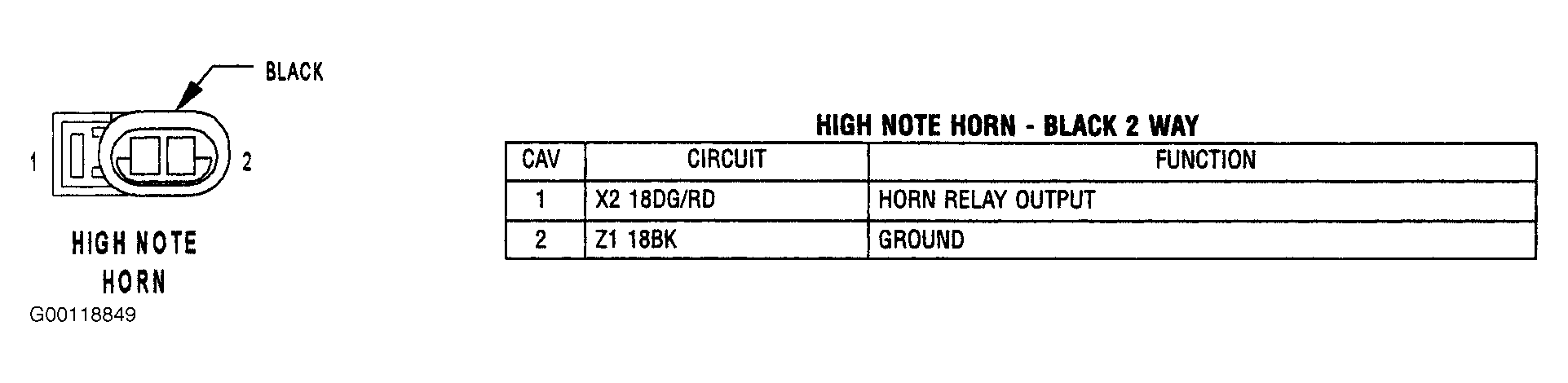

Fig 4: Identifying High Note Horn Connector
Courtesy of DAIMLERCHRYSLER CORP.

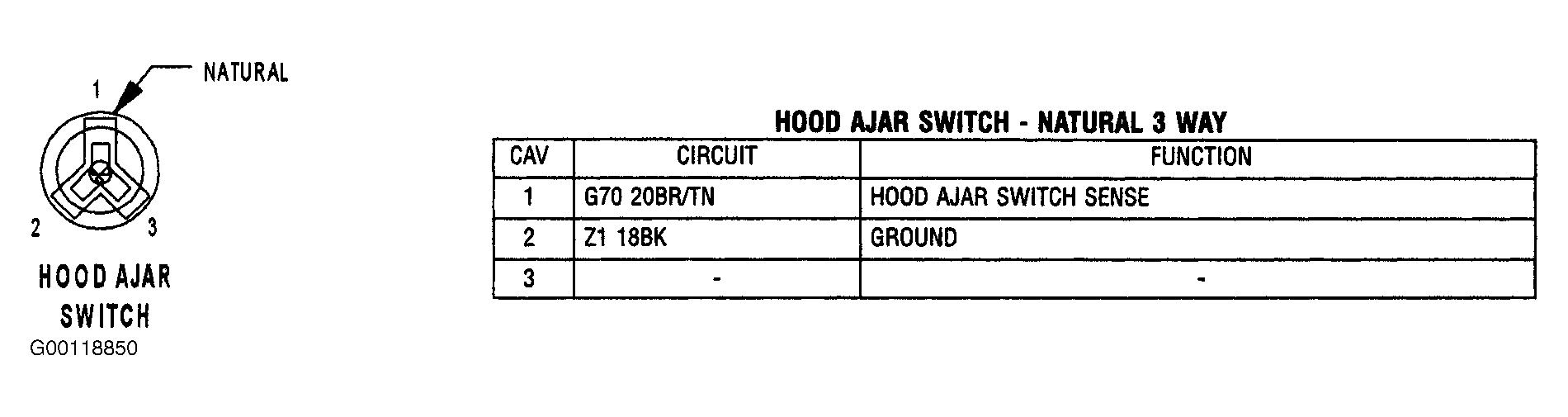

Fig 5: Identifying Hood Ajar Switch Connector
Courtesy of DAIMLERCHRYSLER CORP.

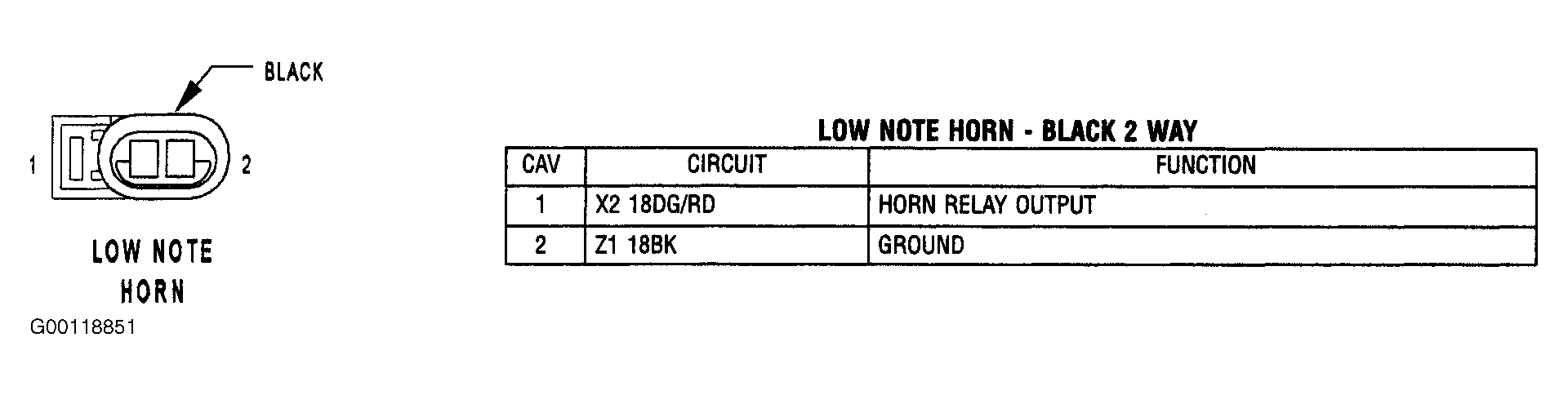

Fig 6: Identifying Low Note Horn Connector
Courtesy of DAIMLERCHRYSLER CORP.

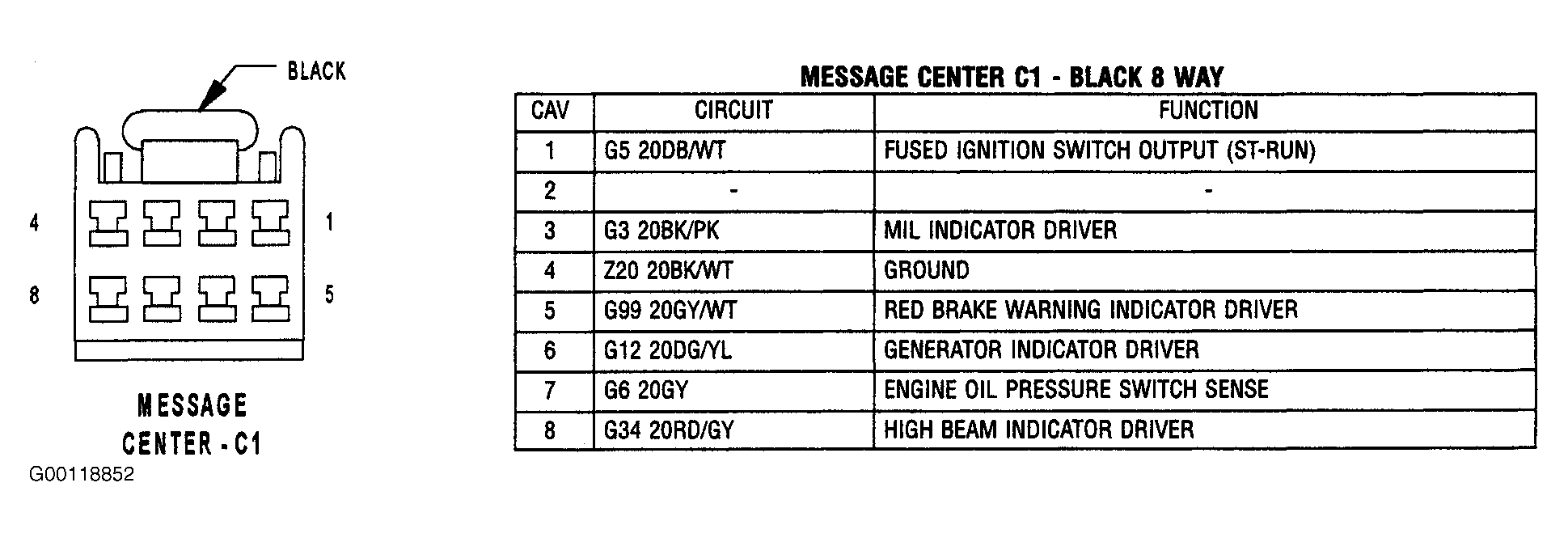

Fig 7: Identifying Message Center C1 Connector
Courtesy of DAIMLERCHRYSLER CORP.

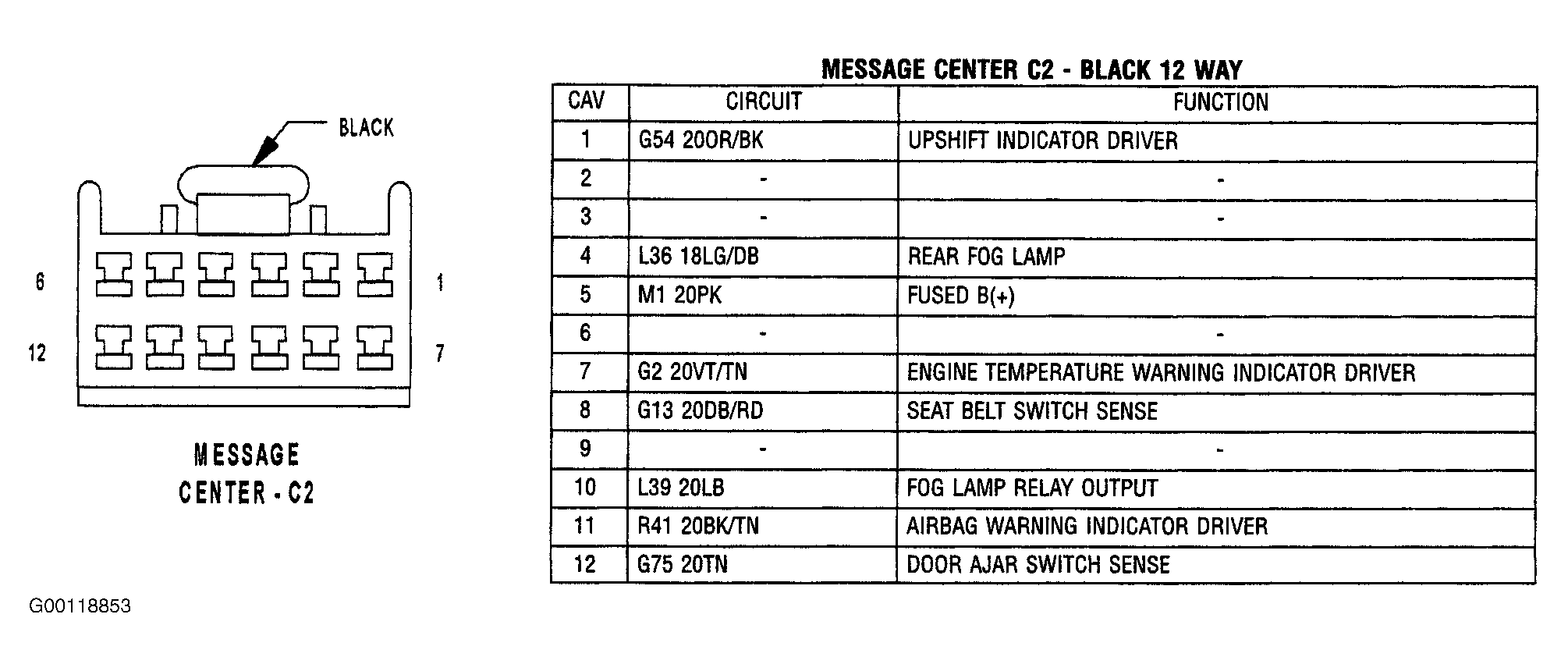

Fig 8: Identifying Message Center C2 Connector
Courtesy of DAIMLERCHRYSLER CORP.

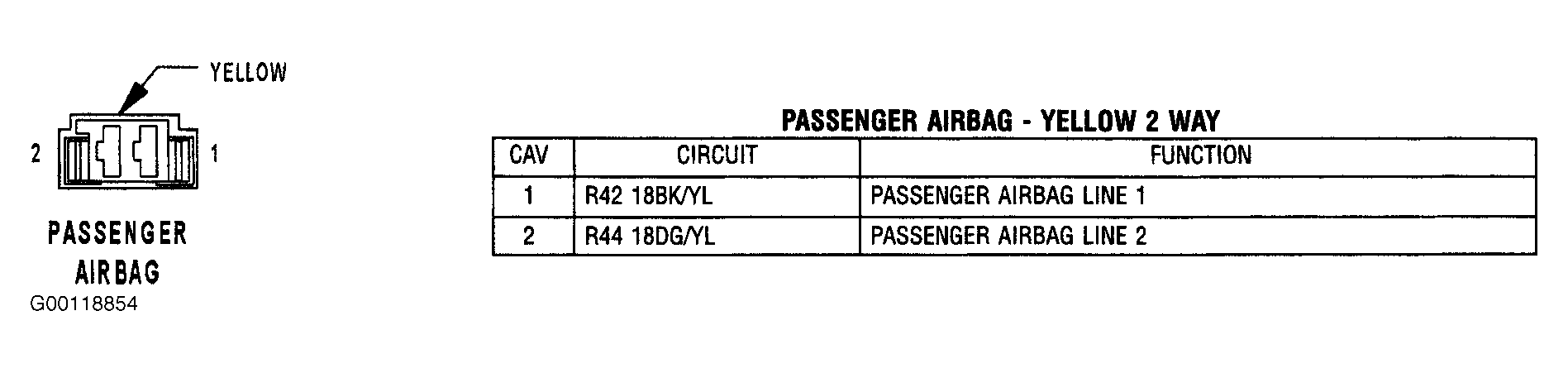

Fig 9: Identifying Passenger Airbag Connector
Courtesy of DAIMLERCHRYSLER CORP.

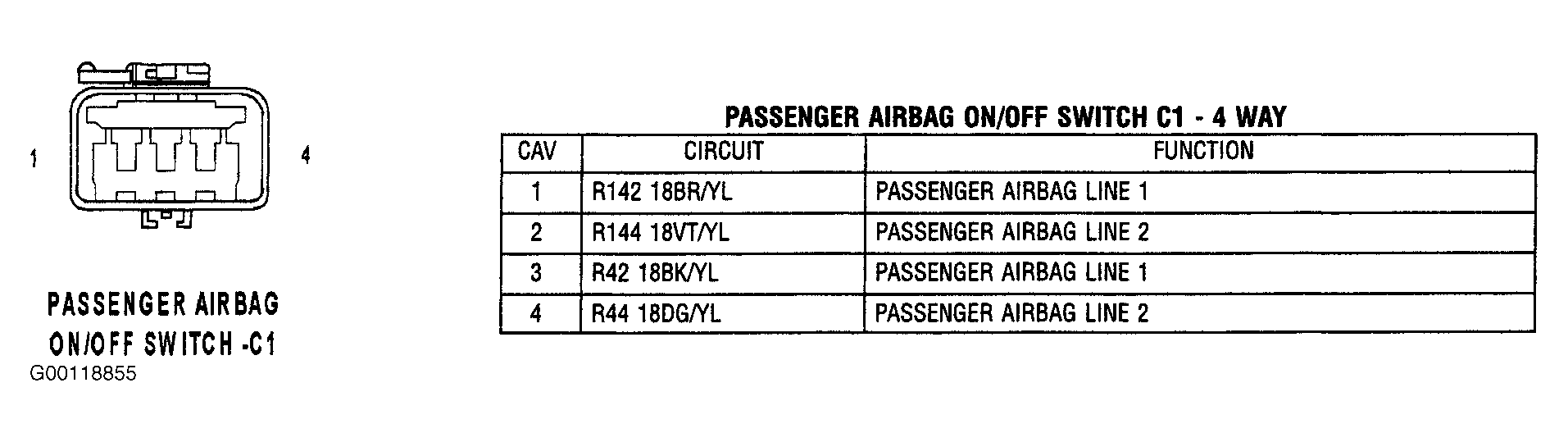

Fig 10: Identifying Passenger Airbag On/Off Switch C1 Connector
Courtesy of DAIMLERCHRYSLER CORP.

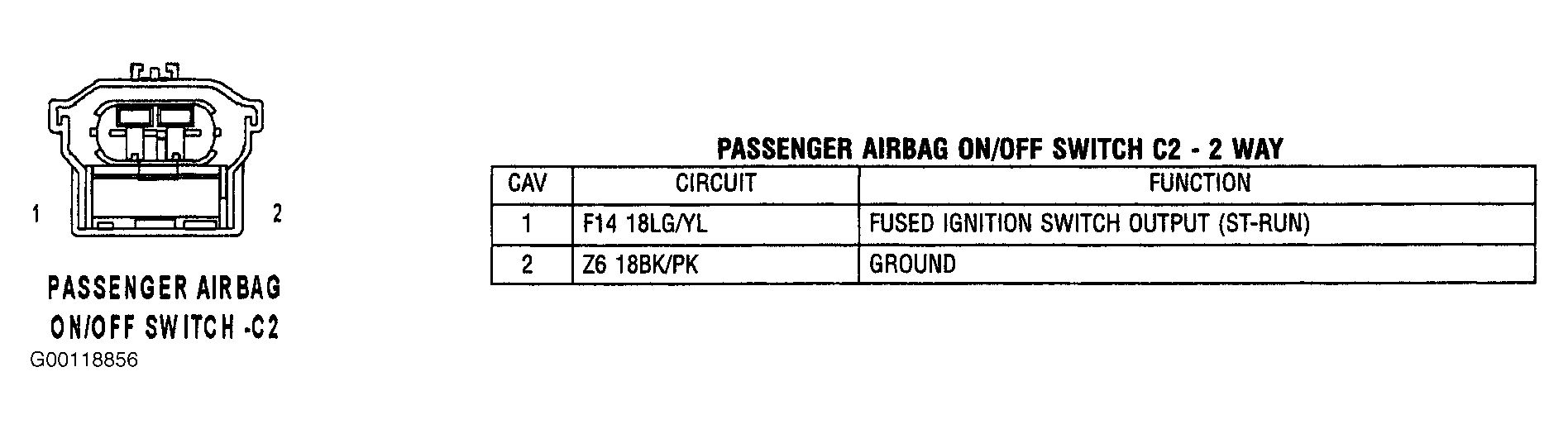

Fig 11: Identifying Passenger Airbag On/Off Switch C2 Connector
Courtesy of DAIMLERCHRYSLER CORP.

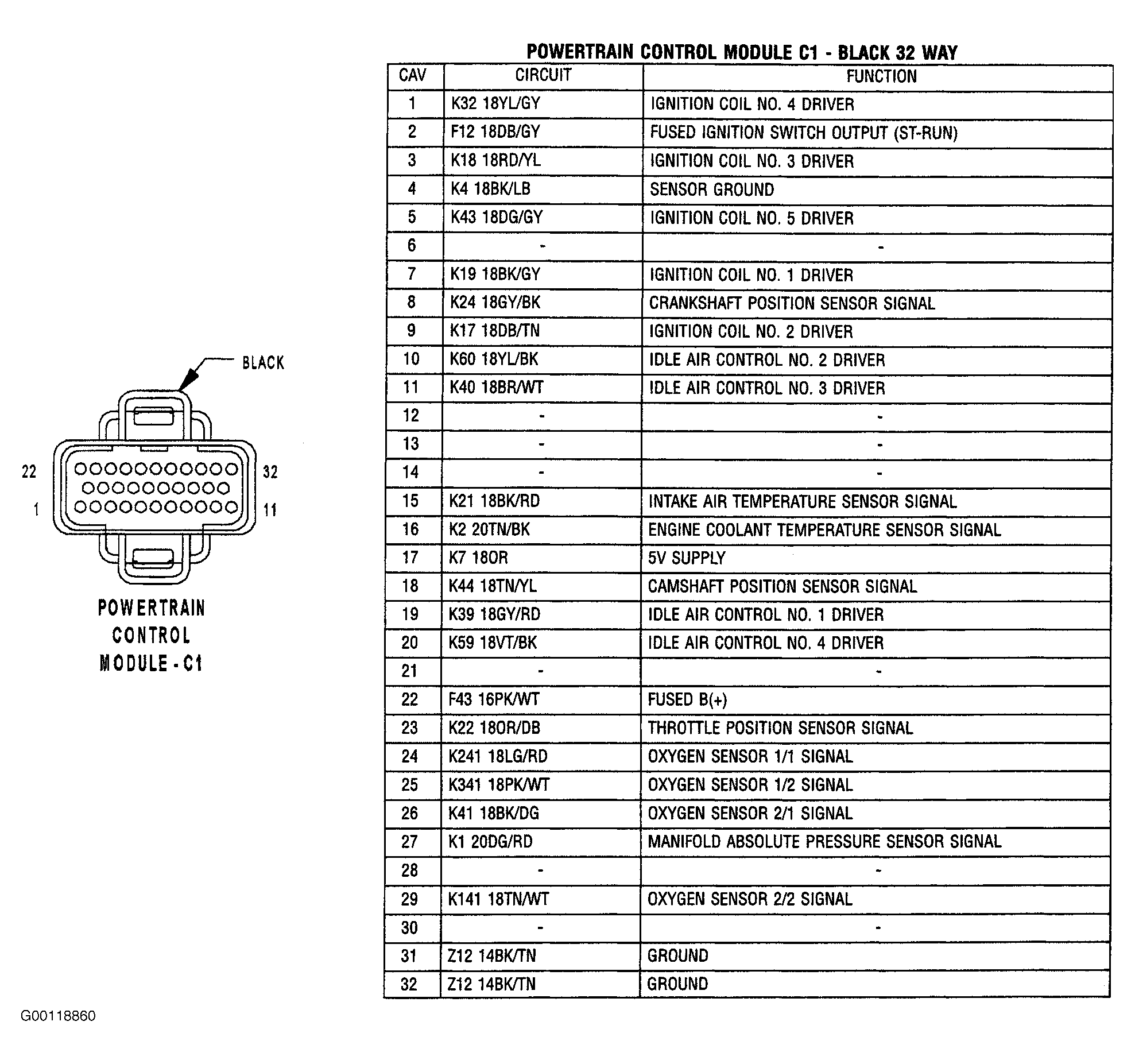

Fig 12: Identifying Powertrain Control Module C1 Connector
Courtesy of DAIMLERCHRYSLER CORP.

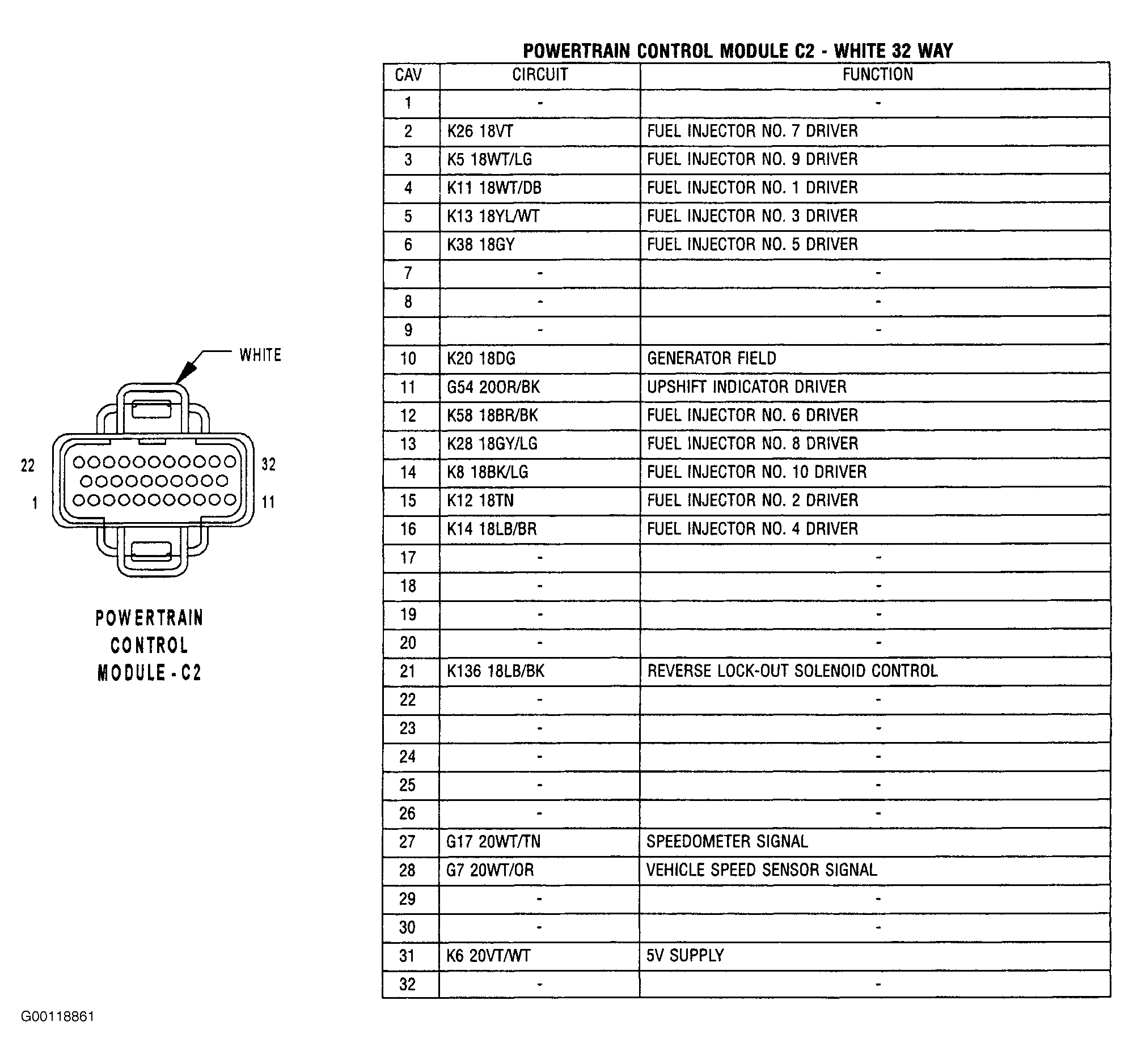

Fig 13: Identifying Powertrain Control Module C2 Connector
Courtesy of DAIMLERCHRYSLER CORP.

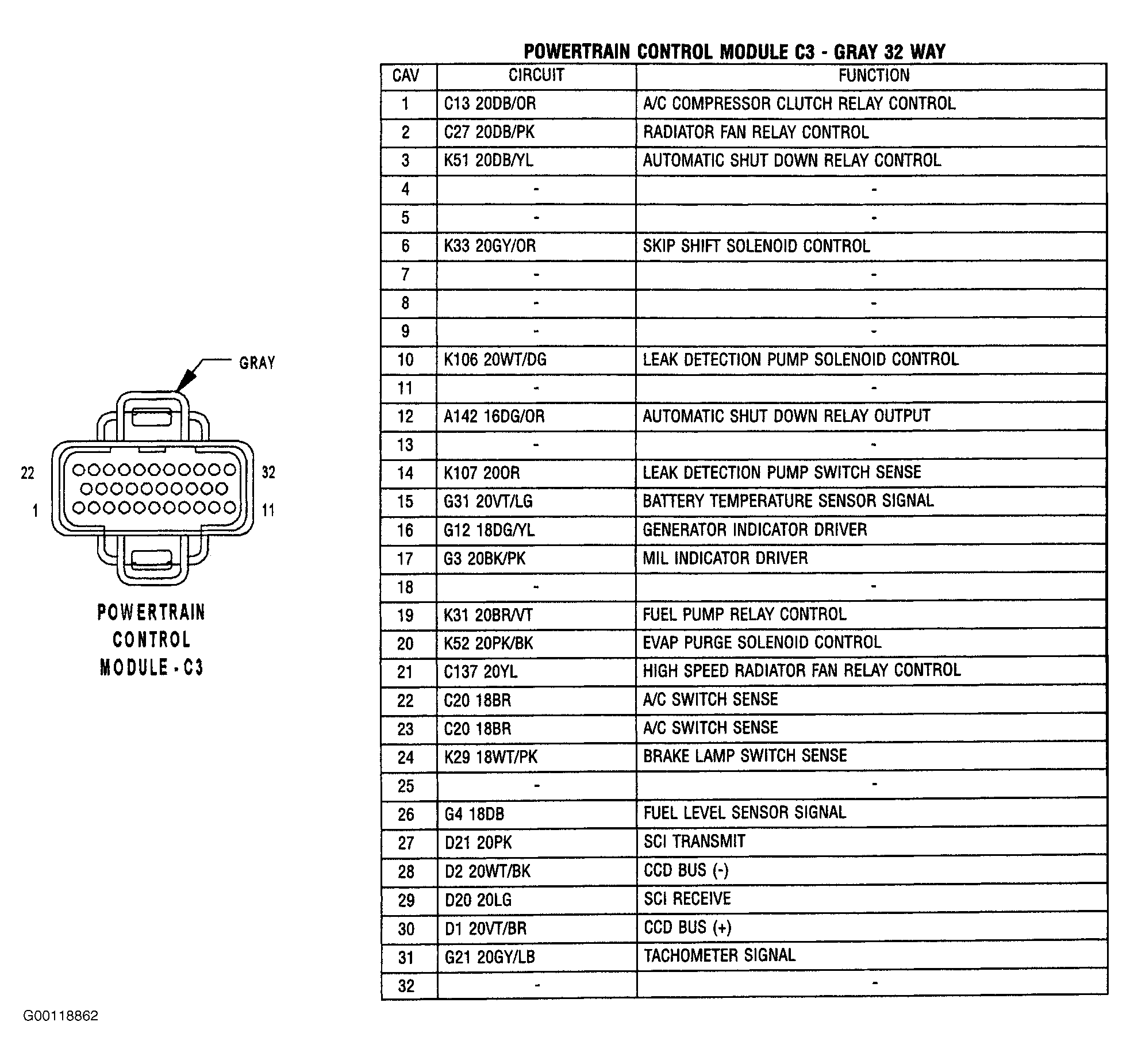

Fig 14: Identifying Powertrain Control Module C3 Connector
Courtesy of DAIMLERCHRYSLER CORP.

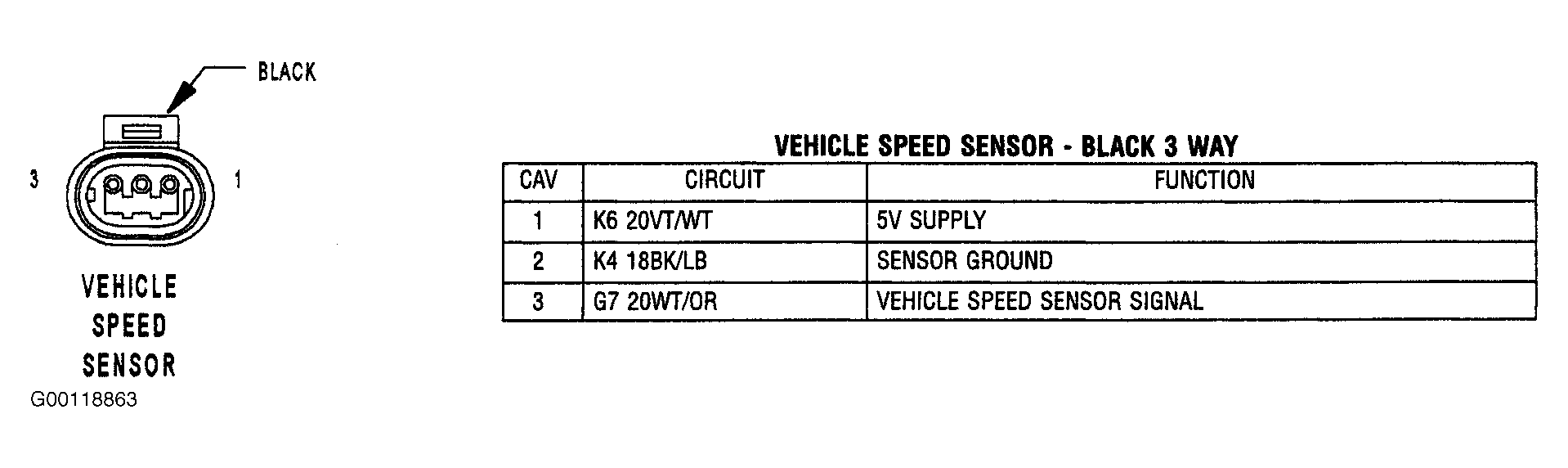

Fig 15: Identifying Vehicle Speed Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.

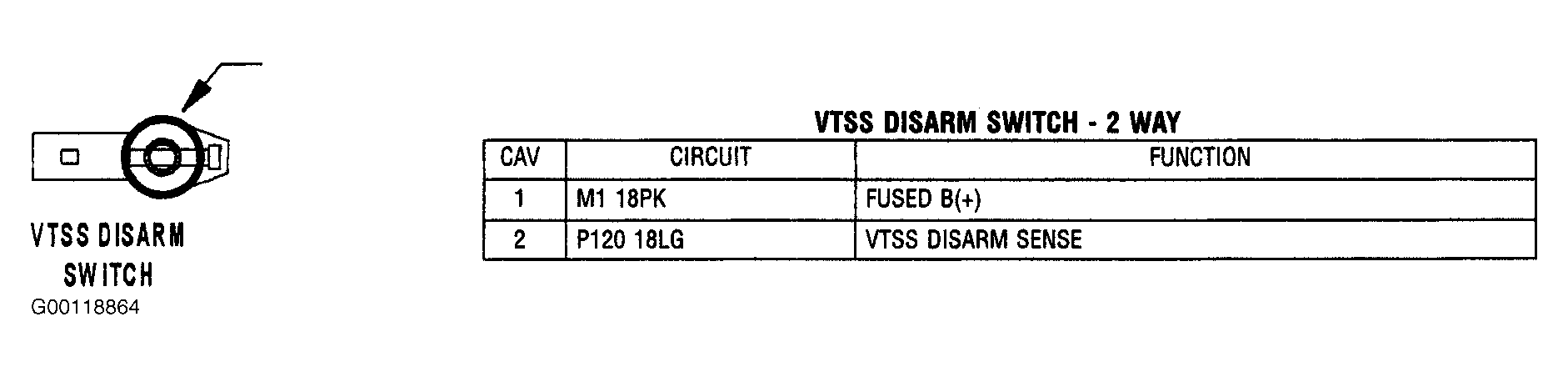

Fig 16: Identifying VTSS Disarm Switch Connector
Courtesy of DAIMLERCHRYSLER CORP.

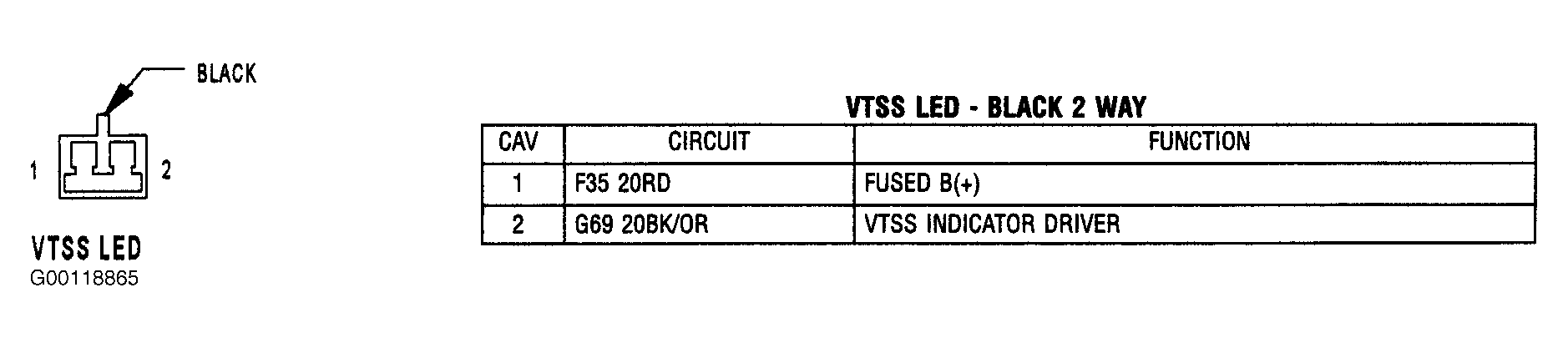

Fig 17: Identifying VTSS LED Connector
Courtesy of DAIMLERCHRYSLER CORP.

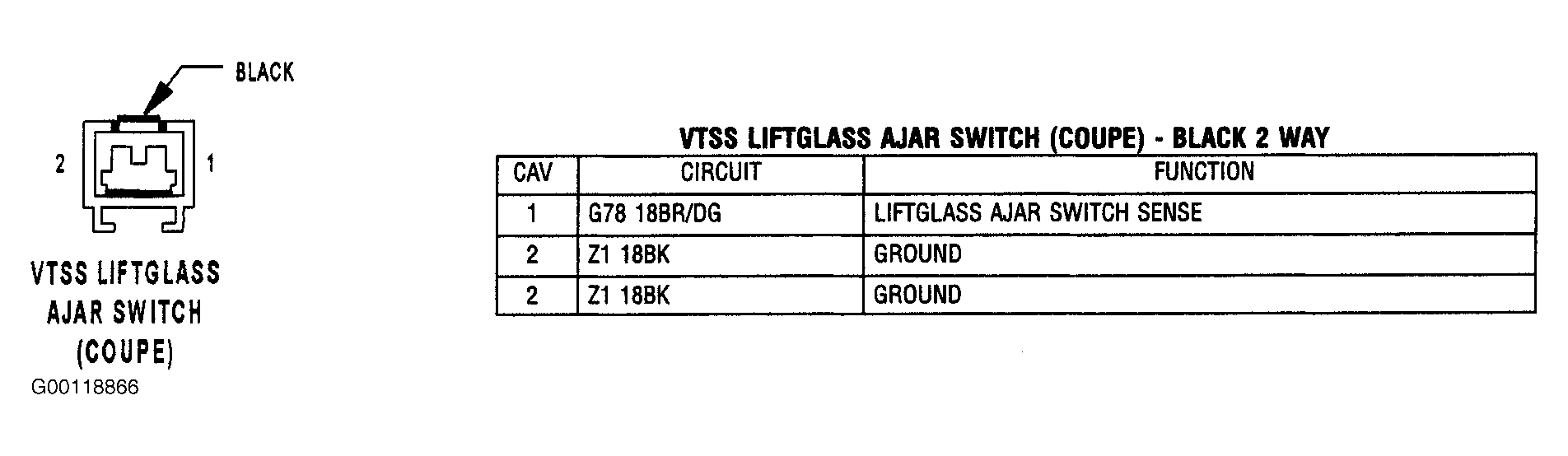

Fig 18: Identifying VTSS Liftglass Ajar Switch (Coupe) Connector
Courtesy of DAIMLERCHRYSLER CORP.

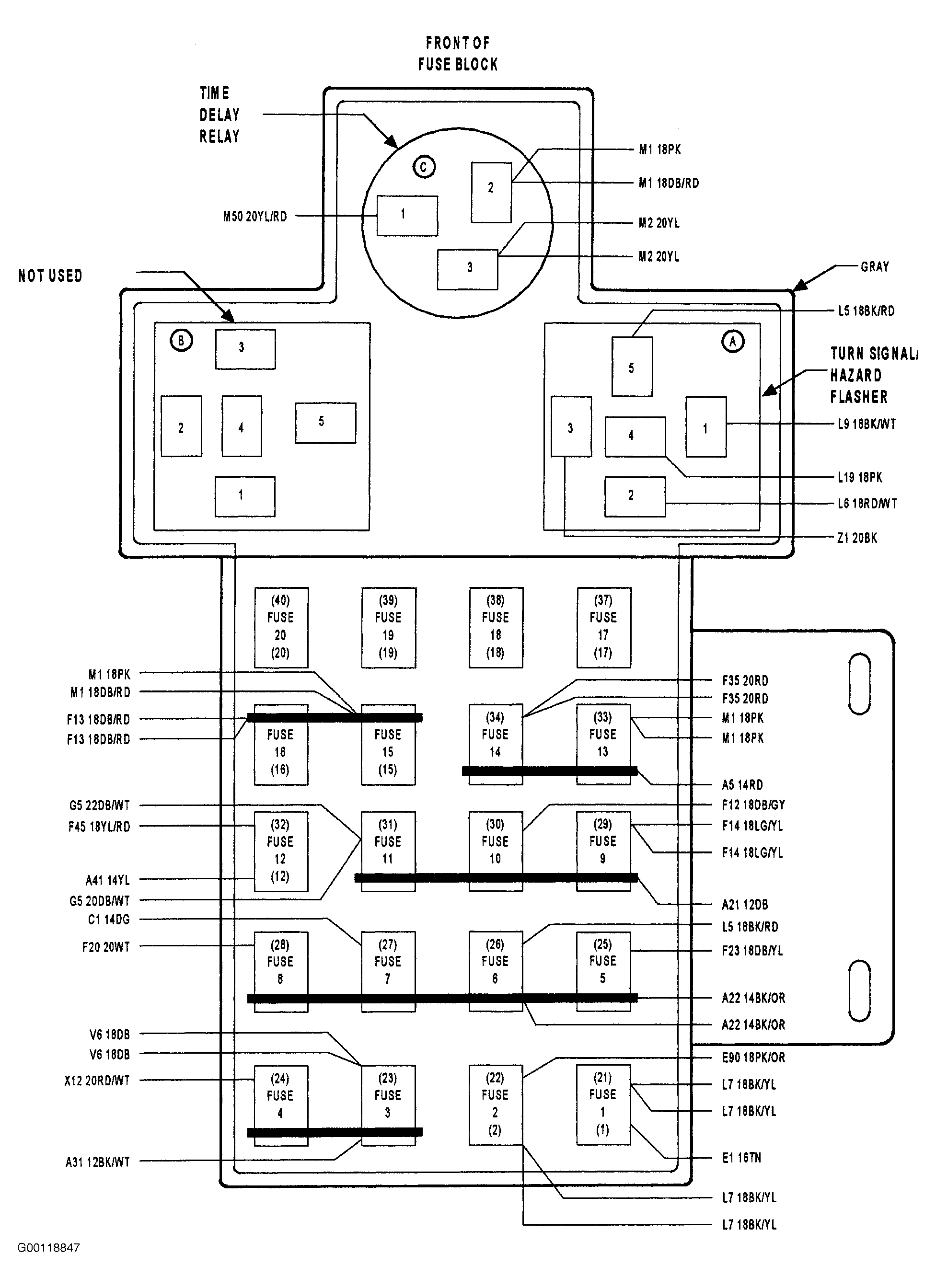

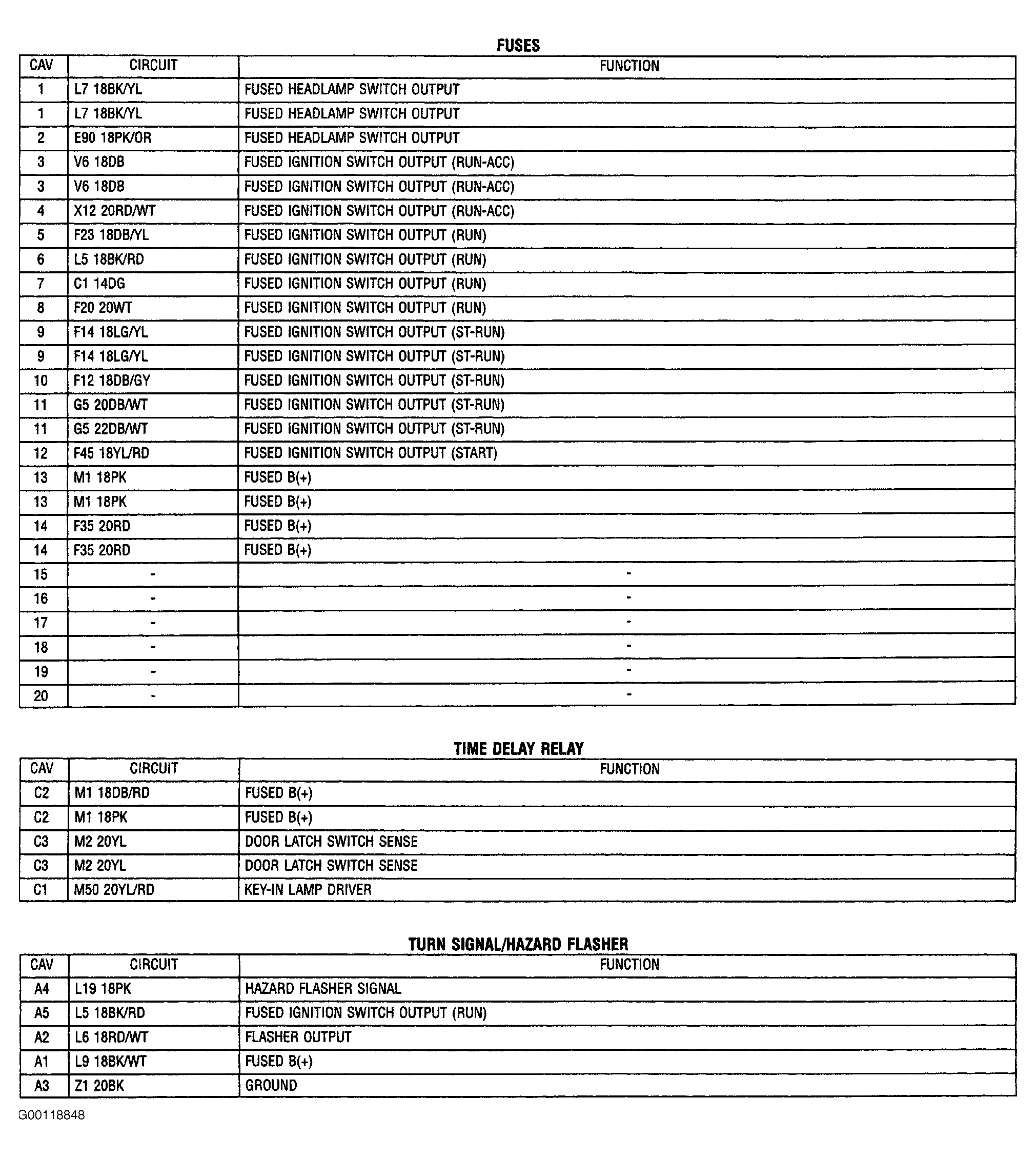

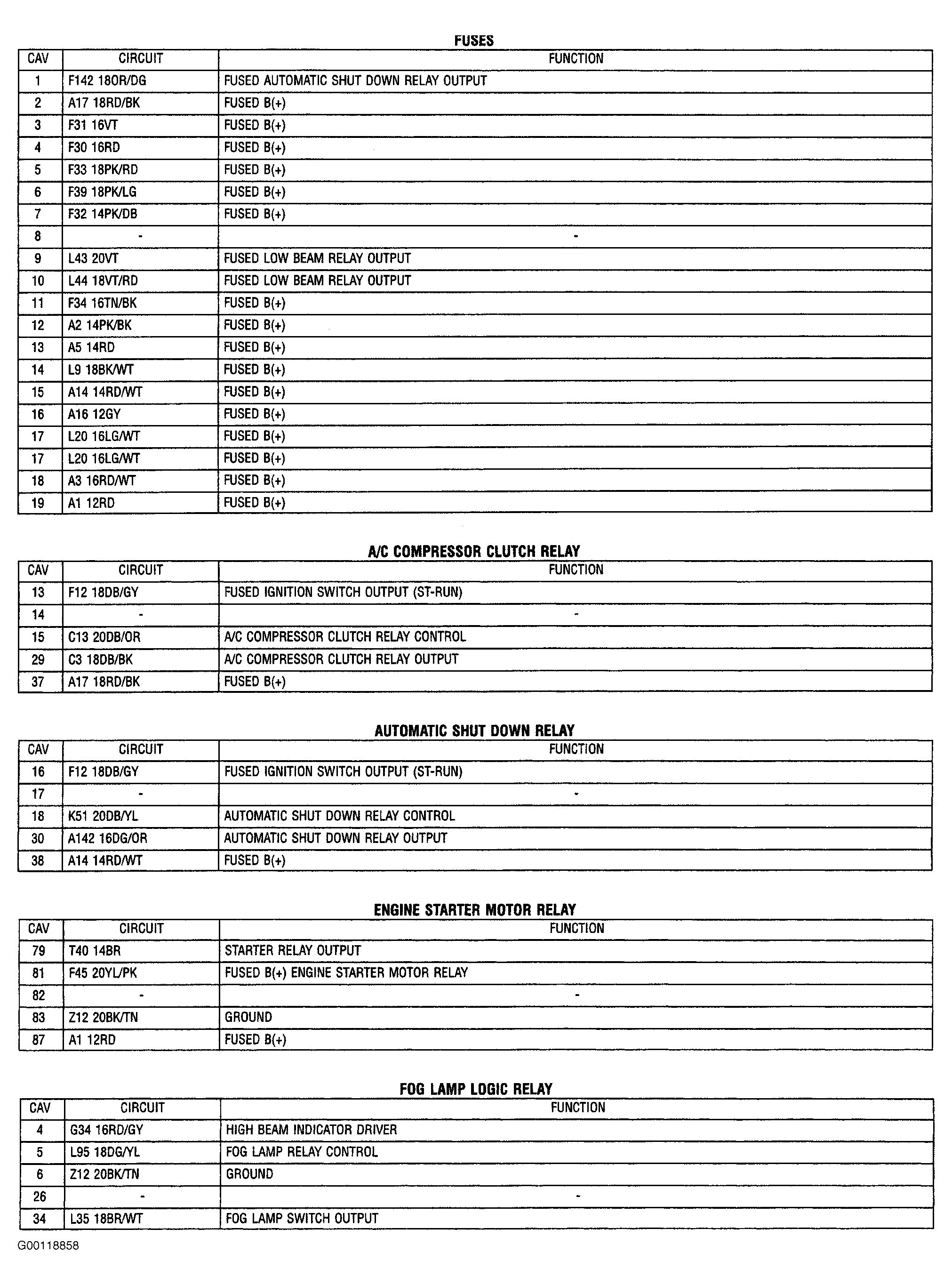

Fig 19: Identifying Front Of Fuse Block (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 20: Identifying Front Of Fuse Block - Component Legend (2 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.

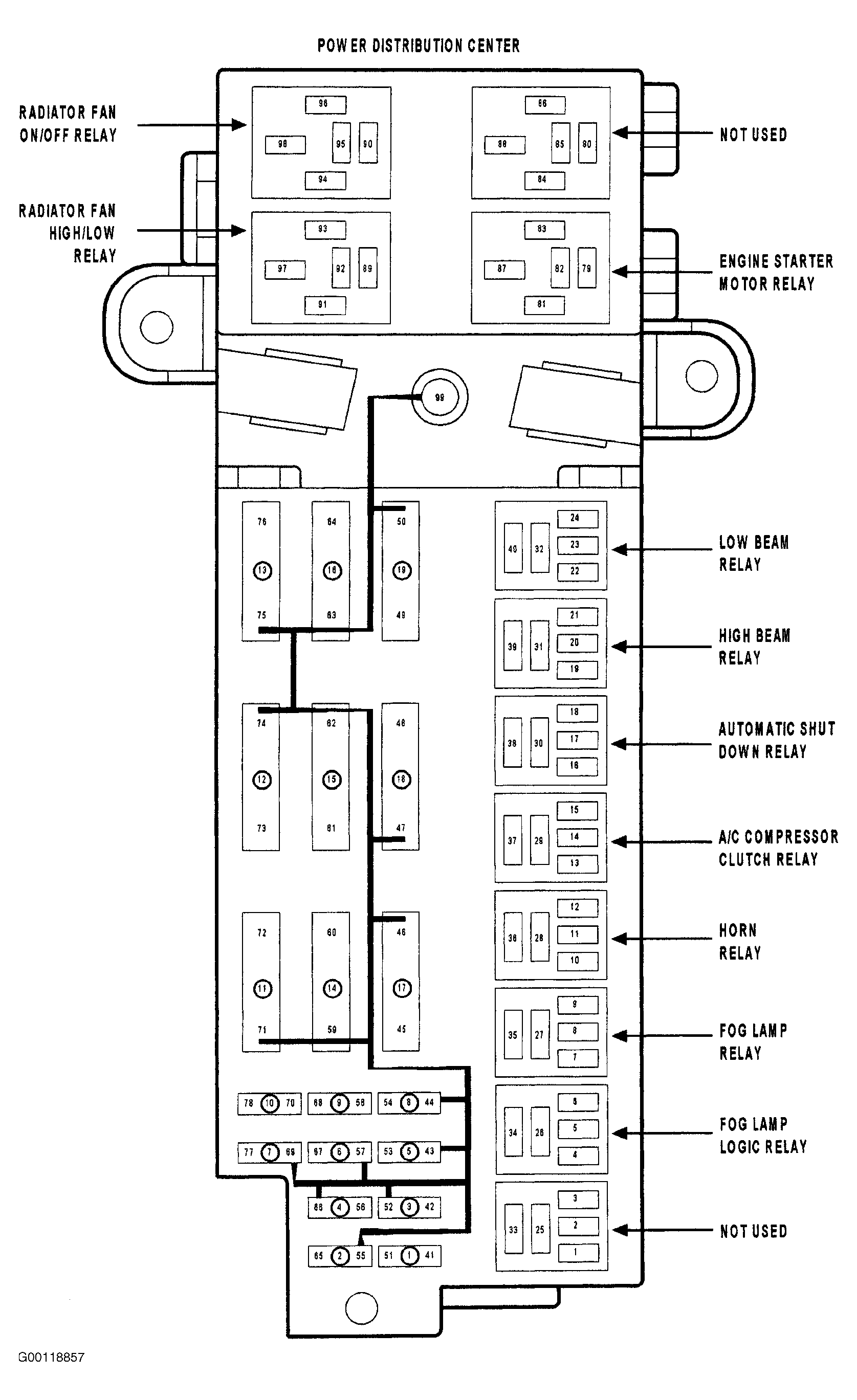

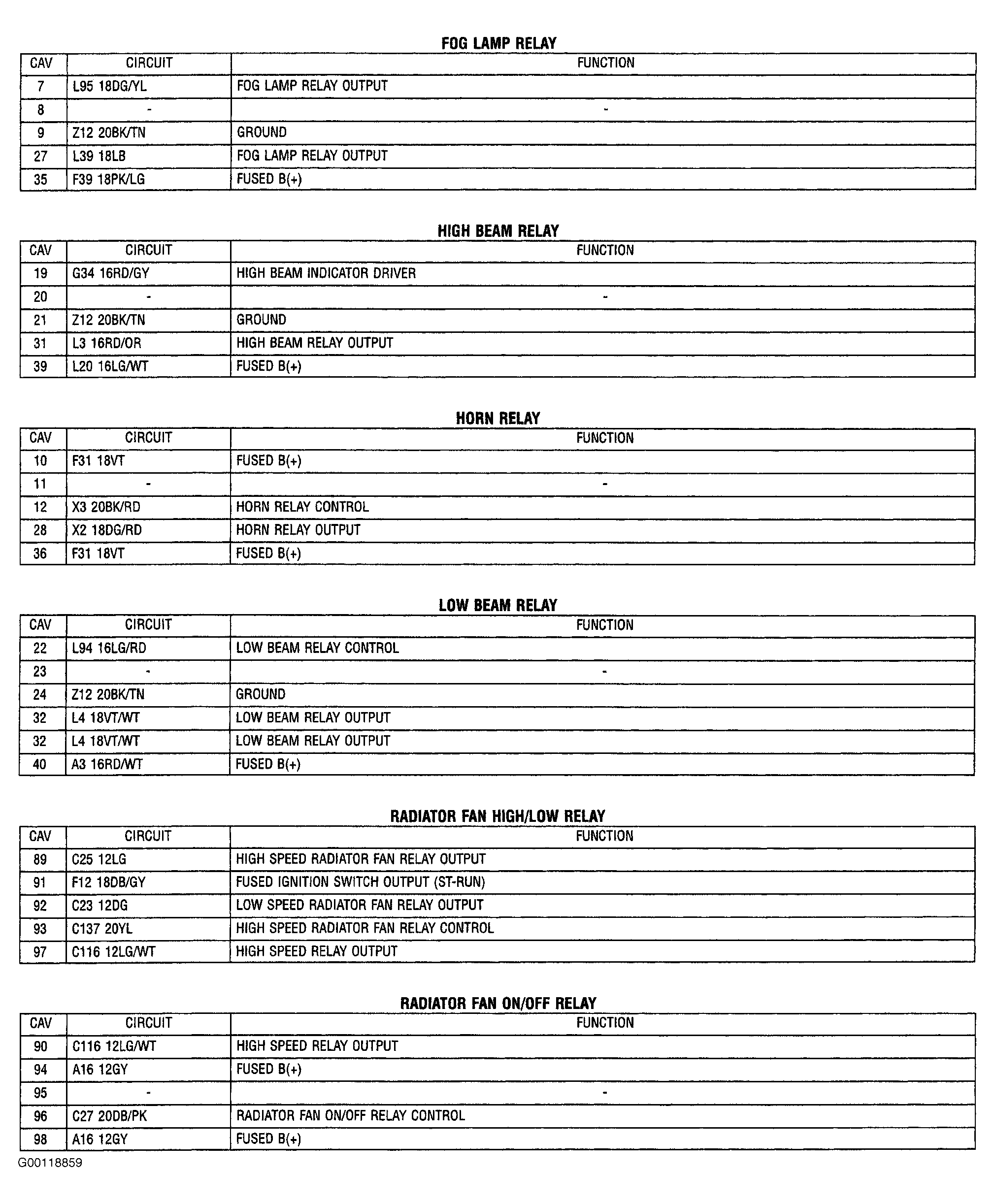

Fig 21: Identifying Power Distribution Center (1 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 22: Identifying Power Distribution Center Components (2 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 23: Identifying Power Distribution Center Components (3 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.
