Power Windows

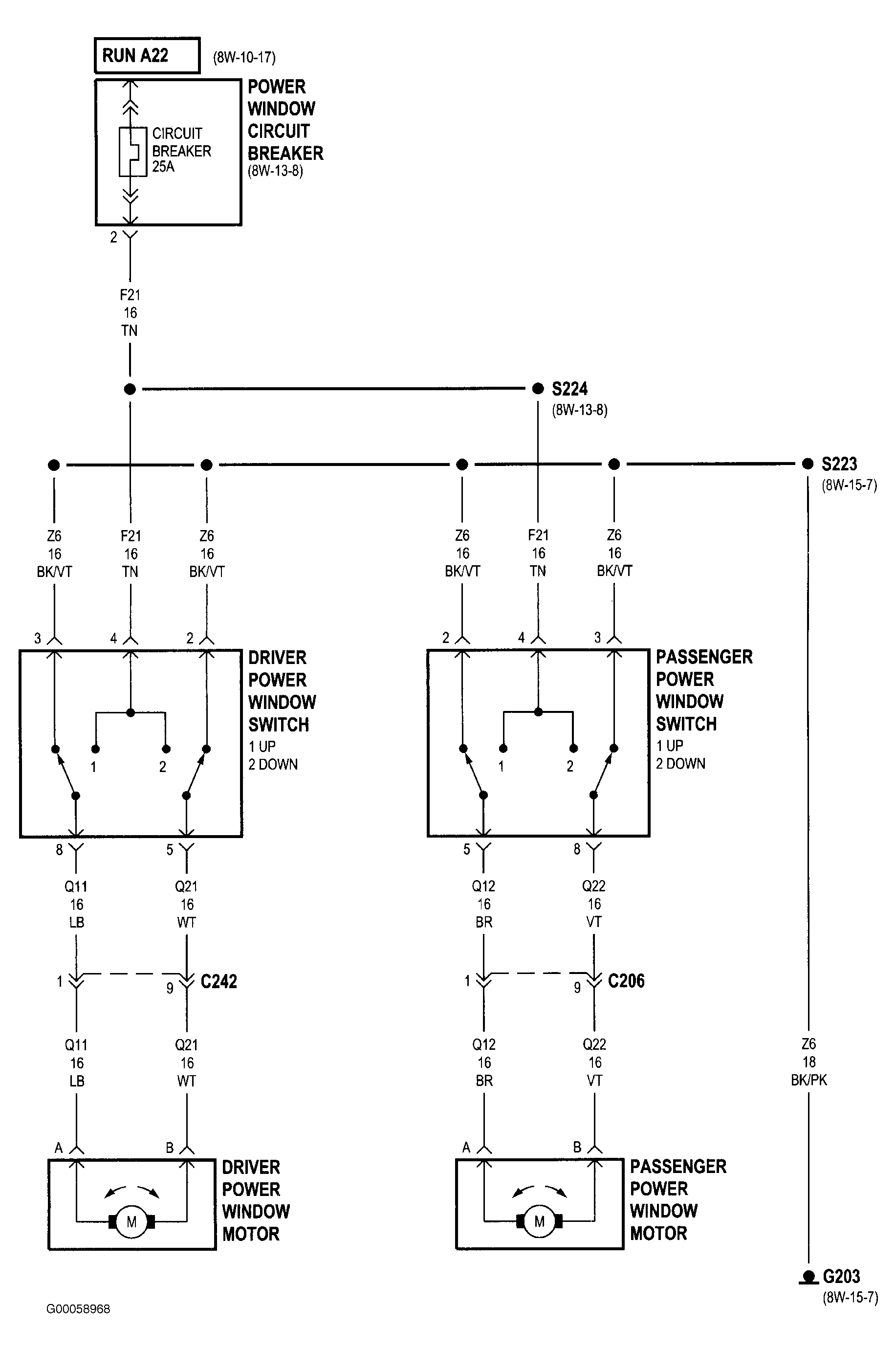

Fig 1: Power Window Wiring Diagram (2000-01)
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
