Ignition Coil: Removal
- Release the fuel pressure, refer to the FUEL PRESSURE RELEASE
.
- Disconnect the negative battery cable.
- Remove the air cleaner assembly, refer to the
AIR INTAKE
for more information.
- Remove the Intake Manifold, refer to the
INTAKE MANIFOLD
for more information.

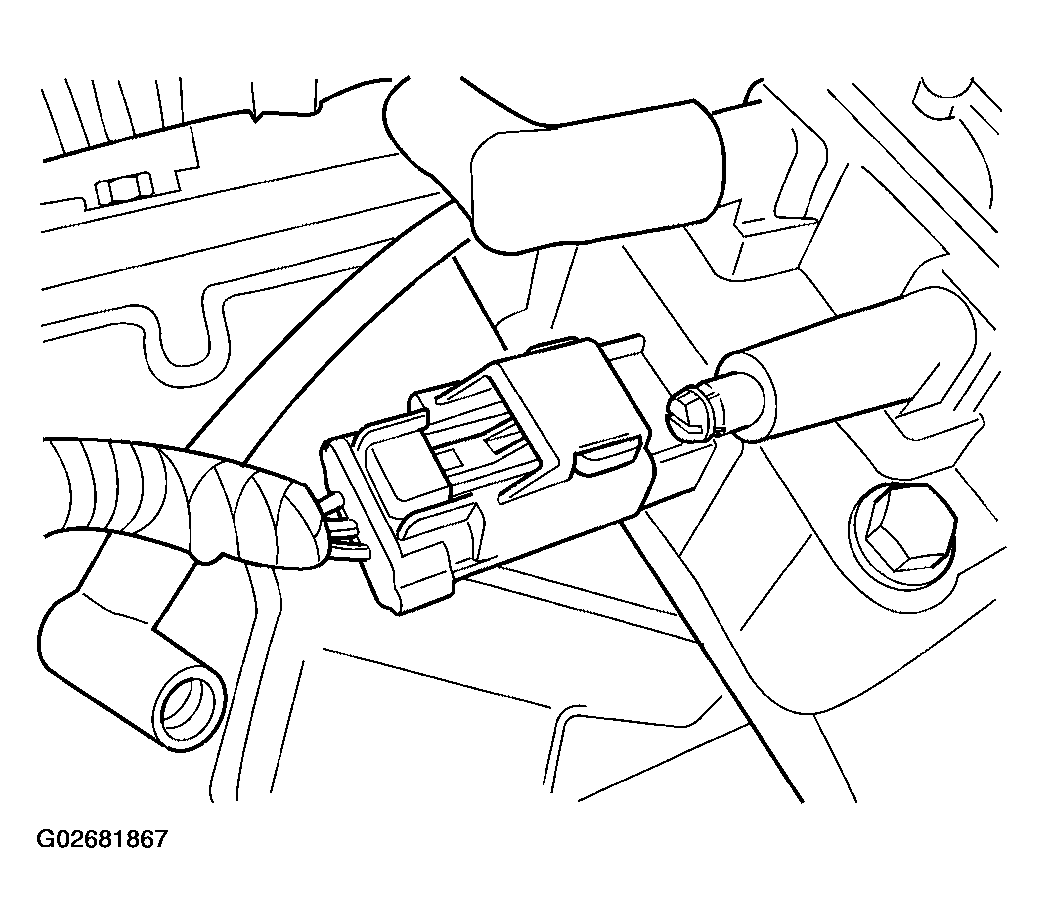

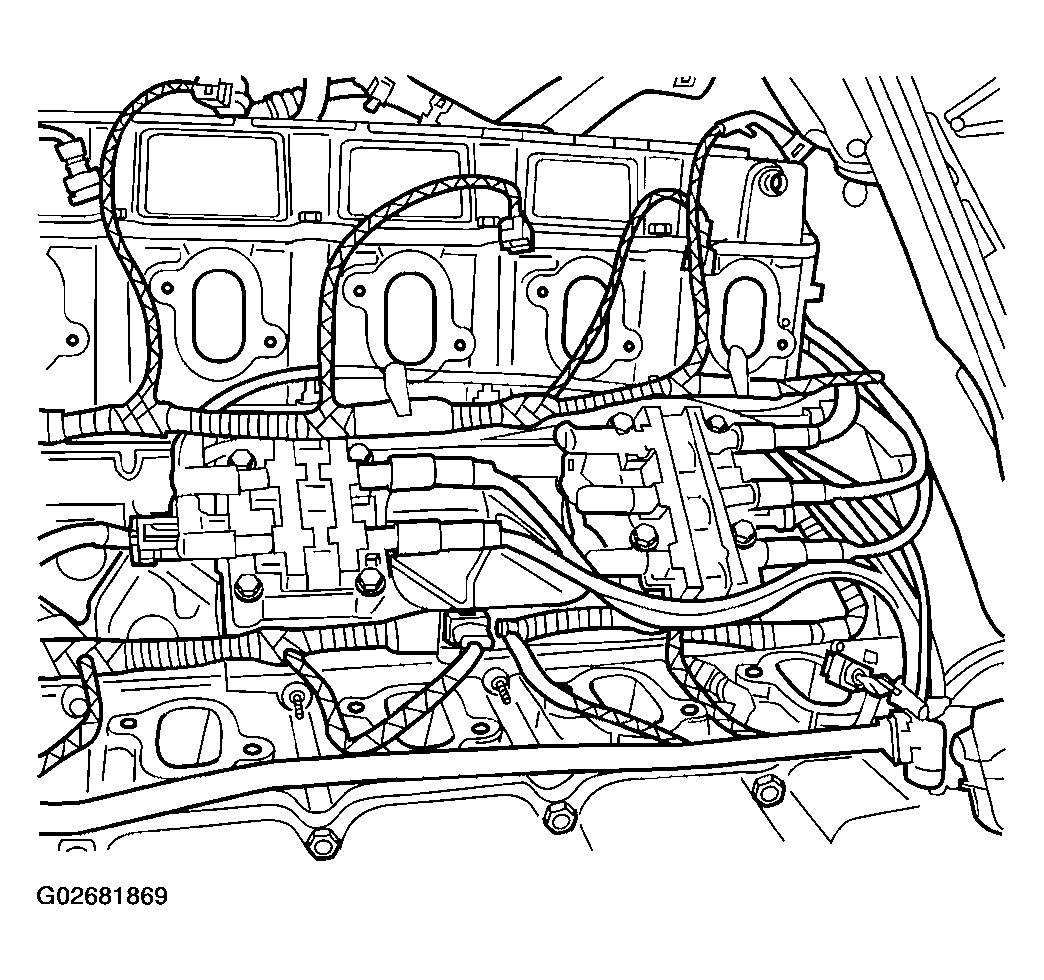

- Unlock and disconnect the electrical connector at the ignition coils (Fig 1
) and (Fig 2
).
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
- Twist and remove the ignition cables from the ignition coil.

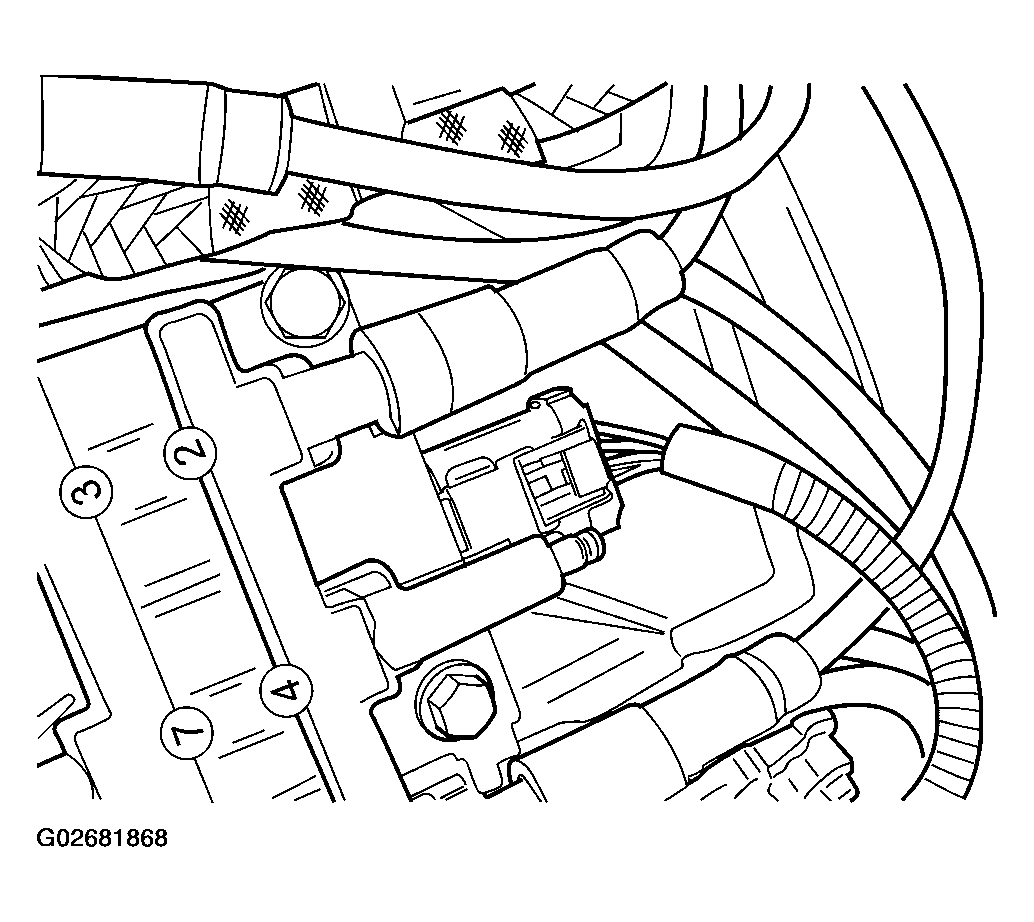

- Remove the 4 bolts (Fig 3
).
Courtesy of DAIMLERCHRYSLER CORP.
- Remove ignition coil.
