Verification Tests

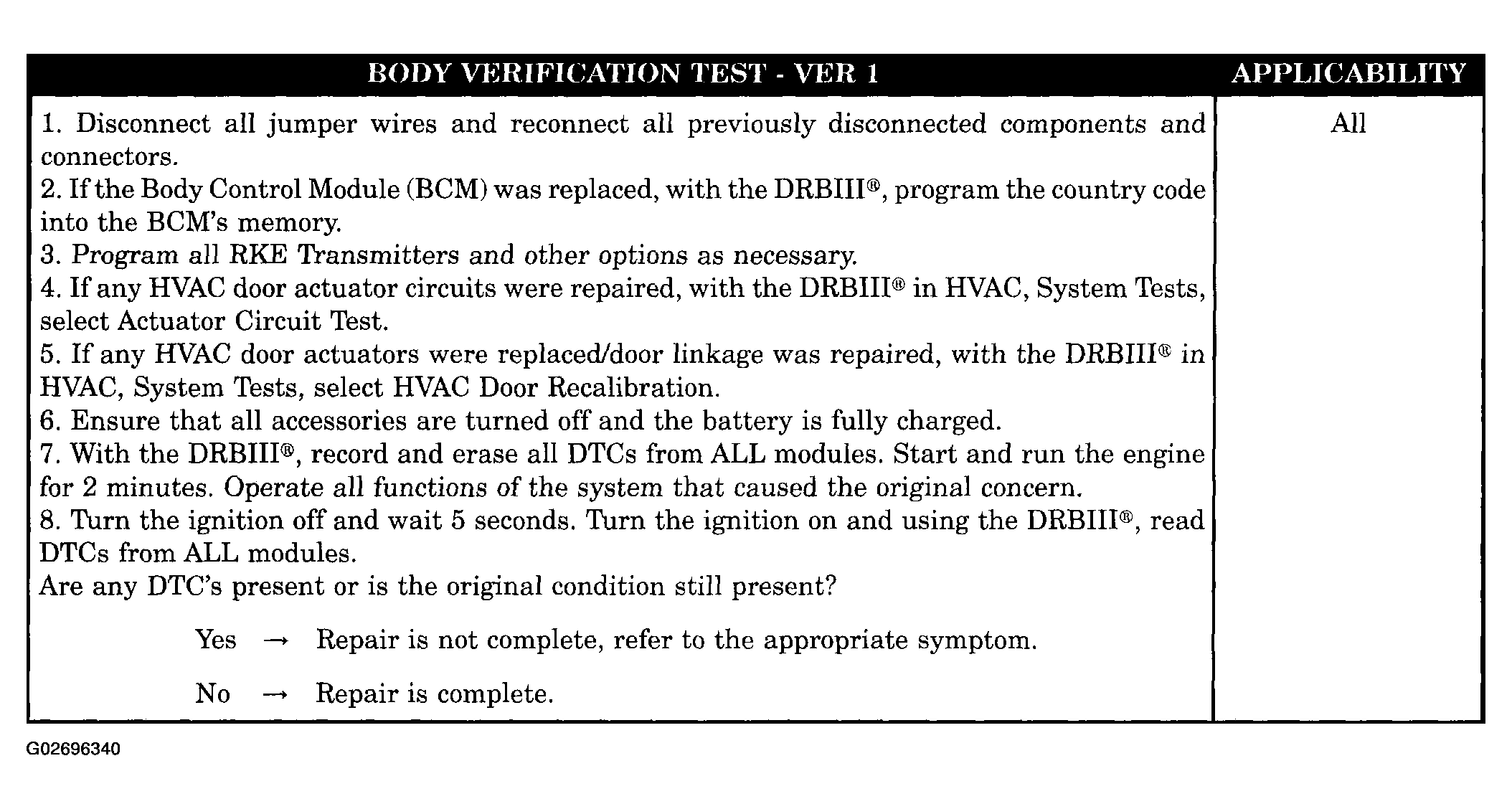

Fig 1: Body Verification Test - Ver 1

G02696340

Courtesy of DAIMLERCHRYSLER CORP.

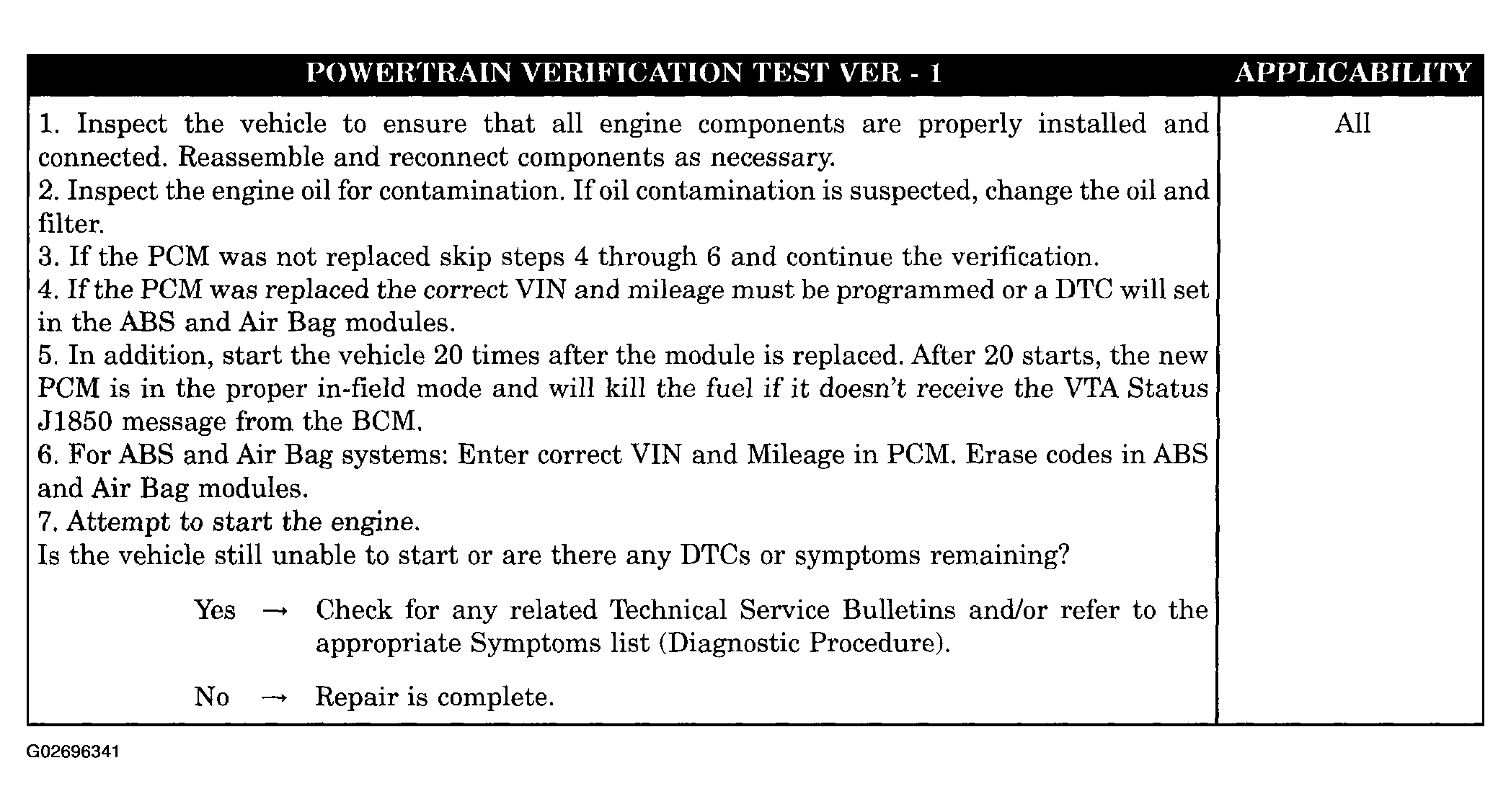

Fig 2: Powertrain Verification Test - Ver 1

G02696341

Courtesy of DAIMLERCHRYSLER CORP.

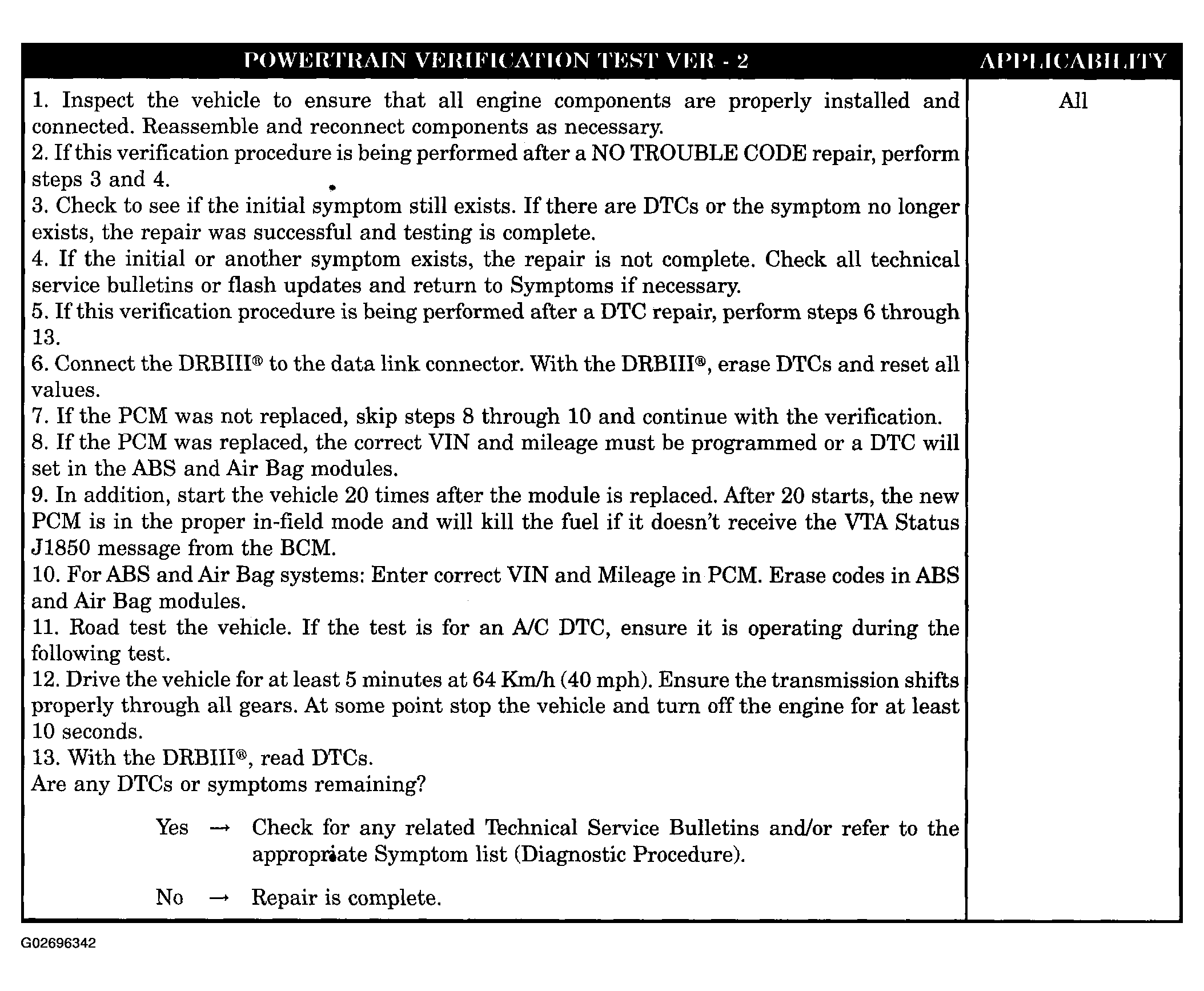

Fig 3: Powertrain Verification Test - Ver 2

G02696342

Courtesy of DAIMLERCHRYSLER CORP.

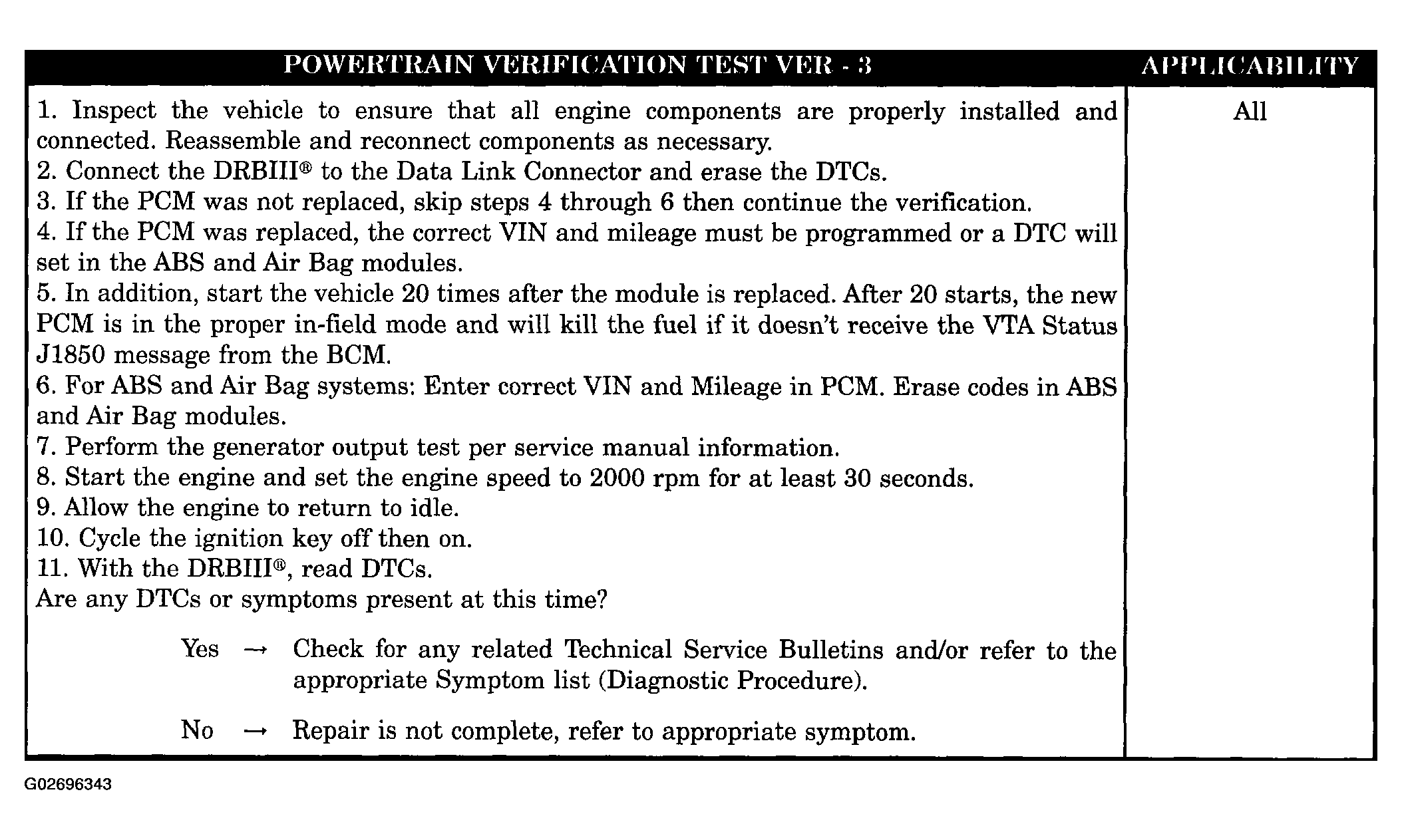

Fig 4: Powertrain Verification Test - Ver 3

G02696343

Courtesy of DAIMLERCHRYSLER CORP.

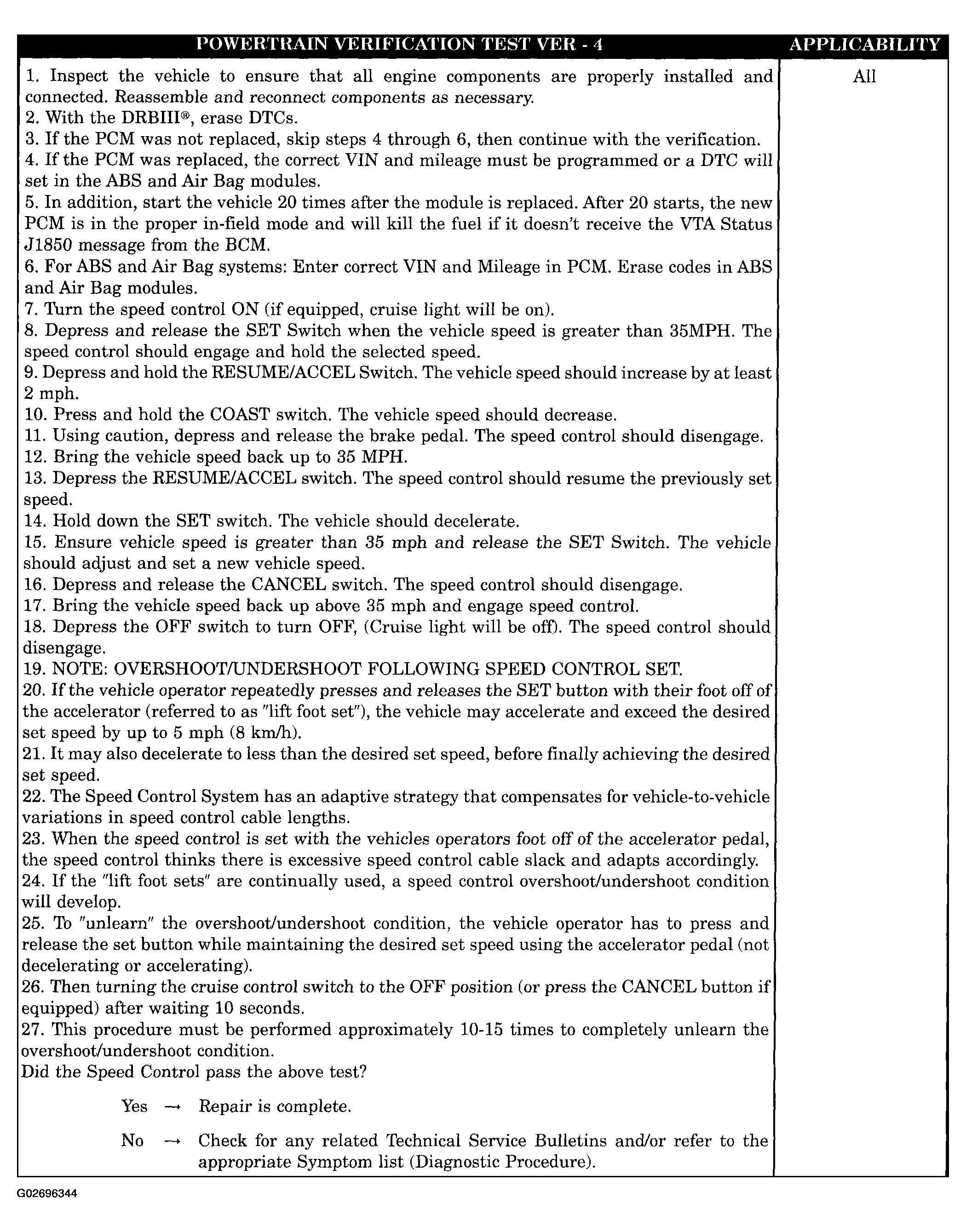

Fig 5: Powertrain Verification Test - Ver 4

G02696344

Courtesy of DAIMLERCHRYSLER CORP.

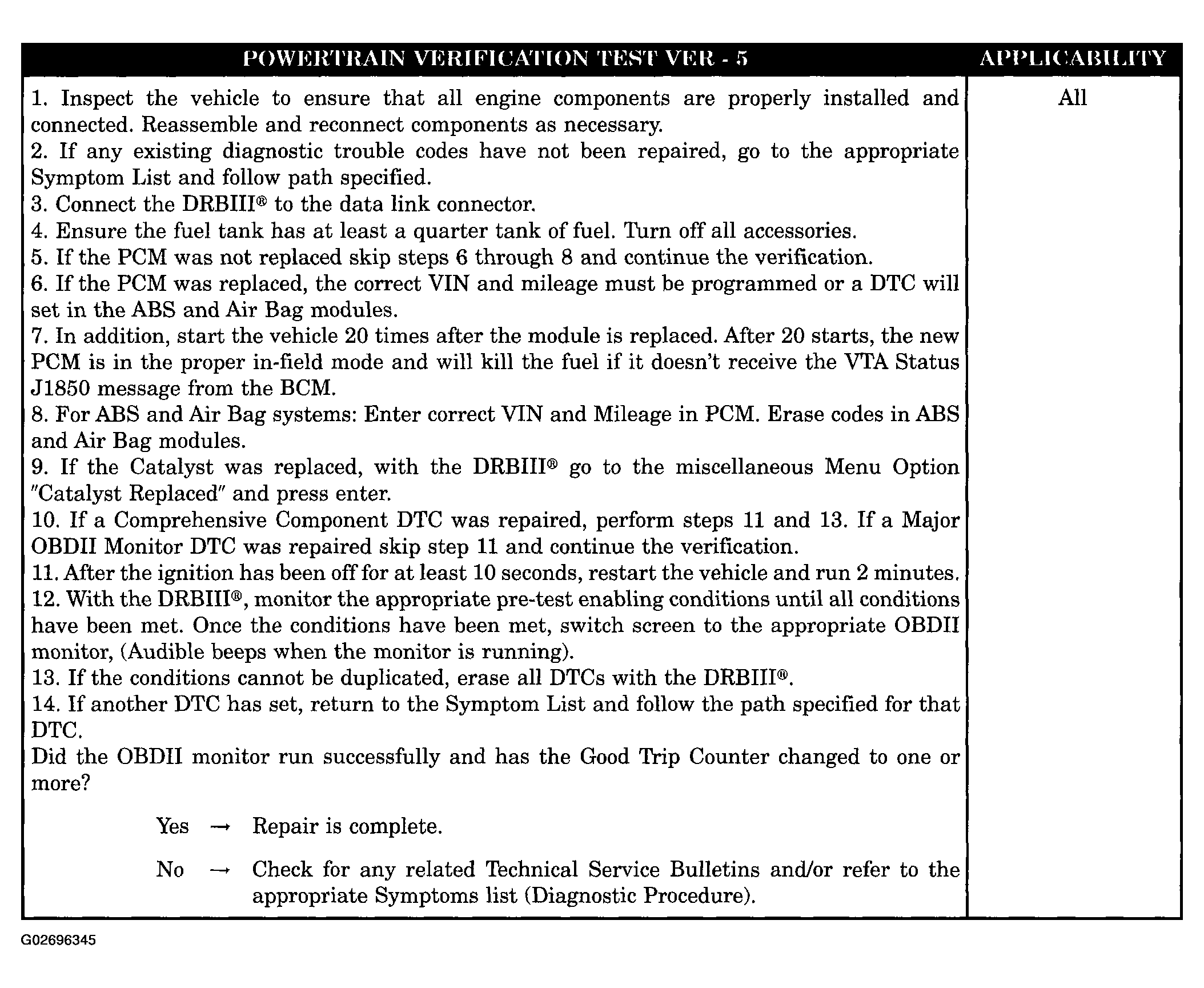

Fig 6: Powertrain Verification Test - Ver 5

G02696345

Courtesy of DAIMLERCHRYSLER CORP.

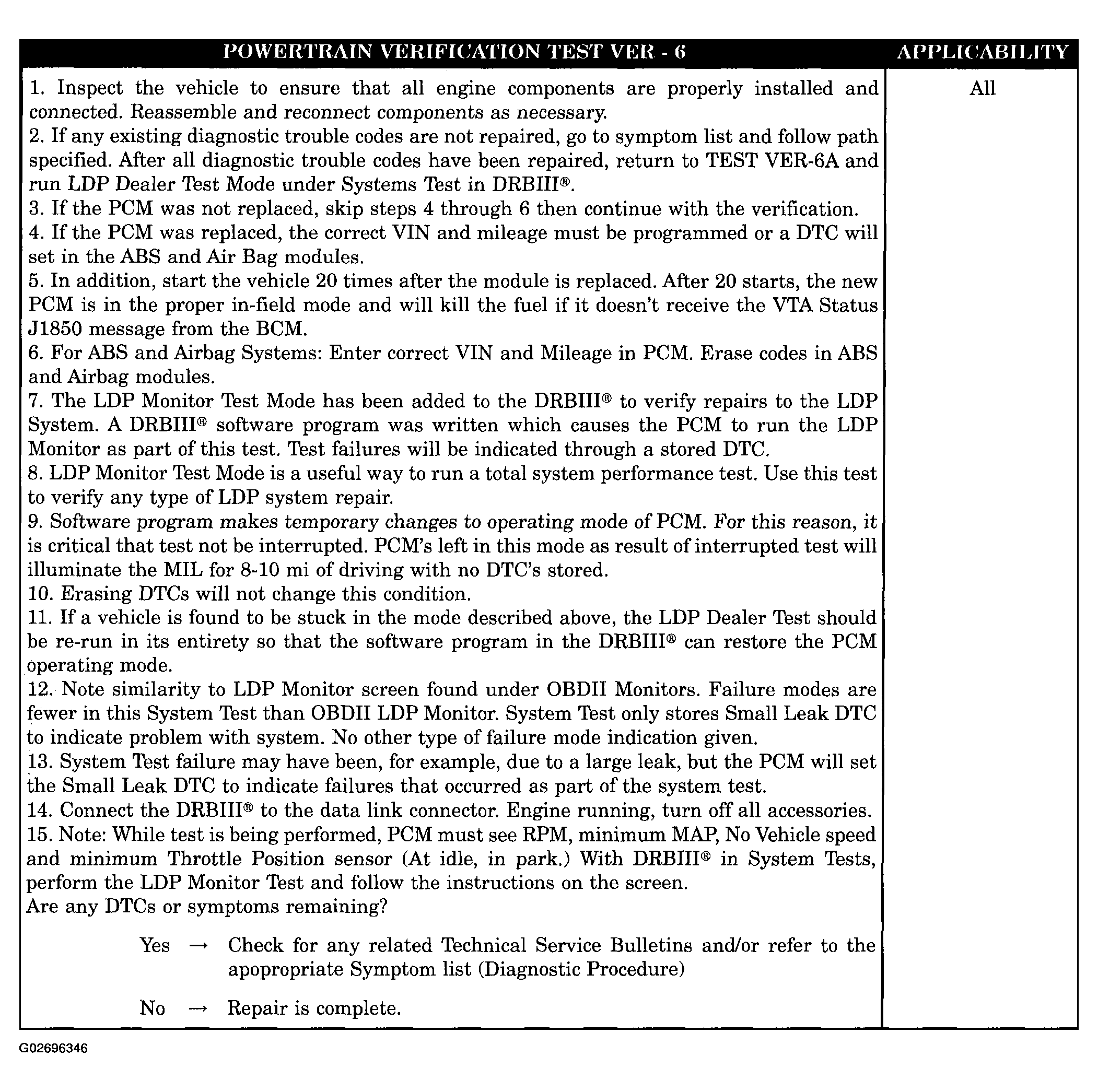

Fig 7: Powertrain Verification Test - Ver 6

G02696346

Courtesy of DAIMLERCHRYSLER CORP.
