Powertrain Control Module C2-Black/White 32 Way

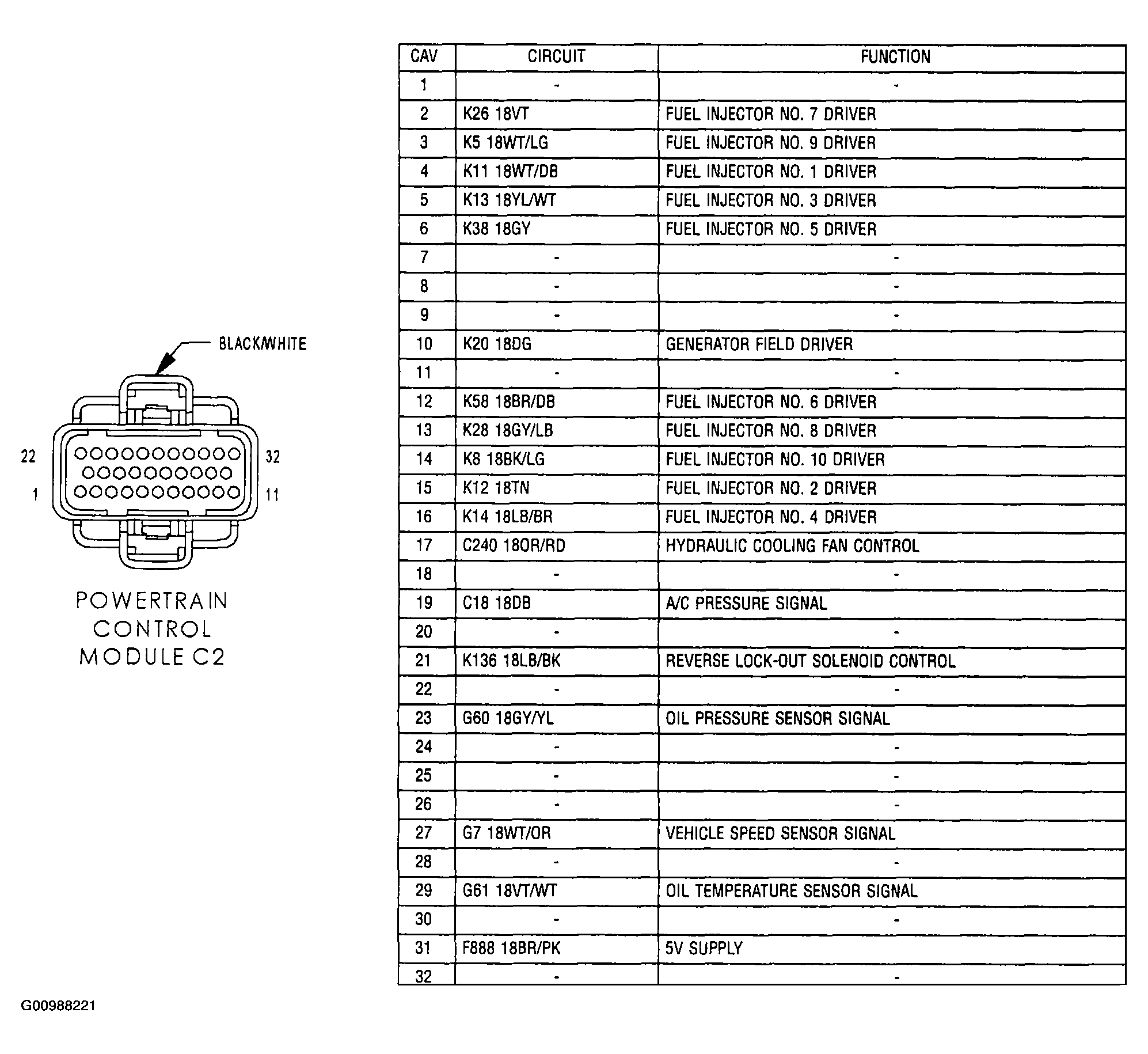

Fig 1: View Of Powertrain Control Module C2 32 Way Connector Pinouts And Function Description Chart
G00988221Courtesy of DAIMLERCHRYSLER CORP.
