Door Module - Installation

INSTALLATION

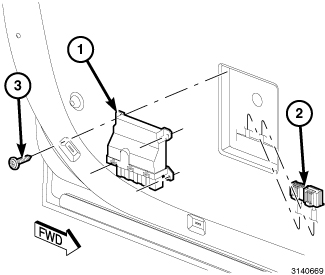

1. Position the door control module (1) to the door inner panel.
2. Install and tighten the screws (3) that secure the door control module to the door inner panel. Tighten the screws securely.
3. Reconnect each of the door wire harness connectors (2) to the connector receptacles of the door control module.
4. Reinstall the trim panel to the inside of the door. Front Door Trim Panel - Installation.
5. Reconnect the battery negative cable.
