Sensor, Crankshaft Position: Installation

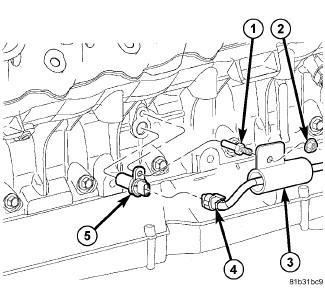

- Install crankshaft position sensor (CKP) (5) and mounting stud (1) to engine block. Tighten stud to 9 N.m (79.5 in. lbs.).
- Connect electrical connector (4) to CKP (5).
- Install heat shield (3) and nut (2) to stud (1). Tighten nut to 8 N.m (71 in. lbs.).NOTE:
The Learn Mis-Fire Adaptive Numerator MUST be performed after the crankshaft position sensor has been replaced. Follow the instructions on the scan tool.
