Sensor, Air Temperature, Inlet: Installation
CAUTION:
Take care not to damage the sensor when installing to the air inlet hose.
NOTE:

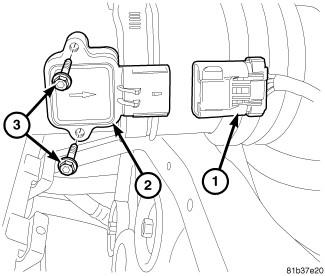

Left inlet air temperature sensor shown the right side installed the same way.
- Install sensor (2) and bolts (3) to air inlet hose. Tighten bolts 2 N.m (18 in. lbs.).
- Connect the electrical connector (1) to the inlet air temperature sensor (2).
- Connect the negative battery cable, tighten the nut to 10 N.m (90 in. lbs.).
