Sensor, Oxygen: Description
 Courtesy of CHRYSLER GROUP, LLC
|

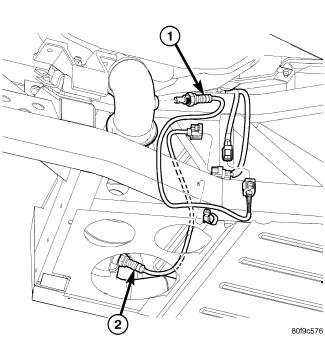

| 1 - Upstream O2 Sensor |
| 2 - Downstream O2 Sensor |
The upstream O2 sensors are in the exhaust system in the exhaust manifold collector area before the upstream catalytic convertor.
The downstream O2 sensors are in the exhaust system in between the catalytic convertors.
