Valve, Cascade Overflow: Installation

Courtesy of CHRYSLER GROUP, LLC

Inspect the cascade overflow valve O-ring seals (1, 3).

Courtesy of CHRYSLER GROUP, LLC

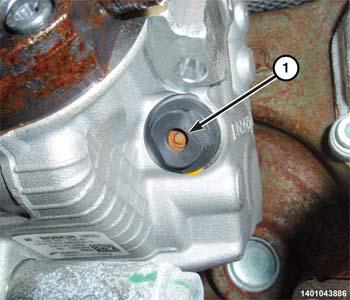

Install the cascade overflow valve (1) and tighten to 18 N.m (159 in. lbs.).

Courtesy of CHRYSLER GROUP, LLC
Install the Charge Air Cooler (CAC) hose (2) to the EGR air flow control valve elbow and securely tighten clamp (1).
Install the radiator crossmember. Refer to CROSSMEMBER, RADIATOR, INSTALLATION .
