Inlet Temperature Sensor

  1. Disconnect and isolate the negative battery cable.
  2. Remove the EGR cooler. Refer to COOLER, EXHAUST GAS RECIRCULATION (EGR), REMOVAL .

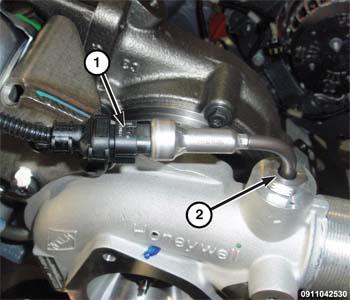

    GC0161960Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the inlet air temperature sensor wire harness connector (1).
  4. Remove the inlet air temperature sensor (2).
