Pedal, Accelerator: Installation

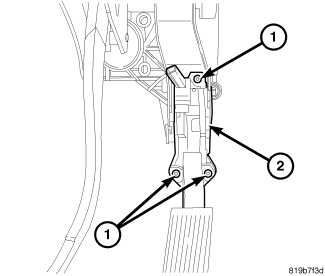

GC0124466Courtesy of CHRYSLER GROUP, LLC
  1. Install accelerator pedal assembly (2) to the pedal module.
  2. Install accelerator pedal mounting bolts (1) and tighten to the proper torque specification. Refer to FUEL INJECTION, GAS, TECHNICAL SPECIFICATIONS .
  3. Connect electrical connector.
  4. Connect negative battery cable.
  5. Use a scan tool and select the ETC RELEARN function to relearn the APPS values.
