Sensor, Manifold Absolute Pressure (Map): Installation

Courtesy of CHRYSLER GROUP, LLC

1. The manifold air pressure (MAP) sensor O-ring (1) can be reused if not damaged.
2. Apply a small amount of engine oil to the sensor O-ring (1).

   Courtesy of CHRYSLER GROUP, LLC

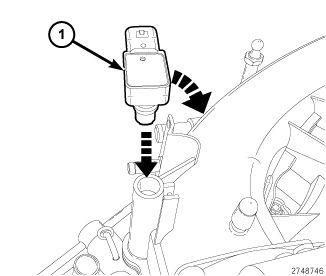

3. Install the MAP sensor (1) into the upper intake manifold and rotate 1/4 turn clockwise.

   Courtesy of CHRYSLER GROUP, LLC

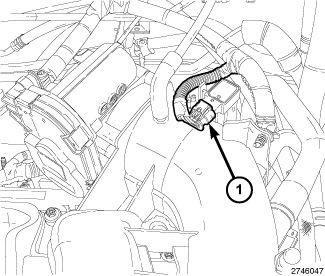

4. Connect and lock the electrical connector (1) to the sensor.

   Courtesy of CHRYSLER GROUP, LLC

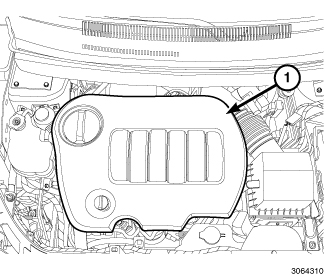

5. Install the engine cover (1).
6. Connect the negative battery cable.
