Coil, Ignition: Installation: Left
- Using compressed air, blow out any dirt or contaminants from around the top of spark plug.

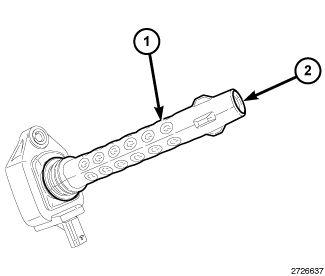

- Check the condition of the ignition coil rubber boot (1). Inspect the opening of the boot (2) for any debris, tears or rips. Carefully remove any debris with a lint free cloth.CAUTION:
Do not apply a silicone based grease such as Mopar® Dielectric Grease to the ignition coil rubber boot. The silicone based grease will absorb into the boot causing it to stick and tear.

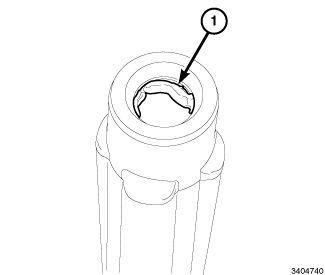

- Place a small, 360° bead of Uniflor 8172
lubricant (1) along the inside opening of the coil boot approximately 1 to 2 mm from the chamfer edge but not on the chamfered surface.
- Position the ignition coil (2) into the cylinder head cover opening. Using a twisting action, push the ignition coil onto the spark plug.
- Install the ignition coil mounting bolt (3) and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
- Connect and lock the electrical connector (1) to the ignition coil (2).
- Install the insulator and the upper intake manifold. Refer to MANIFOLD, INTAKE, INSTALLATION .
- Connect the negative battery cable.
