Center, Power Distribution (PDC): Description
Power is distributed via the junction units and/or fuse boxes, located on the battery, in the engine compartment, under the dashboard (Body Control Module) and in the optional upfitter wiring control unit (see below), connected to control elements (relays and static actuators) to ensure maximum electrical protection and minimum complexity. The Power Distribution Center (PDC) is supplied power from the battery by a direct, non-fused connection.
Underhood Power Distribution Center (PDC)
The under hood PDC is located on the driver side of the engine compartment next to the battery.
To access the internal components of the PDC, remove the screws (1) and the cover.

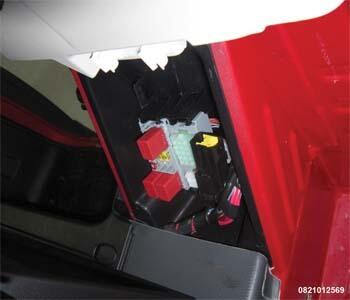

Interior Power Distribution Center (PDC) - Upfitter Module
The interior PDC and upfitter assembly includes fuses and relays for the interior operations in this vehicle. This component also houses connectivity for upfitting the vehicle. This is located on the right side of the van between the passenger side door and the passenger side sliding door. Remove the lower trim panel to access this component.
For fuse description and layout. Refer to FUSE - RELAY LOCATIONS AND TYPES, SPECIFICATIONS .
