Injector(S), Fuel: Installation

Courtesy of CHRYSLER GROUP, LLC

Lightly lubricate new O-ring seals (1) with engine oil and install on the fuel injector (2).

Courtesy of CHRYSLER GROUP, LLC

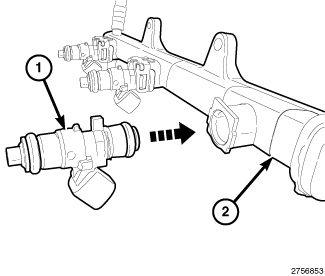

NOTE:
Number 2 fuel injector installation shown in illustration, all other fuel injectors similar.
Install the fuel injectors (1) to the fuel rail (2).

Courtesy of CHRYSLER GROUP, LLC

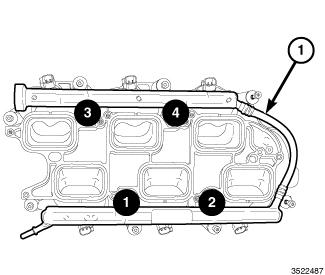

Install the fuel rail (1), upper inlet manifold and air inlet hose. Refer to RAIL, FUEL, INSTALLATION .
Connect the negative battery cable.
Start the engine and check for leaks.
