Capacitor, Ignition: Installation

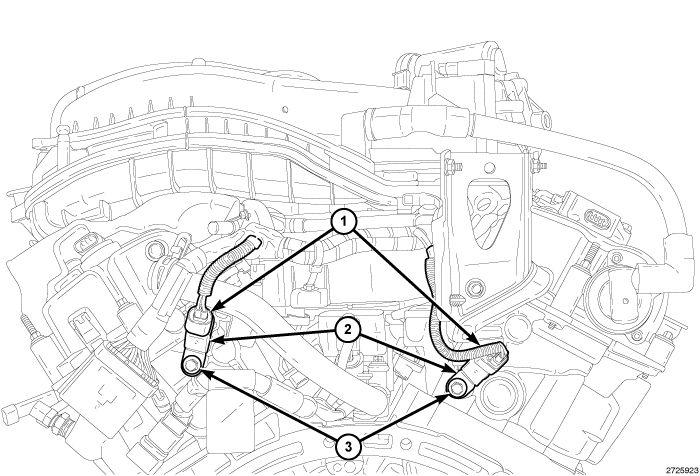

GC0144203Courtesy of CHRYSLER GROUP, LLC
  1. Install the ignition coil capacitor (2) and bolt (3). Tighten the bolt to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  2. Connect the electrical connector (1).
  3. Connect the negative battery cable and tighten nut to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
