Wheel, Steering: Installation

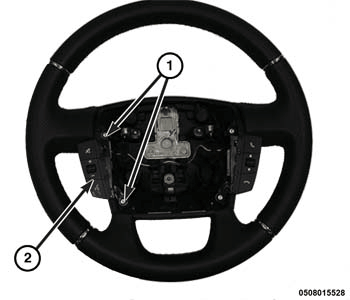

- Install remote audio control switches on steering wheel. Refer to SWITCH, REMOTE RADIO, INSTALLATION
.CAUTION:
When installing the steering wheel, the clockspring must be centered in its travel to avoid overextending the clockspring inner parts, causing the clockspring to become inoperative. If removed and handled properly using the correct procedures, it should be in the "centered" position at this time. If there is any question as to whether the clockspring is in the "centered" position of travel, perform the clockspring centering procedure before proceeding to avoid damaging clockspring.
NOTE:Do not reuse the old steering wheel nut, a new nut must be used every time.
- Line up the steering wheel with the steering shaft and install the steering wheel.
- Install a NEW steering wheel retaining nut and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
- Install the retaining nut cap (1).

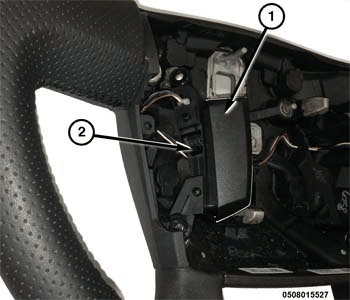

- Connect the air bag wiring connector (2) at the switch bank (1).
- Install the switch bank (2) and screws (1).
- Install the driver airbag. Refer to AIR BAG, DRIVER, INSTALLATION
.WARNING:
Do not connect the battery ground cable without following the proper procedure as indicated in the following step. Personal injury or death may result if the Airbag System Test is not performed first.
- Reconnect the battery ground terminal following the airbag system test found in restraints. Refer to DIAGNOSIS AND TESTING .
- Road test the vehicle. Check operation of steering wheel mounted controls.
