Fan, Cooling: Installation

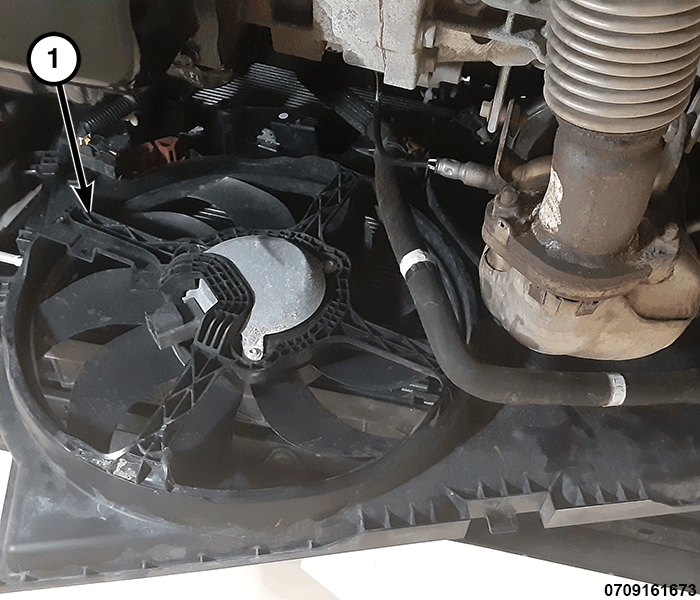

GC0190564Courtesy of CHRYSLER GROUP, LLC
  1. Install the cooling fan (1) from the bottom.
  2. Remove the support and lower the vehicle.

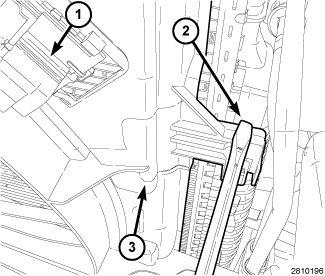

    GC0145992Courtesy of CHRYSLER GROUP, LLC
  3. Position the radiator cooling fan (3) into mounts and attaching clips (2) on the radiator. Press down to lock into place.
  4. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  5. Install the two retainer clips securing the lower coolant hose.

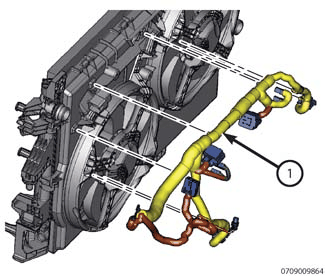

    GC0160412Courtesy of CHRYSLER GROUP, LLC
  6. Install the harness (1) onto the cooling fan.

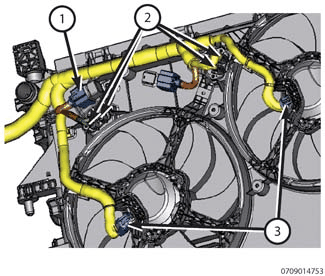

    GC0160702Courtesy of CHRYSLER GROUP, LLC
  7. Connect the cooling fan wire harness connectors to the cooling fan relays (1), the resistors (2) and the cooling fan motors (3).
  8. Install the left under body shield. Refer to SHIELD, UNDERBODY, INSTALLATION .
  9. Remove the support and lower the vehicle.

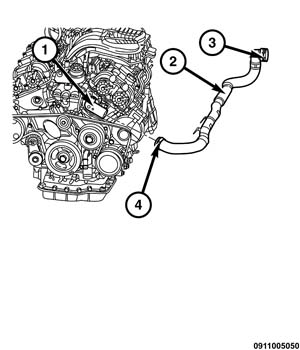

    GC0157476Courtesy of CHRYSLER GROUP, LLC
  10. Attach the two upper radiator hose (2) retainers.
  11. Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION .

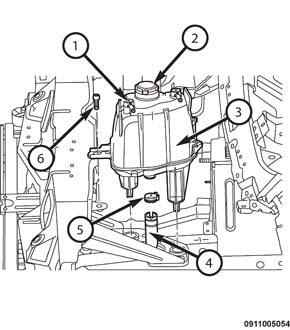

    GC0157472Courtesy of CHRYSLER GROUP, LLC
  12. Install the Pressurized coolant bottle (3) and tighten the fateners to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  13. Install the coolant return hose (1).
  14. Connect the negative cable.
  15. Fill cooling system. Refer to STANDARD PROCEDURE .
