Pump, Water: Description

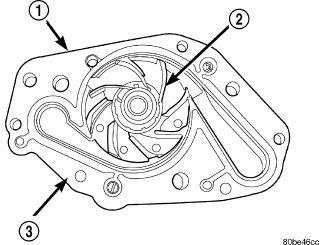

A centrifugal water pump (1) circulates coolant through the water jackets, passages, intake manifold, radiator core, cooling system hoses and heater core. The pump is driven from the engine crankshaft by a single serpentine main drive belt.
The water pump impeller (2) is pressed onto the rear of a shaft that rotates in bearings pressed into the housing. The housing has two small holes to allow seepage to escape. The water pump seals are lubricated by the antifreeze in the coolant mixture. No additional lubrication is necessary.
The water pump (1) is mounted directly to the timing chain cover and is equipped with a non serviceable integral pulley.
