Sensor, Coolant Temperature: Installation

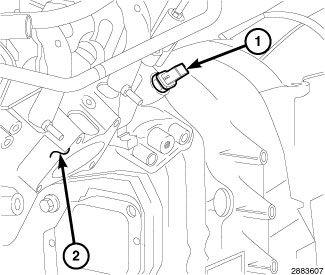

GC0144465Courtesy of CHRYSLER GROUP, LLC
  1. Apply MOPAR® thread sealant with PFTE to sensor threads.
  2. Install the coolant temperature sensor (1) into the cylinder head and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  3. Connect the coolant temperature sensor wire harness connector.
  4. Remove support and lower the vehicle.
  5. Fill the cooling system. Refer to STANDARD PROCEDURE .
  6. Connect the negative battery cable.
