Description And Operation: Notes
 Courtesy of CHRYSLER GROUP, LLC
|
DESCRIPTION

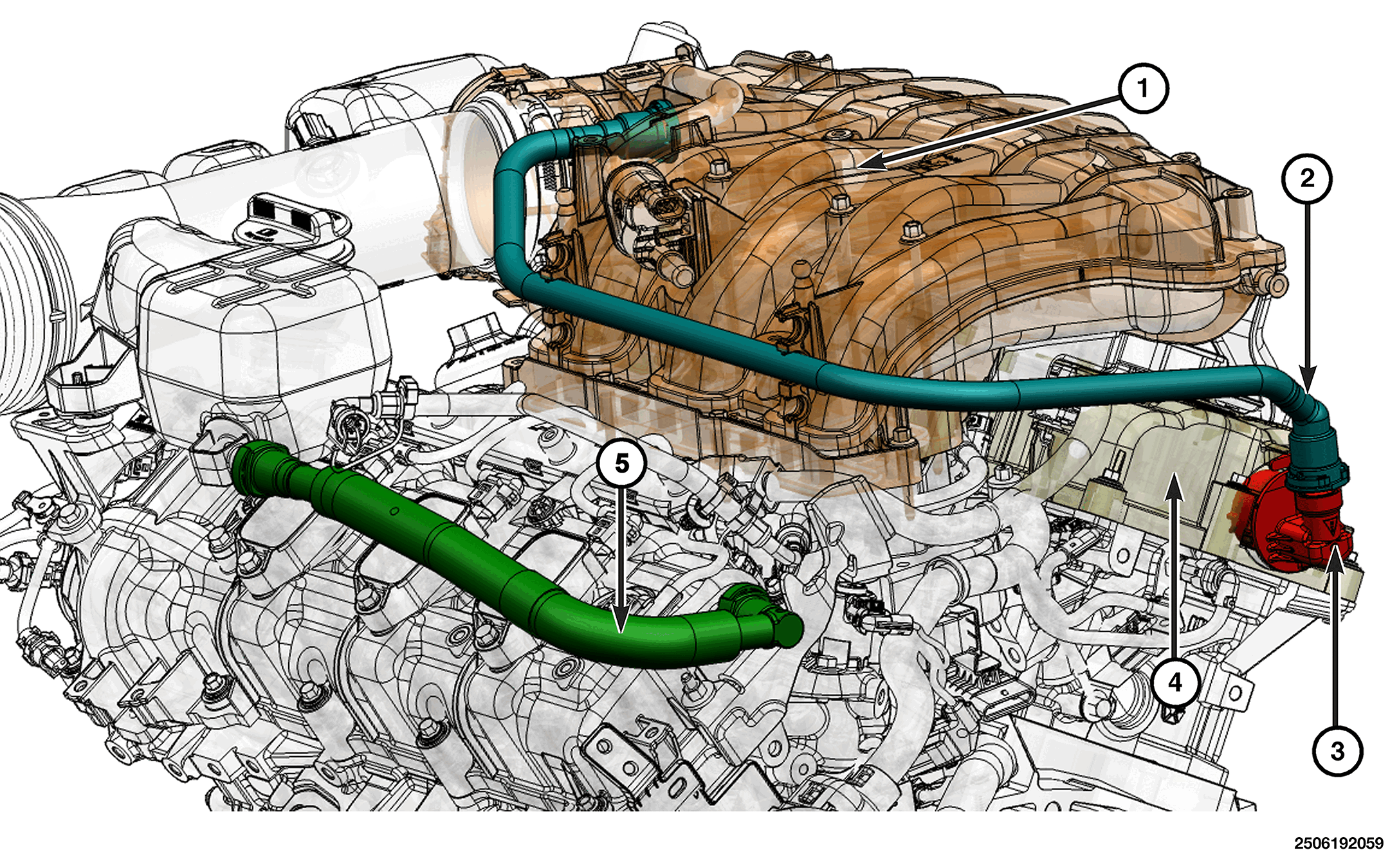

The typical Positive Crankcase Ventilation (PCV) System includes the following components:
COMPONENT INDEX
| 1. |
Intake Manifold |
| 2. |
PCV Tube - dirty air tube |
| 3. |
PCV valve |
| 4. |
Oil Separator - part of valve cover |
| 5. |
Fresh air tube |
