Component Tests and General Diagnostics

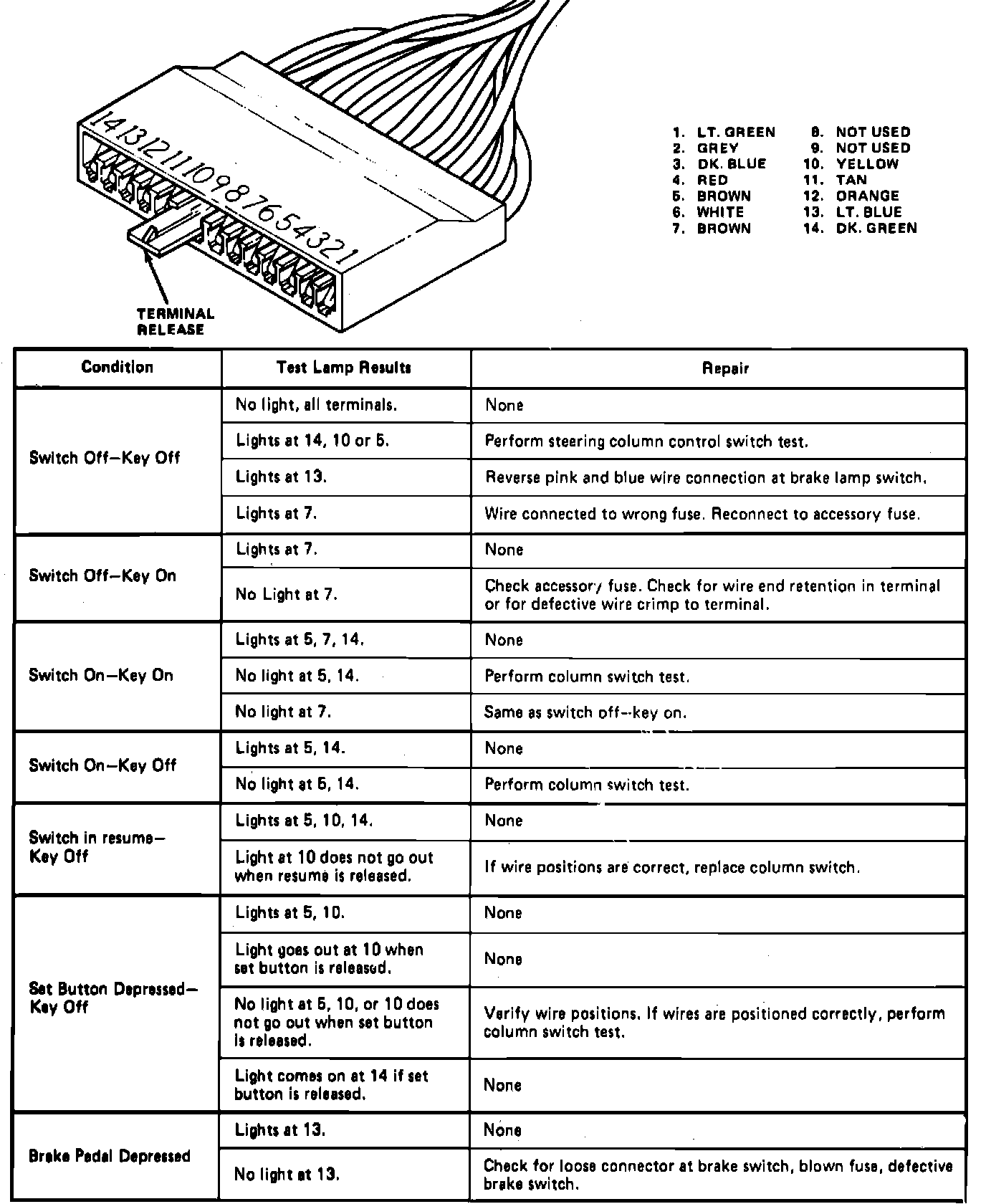

Fig. 5 Cruise Command wiring harness test:

1. Disconnect wiring harness at regulator. Use a suitable tool to depress tab in terminal marked "Terminal Release". Check wires for correct location.
2. Connect test lamp lead to ground and perform wiring harness test as outlined.
