Exploded View Front Axle Less Select Drive

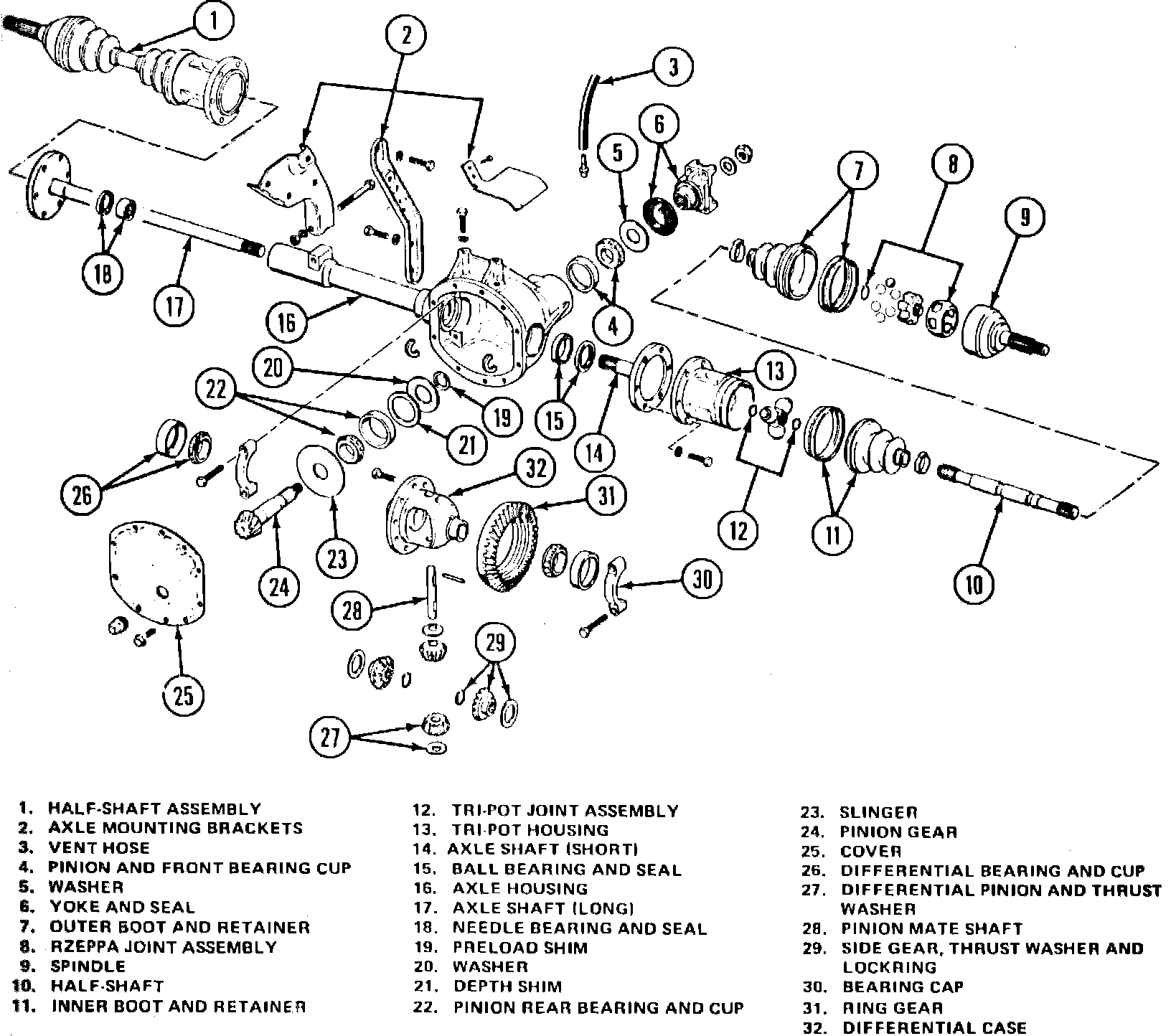

Fig. 1 Front axle assembly. 1982---84 Eagle less Select Drive System:
