Exploded View Front Axle With Select Drive

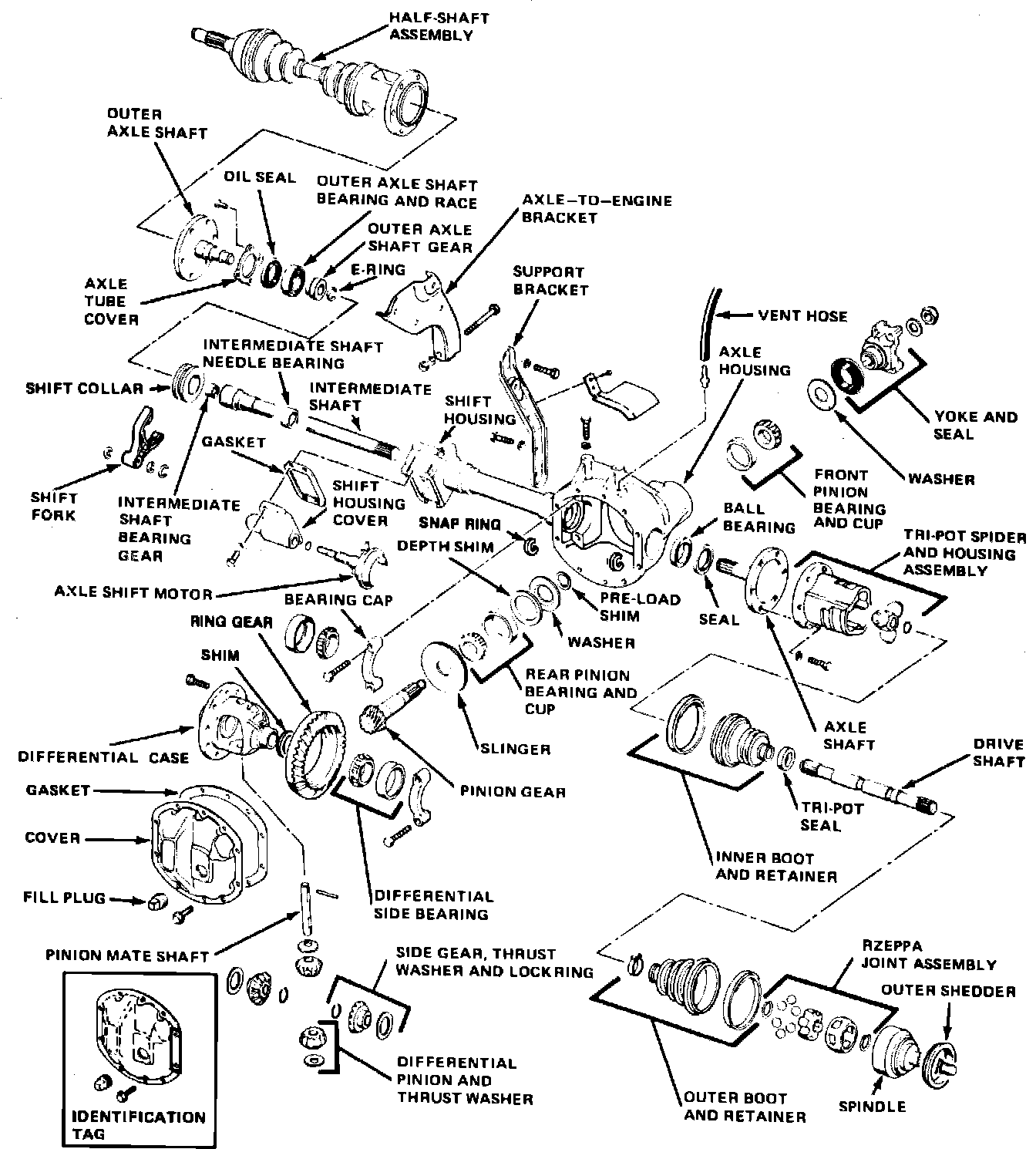

Fig. 2 Front axle assembly. 1982---84 Eagle w/Select Drive System:
